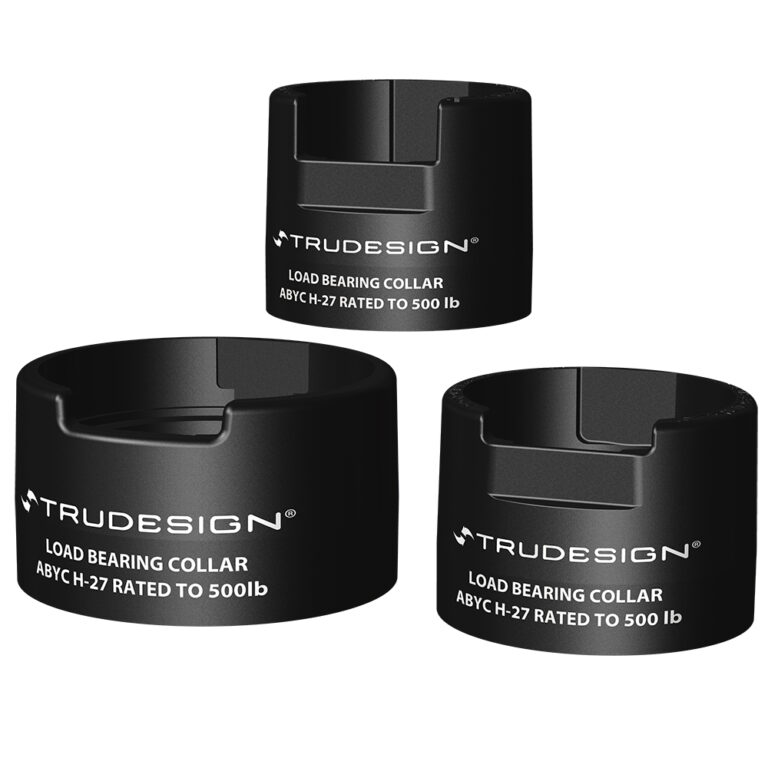

TruDesign Load Bearing Collars

These are designed for use with TruDesign Skin Fittings and Ball Valves. The Collar enables compliance to ABYC H-27 standard for the entire assembly.

Small for ½”, ¾” or 1″ sizes
Medium for 1¼” or 1½” sizes
Large for 2″ size

Features:

ABYC H-27 compliance for ¾”, 1”, 1¼”, 1½”, 2” and 3” size assemblies.
Strength and peace-of-mind. Rates assemblies to withstand a static load of 500 lb (227 kg) at the Tail end for a minimum of 30 seconds

No additional bolts or fasteners through or on to the hull
Unlike flanged seacocks, the TruDesign Load Bearing Collars work without needing to be fastened to the hull

Shrouded protection
Protects vulnerable areas, such as the exposed thread of the Skin Fitting, from
being inadvertently struck by loose items in the hull

Manufactured from a glass-reinforced nylon composite
High strength and lightweight

Immune to corrosion and electrolysis
Long life with no concerns over decreased performance due to corrosion. No bonding required

TruDesign Load Bearing Collar Installation Instructions

Looking to make a TruDesign Seacock? You will need: a skin fitting, a ball valve, a load bearing collar (gives ABYC H-27 compliance) and a threaded hose connector. See all the compatible products below. Or our How to Create a TruDesign Composite Seacock Guide.
