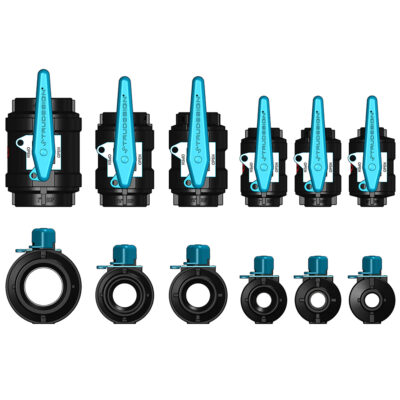

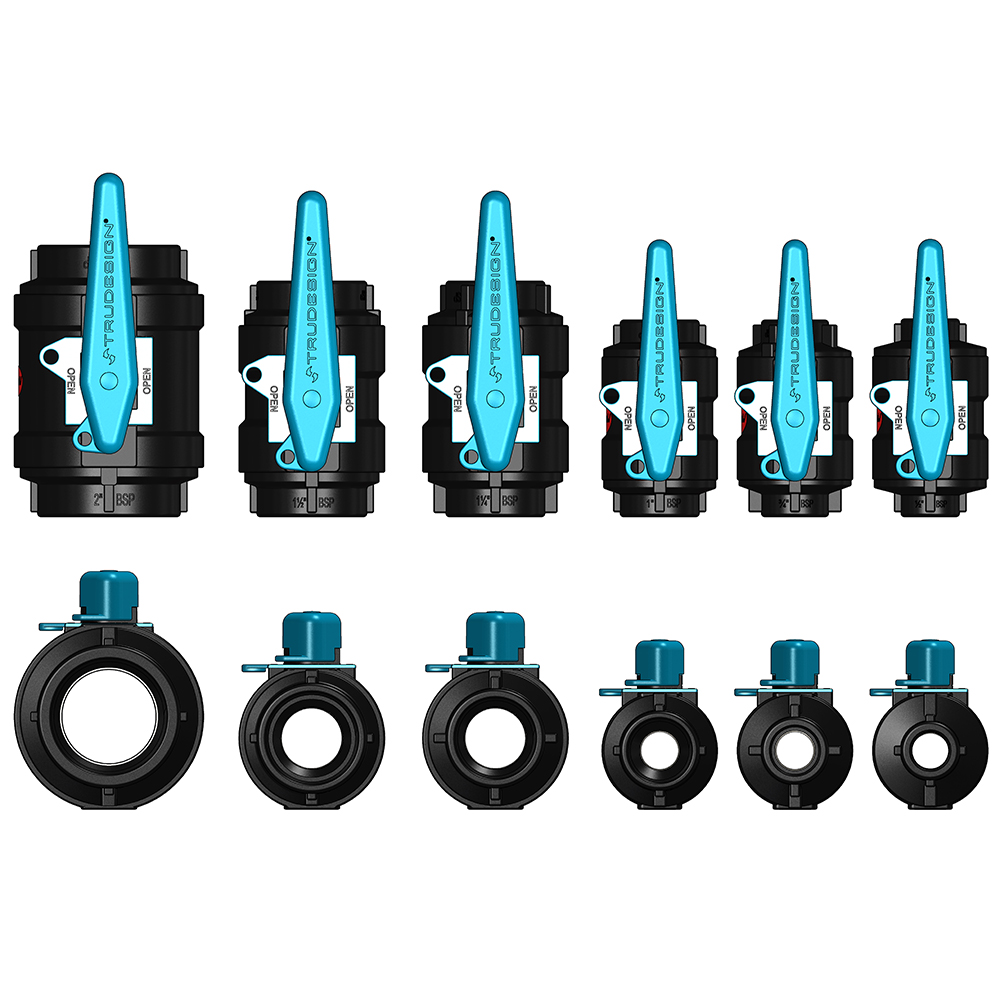

TruDesign Ball Valve BSP

£ 34.95 - £ 74.95

Clear

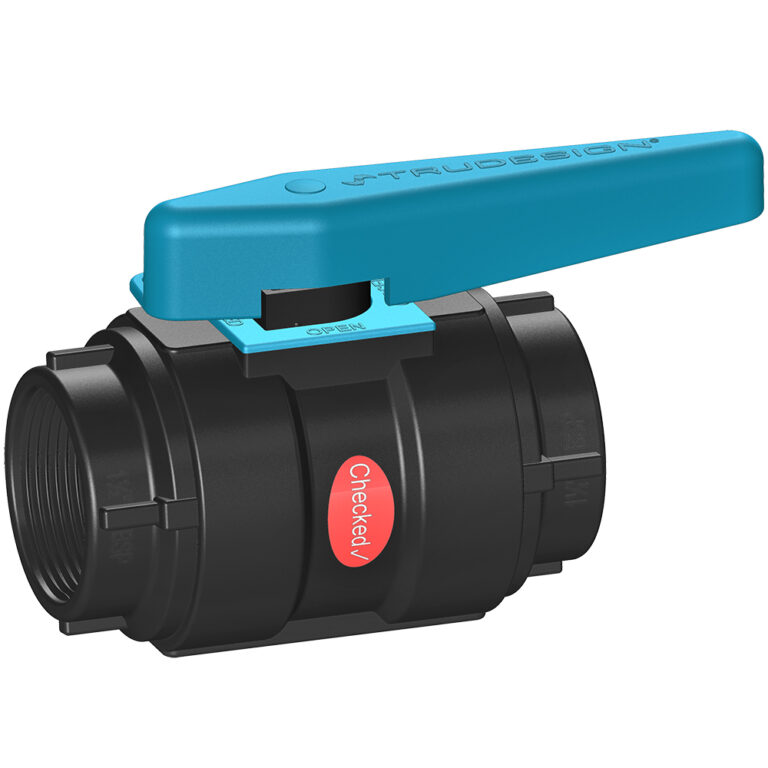

TruDesign Ball Valves control thru-hull inlet and outlet requirements, above and below the water line. They are moulded in a lightweight glass reinforced Nylon composite material to provide maximum strength. The ball and seal ring are moulded in a PTFE filled polymer for lubricated, smooth continuous ease of operation. This material resists marine growth, such as barnacles, preventing them from seizing up the valve.

Features:

  • Lightweight, corrosion resistant and safe from electrolysis
  • Suitable for use on all hull types – aluminium, steel, wood or FRP.
  • Individually leak and pressure tested
  • Burst-rated to 750 PSI (5,170 kPa)
  • Can be locked to comply with toilet waste outlet standards
  • OPEN/CLOSED positions marked for easy identification
  • Frost-friendly and won’t split like metallic ball valves can when frozen
  • Removable handles to assist installation
  • Spare handles available.

Designed and made in New Zealand TRUDESIGN Certified Ball Valves are specifically designed for use in marine applications above and below the water line.

Certified to ISO 9093-2 by the International Marine Certification Institute (IMCI, Belgium) when fitted to TRUDESIGN Skin Fittings (Thru Hulls)

Comply with ABYC H-27 standards when (where needed) used in conjunction with the TRUDESIGN ABYC collar and Skin Fittings (Thru Hulls).

Certified by Bureau Veritas to ISO 9093-2.

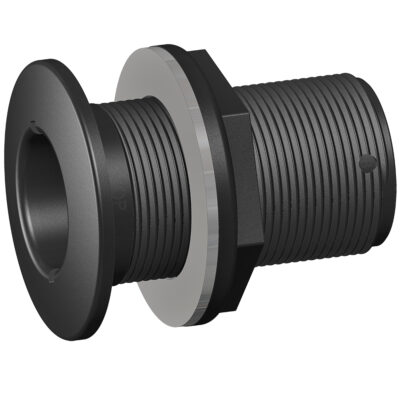

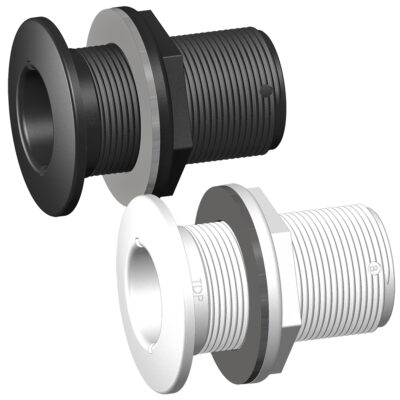

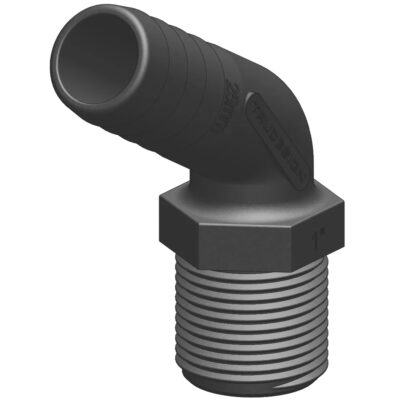

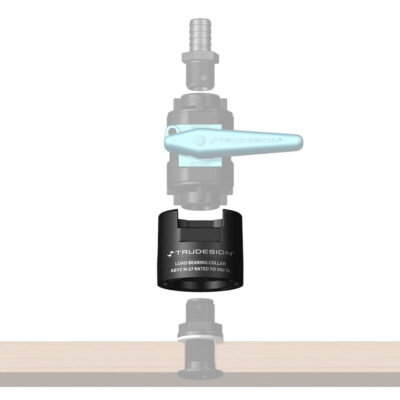

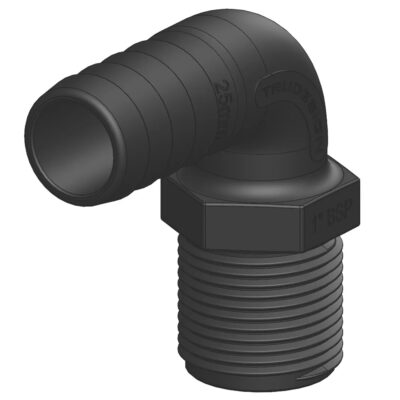

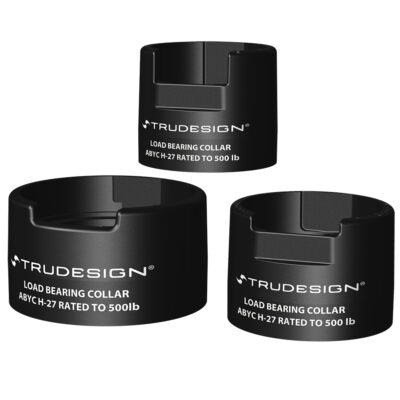

Looking to make a TruDesign Seacock? You will need: a skin fitting, a ball valve, a load bearing collar (gives ABYC H-27 compliance) and a threaded hose connector. See all the compatible products below.
Part Number
Size / Colour
Port Solent
Warehouse
99669218
1/2" / Black
3
5
99343613
3/4" / Black
3
16
99559519
1" / Black
4
0
99669225
1 1/4" / Black
1
1
99343620
1 1/2" / Black
5
10
99710385
2" / Black
1
2
