Available as a display only, or with Raymarine Lighthouse Download Chart for one region, e.g. UK.

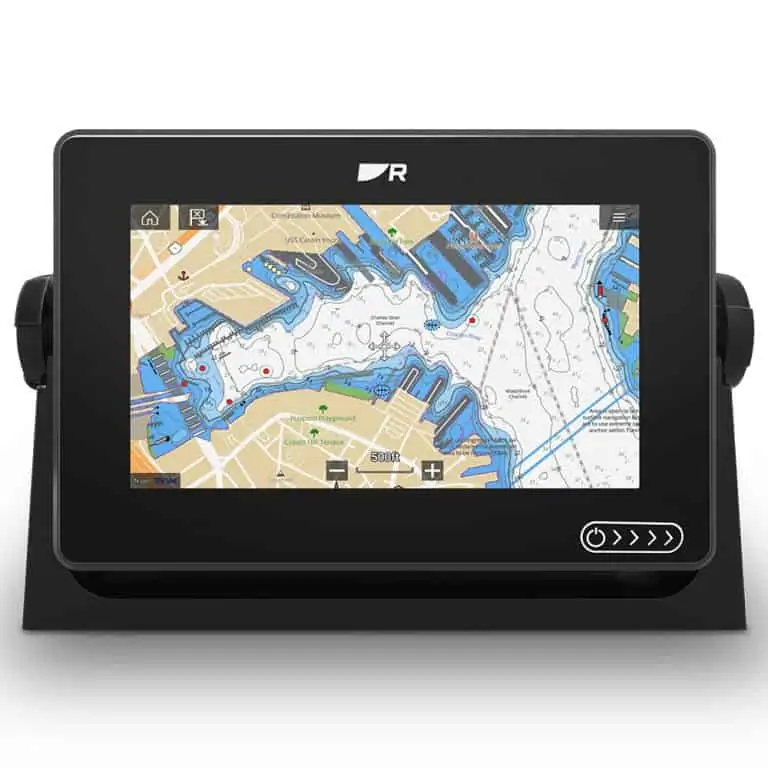

Optimised for speed, Raymarine Axiom Plus 7 is equipped with a powerful quad-core processor for industry-leading responsiveness and speed.
New, higher resolution IPS displays deliver 25 percent more brightness and new day/night colour palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.
Axiom is expandable, so its capabilities can grow, as needed. It supports the full range of Raymarine accessories, including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.
- Display Size: 7 inch High Density IPS
- Display Resolution: 1024 x 600 (WSVGA)
- Display Type: Multitouch with HydroTough rugged hydrophobic coating
- Brightness: 1,500 nits
- Viewing Angle: 85 degree Top, Bottom, Left, Right
- Dimensions (W x H x D): 210 x 142 x 77mm
- Weight: 3 lbs
- Mounting Options: Surface, Flush, Trunnion
- Waterproof Rating: IPX6 / IPX7
- Operating Temperature Range: -25°C to +55°C (-13°F TO +131°F)
- Storage Temperature Range: -30°C to +70°C (-22°F to +158°F)
