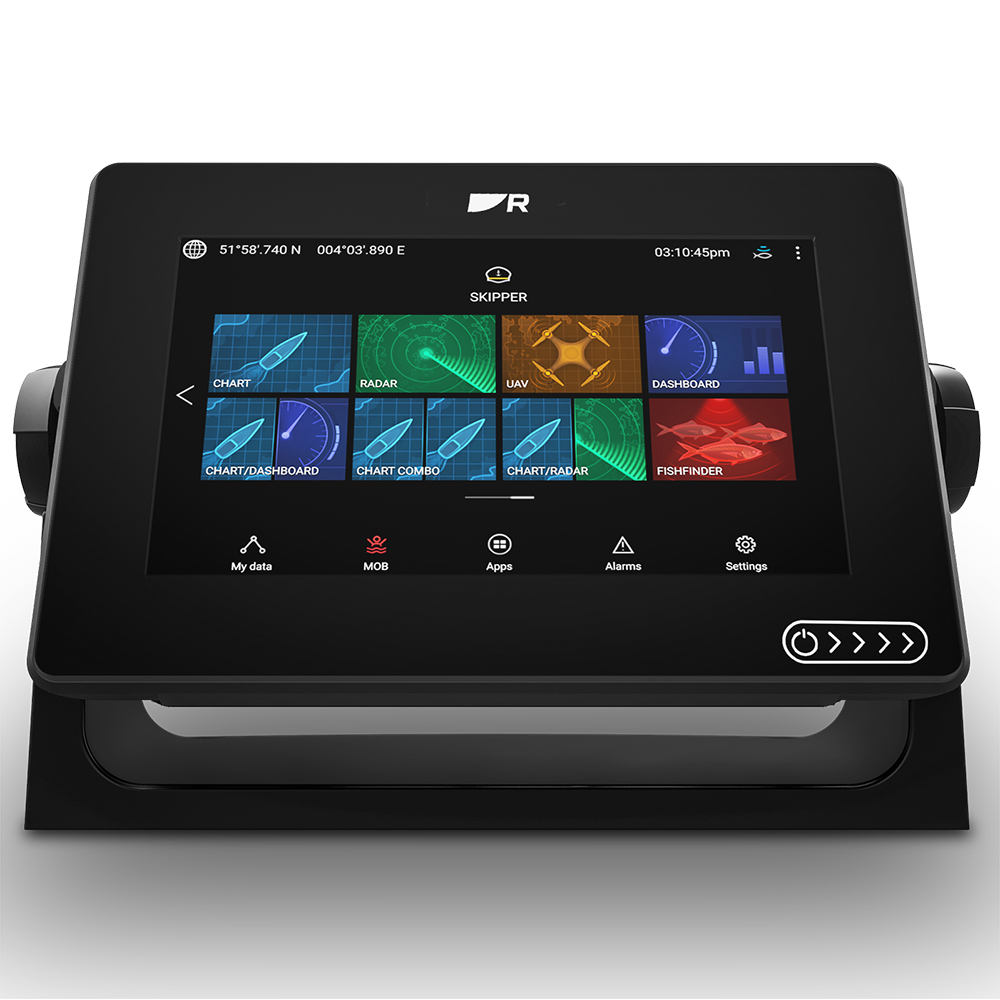

Raymarine Axiom 2 7 – 7″ Chartplotter
£849.95 - £939.95
Available in 2 options – Select in the dropdown menu:

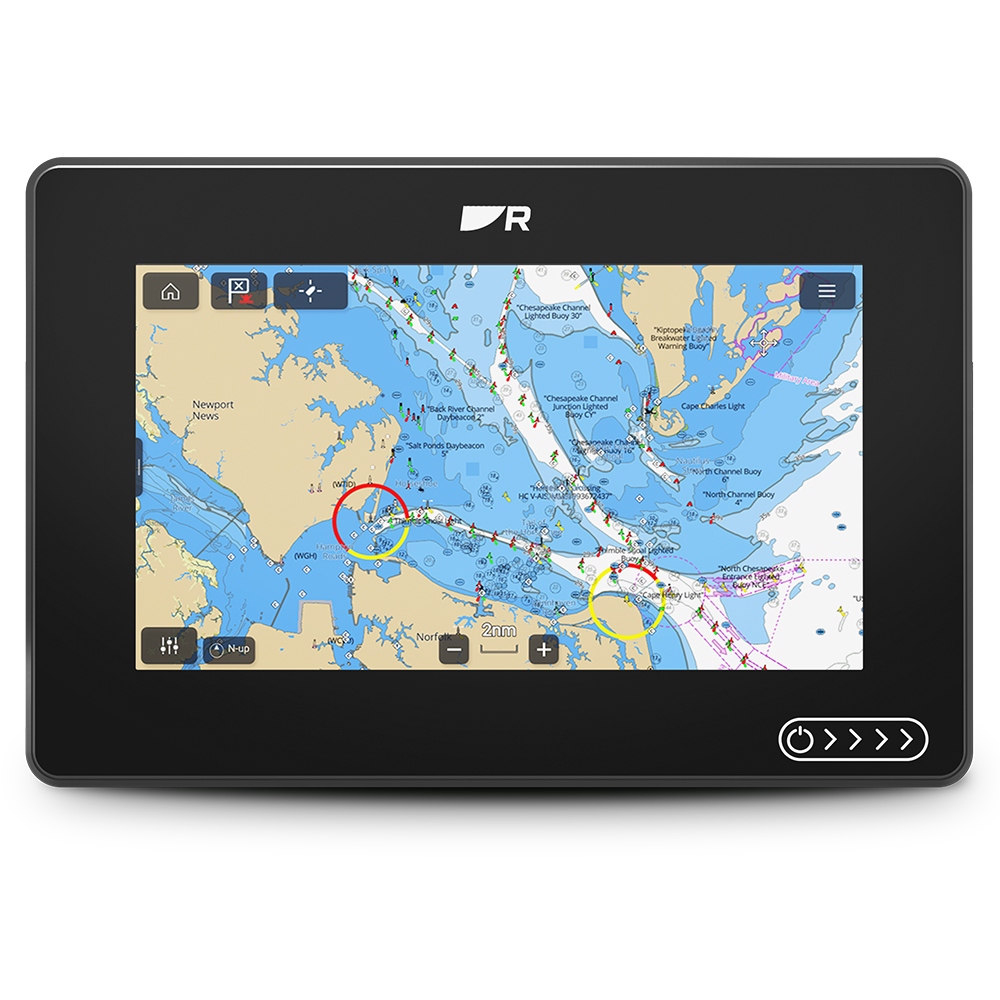

Display Only (E70720)
Display with West EU Lighthouse Chart (E70720-00-WEU)
The Marine Chartplotter You Trust. Now Even Better
Raymarine’s most popular marine chartplotters — now faster, more connected and built for the future. Axiom 2 unifies navigation, sonar, radar, video and NMEA 2000 networks into one powerful display. Choose Axiom 2 as a dedicated chartplotter for confident navigation, or step up to Axiom 2 RV for the ultimate all-in-one chartplotter and fish finder combo.
One Display. Total Control
Axiom 2’s LightHouse operating system is a single, simple-to-use interface for complete situational awareness. Make Axiom 2 your all-in-one multifunction display or connect additional Axiom 2 displays at your helm or a remote station.
What’s in the box?
Axiom 2 box contents:
MFD (supplied with Trunnion adaptor fitted)
Trunnion bracket / Trunnion knobs
Suncover
Documentation pack
Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
Dimensions (Trunnion mounted)
Axiom 2 7″ Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in)
Accessory connection
USB Micro B
Ethernet connection
RayNet (10 / 100 / 1000 Mbit/sec Ethernet)
External storage
MicroSDXC card slot x 1
NMEA 2000 connection
DeviceNet (male connector built into power cable)
Wireless connections
Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
Internal storage
64 GB
