Fusion XS Series 7.7″ LED Speakers with both Sports Grey and Sports White grilles in the box, continues to set the benchmark for marine audio entertainment. Fusion’s new XS Series speakers feature their trademark quality audio reproduction, enhanced marine aesthetics and LED illumination – at a mid-range price point. Optimized for use in the marine environment, and built for performance, these stylish speakers are designed to produce consistently high quality audio at all volume levels, season after season.
Set the tone, complement your music or get the party started on board with LED illumination in a wide range of colors available. The innovative translucent cone on the Sports style speakers produce bright, even LED illumination in any color you choose, which can be controlled with the MS-RGBRC wireless remote (sold separately).
With an IP65 weatherproof rating, True-Marine™ accreditation and an industry-leading 3-year warranty, you can enjoy peace of mind that your XS Series speakers are built to last on your boat.
Optimized Full Range Speaker: The Fusion XS Series 7.7″ LED Speakers are acoustically optimized for performance in the marine environment, by combining optimized speaker drivers and tweeters to produce quality sound at all volumes.

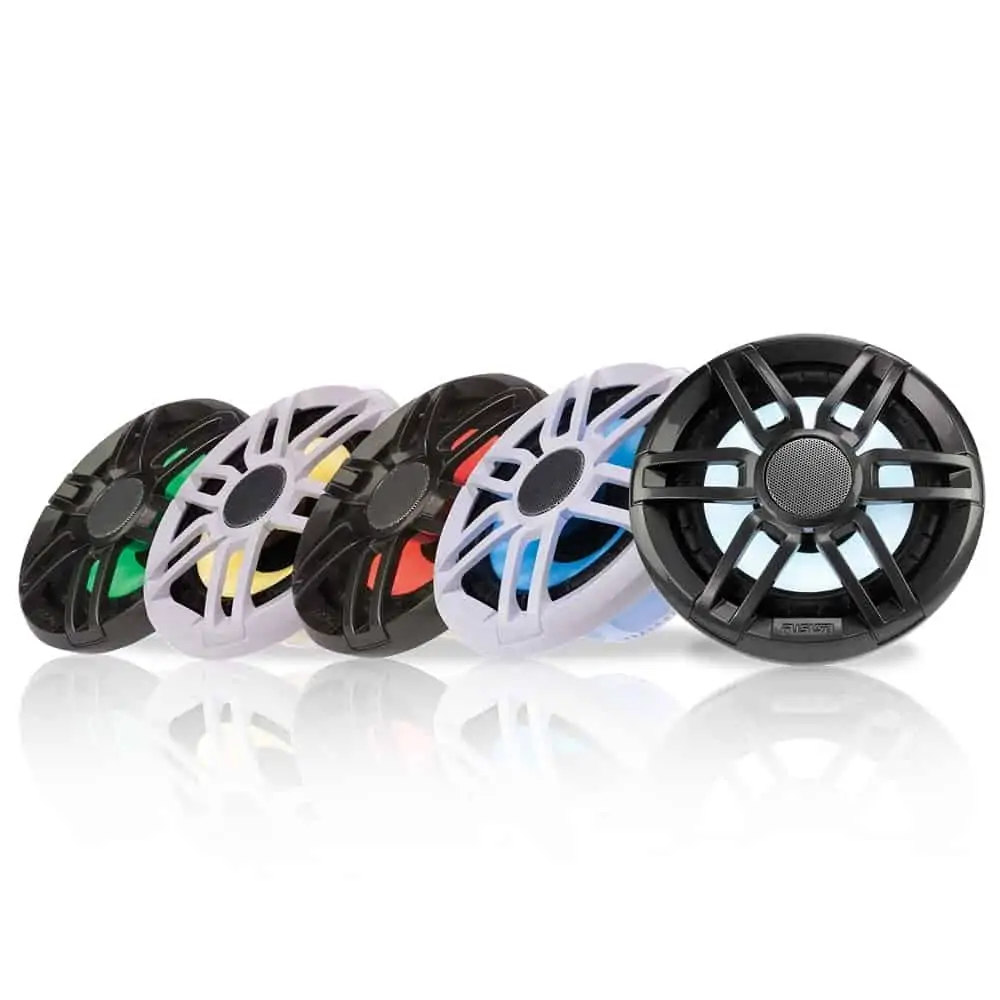

Innovative Translucent RGB-Illuminated Cone
Enhance your on-water audio entertainment experience with brilliant acoustics coupled with stunning LED illumination. Featuring an innovative translucent cone, the Sports style XS Series speakers provide bright and even LED illumination in a wide range of colors, letting you choose any color to match the mood, set the tone or complement your music.
Note: Color is determined by wiring configuration at installation. An MS-RGBRC remote control (sold separately) is required for full control of the speaker illumination.
Full Control of The Illumination
The MS-RGBRC wireless remote control (sold separately) lets you take full control of your Fusion XS Series speaker illumination. From the convenience of anywhere on board, you can adjust the color, brightness, speed and mode on the easy to use touch controls, inside the range of up to 10m from the speaker lighting control module.
Note: The wireless remote control can control up to three lighting zones. For control of additional zones, an additional MS-RGBRC must be purchased.
Perfect for installation both indoors and outdoors, the XS Series speakers are rated IP65 for water and dust ingress protection from the front when installed correctly, while also meeting industry standards for UV and salt fog protection.
The True-Marine™ Standard
As a True-Marine product, the XS Series speakers are designed and engineered for the harsh marine environment. Once a product has been subject to rigorous environmental testing and passed our stringent True-Marine approval process, it is awarded the accreditation and recognized with an industry-leading 3-year consumer warranty.

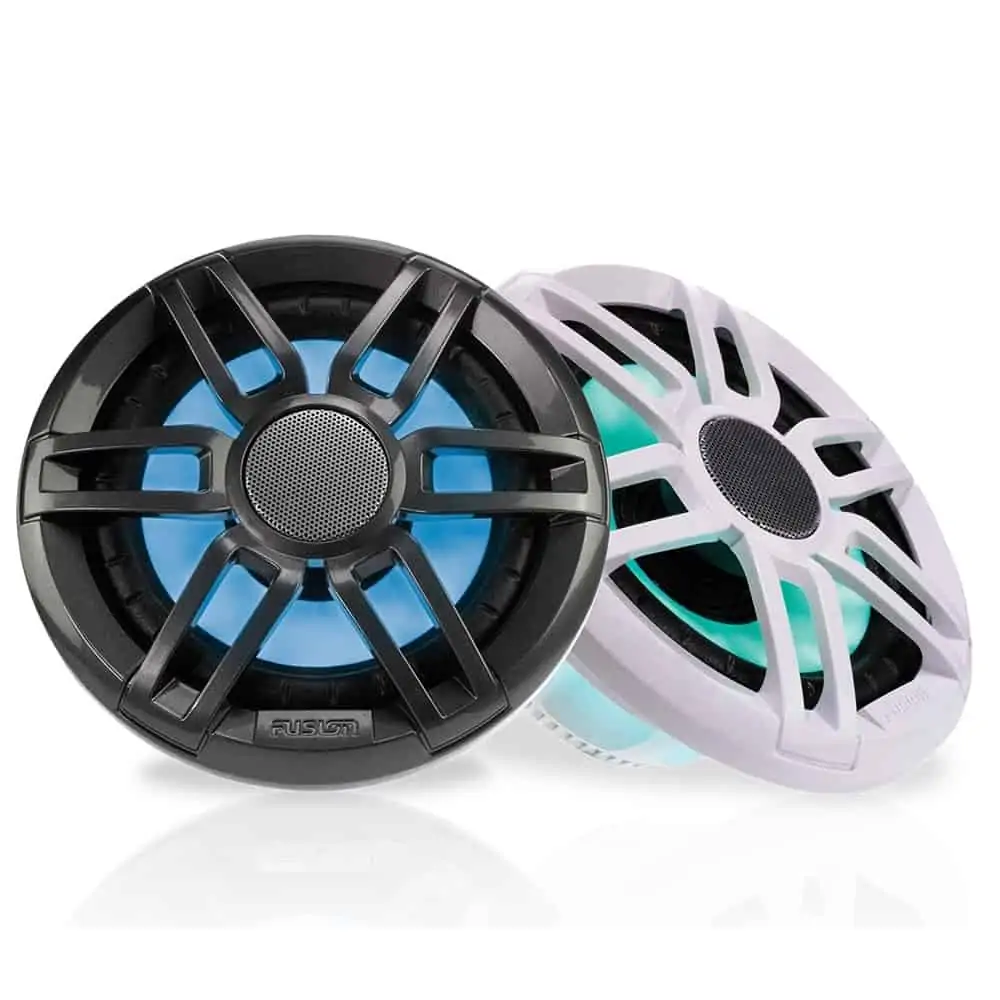

Two Grille Options Included
The Sports style speakers are supplied with both Sports Grey and Sports White grilles in the box, letting you choose the finish to suit your vessel without the hassle of having to purchase extra grilles.
Speaker Size: 7.7″
Peak Power: 240 Watts
RMS Power Rating: 60 Watts
Efficiency (1W/1M): 92dB
Frequency Response: 70 Hz – 18 kHz
Nominal Impedance: 4 ohms
Recommended Amplifier Power (RMS): 25 – 200 W/Ch
Tweeter Type: Aluminum dome
Cone / Surround Material: Polypropylene with cloth surround
Mounting Diameter Clearance: 162mm (6-3/8″)
Mounting Depth Clearance: 77mm (3″)
Optimum Enclosure Volume (Sealed enclosure, fully filled with absorption material): 10 L
LED Color Options: RGB
LED Supply Voltage: 10.8 to 16V dc
LED Load Current at 14.4V dc: 150mA
Operating Temperature Range: 0 to 50°C (32 to 122°F)
Storage Temperature Range: -20 to 70°C (-4 to 158°F)
Water and Dust Resistance (IPX rating): IP65
Warranty: 3 years
