INDUSTRY BENCHMARK FOR MARINE ENTERTAINMENT

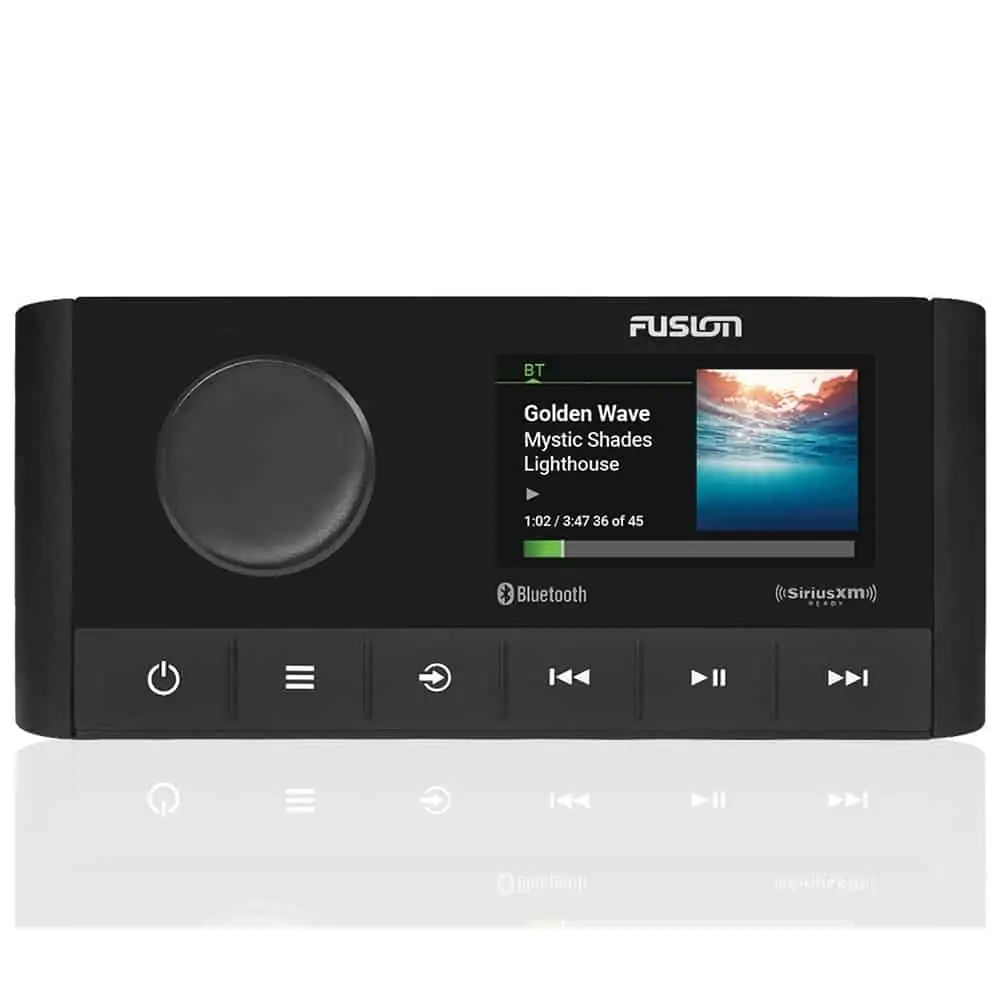

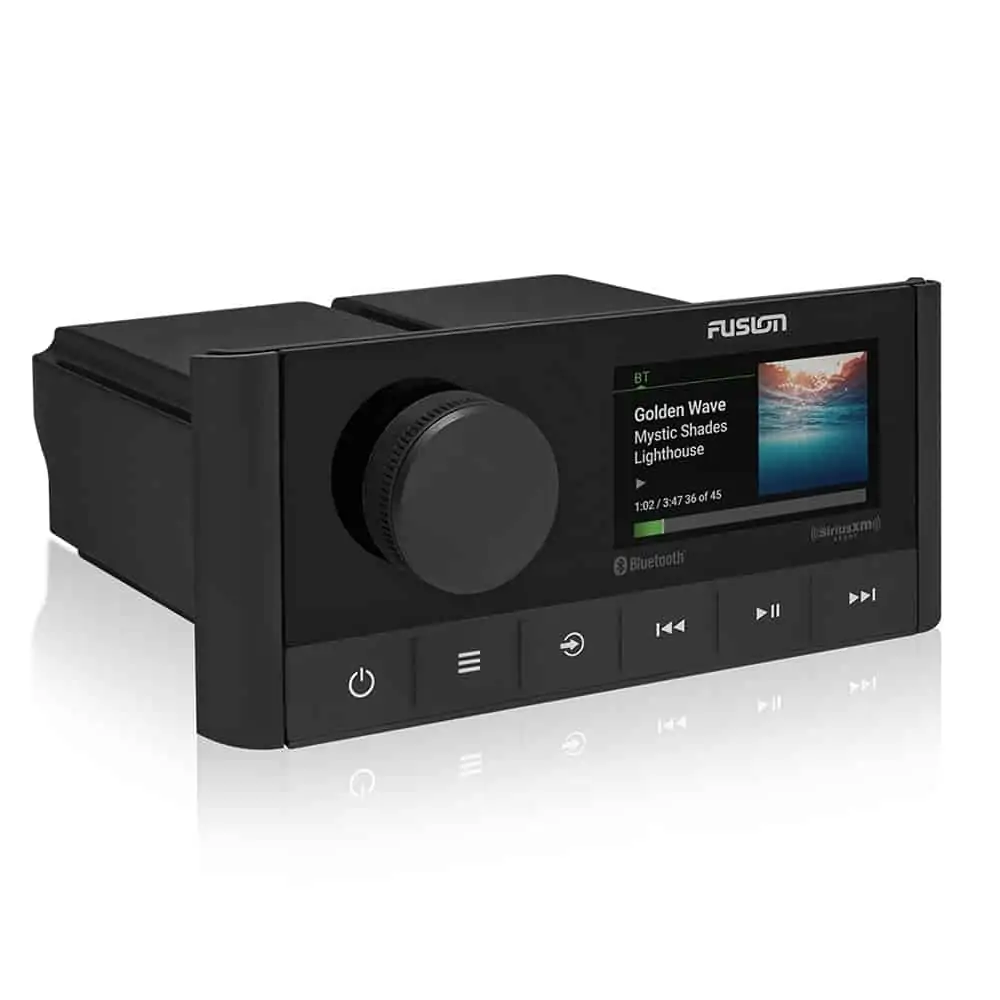

Introducing the new MS-RA210, a compact marine stereo designed to deliver a quality audio entertainment experience out on the water. The MS-RA210 features Fusion’s new-look design aesthetics and revolutionary Digital Signal Processing technology for optimized listening in any environment.
Custom audio profiles for each zone on your boat deliver superior quality audio.
Enjoy the colour album art and metadata that display information of the current track playing.
Built-in Class-D amplifier delivers higher efficiency and greater output.
Multi-Zone™ Technology gives you control of two separate audio zones.
Control your music from a compatible multifunction display (MFD)1, smart device or Garmin watch.
IPX6 AND IPX7 INGRESS PROTECTION
Designed and engineered for the harsh marine environment, the MS-RA210 stereo has an IPX6- and IPX7-rated water-resistant front panel to perform and last on board.
MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.
FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT
Take advantage of the many source options available, including Bluetooth® technology, DAB+ radio, AM/FM radio, AUX and USB connections.
FUSION DIGITAL SIGNAL PROCESSING
A technically superior listening experience made simple, Fusion DSP optimises the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels, in every listening environment.
EASY-TO-INSTALL DSP PROFILES
Setting up your DSP profiles is simple with the free Fusion-Link™ app2. With just a few steps on your compatible smartphone, set up the preconfigured DSP profiles once and enjoy listening to high-quality audio customised for your ears.
In the Box
- Mounting gasket
- Four 6-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- 2 metre (6 ft) NMEA 2000® drop cable
|Physical dimensions (H x W x D)||68 x 157 x 126.6 mm|
|Water rating||IPX6 and IPX7 (front panel only, when properly installed)|
|Power input||10.8-16 VDC|
|Operating temperature range||0° to 50° C|
|Current (max.)||15 A|
|NMEA 2000® LEN||1 (50 mA)|
|Bluetooth wireless range||Up to 30 ft. (10 m)|
|ANT wireless range||Up to 10 ft. (3 m)|
|Wireless frequencies/protocols||Bluetooth 2.4 GHz @ +12 dBm nominal
ANT 2.4 GHz @ +7 dBm nominal
|Compass-safe distance||150 mm|
|Display||2.7″ optically bonded colour LCD|
|Built-in amplifier||Class-D (minimum 4 Ohm impedance)|
|Peak power||180 W|
|Rated power output (4 Ohm)||26 W rms x 4 @ 14.4 V input < 10% THD|
|Built-in Digital Signal Processing||Yes (with preconfigured DSP profiles)|
|Fusion-Link™ control||Yes (with MFD, smartphone and Garmin watch)|
|Multi-Zone™ technology||2 zones|
|Bluetooth wireless technology||Yes|
|ANT wireless technology||Yes|
|DAB+||Yes (DAB tuner built in)|
|Multi-language interface||Danish, Dutch, English, Finnish, French, German, GreekItalian, Japanese, Korean, Norwegian, Polish,Portuguese (BR/PT), Slovenian, Spanish, Swedish,|
|Sources||AM / FM / Bluetooth / USB audio / iPhone / iPod / AUX x1 /MTP / DAB+ ready (available inEurope and Australia only)|
|Auxiliary input||One RCA input (AUX)|
|NMEA 2000||One NMEA 2000 port|
|USB 2.0||One USB 2.0 port|
|SiriusXM satellite radio||One SiriusXM port (requires SiriusXM Connect vehicle tuner; does not support traffic and weather)|
|AM/FM radio||One Motorola antenna connector port|
|Speaker||4 x speaker connections (2 amplified zones)|
|RCA Pre-out (left, right and subwoofer)||2 zones (requires external amplification)|
|Line out||Zone 1, Zone 2 (L + R, requires external amplification)|
|Subwoofer out||Zone 1, Zone 2 (requires external amplification)|
