EVERYTHING YOU NEED TO AMPLIFY THE MOMENT

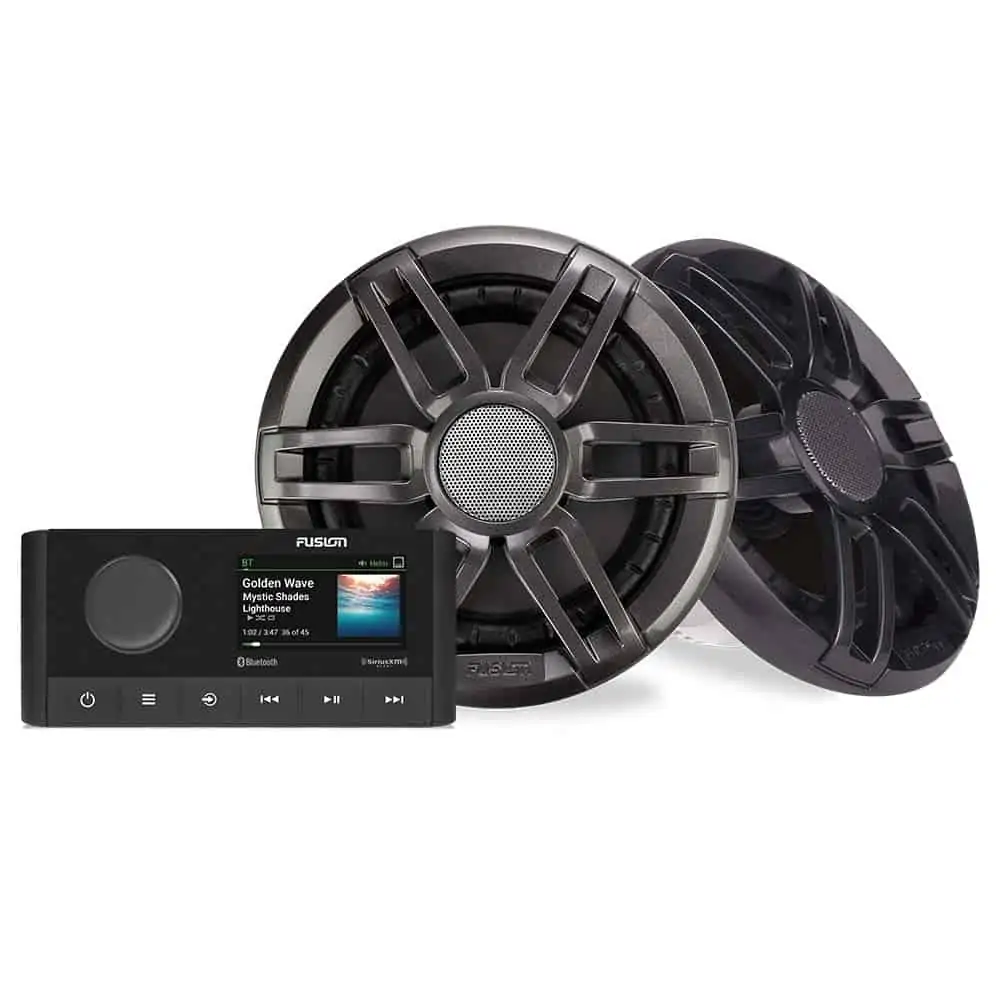

Outfit your boat with an exceptional sound system at an outstanding value. A Fusion® MS-RA210 marine stereo and XS Series 6.5″ speaker kit put the perfect soundtrack at your fingertips.
Enjoy your music ASAP. Your marine stereo and both speakers come ready to install.
Easily control music from your compatible Garmin MFD1, smart device or Garmin watch.
Built-in Class D amplifier brings aboard higher efficiency and greater output.
Multi-Zone™ Technology makes you the captain of two separate audio zones.
Conveniently update software via Bluetooth® technology2 from the Fusion-Link™ app on your compatible smart device.
Grow your audio system with compatible Fusion speakers, subwoofers and amplifiers.
IPX6 AND IPX7 INGRESS PROTECTION
Designed and engineered for the harsh marine environment, the MS-RA210 stereo has an IPX6- and IPX7-rated water-resistant front panel to perform and last on board.
MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.
FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT
Take advantage of the many source options available, including Bluetooth® technology, DAB+ radio, AM/FM radio, AUX and USB connections.
FUSION DIGITAL SIGNAL PROCESSING
A technically superior listening experience made simple, Fusion DSP optimises the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels, in every listening environment.
EASY-TO-INSTALL DSP PROFILES
Setting up your DSP profiles is simple with the free Fusion-Link™ app2. With just a few steps on your compatible smartphone, set up the preconfigured DSP profiles once and enjoy listening to high-quality audio customised for your ears.

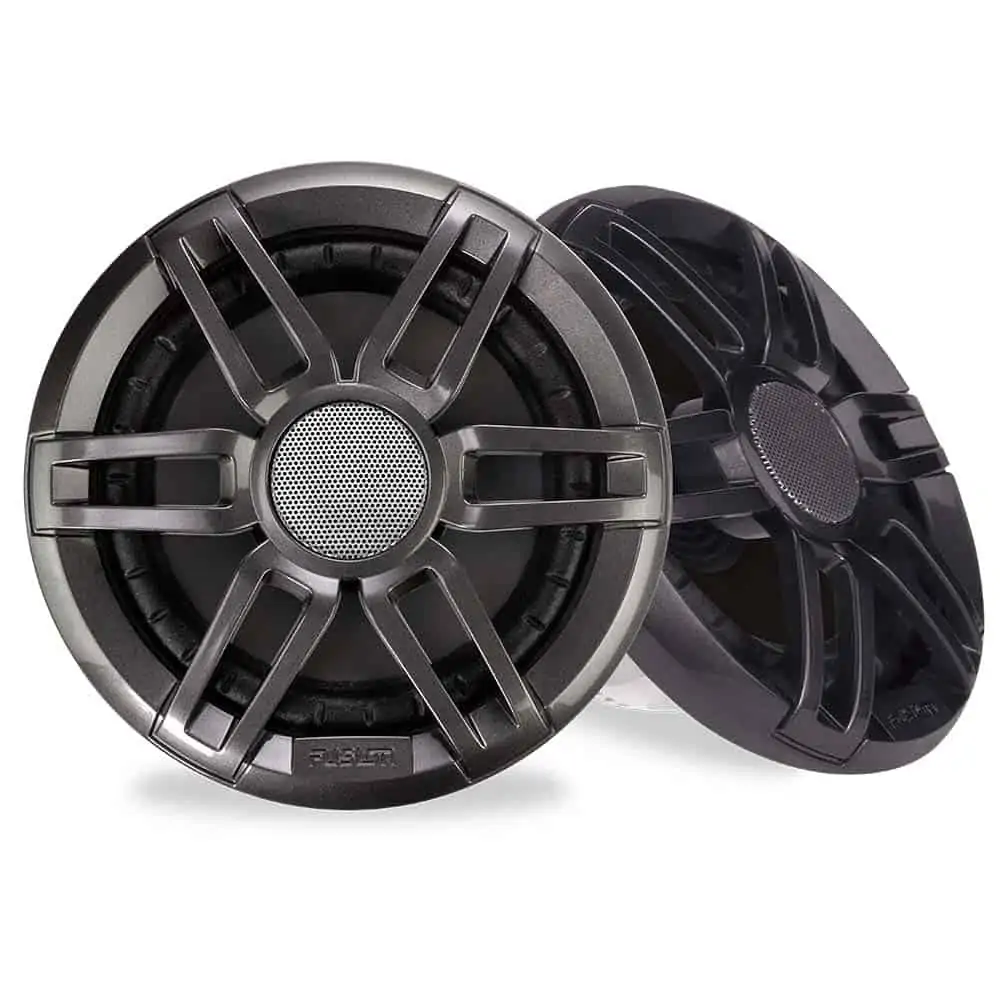

XS Series Sport Speakers
DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS
Built on the True-Marine design philosophy from Fusion, the XS Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.
QUALITY MATERIALS AND ACOUSTIC ENGINEERING
The XS Series speakers incorporate high-quality materials and marine-specific design elements. This communicates not only their enhanced aesthetics but also their ability to reproduce high-performance audio while out on the water.
ALUMINIUM DOME TWEETER
The aluminium dome tweeter provides a smooth upper frequency response and increased efficiency, which delivers crystal-clear music reproduction.
OVERHUNG VOICE COIL
The overhung design reduces distortion and increases power and efficiency to deliver a truly high-quality sound experience.
FULLY SEALED CROSSOVER COMPONENTS
Fully sealed crossover components provide increased protection from the harsh marine environment. This delivers an improved frequency response at the crossover point for a detailed audio spectrum and a new level of acoustic performance.
In The Box
- MS-RA210 marine stereo
- One pair of XS Series sports grey marine speakers
- AM/FM stealth antenna
- 6 ft (2 metres) NMEA 2000® drop cable
- Two 19 ft (6 metres) speaker wires
- Dust cover
- Wiring harnesses and mounting accessories
- Mounting gasket
- Four 6-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1″))
|Physical dimensions (H x W x D)||68 x 157 x 126.6 mm|
|Water rating||IPX6 and IPX7 (front panel only, when properly installed)|
|Power input||10.8-16 VDC|
|Operating temperature range||0° to 50° C|
|Current (max.)||15 A|
|NMEA 2000® LEN||1 (50 mA)|
|Bluetooth wireless range||Up to 30 ft. (10 m)|
|ANT wireless range||Up to 10 ft. (3 m)|
|Wireless frequencies/protocols||Bluetooth 2.4 GHz @ +12 dBm nominal
ANT 2.4 GHz @ +7 dBm nominal
|Compass-safe distance||150 mm|
|Display||2.7″ optically bonded colour LCD|
|Built-in amplifier||Class-D (minimum 4 Ohm impedance)|
|Peak power||180 W|
|Rated power output (4 Ohm)||26 W rms x 4 @ 14.4 V input < 10% THD|
|Built-in Digital Signal Processing||Yes (with preconfigured DSP profiles)|
|Fusion-Link™ control||Yes (with MFD, smartphone and Garmin watch)|
|Multi-Zone™ technology||2 zones|
|Bluetooth wireless technology||Yes|
|ANT wireless technology||Yes|
|DAB+||Yes (DAB tuner built in)|
|Multi-language interface||Danish, Dutch, English, Finnish, French, German, GreekItalian, Japanese, Korean, Norwegian, Polish,Portuguese (BR/PT), Slovenian, Spanish, Swedish,|
|Sources||AM / FM / Bluetooth / USB audio / iPhone / iPod / AUX x1 /MTP / DAB+ ready (available inEurope and Australia only)|
|Auxiliary input||One RCA input (AUX)|
|NMEA 2000||One NMEA 2000 port|
|USB 2.0||One USB 2.0 port|
|SiriusXM satellite radio||One SiriusXM port (requires SiriusXM Connect vehicle tuner; does not support traffic and weather)|
|AM/FM radio||One Motorola antenna connector port|
|Speaker||4 x speaker connections (2 amplified zones)|
|RCA Pre-out (left, right and subwoofer)||2 zones (requires external amplification)|
|Line out||Zone 1, Zone 2 (L + R, requires external amplification)|
|Subwoofer out||Zone 1, Zone 2 (requires external amplification)|
|Physical dimensions (Diameter x Depth)||6.5″ Sports: 6.97″ x 3.27″ (177 x 83 mm)|
|Water and dust rating||IP65|
|Peak power (Watts)||6.5″ Speaker: 200 W|
|RMS power (Watts)||6.5″ Speaker: 50 W|
|Sensitivity (1 W / 1 m)||6.5″ Speaker: 91 dB|
|Frequency response||6.5″ Speaker: 80 Hz-18 kHz|
|Nominal impedance||4 ohms|
|Recommended amplifier power (RMS)||6.5″ Speaker: 20-150 W/Ch|
|LED supply voltage||N/A|
|LED load current @ 14.4 VDC||N/A|
|Operating temperature range||32° to 122° F (0° to 50° C)|
|Voice coil diameter||6.5″: 1.18″|
|Operating temperature range||Polypropylene cone with cloth surround|
|Tweeter type||Aluminum dome|
|Compass-safe distance||6.5″: 122″ (310 cm)|
|Mounting diameter clearance||6.5″: 5.31″ (135 mm)|
|Mounting depth clearance||6.5″: 2.64″ (67 mm)|
Optimum enclosure recommendations
|Sealed enclosure volume1||6.5″: 0.28 cubic ft (8 L)|
