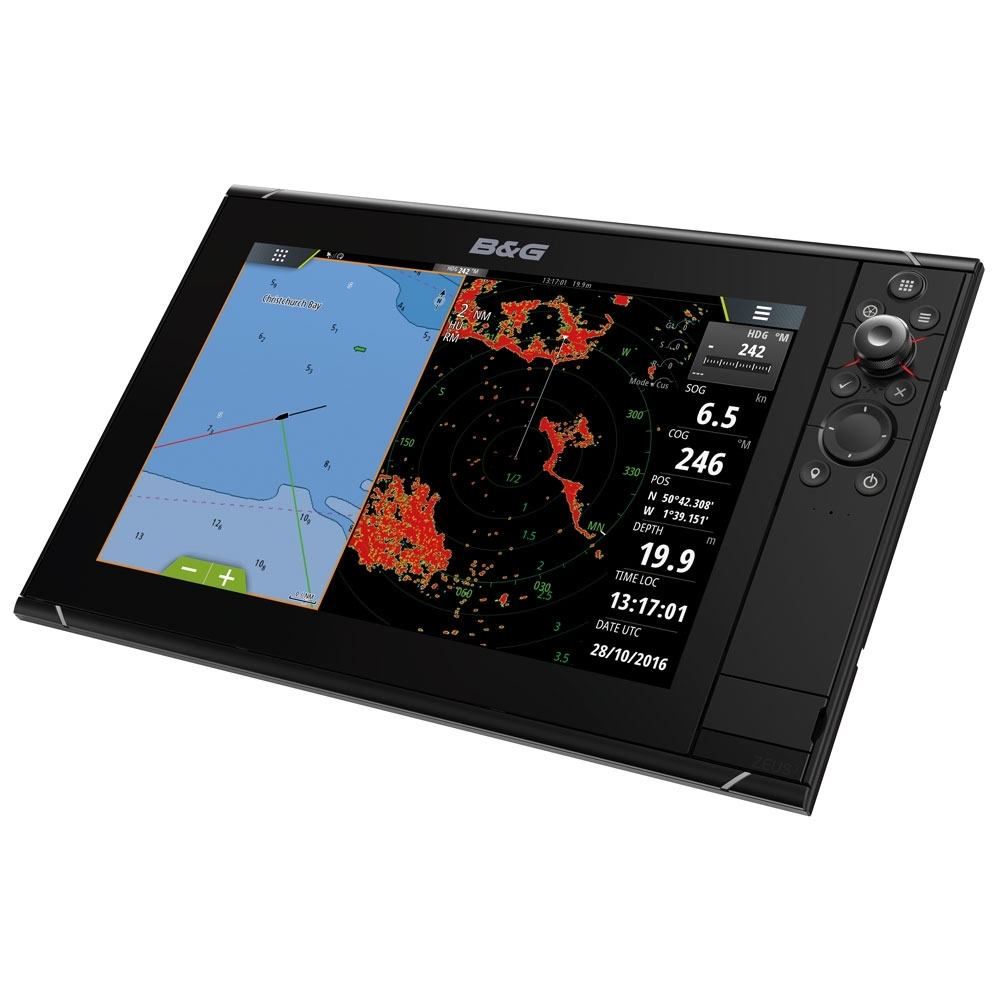

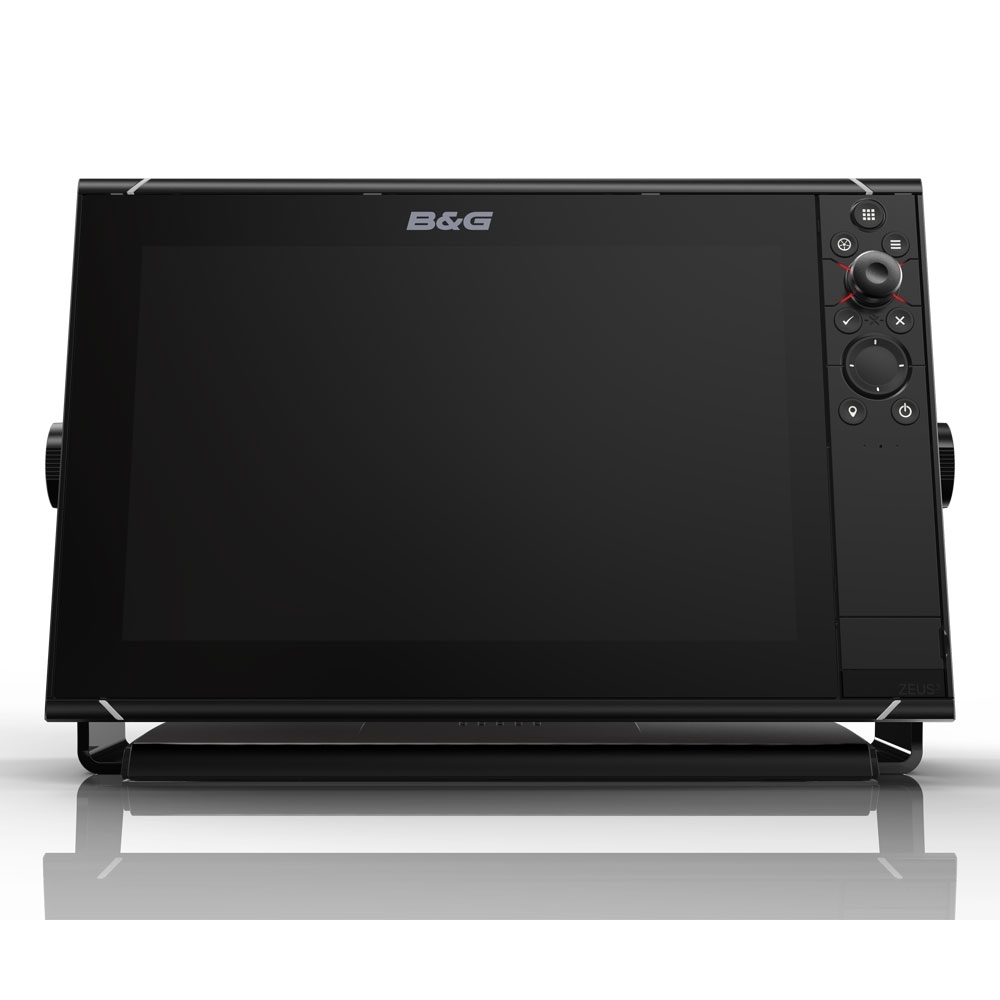

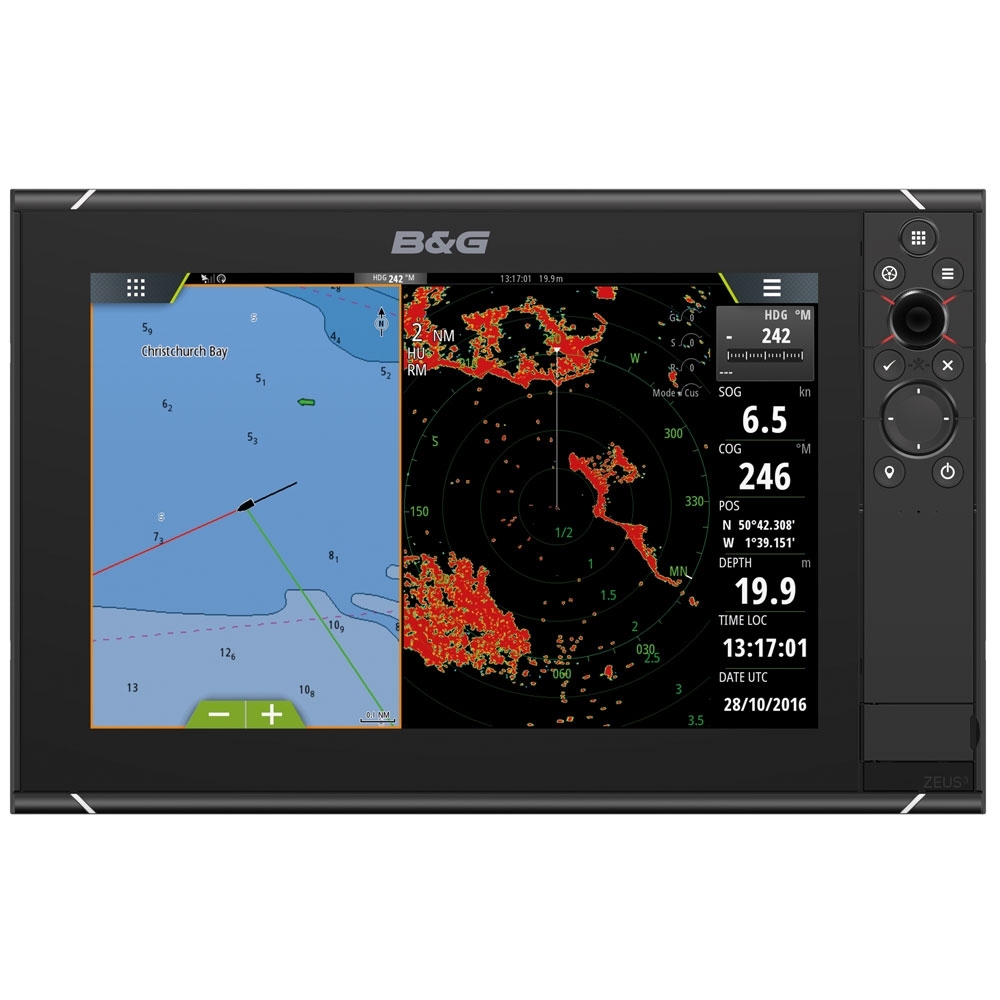

B&G Zeus3 12

Click on an image to display a larger detailed image.


B&G Zeus3 12

RRP £3,549.00



The Zeus³ 12 is a complete chartplotter navigation system for blue water cruisers and regatta racers. This high-performance multifunction display features a 12-inch widescreen display, incorporating SolarMAX™ HD technology for brilliant daytime visibility and ultra-wide viewing angles. To ensure reliable control in all conditions and situations, Zeus³ incorporates an all-weather touchscreen that works even while wet. It combines this with an integrated rotary dial and keypad capable of controlling all display functions. Both sets of controls can be used simultaneously, or Zeus³ can be switched to non-touch mode for dependable operation under the most extreme conditions.

Zeus³ is powered by B&G software designed specifically for sailors, and packed with a wide array of sail-specific functionality. See all key sailing data on a single screen with SailSteer, view laylines and tacking angles overlaid on charts, and plan more accurately with Sailing Time arrival estimates that factor in the realities of travel by wind.

Built-in Wi-Fi lets you access charts, weather information, software updates and online support directly from your display via any Wi-Fi internet hotspot. GoFree® Wi-Fi also lets you mirror your Zeus³ screen on a compatible smartphone, and control your Zeus³ display from a compatible tablet, for an extra display that you can use anywhere on board.

See what lies ahead beneath the water with built-in support for ForwardScan™ sonar, and above the water with plug-and-play support for Broadband Radar™ and AIS solutions. Enhance your situational awareness in crowded harbours and during races and regattas with tools like MARPA target tracking and AIS overlay. Complete autopilot integration means short-handed and single-handed sailors can take immediate control of their B&G autopilot system from any B&G Zeus³ display on board.

Zeus³ also connects seamlessly to a wide range of sensors, instruments, displays, expansion modules, and accessories; allowing you to create a fully-integrated electronics solution to provide greater safety, performance, and enjoyment on the water.

  • Product Width 352mm / 13.84"
  • Product Height 225mm / 8.85"
  • Product Depth 98mm / 3.82"
  • Product Weight 3.1kg / 6.83lb
  • Mounting Bracket (Supplied) or panel mount
  • Display Size 12"
  • Display Type TFT Widescreen
  • Resolution 800 x 1280
  • Media Port 2 x microSD
  • Internal Storage 16GB
  • Waterproof Standard IPx7
  • Power Supply 10 – 31.2V DC
  • Operating Temperature -15ºC to +55ºC (5ºF to +131ºF)
  • Connectivity Bluetooth, Ethernet, NMEA 0183, NMEA 2000, RCA Composite x 2, WiFi
  • Waypoints/Routes/Trails Storage 50 Tracks, 500 Routes, 6000 Waypoints

In the box
  • Zeus3 12
  • Mounting Bracket
  • Dash Mount Kit
  • Edge Bezels
  • Sun Cover
  • Power Cable 2m
(For NMEA 0183 and RCA video leads an additional cable is required - See accessories).

Size / ColourPart NumberStock AvailabilityPrice
 99519698 0 at 19/09 07:35 £2,959.95 Add to Basket
