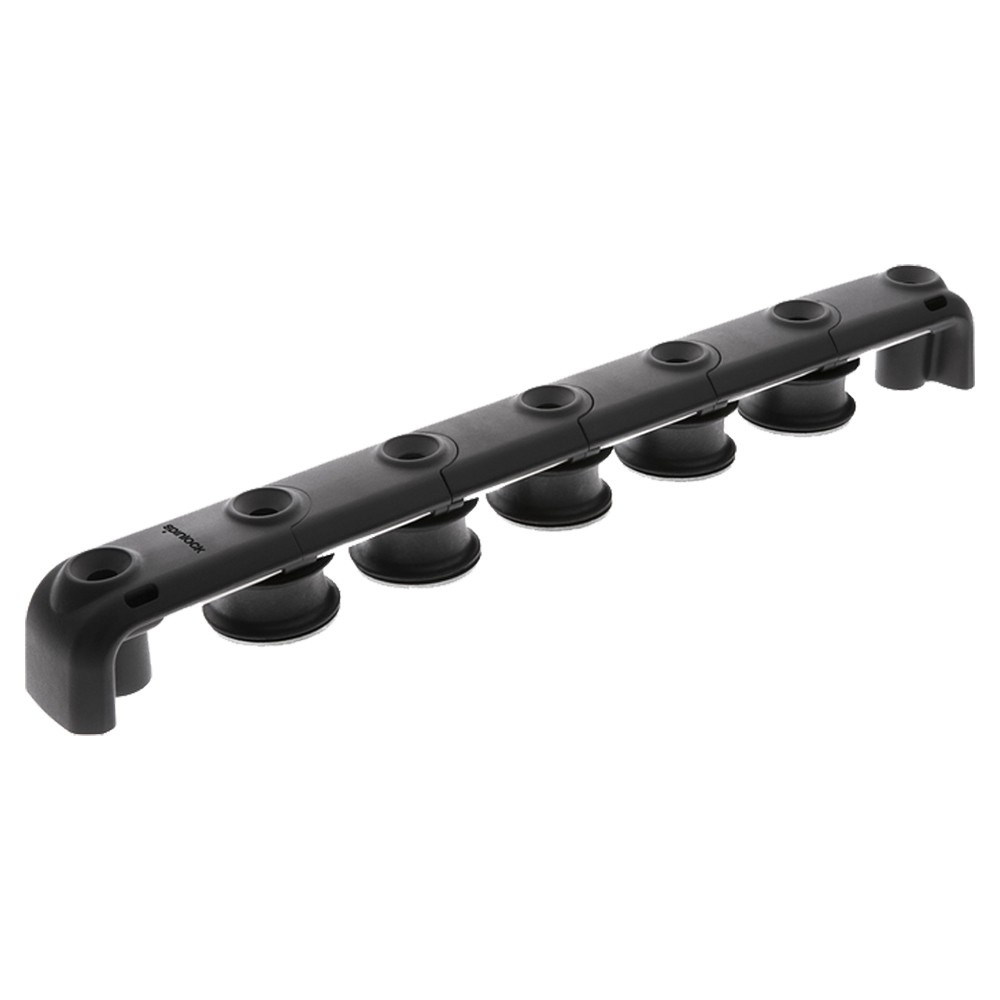

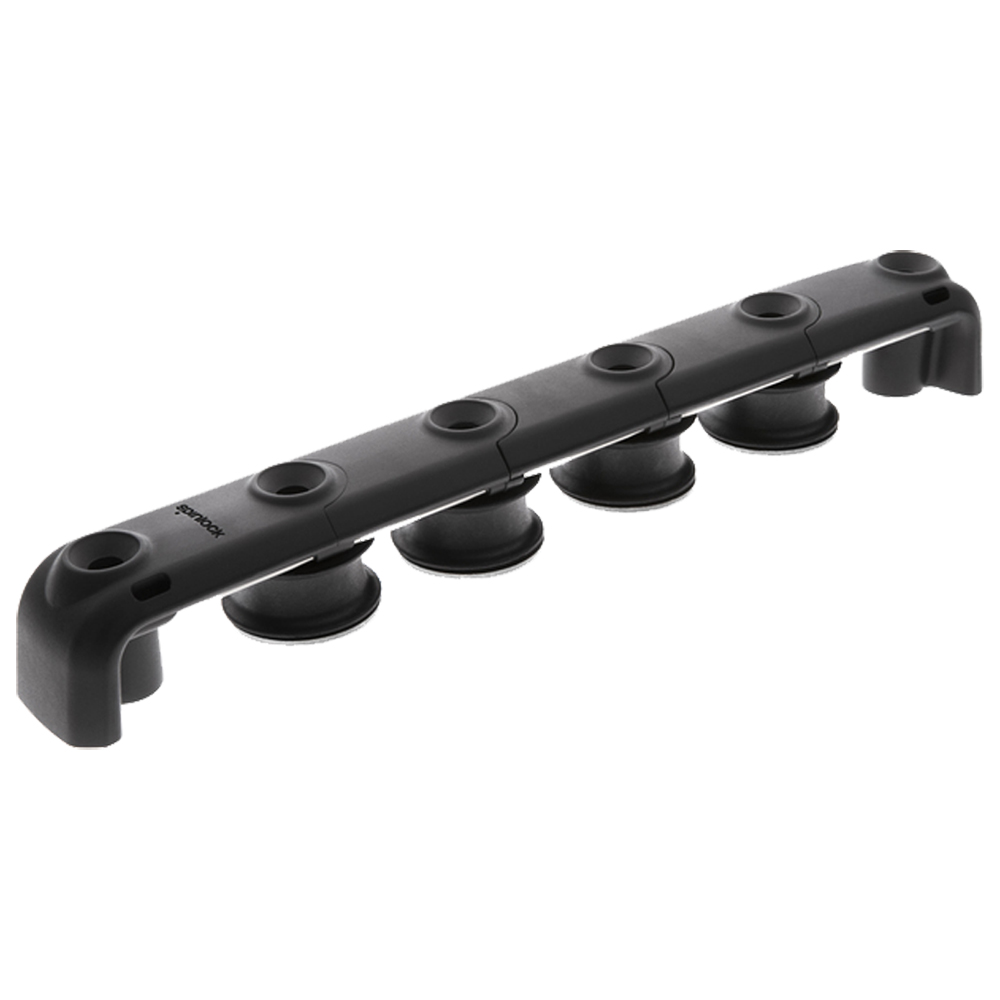

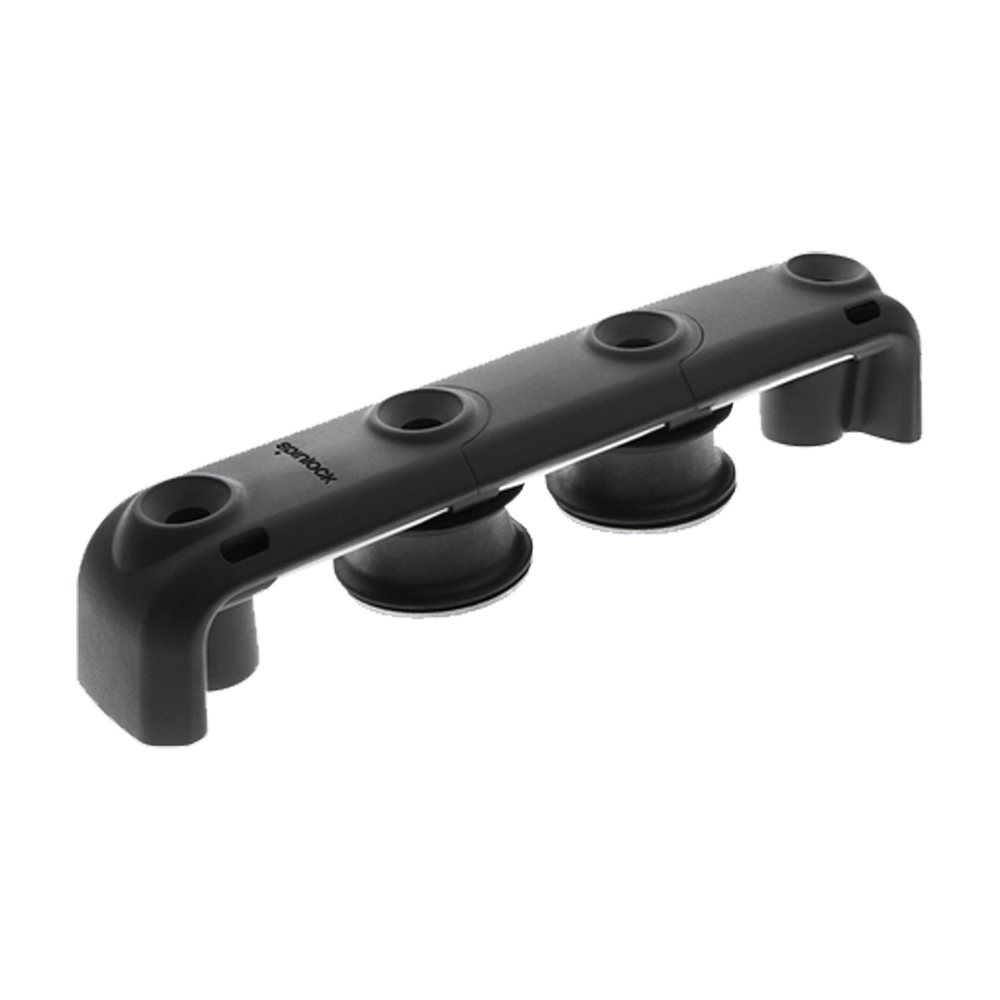

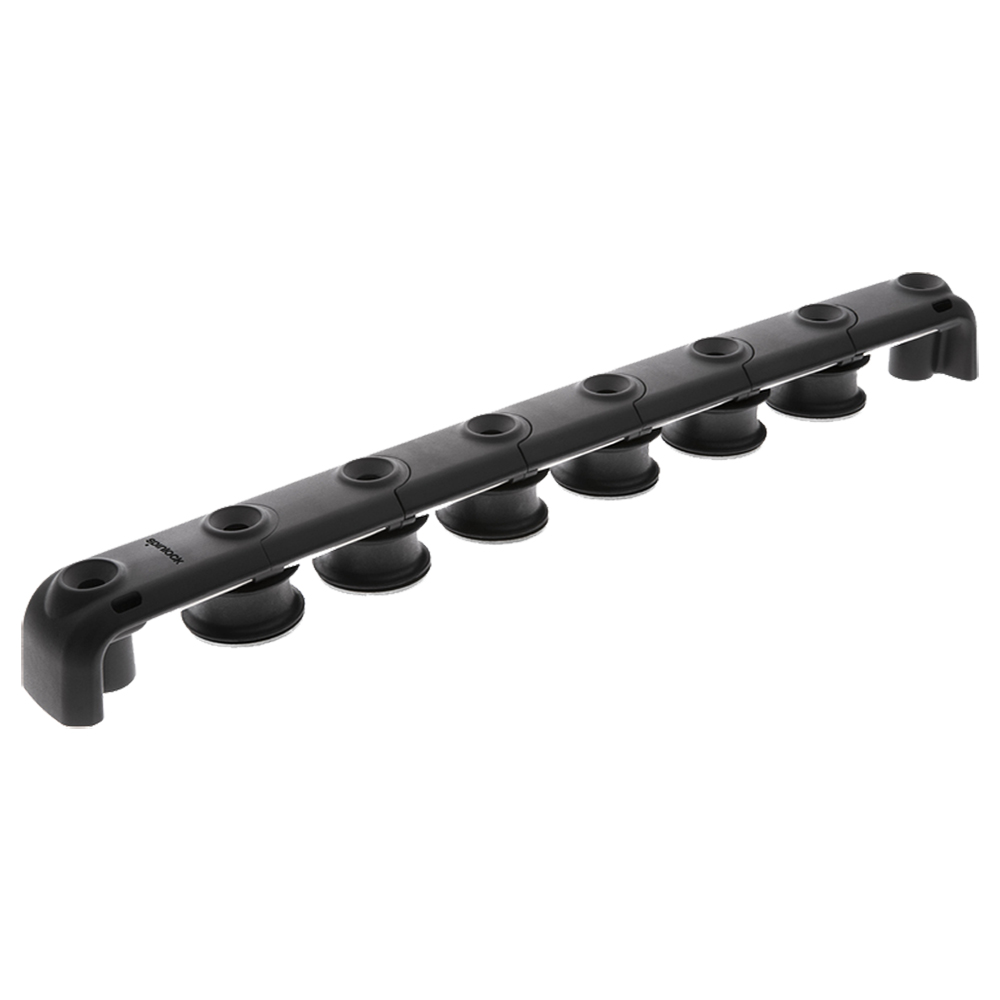

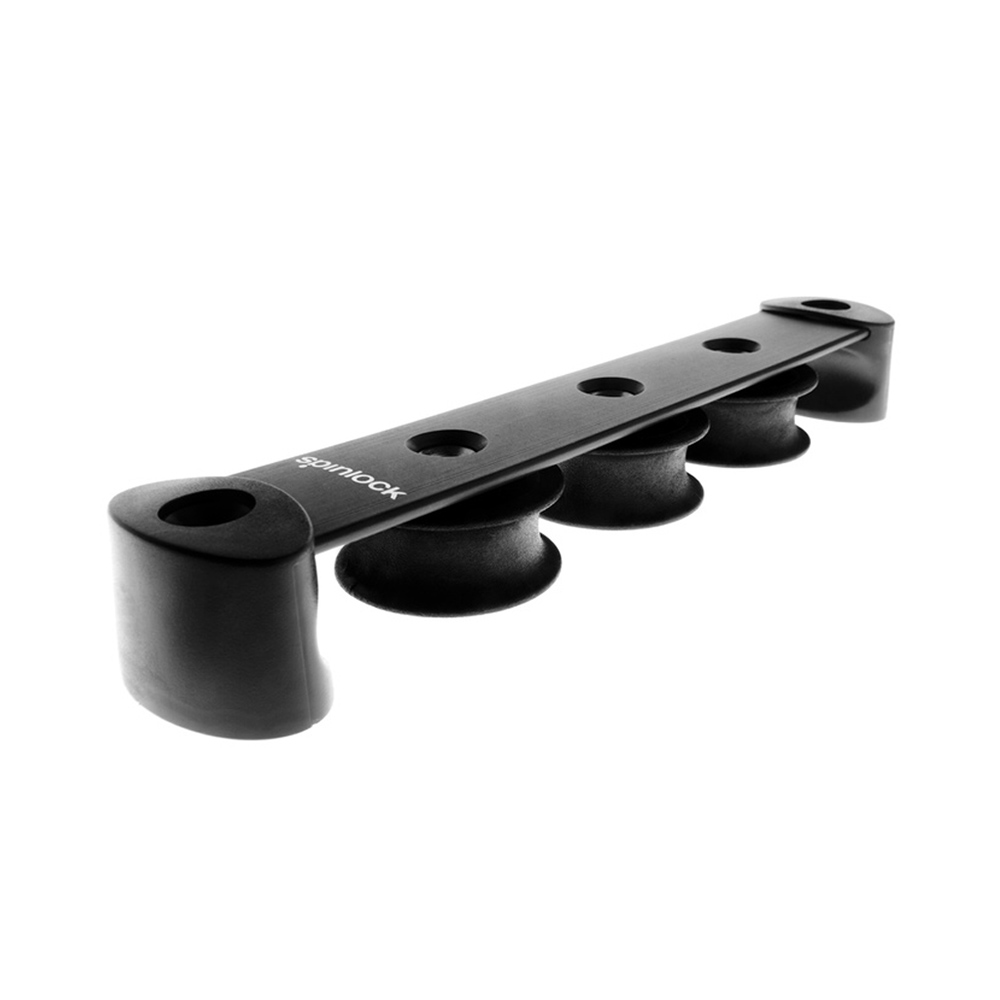

Spinlock T25 Organiser

 26.51 -  60.33

Clear

T25 – The ideal small boat organiser.

Features

  • Small boat organiser – 25mm sheaves

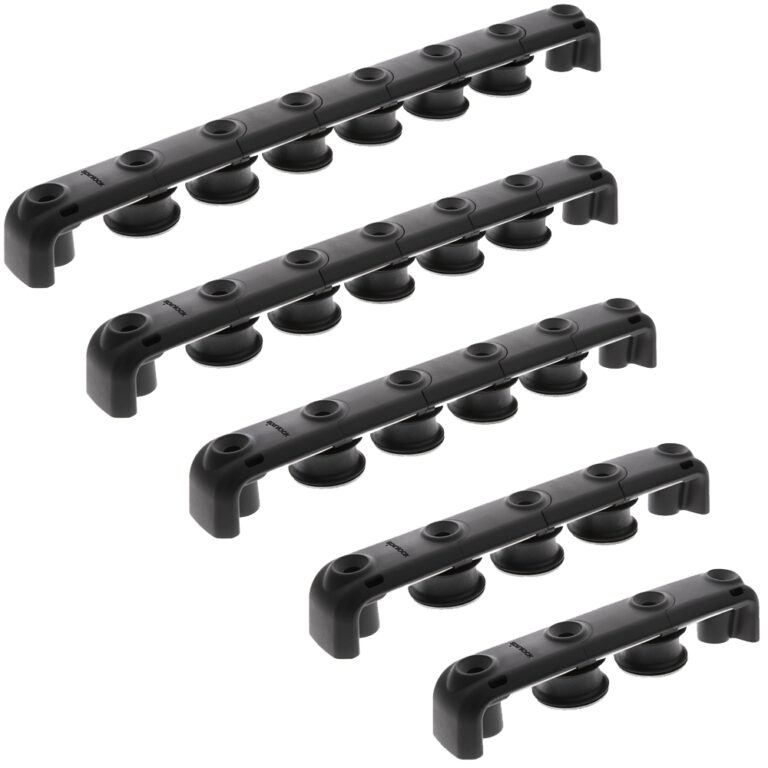

  • Symmetric or Asymmetric configurations – 2 to 6 sheaves
  • Fibre-reinforced construction
  • Stainless steel ‘wear’ strip prevents local rope damage
  • Curves to follow the shape of the deck
  • Double stack with BE10/2 or /3 for lowest cost stacked line solution

Specifications

Sheave Diameter/Type: 25mm (1″) composite

SWL per Sheave: 400kg (880lbs)

Total SWL per unit: No of sheaves x 200kg (440lbs)

Line Diameter: Up to 10mm (3/8″)

Weight: 64g (2.2oz) for 2 sheave organiser, 20g (0.7oz) per extra sheave

Fasteners Required: 2x M5 (3/16″) CSK Head (not supplied)

For all T25 Organiser dimensions and diagrams please click here.

Part Number
Size / Variant
Port Solent
Warehouse
99433550
2 / Symmetric
1
2
99433574
3 / Symmetric
2
0
99433581
4 / Symmetric
1
1
99434342
5 / Symmetric
1
1
99434359
6 / Symmetric
1
1
