Barton High Load Low Friction Eyes w/ Dyneema Loop

£ 41.95 - £ 104.95

Clear

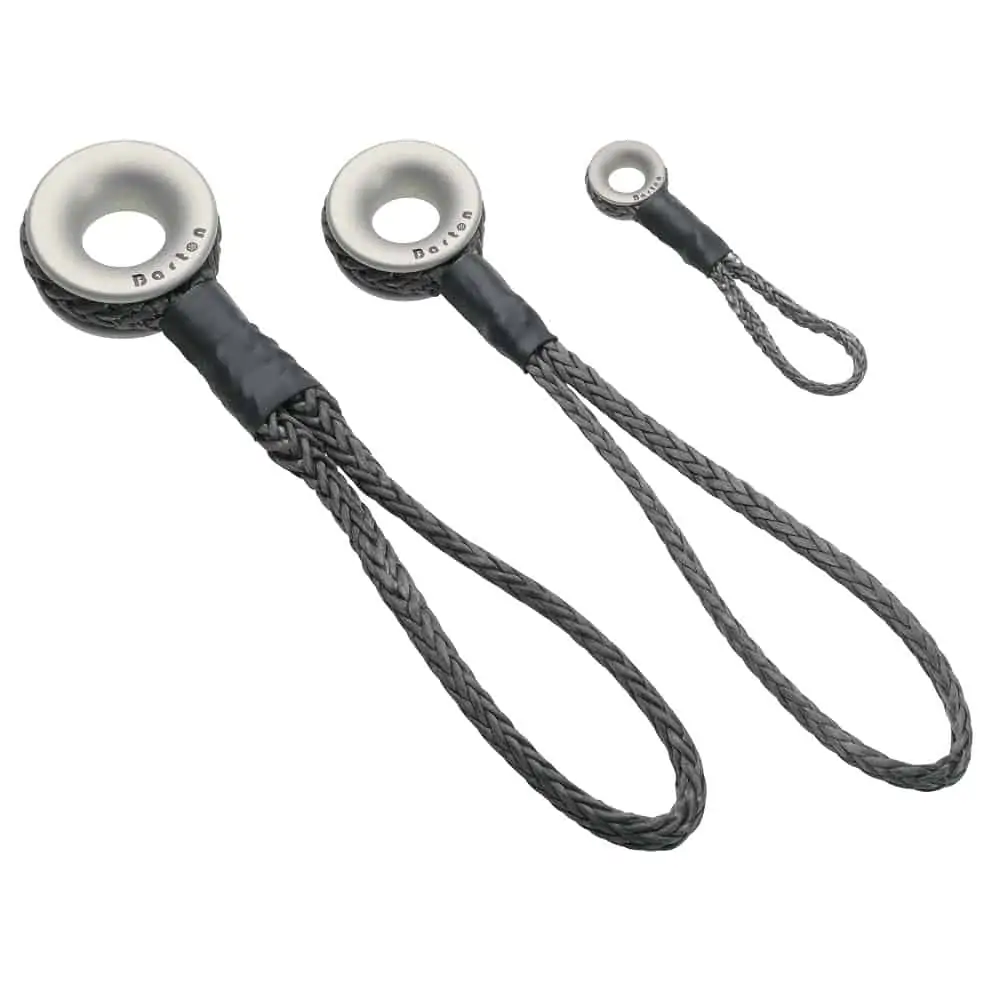

The Barton High Load Low Friction Eye/Ring with loop is available in 3 sizes and can be used in various applications on board including barber hauler, preventers, mast base block tidies, emergency blocks, occasional blocks and toe rail blocks etc.

The High Load Low Friction Eye/Ring combined with the Dyneema loop gives you a fast, efficient, simple and extremely strong solution to changing the direction of any line. The ‘Spectro’ anodised aluminium eye is designed to have very good wear resistant properties with low friction, this combined with the Dyneema loop gives you exceptional low weight to very high performance load ratio.

Wear Resistance
Independent laboratory tested Using Marlow D2 Dymeena 12 strand line.

After 450,000 cycles (50,000 metres of line) over 300 hours on an abrasion test machine no visual signs of wear on the anodised coating could be found.

Bore ∅  | Length  | Safe Working Load  | Weight
12mm   100mm   750kg   11g
22mm   230mm   2400kg   91g
28mm   310mm   3600kg   152g
Part Number
Size
Port Solent
Warehouse
99373351
12mm
2
0
99373597
22mm
1
7
99374556
28mm
1
7
