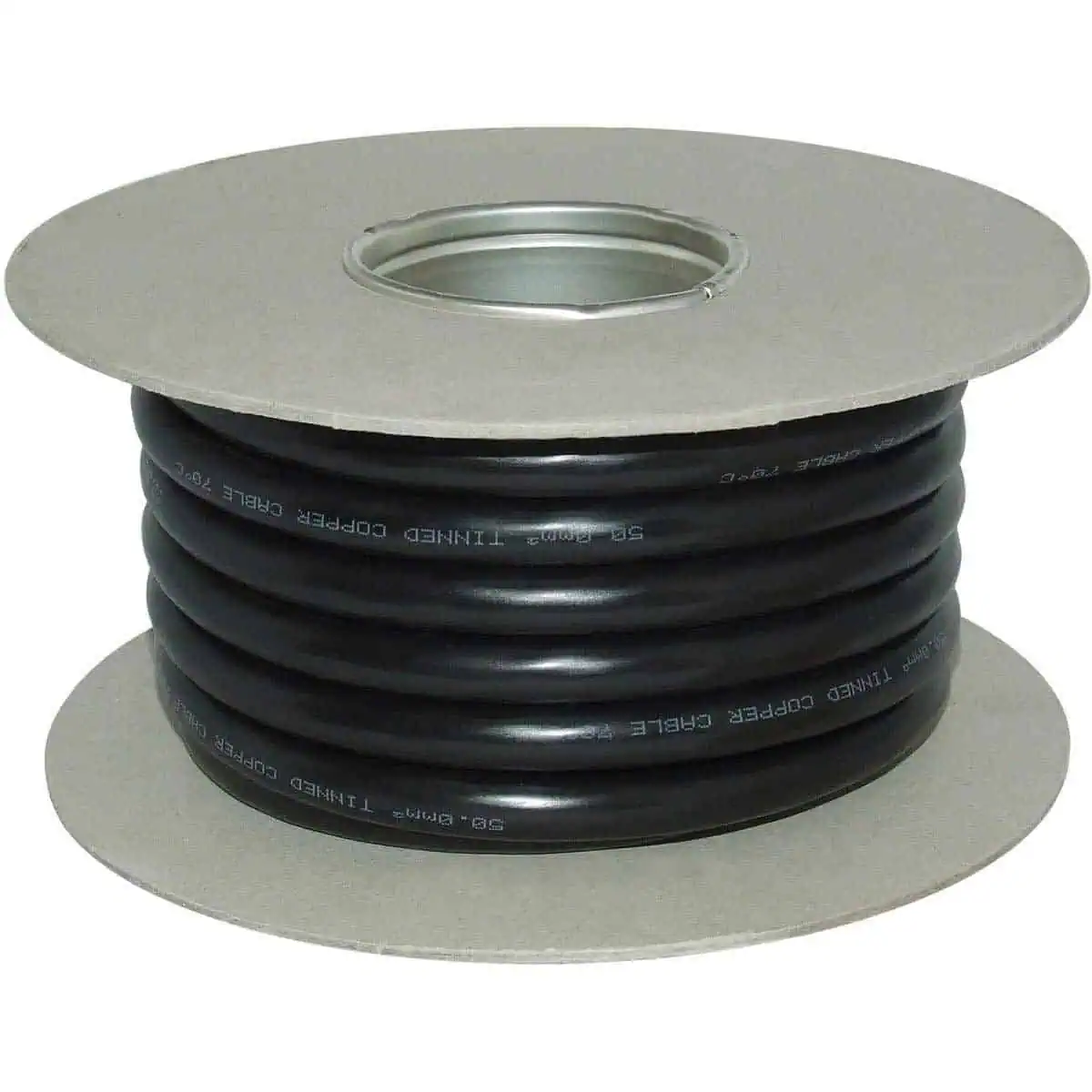

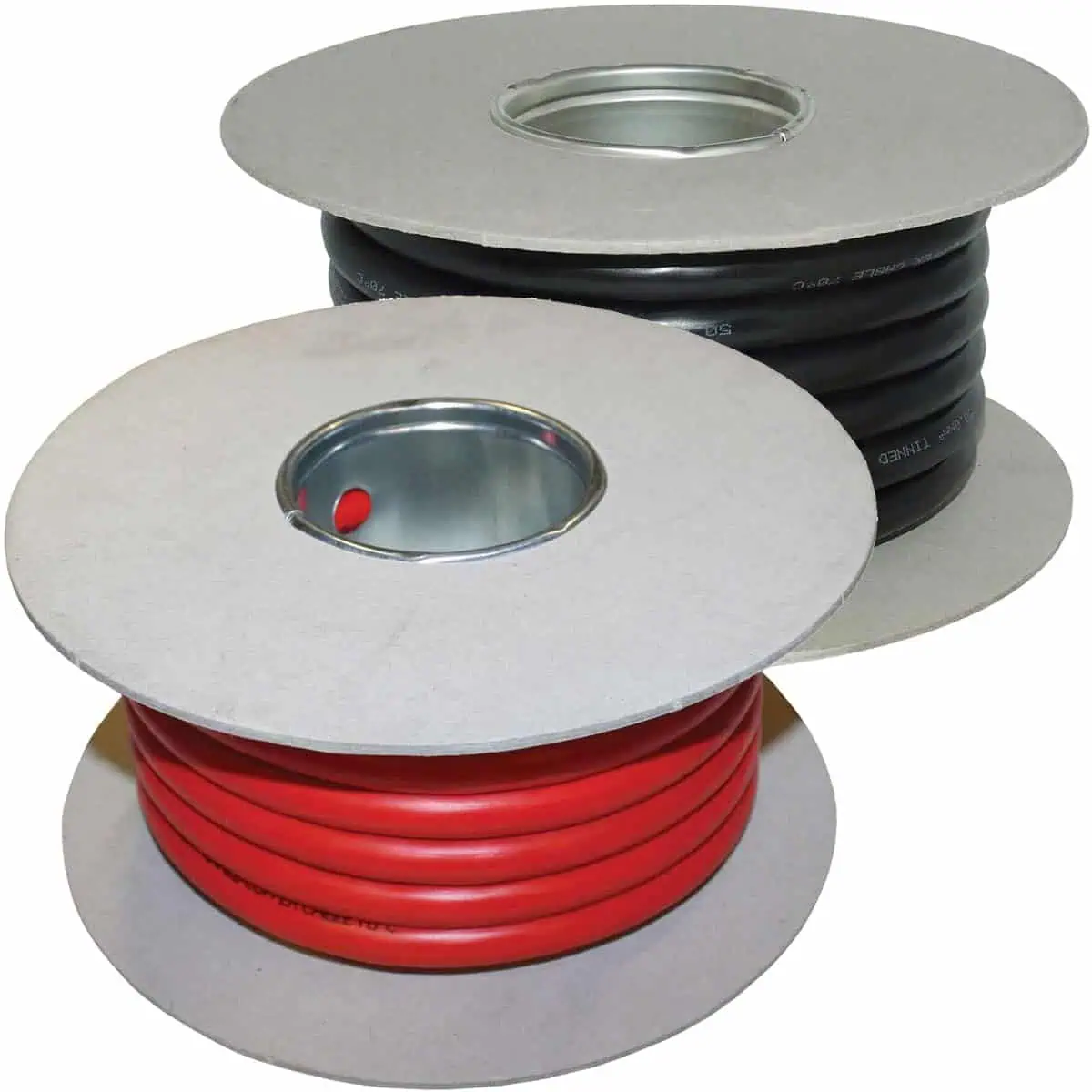

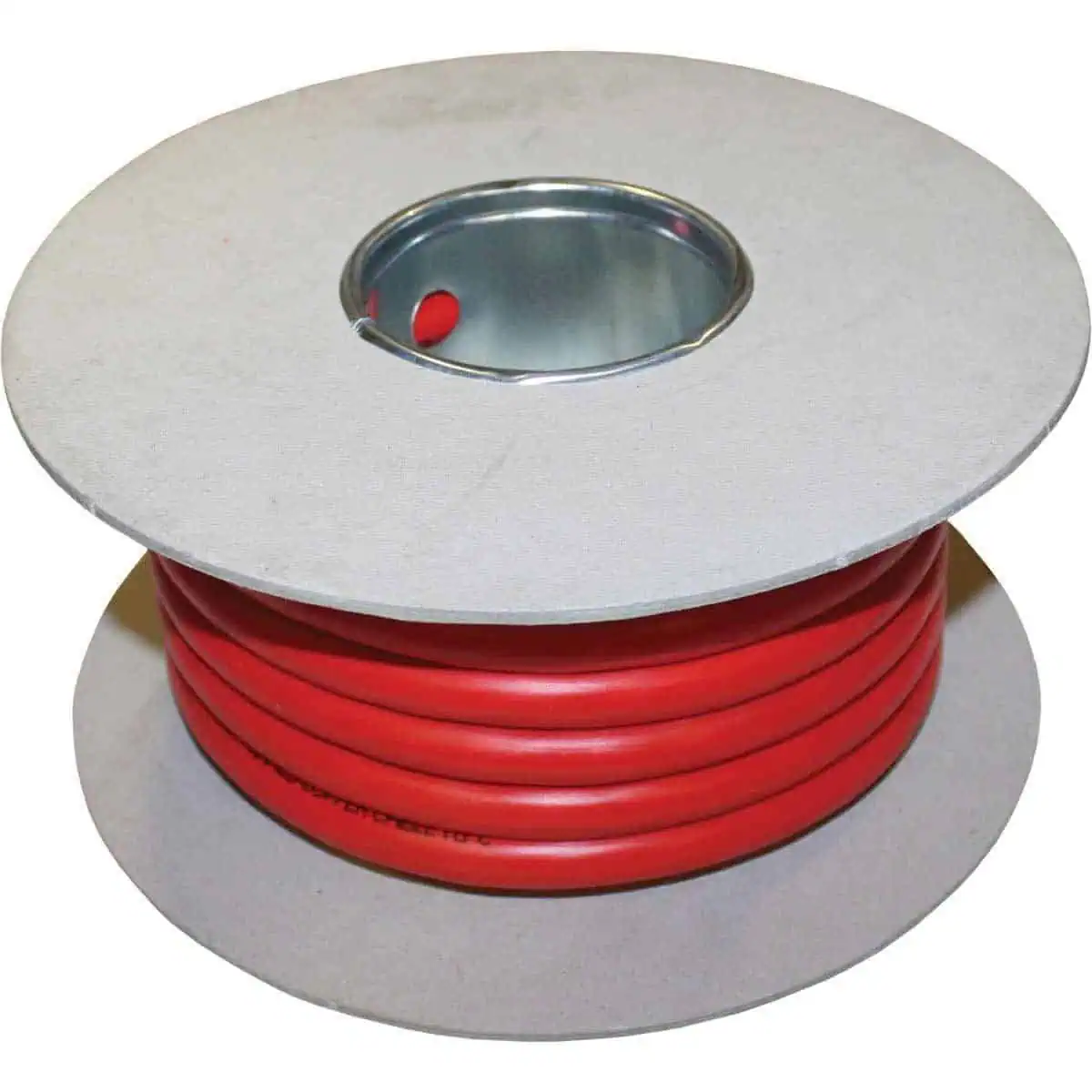

OceanFlex Tinned Battery Starter Cable
£6.50 - £24.95 / metre
Sold per Metre
Single insulated extra flexible battery cables designed for use in tough working environments. Resistant to petrol, lubricating oils and diluted acids. PVC insulated -30ºC to 70ºC.
| Part No | Conductor Specification (mm)* | Conductor Cross Section (mm²) | Maximum Overall Diameter (mm) | Nominal Current Rating (Amps)** | Maximum Resistance Per Metre at 20ºC (Ohms) |
| CM16 | 203/0.30 | 16 | 8.3 | 110 | 0.00124 |
| CM25 | 322/0.30 | 25 | 10.1 | 170 | 0.000794 |
| CM35 | 455/0.30 | 35 | 11.8 | 240 | 0.000565 |
*The conductor specifications shown are representative configurations; actual cable strand may differ slightly, but will meet resistance values shown.
**Nominal current amperage ratings are provided as a guide only, and can vary depending on application, conditions and environmental factors. If in doubt, please consult a qualified electrician.
Part Number
Size / Colour
Port Solent
Warehouse
99754266
16mm / Black
208m
0m
99754280
16mm / Red
168m
0m
99754297
25mm / Black
60m
0m
99754303
25mm / Red
163m
0m
99754310
35mm / Black
25m
0m
99754327
35mm / Red
79m
0m
99805050
50mm / Black
12m
0m
99805067
50mm / Red
40m
0m
99805074
70mm / Black
10m
0m
99805081
70mm / Red
4m
0m
