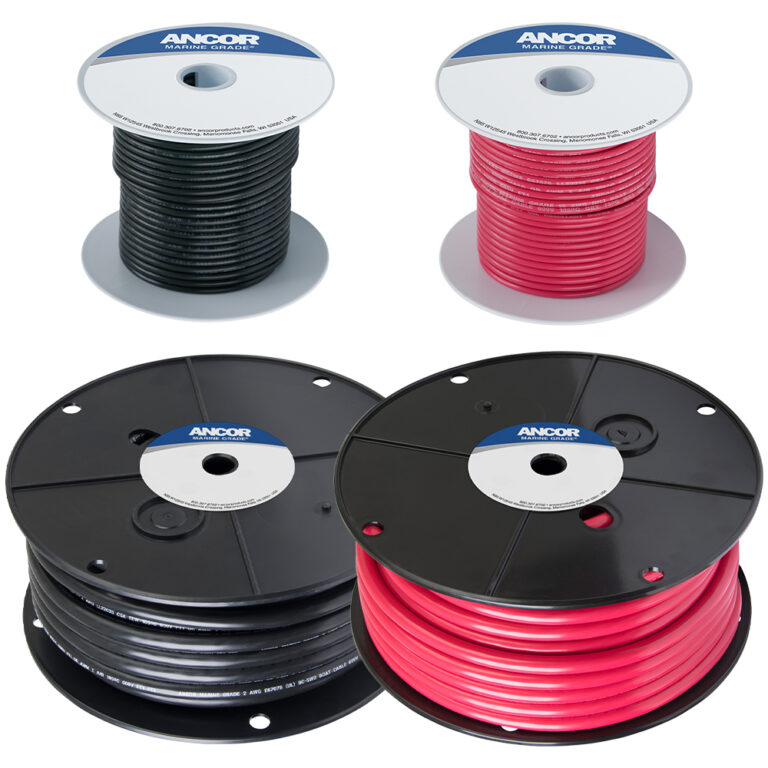

Ancor Single Core Tinned Cable

£ 1.25 - £ 18.00 / metre

Clear

Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600 volts, 105 deg C dry and 75 deg C wet, stays flexible even in extreme cold (-40 deg F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.

Price per M

Wire size Nominal O.D. Wire Diameter Stranding No. of 30AWG Cir. Mil Area Ohms per 1000′ mm2 Wt. per 1000′
16 AWG 1 mm2 1/8″ 3.2 mm 1.5 mm 26 2600 4 1.31 16 lbs 7.3 kg
14 AWG 2 mm2 9/64″ 3.6 mm 2.0 mm 41 4100 2.53 2.08 23 lbs 10.4 kg
12 AWG 3 mm2 5/32″ 4.0 mm 2.6 mm 65 6500 1.75 3.31 31 lbs 14 kg
10 AWG 5 mm2 7/32″ 5.6 mm 3.3 mm 105 10500 1 5.26 44 lbs 20 kg
8 AWG 8 mm2 5/16″ 7.9 mm 4.3 mm 168 16800 0.62 8.37 86 lbs 39 kg
6 AWG 13 mm2 11/32″ 8.7 mm 5.5 mm 266 26600 0.4 13.3 118 lbs 53.5 kg
4 AWG 21 mm2 13/32″ 10.3 mm 7.0 mm 420 42000 0.24 21.15 178 lbs 81 kg
2 AWG 34 mm2 15/32″ 11.9 mm 8.0 mm 665 66500 0.16 33.62 277 lbs 126 kg
Part Number
Size / Colour
Port Solent
Warehouse
99328290
16 AWG / 1mm / Black
22m
0m
99328306
16 AWG / 1mm / Red
35m
0m
99328924
14 AWG / 2mm / Black
37m
0m
99328931
14 AWG / 2mm / Red
75m
0m
99328948
12 AWG / 3mm / Black
55m
0m
99328276
12 AWG / 3mm / Red
34m
0m
99328962
10 AWG / 5mm / Black
37m
0m
99328955
10 AWG / 5mm / Red
62m
0m
99318536
8 AWG / 8mm / Black
43m
0m
99318543
8 AWG / 8mm / Red
51m
0m
99692346
6 AWG / 13mm / Black
18m
0m
99692353
6 AWG / 13mm / Red
1m
0m
99329037
4 AWG / 21mm (Battery Cable) / Black
37m
0m
99329044
4 AWG / 21mm (Battery Cable) / Red
41m
0m
99334833
2 AWG / 33mm (Battery Cable) / Black
34m
0m
99334840
2 AWG / 33mm (Battery Cable) / Red
30m
0m
