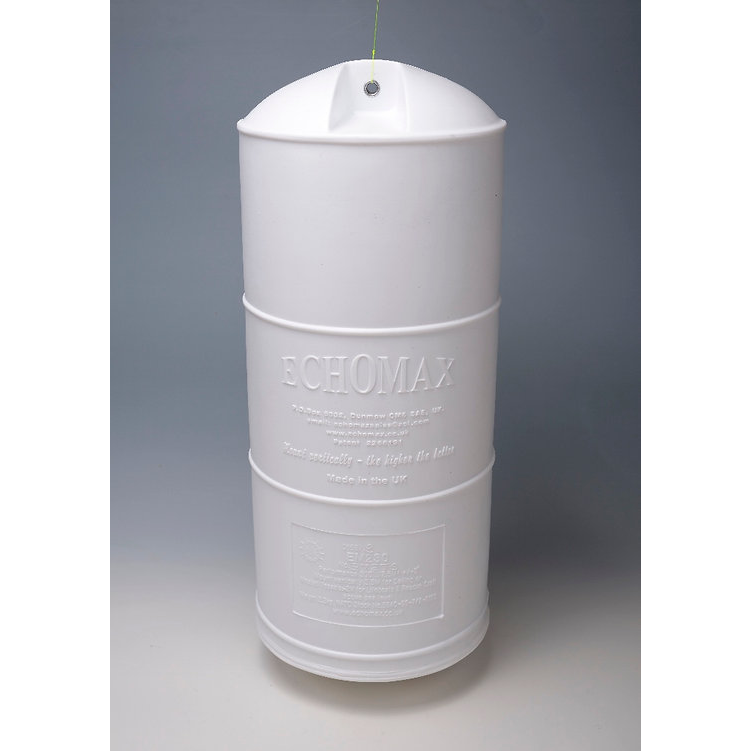

Echomax EM230 Radar Reflector

Suitable for vessels 9 metres and above. Robust Polyethylene case available in white, orange, yellow, red or green. The EM230 model has been successfully tested by QinetiQ to ISO 8729-1999, and meets RORC, ORC, ISAF 2012/13 and WCC requirements of 10M2.

Echomax EM230 has now been allocated a NATO Stock No.5840-99-742-6193 following the adoption and use of the Echomax EM230 by the UK Military Forces and others throughout the World. Used by the US Navy for target and other uses.

Mast, halyard or deck bracket mount.

@+/-3°-24m² maximum – Stated Performance Level (SPL) +/- 3° 4.7m²

Dimensions:

Height: 610mm

Width: 245mm

Fixing Holes: 8mm

Weight: 2.3kg

Fixing Centres: 569mm
