Dometic CU55 & VD07 Cooling Kit Box

£769.00 £299.95

36 in stock

Dometic CU55 & VD07 Cooling Kit Box
1 in stock at Port Solent
Available to Click & Collect today.

+44 (0)2392 219433

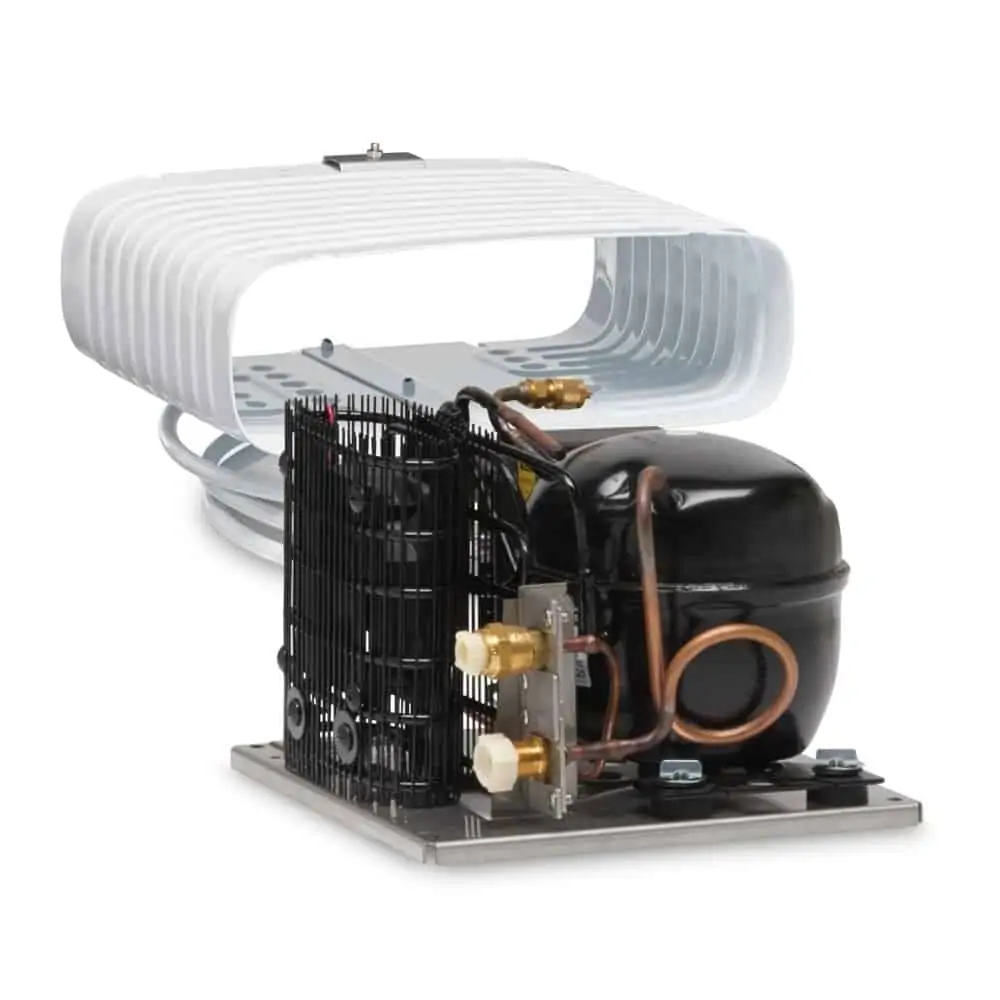

The Dometic CU55 & VD07 Cooling Kit Box allows you to convert a locker or coolbox into a fridge by installing this DIY cooling kit.
The kit consists of a compressor and an “O” shaped cooling plate, suitable for a coolbox volume of 100 litres max and a thermostat switch.

The Danfoss compressor features integrated low voltage protection, low voltage cut-out, and a stainless steel mounting plate. It has self-sealing valve couplings and is air cooled.

CU-55 Compressor is an Entry-level unit for small refrigeration capacities and for use in cool waters. Features Include:

  • Cooling capacities: 130 litres max. for normal refrigeration with direct evaporators, 100 litres max. with cold accumulators
  • Voltage: 12/24 volts DC
  • Power input: approx. 35 or 40 watts, depending on the evaporator type
  • System: Fully hermetic compressor with control electronics and integrated low-voltage protection, low-voltage cut-off, electronic reverse pole protection, dynamically ventilated wire tube condenser, self-sealing valve couplings
  • Dimensions (WxHxD): 220 x 160 x 220 mm
  • Weight: approx. 6.5 kg
  • Quality features: Suitable for floor mounting, corrosion-resistant stainless steel mounting plate
  • Item designation: ColdMachine 55

    VD-07 Evaporator plate:

  • O-evaporator for installation in chest and upright refrigerators
  • Cooling capacities: 120 litres max. with an insulation of 35 mm PU, 130 litres max. with an insulation of 50 mm PU
  • Power input: approx. 35 watts
  • Current consumption: 1.46 Ah/h with 35 mm PU insulation,
  • 1.17 Ah/h with 50 mm PU insulation, both at +5°C interior temperature, +32°C ambient temperature and medium cooling capacities
  • System: Standard O-evaporator for horizontal or vertical installation, self-sealing valve couplings, flexible connection pipe approx. 2 m, continuously variable thermostat (for external installation, with blue turning knob and LED indicator, white plastic housing), electric supply cord approx. 3 m
  • Dimensions (WxHxD): 255 x 210 x 100 mm
  • Weight: approx. 1.5 kg
    • Part Number
    Port Solent
    Warehouse
    99176969
    1
    35
