Maestrini DZR Hose Tail – Heavy Type

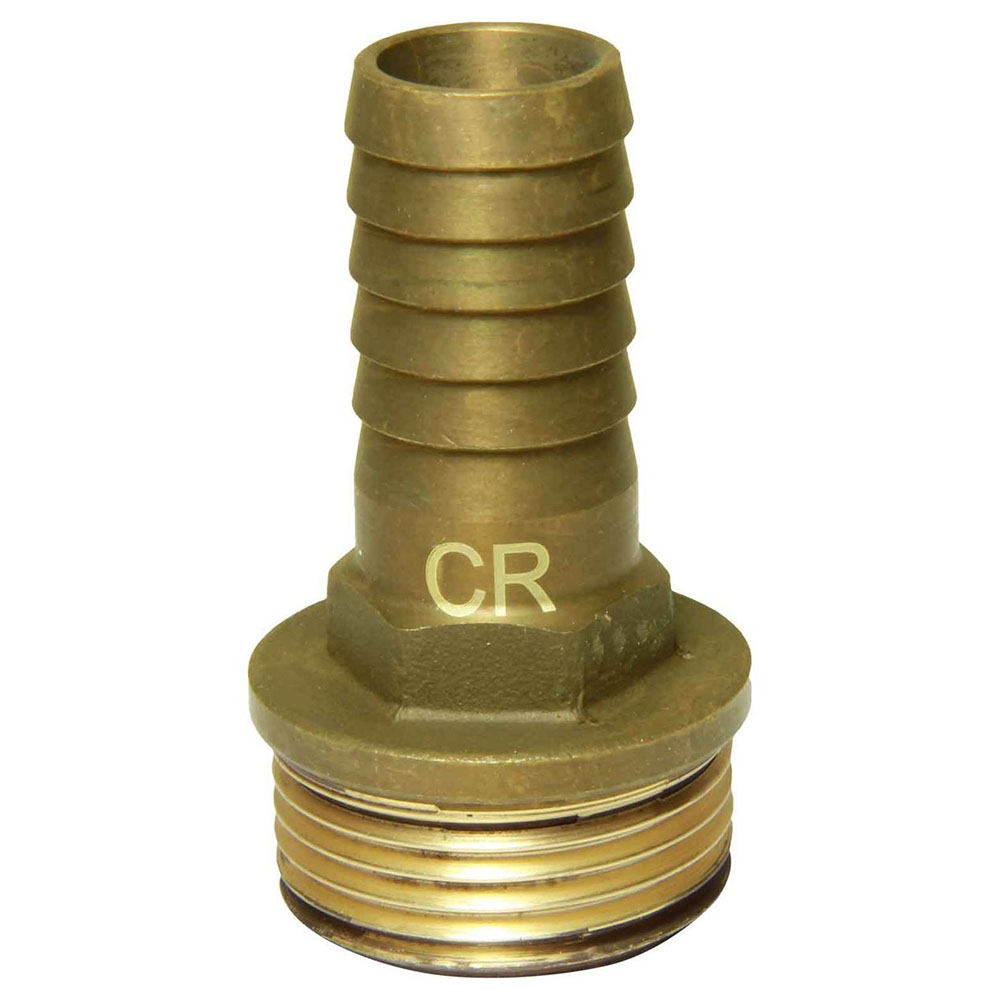

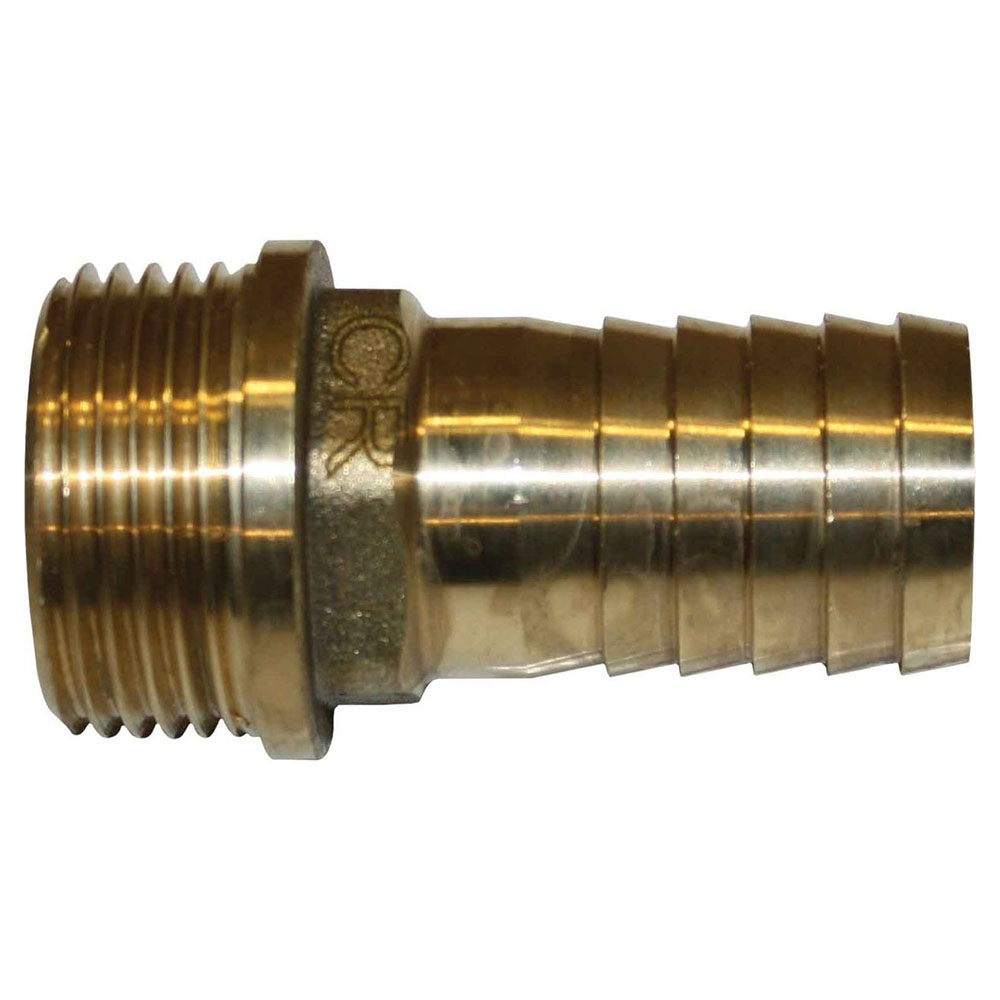

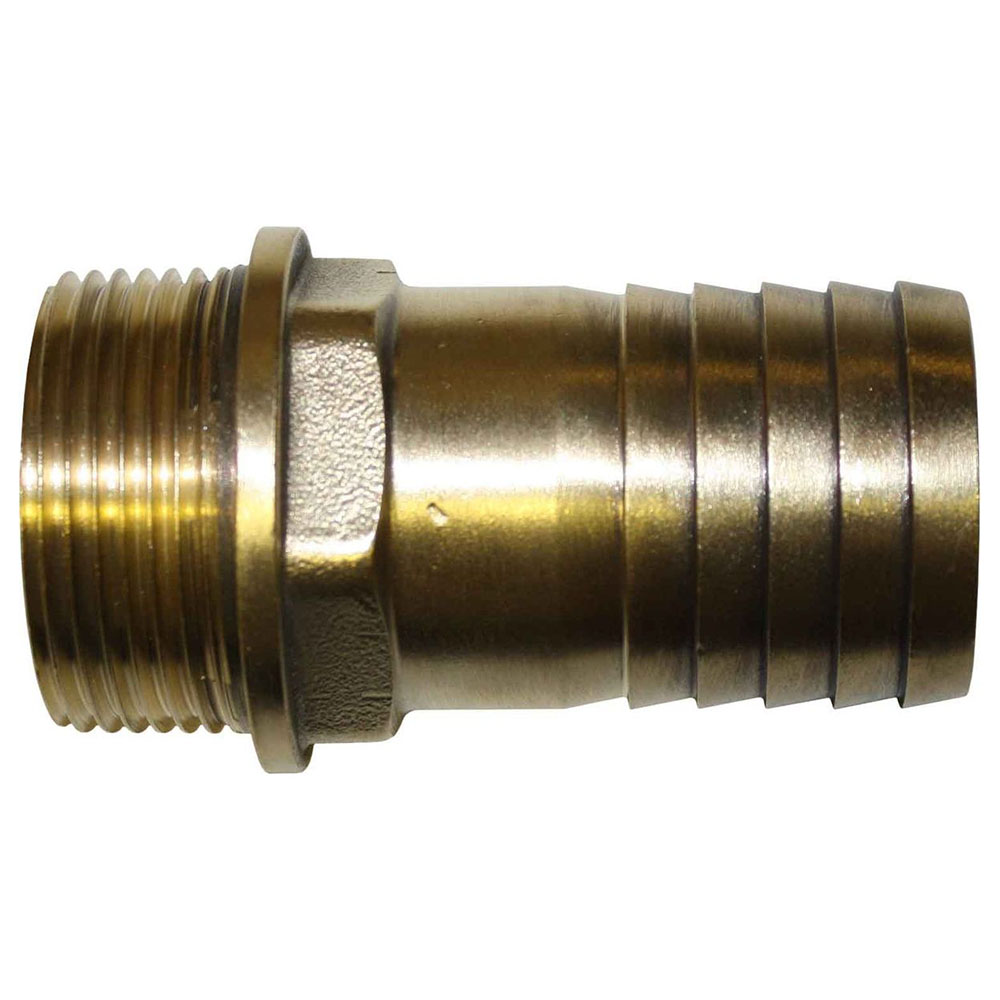

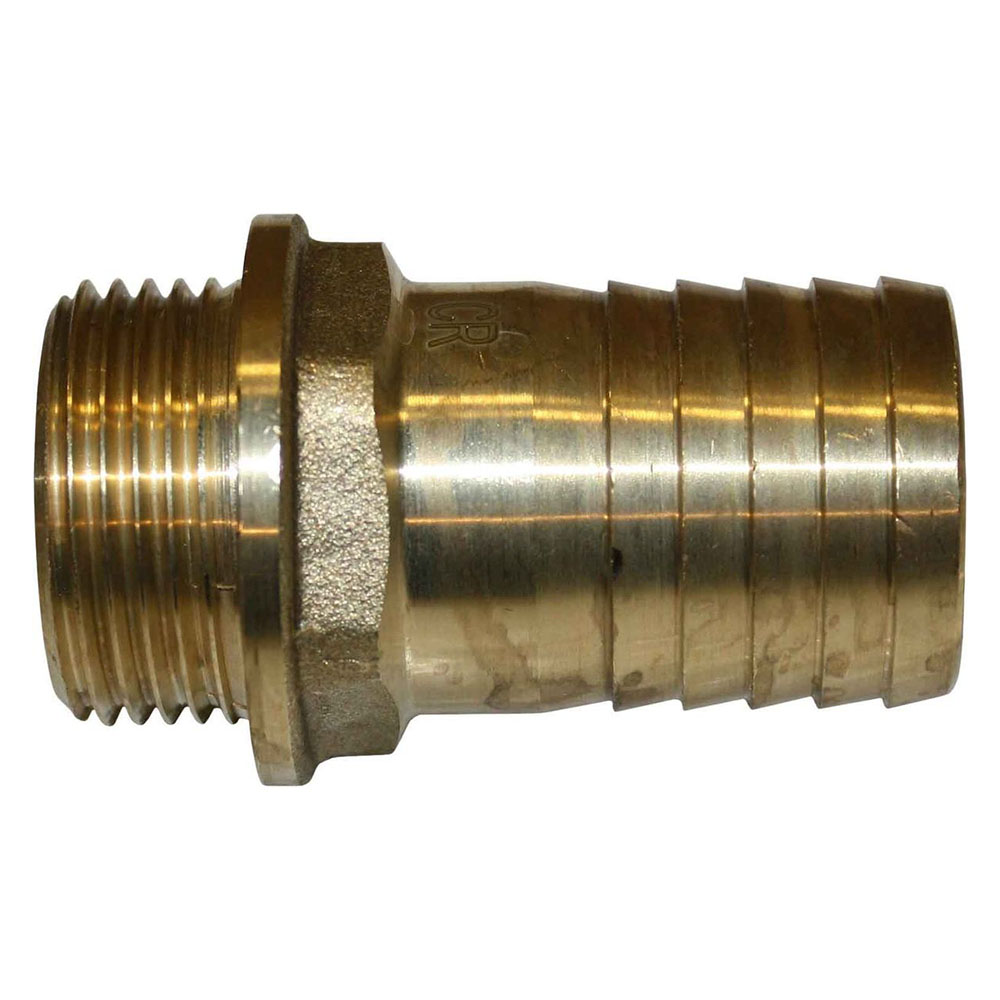

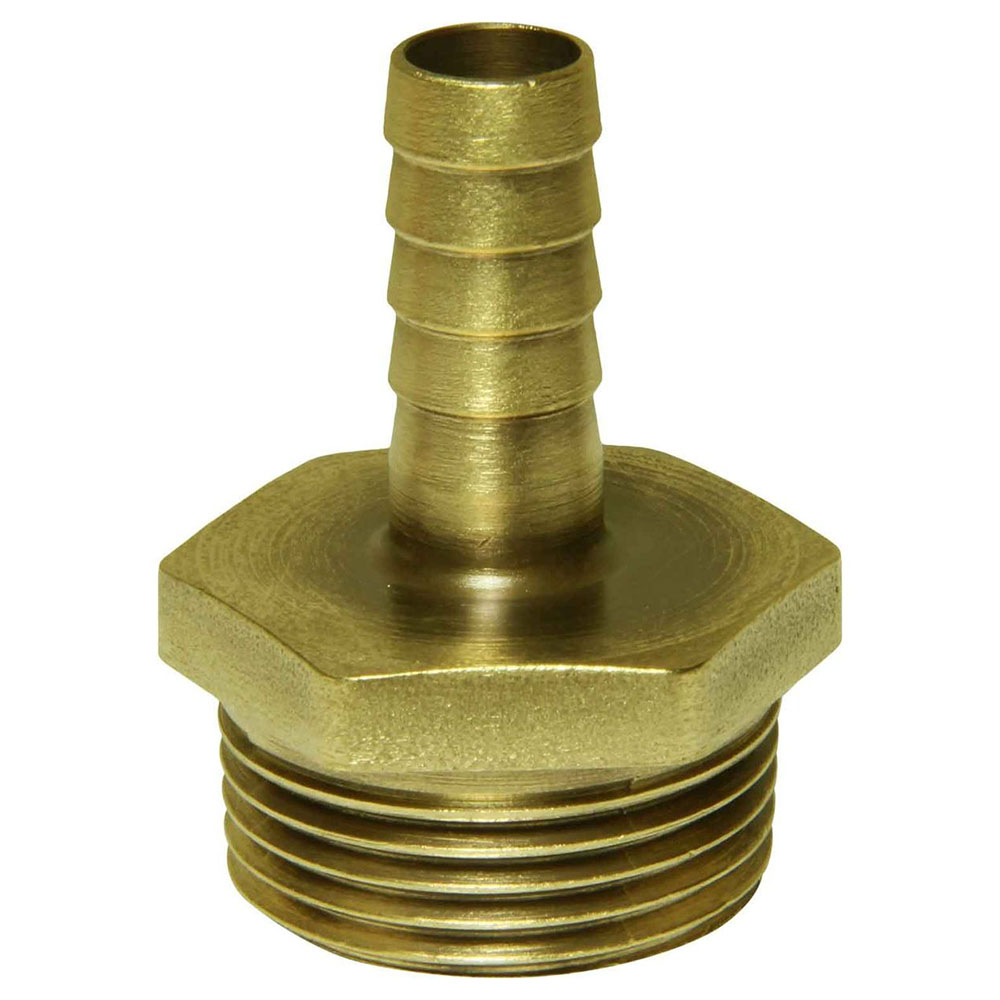

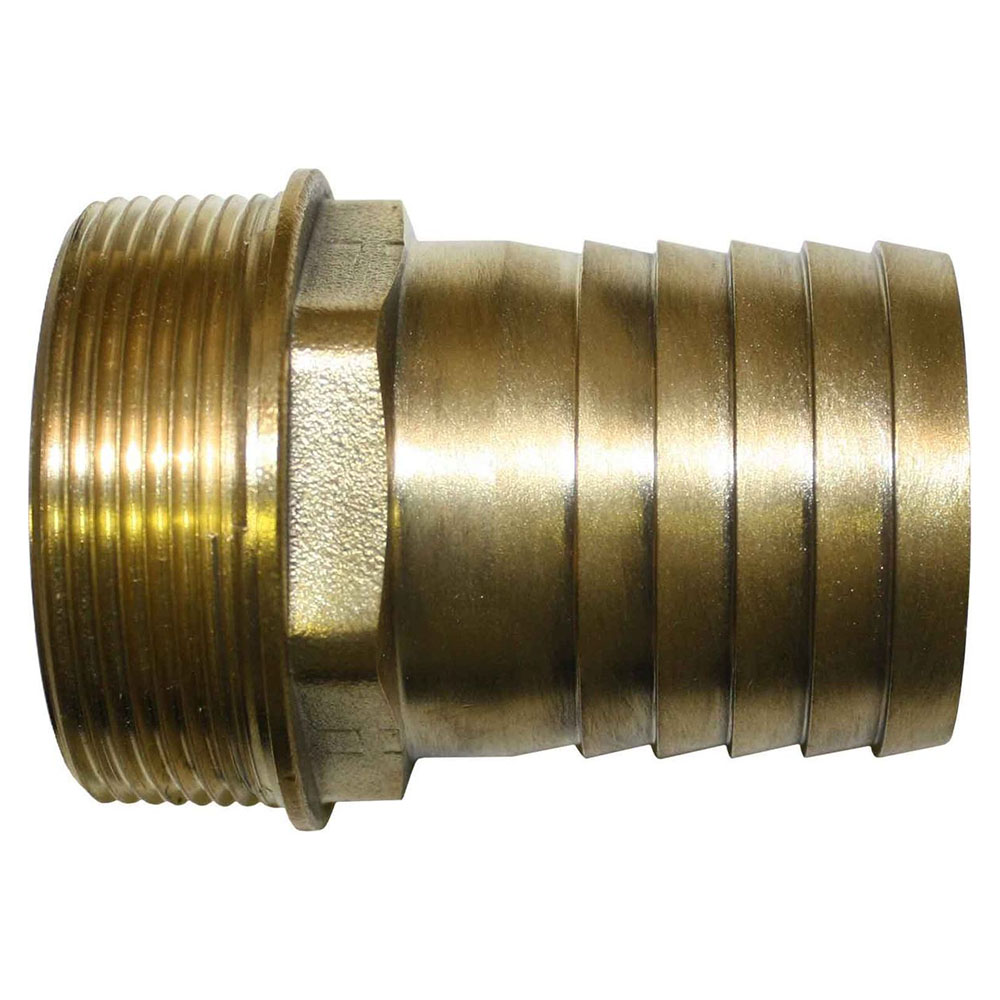

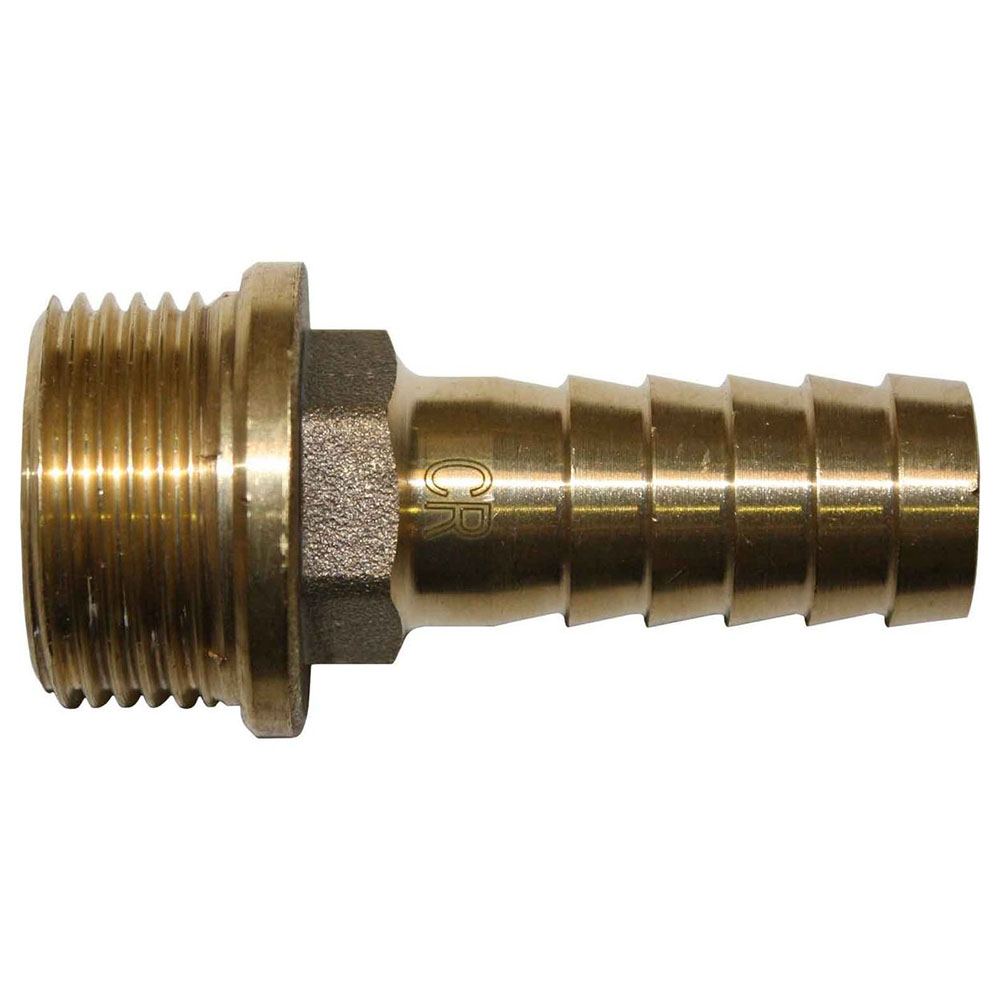

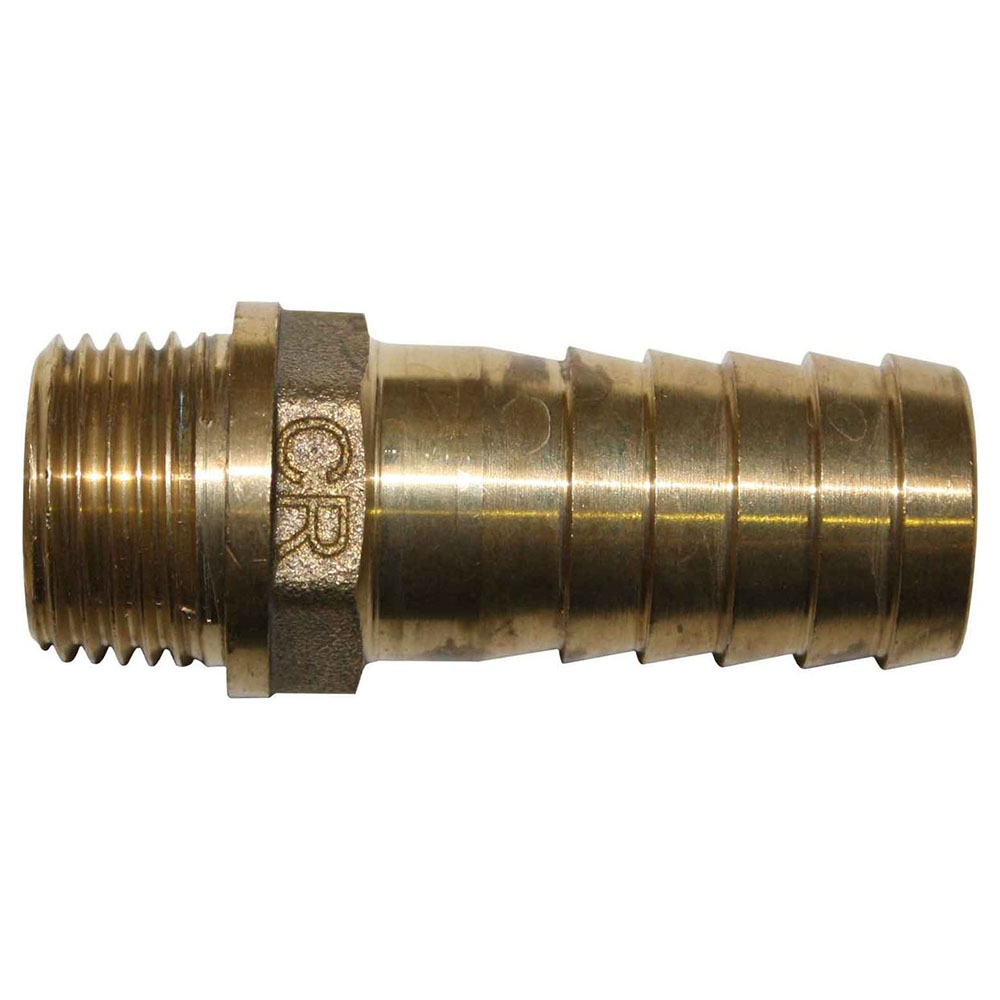

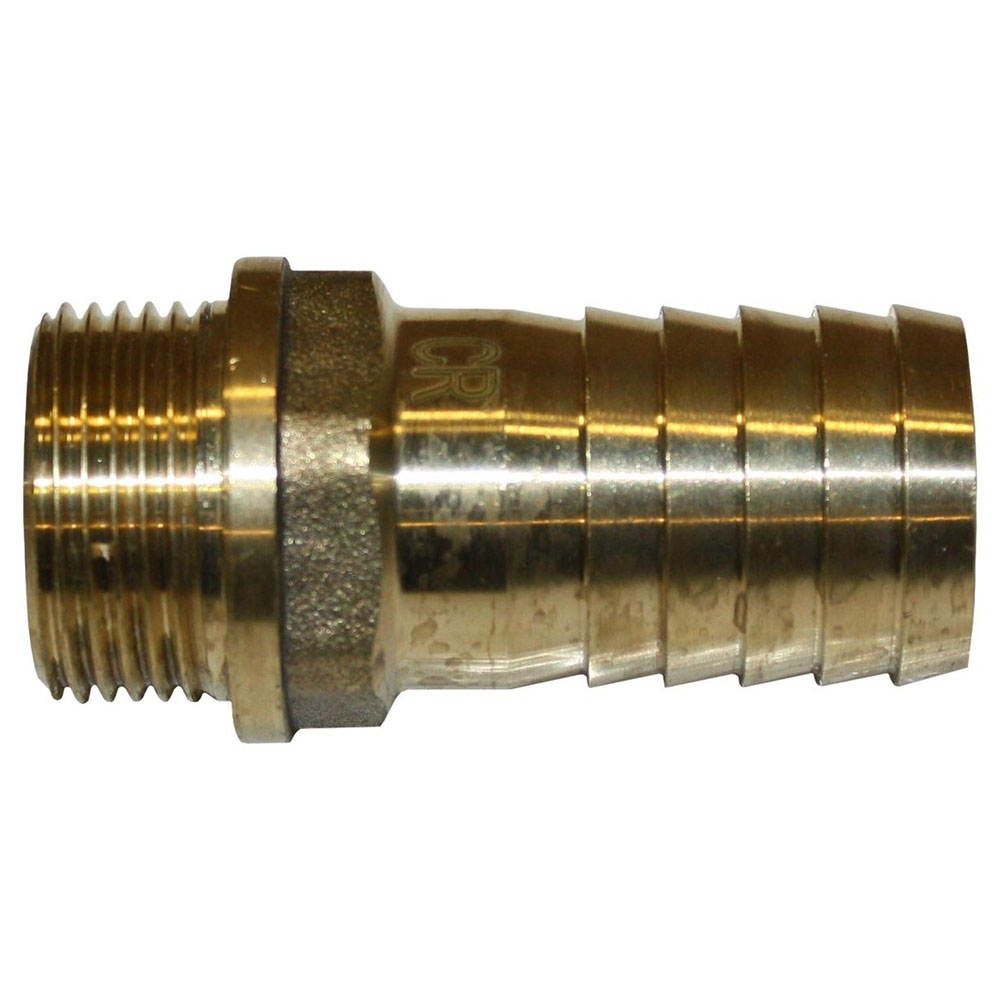

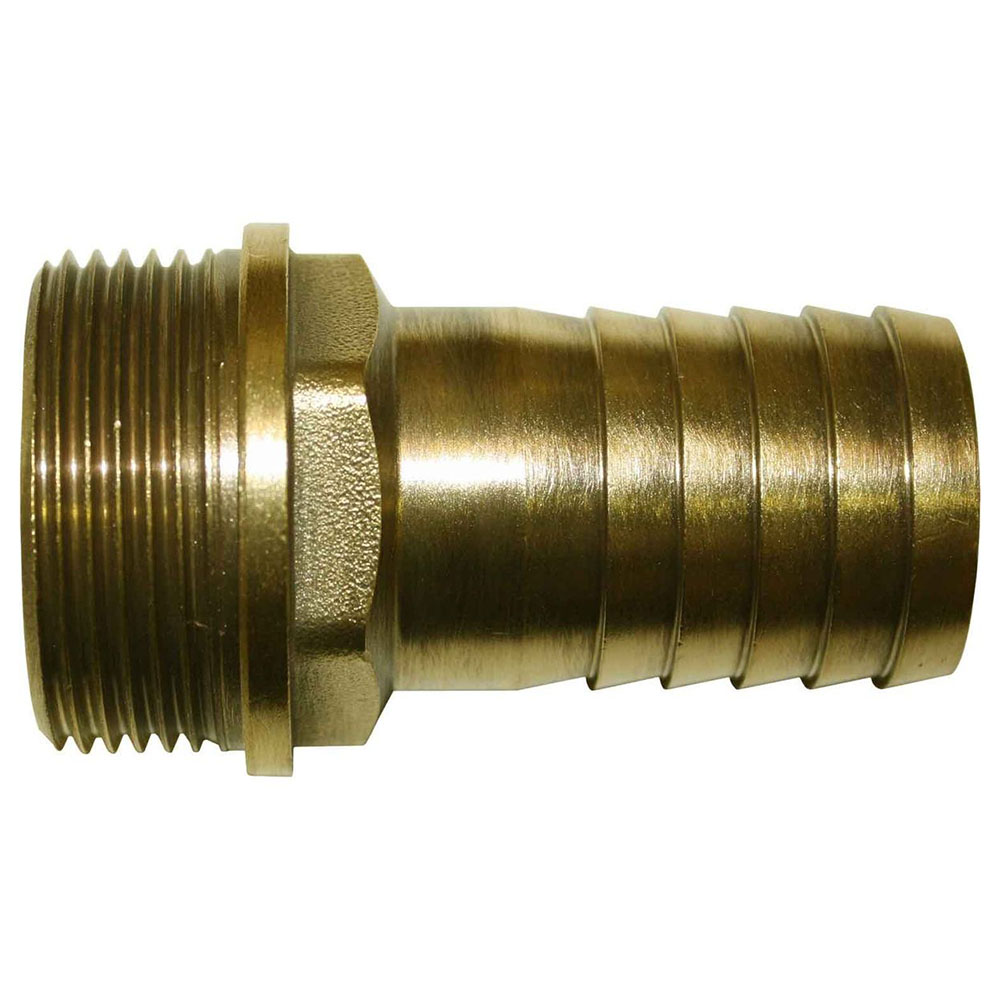

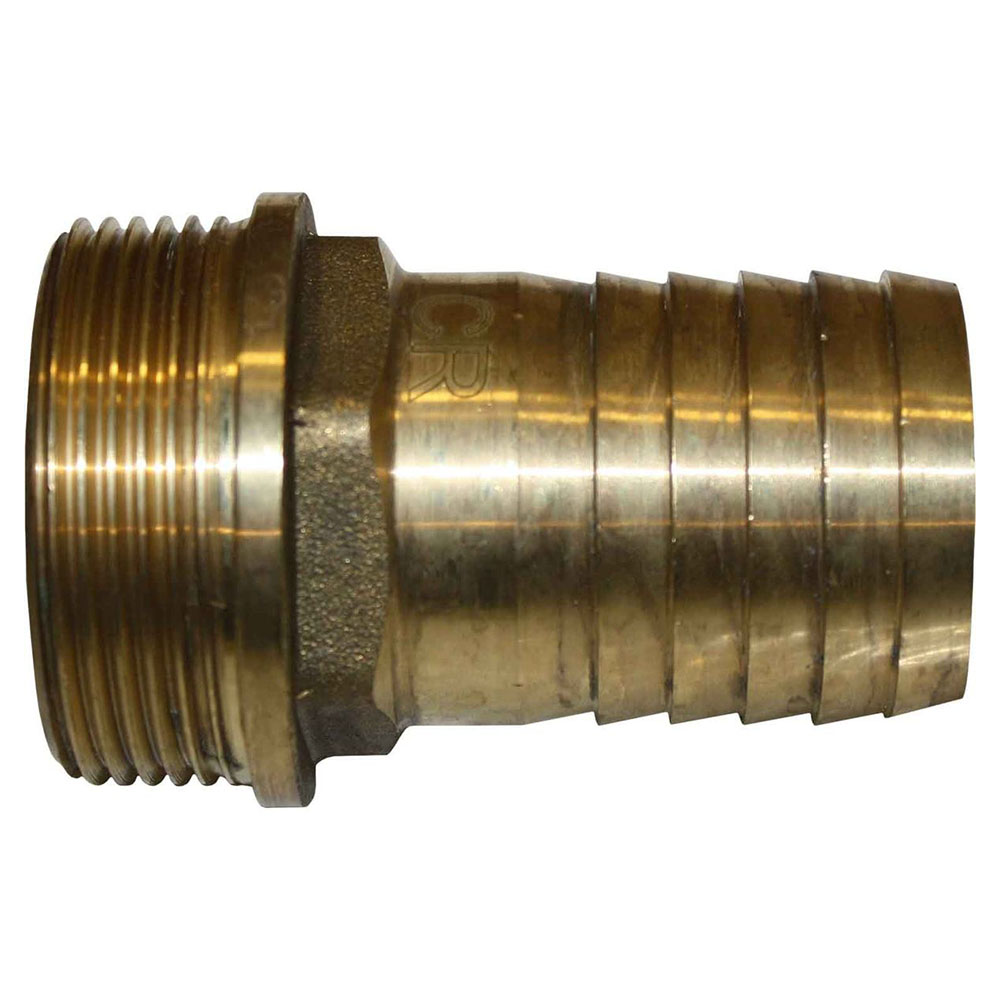

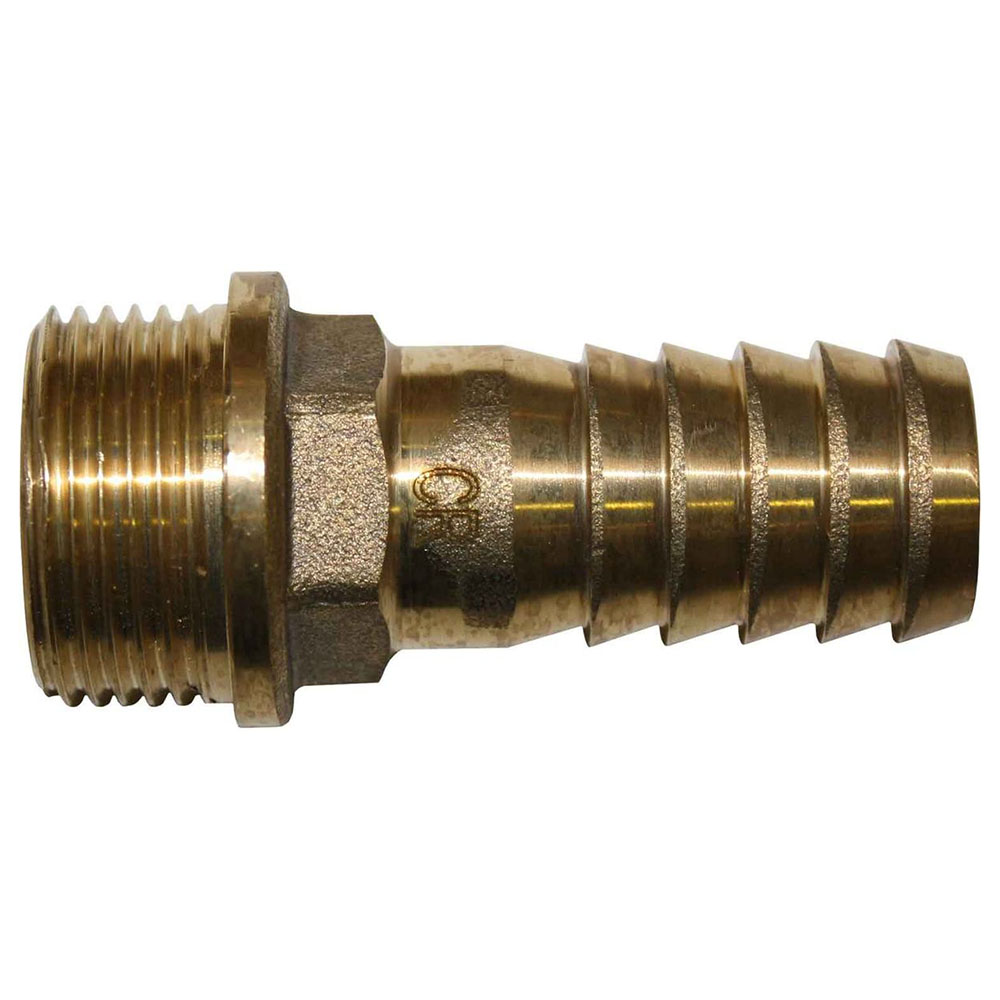

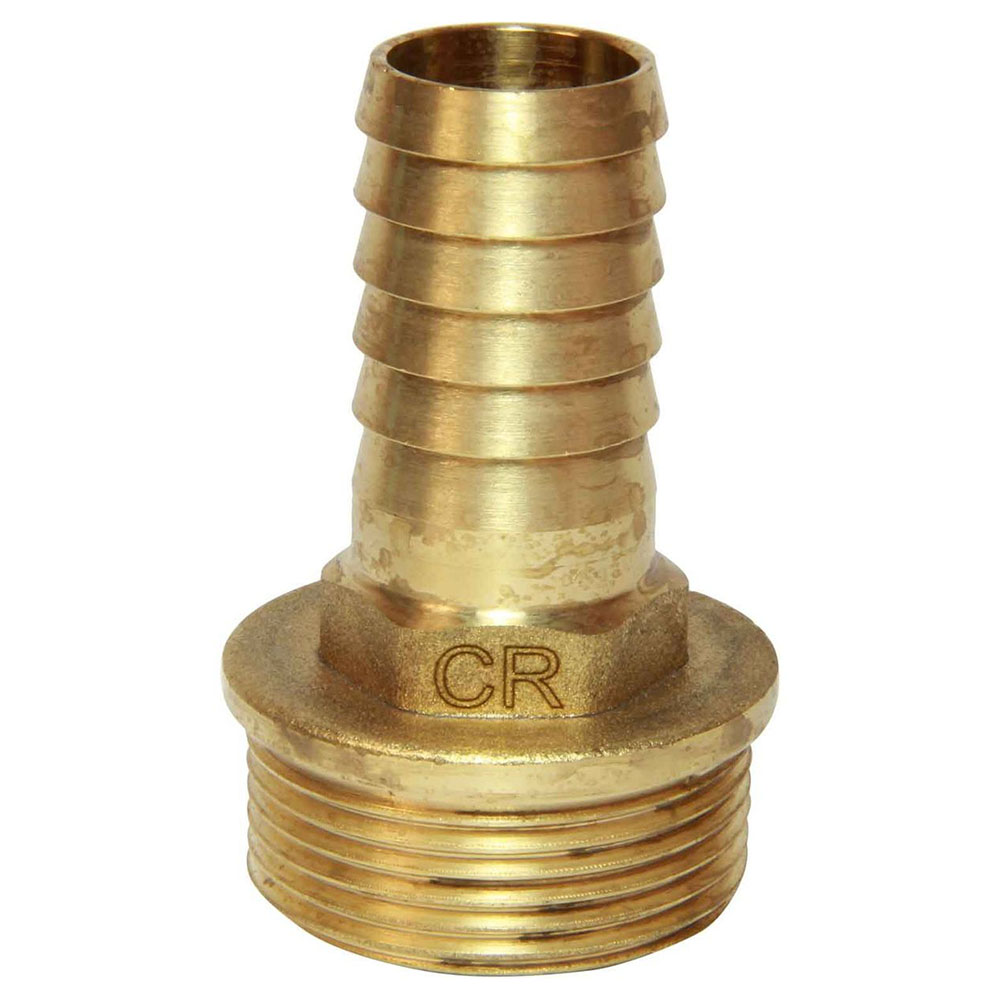

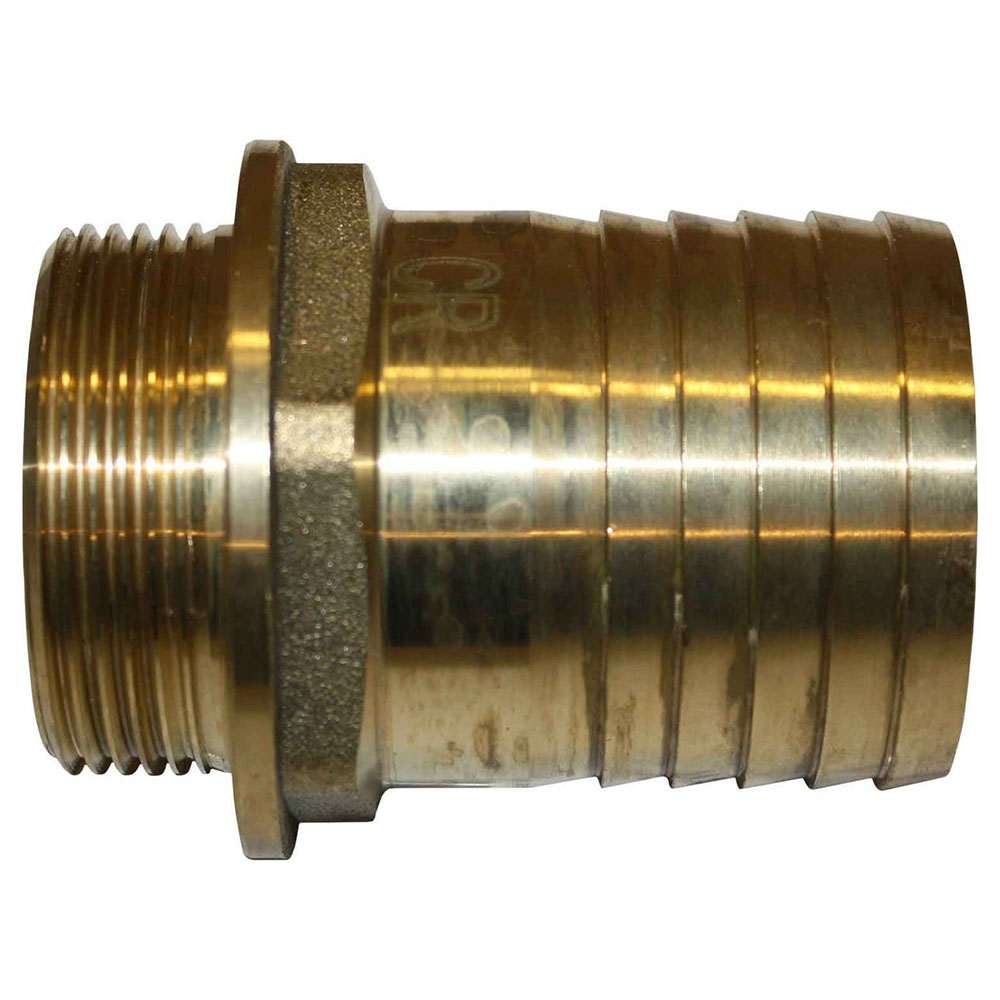

Maestrini straight hose tail fitting made from dezincification resistant brass (DZR), also known as CR brass which stands for corrosion resistant. This material is a brass alloy which prevents corrosion, caused by the loss of zinc in the fitting, making it suitable for exposure to sea water.

Please Note: All fittings used for through hull applications must be correctly electrically bonded to ensure protection from electrolytic corrosion. DZR is suitable for below waterline through hull applications.

1/2 20mm – Length 58mm – Width Hex Nut: 22mm

3/4 16mm – Length 61mm – Width Hex Nut: 20mm

3/4 20mm – Length 61mm – Width Hex Nut: 20mm

3/4 25mm – Length 61mm – Width Hex Nut: 28mm

1 13mm – Length 52.5mm – Width Hex Nut: 36mm

1 20mm – Length 64mm – Width Hex Nut: 22mm

1 25mm – Length 64mm – WidthnHex Nut: 28mm

1 32mm – Length 66mm – Width Hex Nut: 37mm

1 1/4 25mm – Length 79.5mm – Width Hex Nut: 32mm

1 1/4 32mm – Length 76mm – Width Hex Nut: 37mm

1 1/4 38mm – Length 81.5mm – Width Hex Nut: 40mm

1 1/2 38mm – Length 81mm – Width Hex Nut: 38mm

1 1/2 50mm – Length 80mm – Width Hex Nut: 53mm

2 50mm – Length 82.5mm – Width Hex Nut: 54mm
