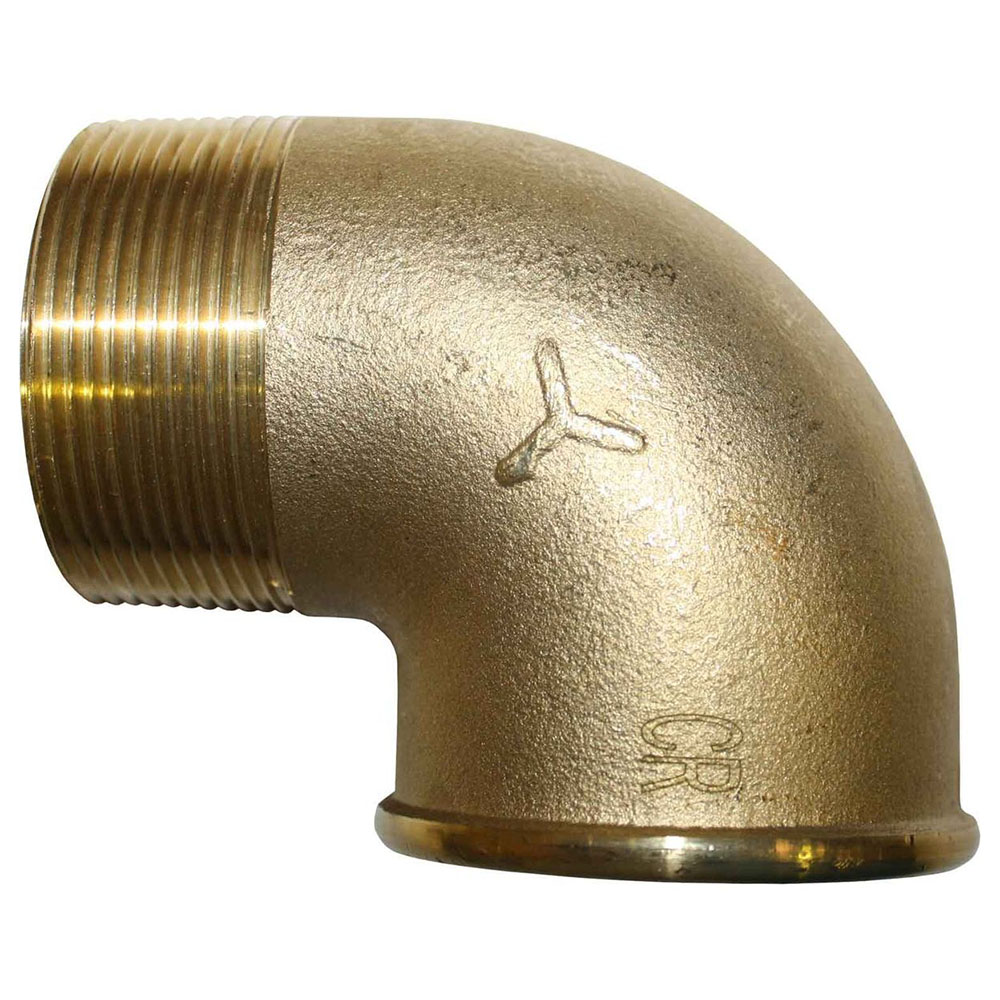

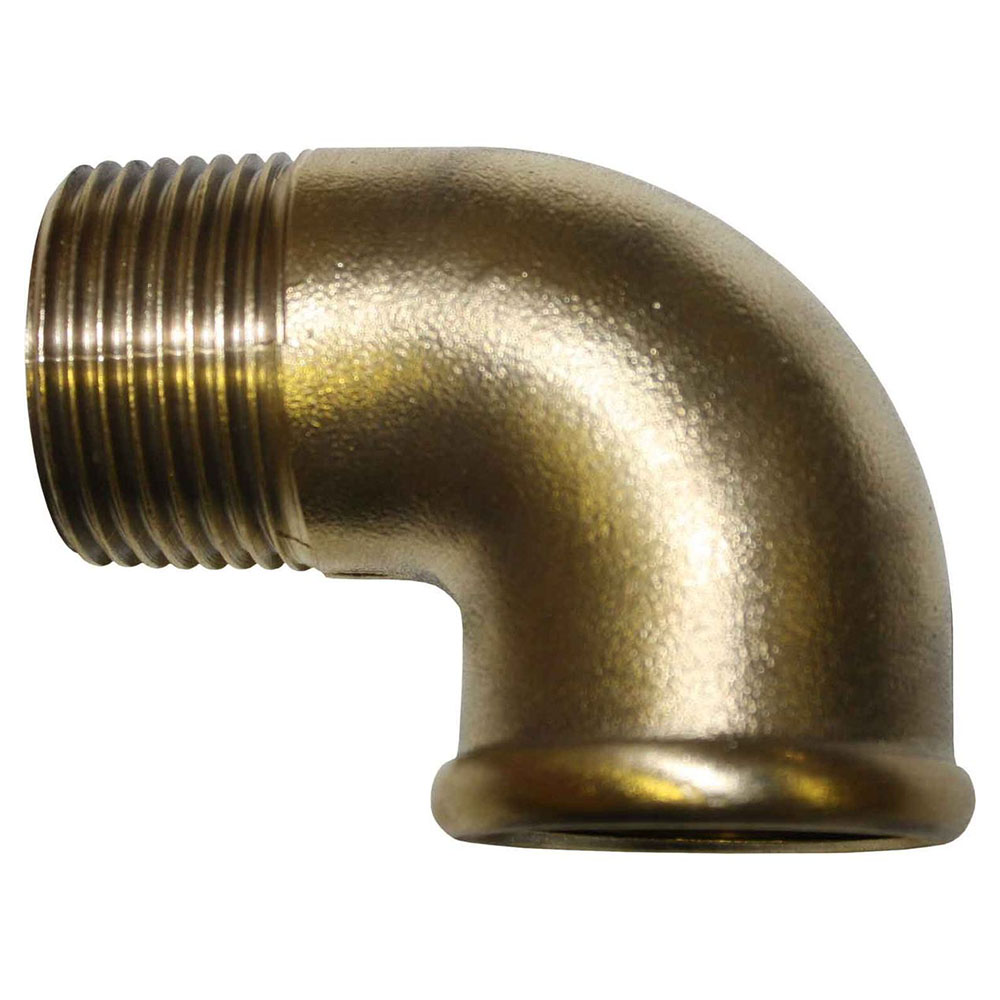

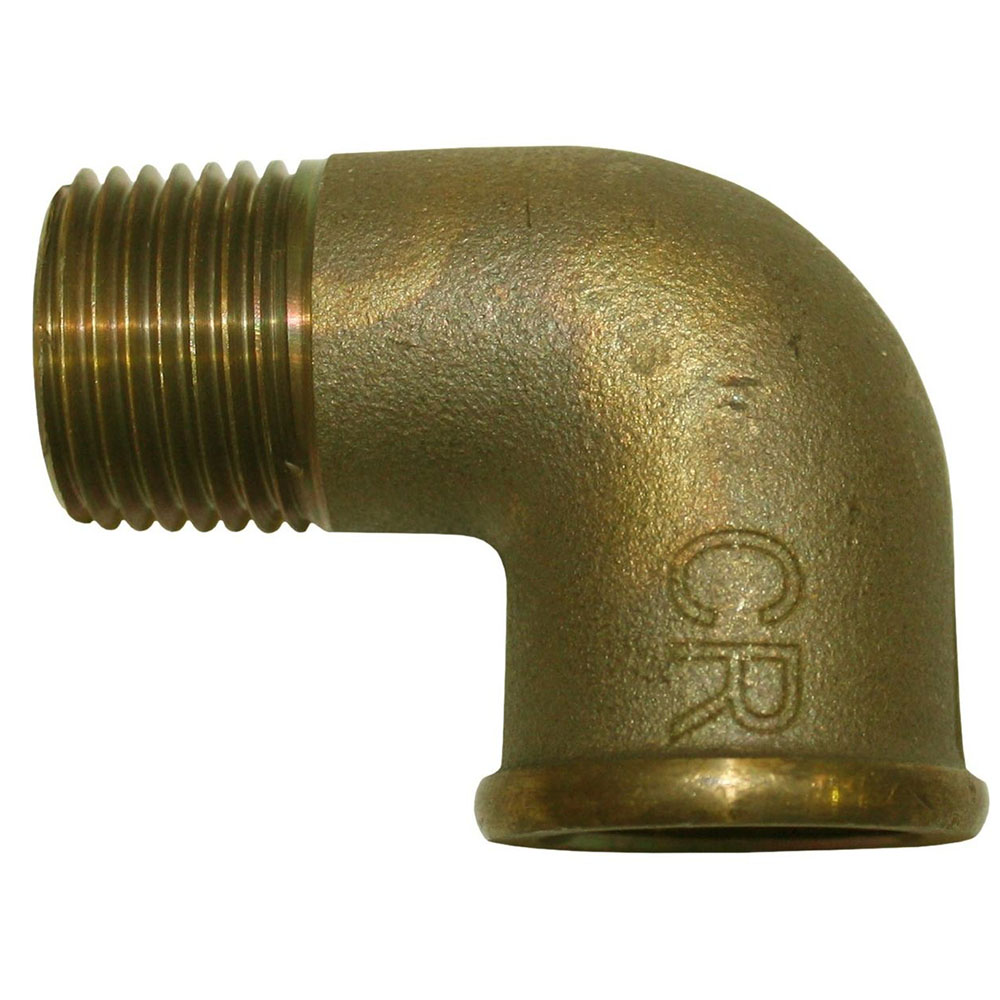

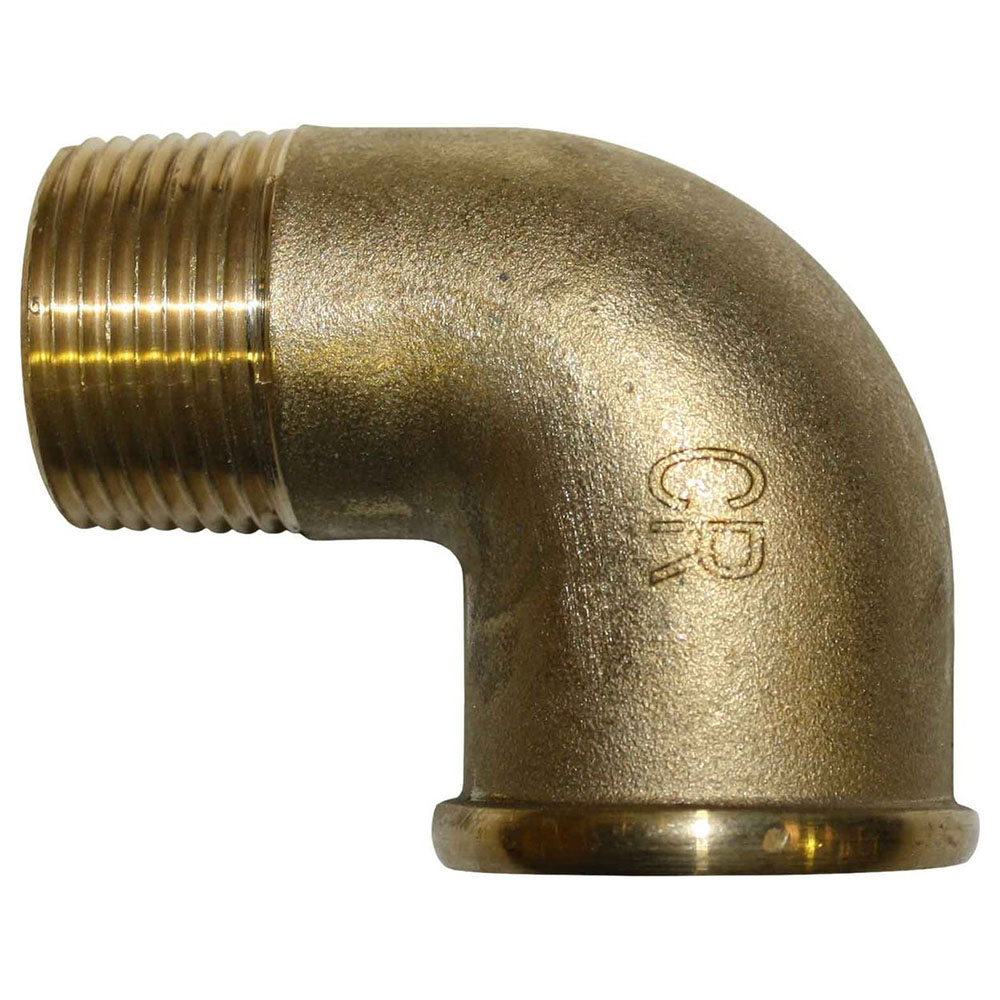

Maestrini DZR Compact 90 Degree Elbow (Male/Female)

Maestrini pipe connection elbow made from dezincification resistant brass (DZR), also known as CR brass which stands for corrosion resistant. This material is a brass alloy which prevents corrosion, caused by the loss of zinc in the fitting, making it suitable for exposure to sea water. A 90° elbow is used to connect two pieces of equal sized pipe at a right angle.

Please Note: All fittings used for through hull applications must be correctly electrically bonded to ensure protection from electrolytic corrosion. DZR is suitable for below waterline through hull applications.

1/2 – Length Nominal Length To Hole Centre Female: 28mm (1-1/8″), Nominal Length To Hole Centre Male: 37.5mm

3/4 – Length Nominal Length To Hole Centre Female: 32.5mm, Nominal Length To Hole Centre Male: 42.5mm

1 – Length Nominal Length To Hole Centre Female: 38.5mm, Nominal Length To Hole Centre Male: 50mm

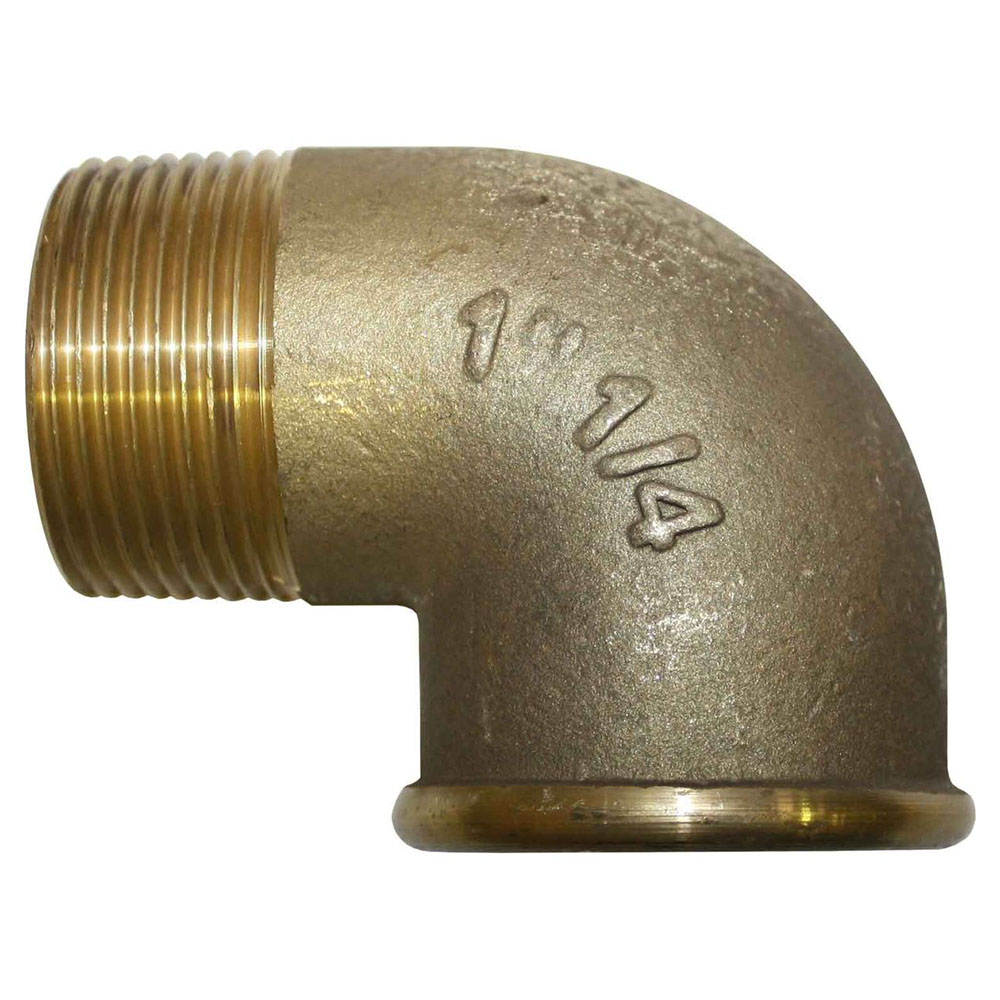

1 1/4 – Length Nominal Length To Hole Centre Female: 44.5mm, Nominal Length To Hole Centre Male: 60.5mm

2 – Length Nominal Length To Hole Centre Female: 59mm, Nominal Length To Hole Centre Male: 75.5mm
