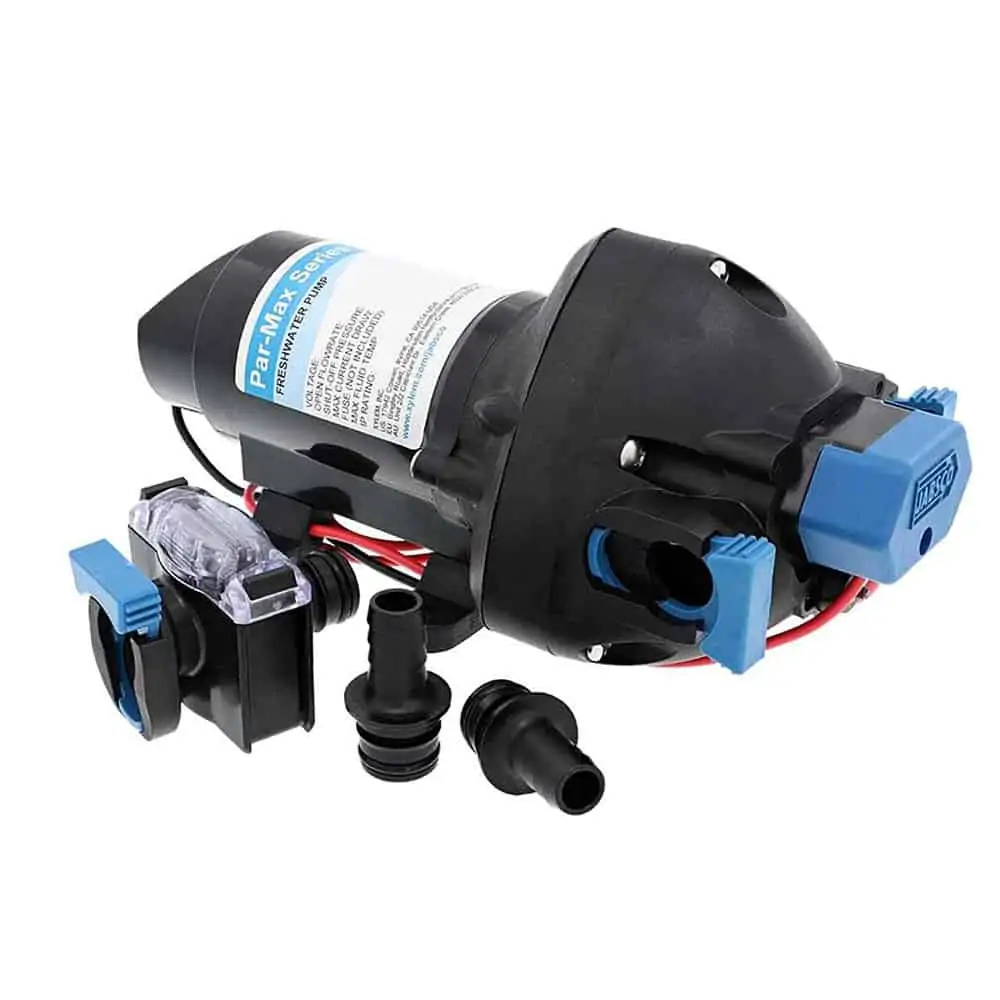

Jabsco Parmax 3 12V Pump

£ 105.62 £ 89.95

Out of Stock
This item is currently unavailable to purchase.

Want to be notified when this product is back in stock?

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminium end bells and lower housing to improve pressure capability and life.

These pumps deliver exceptional performance, even the standard models boast an improved economical footprint.

A plastic housing protects the motors on these units from corrosion

Product Features:

  • Co-molded diaphragm technology for long life and durability
  • HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
  • Efficient and quiet operation
  • Integrated, sealed pressure switch for on-demand operation
  • Self-priming allows for installation versatility
  • Can run dry without damage
  • Quick connect ports for ease of installation, servicing, and maintenance
  • Vibration dampening mounting feet
  • Equipped with integrated bypass module to reduce cycling and provide smoother flow

Product Specifications:

  • Motor design: Brushed, permanent magnet TENV
  • Pumphead upper housing material: Glass fiber reinforced polypropylene
  • Diaphragm: Co-molded TPV
  • Check valves: EPDM
  • Max inlet pressure: 30 PSI (2.1 Bar)
  • Fluid temperature range: 32°F – 140°F (0°C – 60°C)
  • Dry self-priming capability: 7ft min (2.13m/min)
  • Certifications: CE, ISO8846, RCM
  • Ingress Protection: IPX6
