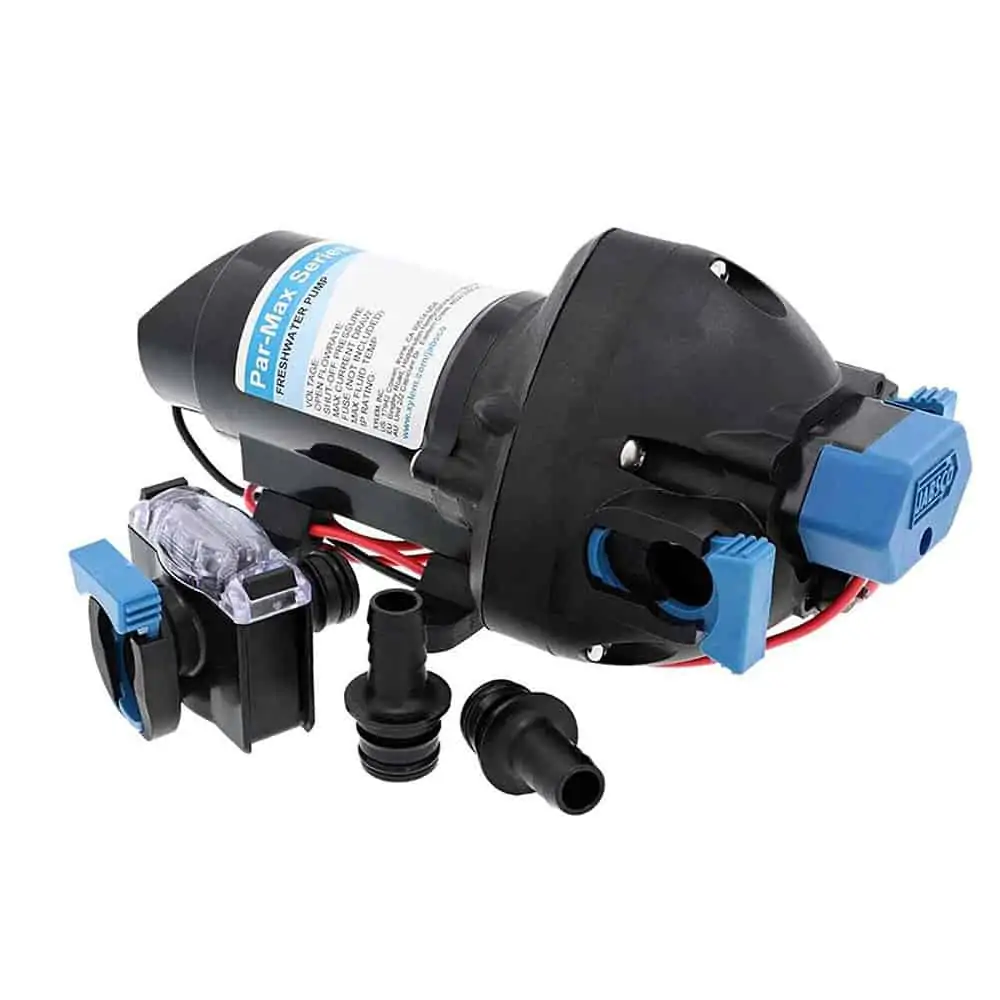

Par-Max 2 Water Pressure Pump – 12V – 2 GPM – 35 PSIHD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminium end bells and lower housing to improve pressure capability and life. These pumps deliver exceptional performance, even the standard models boast an improved economical footprint. A plastic housing protects the motors on these units from corrosion.
Product Features:
- Co-moulded diaphragm technology for long life and durability
- HD models feature heavy duty, motors and cast aluminium lower housings which allow for long life, even at high pressures
- Efficient and quiet operation
- Integrated, sealed pressure switch for on-demand operation
- Self-priming allows for installation versatility
- Can run dry without damage
- Quick connect ports for ease of installation, servicing, and maintenance
- Vibration dampening mounting feet
- Equipped with integrated bypass module to reduce cycling and provide smoother flow
Product Specifications:
- Motor design: Brushed, permanent magnet TENV
- Pumphead upper housing material: Glass fiber reinforced polypropylene
- Diaphragm: Co-molded TPV
- Check valves: EPDM
- Max inlet pressure: 30 PSI (2.1 Bar)
- Fluid temperature range: 32°F – 140°F (0°C – 60°C)
- Dry self-priming capability: 7ft min (2.13m/min)
- Certifications: CE, ISO8846, RCM
- Ingress Protection: IPX6
