Garmin GMI 20 Multifunction Instrument Display

£ 499.99 £ 429.95

Out of Stock
This item is currently unavailable to purchase.

Want to be notified when this product is back in stock?

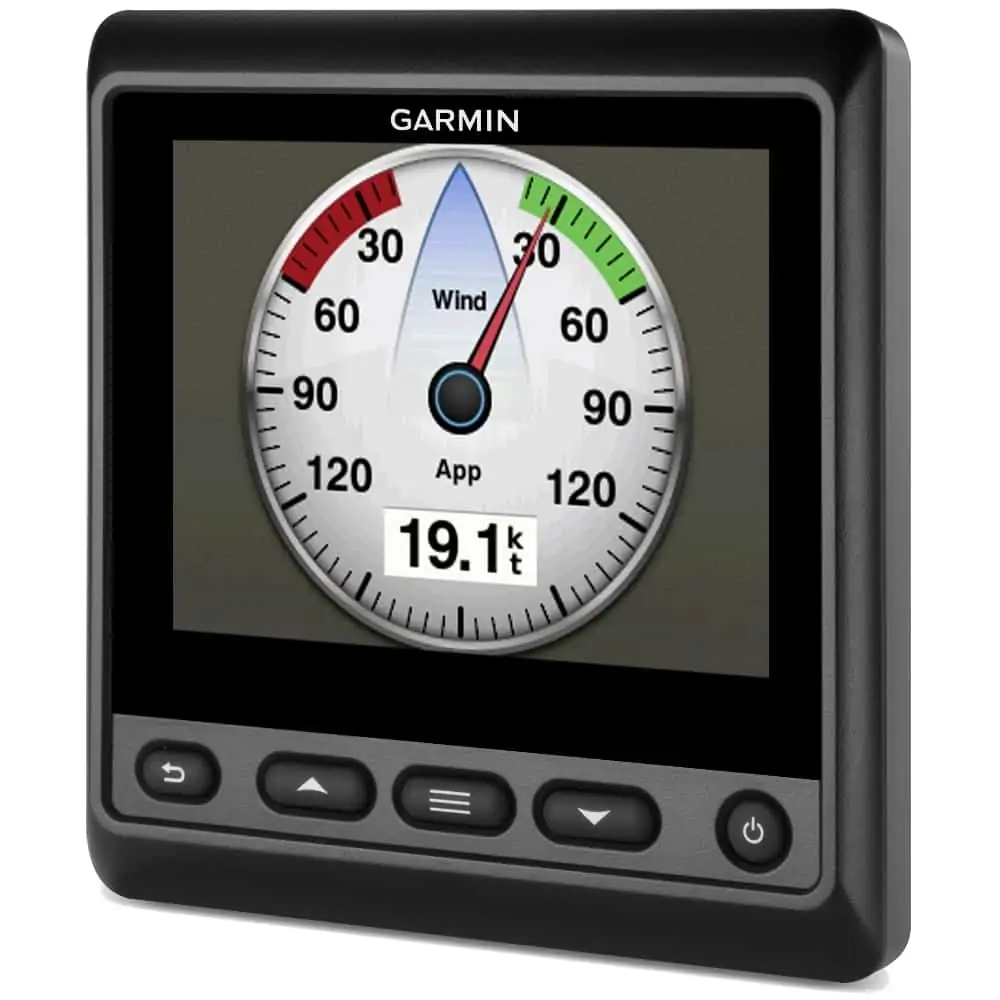

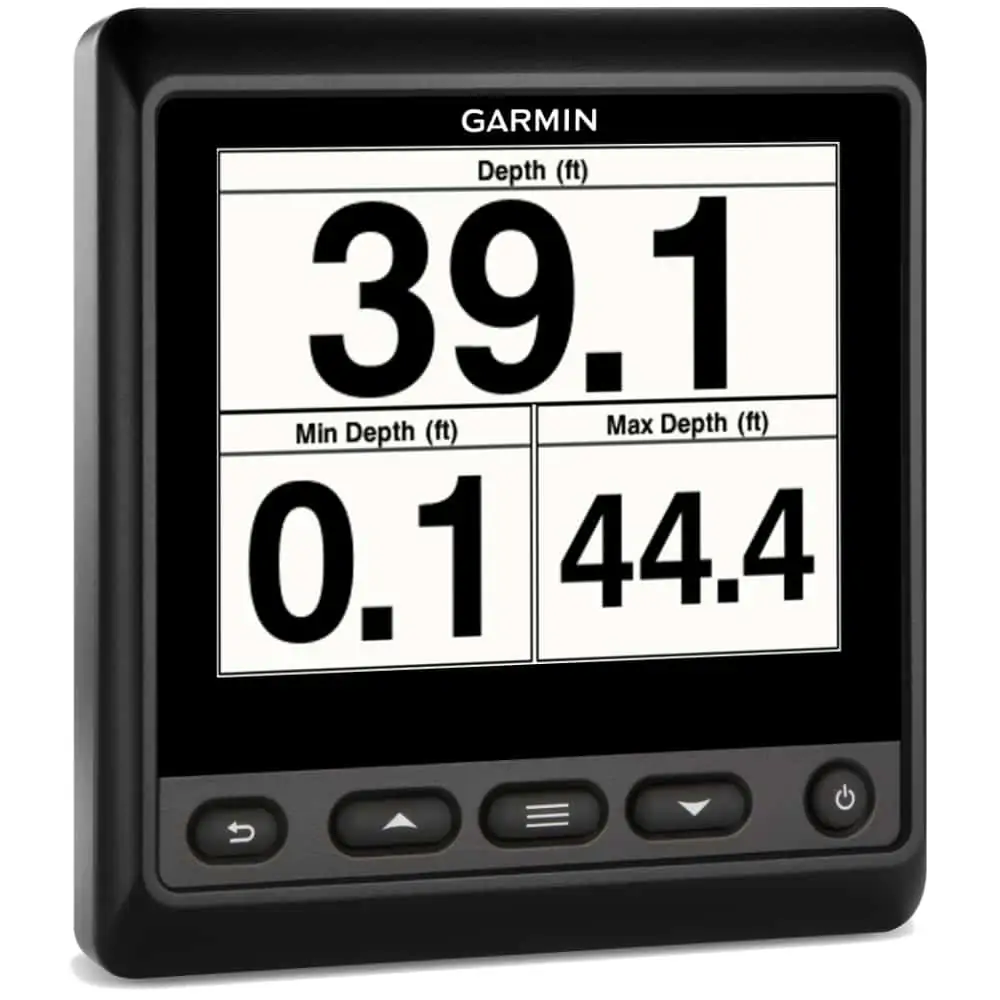

Perfectly designed for both power and sail vessels Garmin introduce the new GMI 20 instrument display. Designed to clearly show depth, speed, wind and 100+ marine and vessel parameters, its large, bright 4″ colour display with extra large digits is easy to read at a distance and has a 170 degree viewing angle.

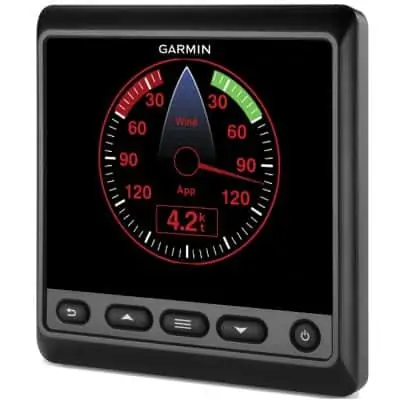

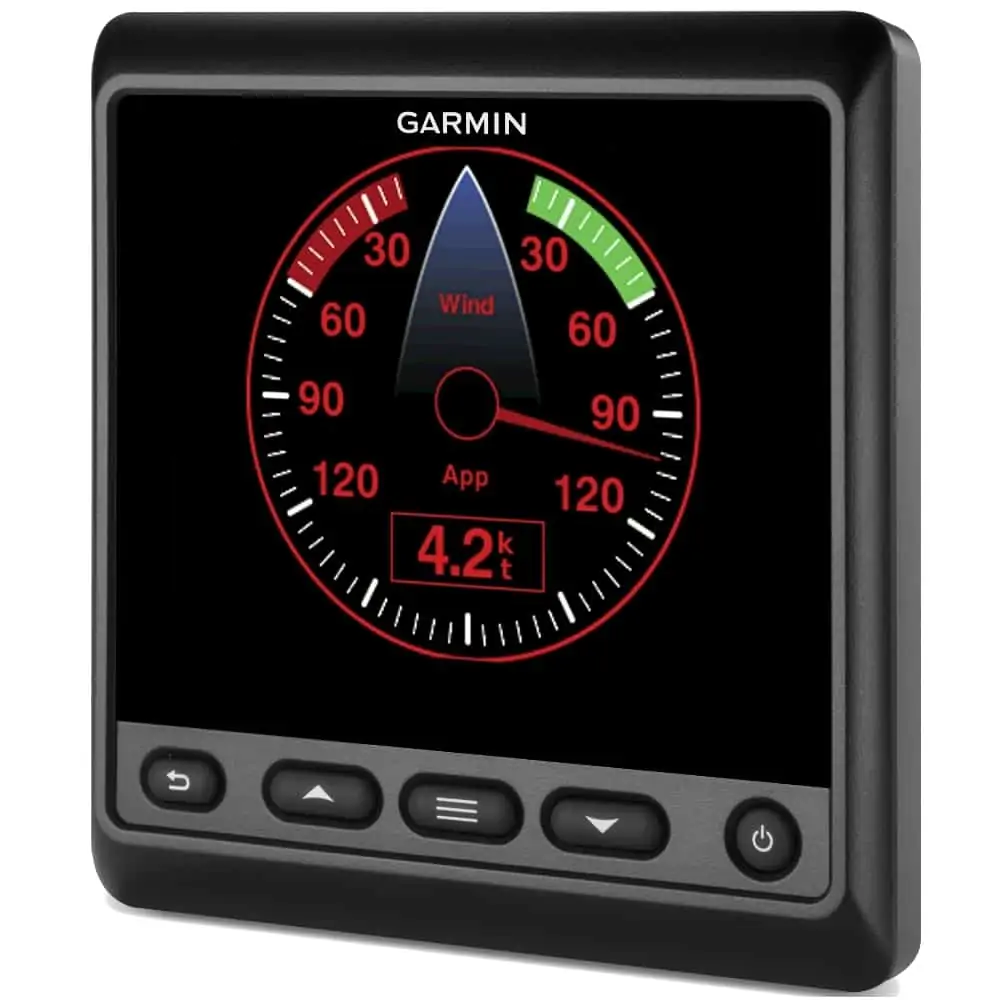

A glass-bonded lens prevents fogging and increases contrast. Daylight readability is enhanced with a high contrast colour scheme. For enhanced night visibility, you have a choice of red/black, green/black or the normal night mode colour scheme along with a dimmer control. Screens can be set to auto-scroll, cycling between pages automatically without your having to do a thing. This is especially advantageous to sailors as it allows you to install the unit(s) in a greater variety of locations on the vessel. Default profiles can be customised for powerboat, sailboat, fishing, engine/fuel, plus several other user-specified profiles. Power is supplied by the NMEA 2000® network.

In addition, the GMI 20 also features a dedicated race timer that counts down and counts up, with an internal beeper. Included are 2 trim snap piece cover options which allow you to match the GMI 20 with the new GPSMAP® 500/700 series, GPSMAP 8000 Glass Helm series or legacy Garmin chartplotters.

Specifications

  • Dimensions without sun cover (H×W×D): 110 x 115 x 30 mm (4.33″ x 4.53″ x 1.18″)
  • Dimensions with sun cover (H×W×D): 115 x 120 x 35.5 mm (4.53″ x 4.72″ x 1.40″)
  • Weight without sun cover: 247 g (8.71 oz)
  • Weight with sun cover: 283 g (9.98 oz)
  • Temperature range: From 5° to 158° F (from -15° to 70° C)
  • Compass-safe distance: 209 mm (8.25″)
  • Case material: Polycarbonate, waterproof to IPX7
  • Power usage: 2.5 W max
  • Unit max. voltage: 32 Vdc
  • NMEA 2000® input voltage: 9-16 Vdc
  • NMEA 2000 load equivalency number (LEN): 6 (300 mA at 9 Vdc)
  • Part Number
