Fusion Signature Series 3i Speakers 7.7″

£ 304.95 - £ 394.95

Clear

MADE FOR LIFE ON THE WATER, JUST LIKE YOU

Bring on the elements. The Signature Series 3i coaxial speakers deliver crystal-clear audio and withstand the conditions like never before.

Crystal-clear premium sound quality is suited for the marine environment.

Water-resistant connectors provide simplified installation and superior protection.

The rigorously tested marinised design has an IP65 rating.

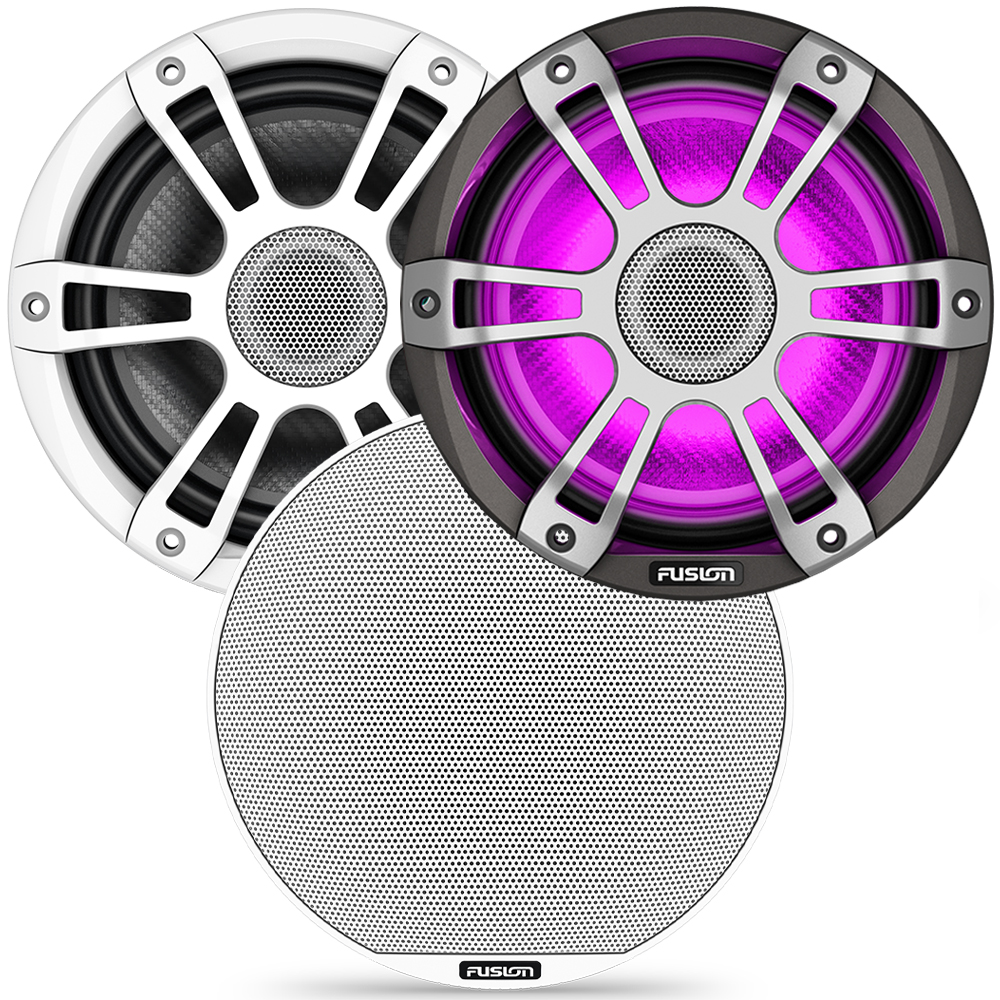

Available in classic or sports style grilles.

CRGBW LED lights set the scene on your boat.

Fusion® Signature Series 3i Marine Coaxial Speakers include a supported 3-year warranty.

MARINISED CONNECTORS

New, water-resistant connectors now come standard. This makes installation easy and provides superior protection from the harsh marine environment.

REDESIGNED GRILLE

Material enhancements and protective engineering maintain the sharp aesthetic appeal of your speakers, year after year.

TRUE-MARINE™ PHILOSOPHY

Any product that bears the Fusion True-Marine seal of assurance has been designed by Fusion to withstand the harshest marine environments season after season and comes with an industry-leading 3-year warranty.

CURV® CONE TECHNOLOGY

A lighter and stronger woven fibre composite produces greater sound definition at a higher volume.

LED ILLUMINATION

Cool white, red, green, blue, warm white. You can choose a colour to match the mood of your music (LED versions only).

SYSTEM INTEGRATION

These speakers are designed to work optimally with Fusion® stereo systems and amplifiers (sold separately) with custom DSP profiles. This requires the Fusion-Link™ smart-device app for setup.

In The Box

  • One pair of speakers
  • 12 Phillips stainless steel mounting screws, 4.2 mm x 40 mm (8 gauge x 1.6”)
  • 2 water-resistant cable assemblies with 2-pin connector (5.9″ (150mm))
  • 2 water-resistant cable assemblies with 6-pin connector (5.9″ (150mm), sports style with LED models only)
  • Documentation

Specifications

Physical dimensions (diameter x depth) 7.7″ classic speaker: 8.66″ x 4.31″ (220 x 109.5 mm)
7.7″ sports speaker: 7.72″ x 4.37″ (196 x 111 mm)
Weight (single unit) 7.7″ classic speaker: 4 lbs (1.80 kg)
7.7″ CRGBW sports speaker: 3.9 lbs (1.77 kg)
7.7″ sports speaker: 3.9 lbs (1.76 kg)
Water and dust rating IP65
Configuration Coaxial
Peak power (Watts) 280 watts
RMS power rating (watts) 100 watts
Sensitivity (1 watt @ 1 metre) 91 dB
Frequency response 60 Hz–22 kHz
Nominal impedance 4 ohm
Recommended amplifier power (watts RMS) 25–120 watts/channel
LED lighting yes, CRGBW (sports style with LED models only)
LED supply voltage 10.8–16 VDC (sports style with LED models only)
LED load current @14.4 VDC (max) 300 mA (sports style with LED models only)
Operating temperature range 32–122 degrees F (0–50 degrees C)
Voice coil diameter 1.4″
Cone material CURV® Cone Technology with rubber surround
Tweeter type Silk dome
Compass-safe distance 141″ (358 cm)
Speaker connection Flying lead with water-resistant 2-way connector, 5.9″ (150 mm)
LED connection (sports style with LED models only) Flying lead with water-resistant 6-way connector, 5.9″ (150 mm)
Warranty 3 years

Mounting Dimensions

Mounting diameter clearance 6.14″ (156 mm)
Mounting depth clearance 3.39″ (86 mm)

Optimum enclosure recommendations

Sealed enclosure volume (fully filled with absorption material) 0.71 cubic ft (20 L)
Ported (vented) enclosure volume (lined with absorption material) 1.06 cubic ft (30 L)
Port diameter 3″ (76 mm)
Port length 6.3″ (160 mm)
Part Number
Colour
Port Solent
Warehouse
99670085

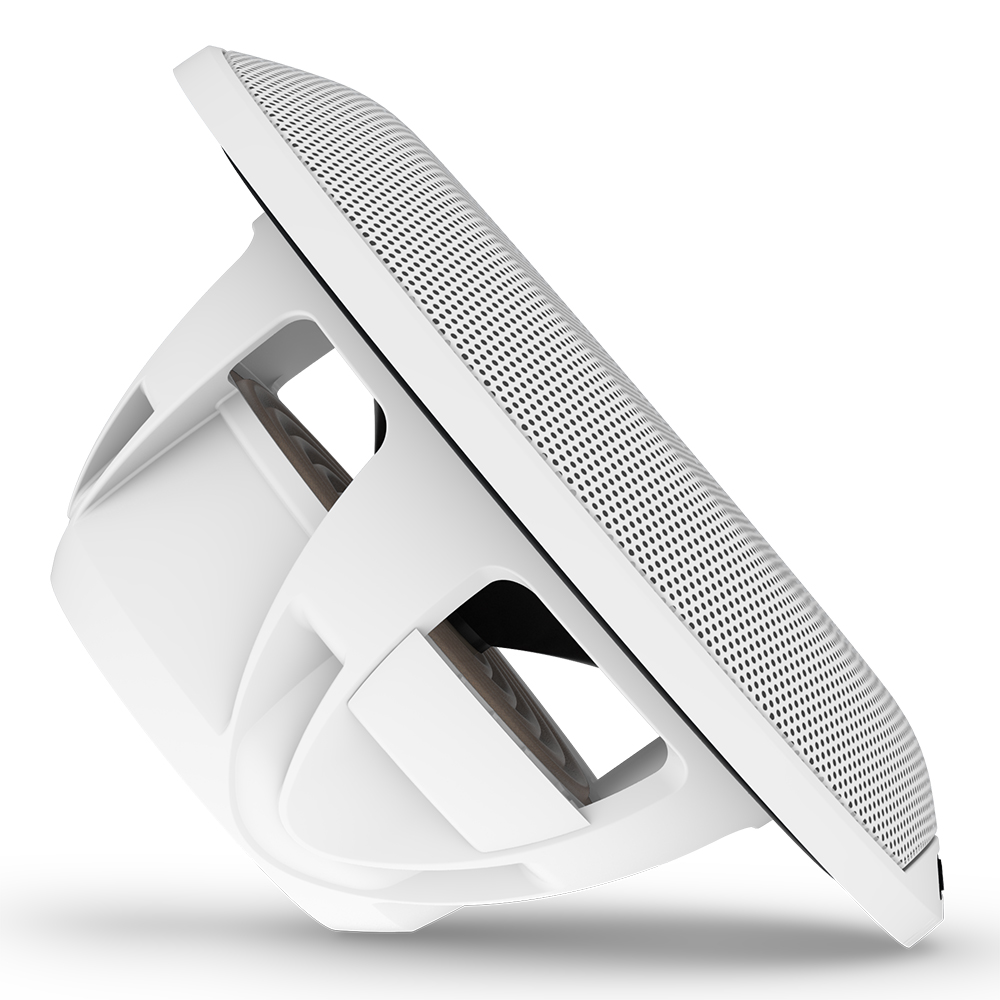

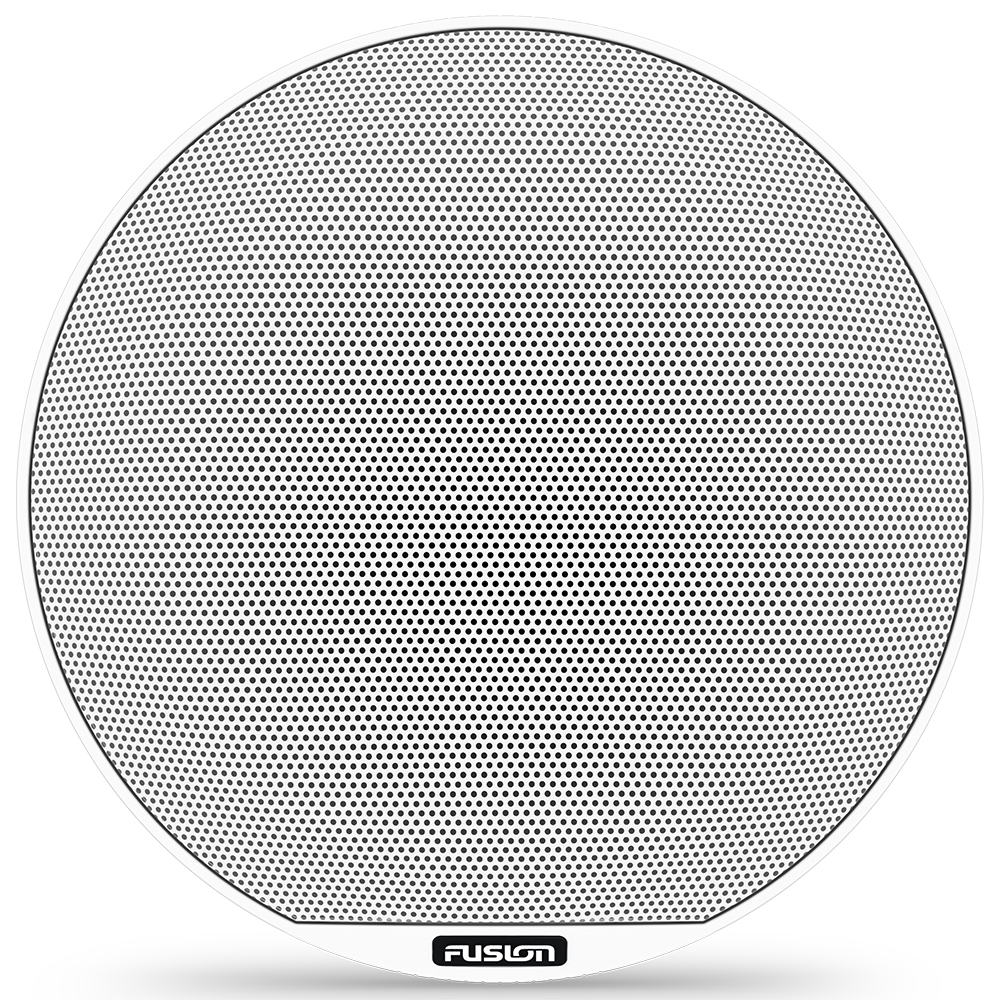

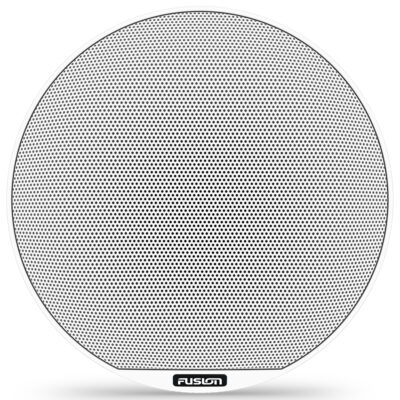

Classic White
1
0
99670122

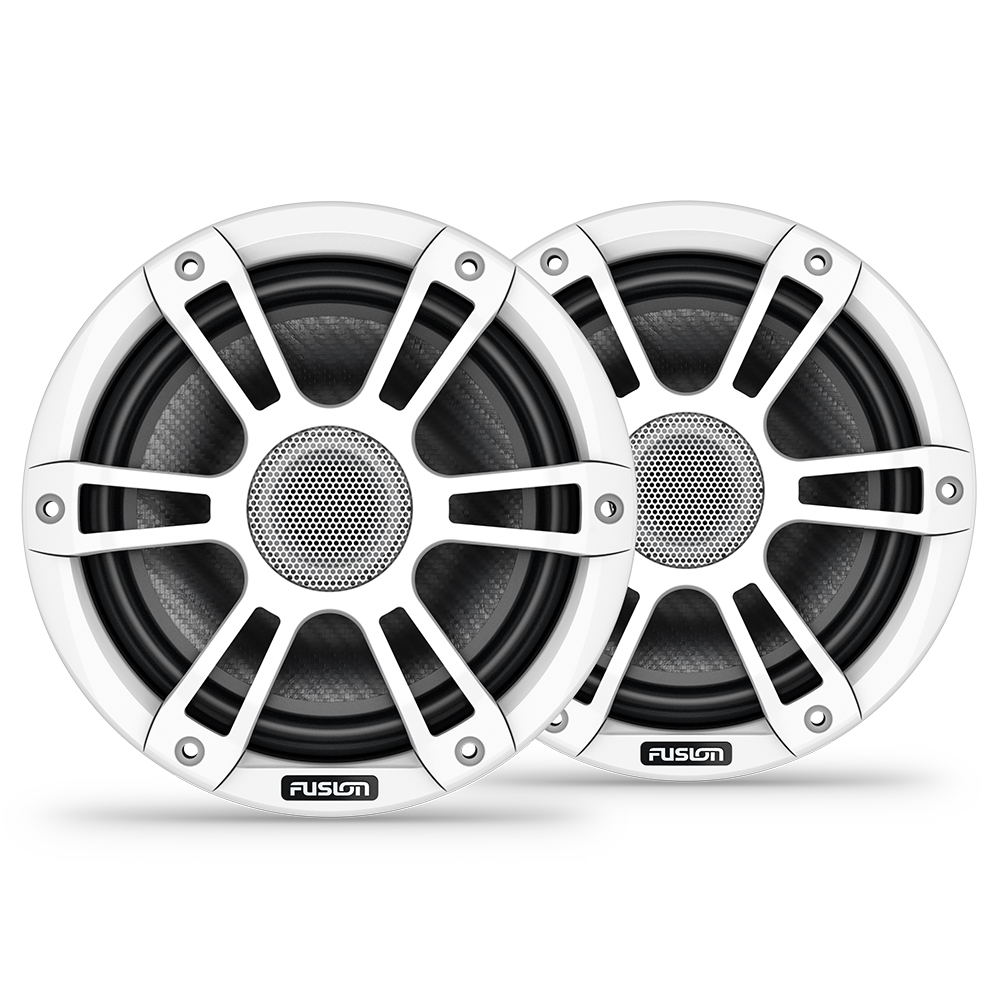

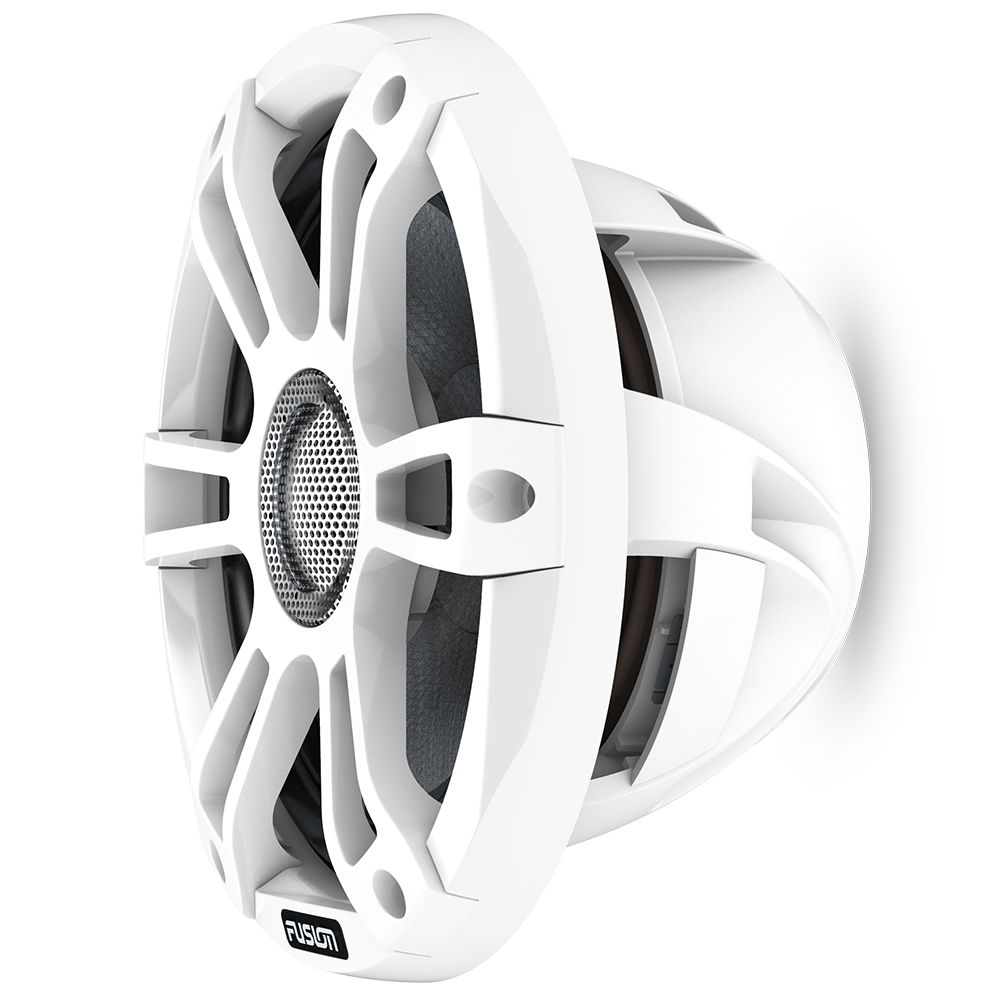

Sports White - No LED
0
99670139

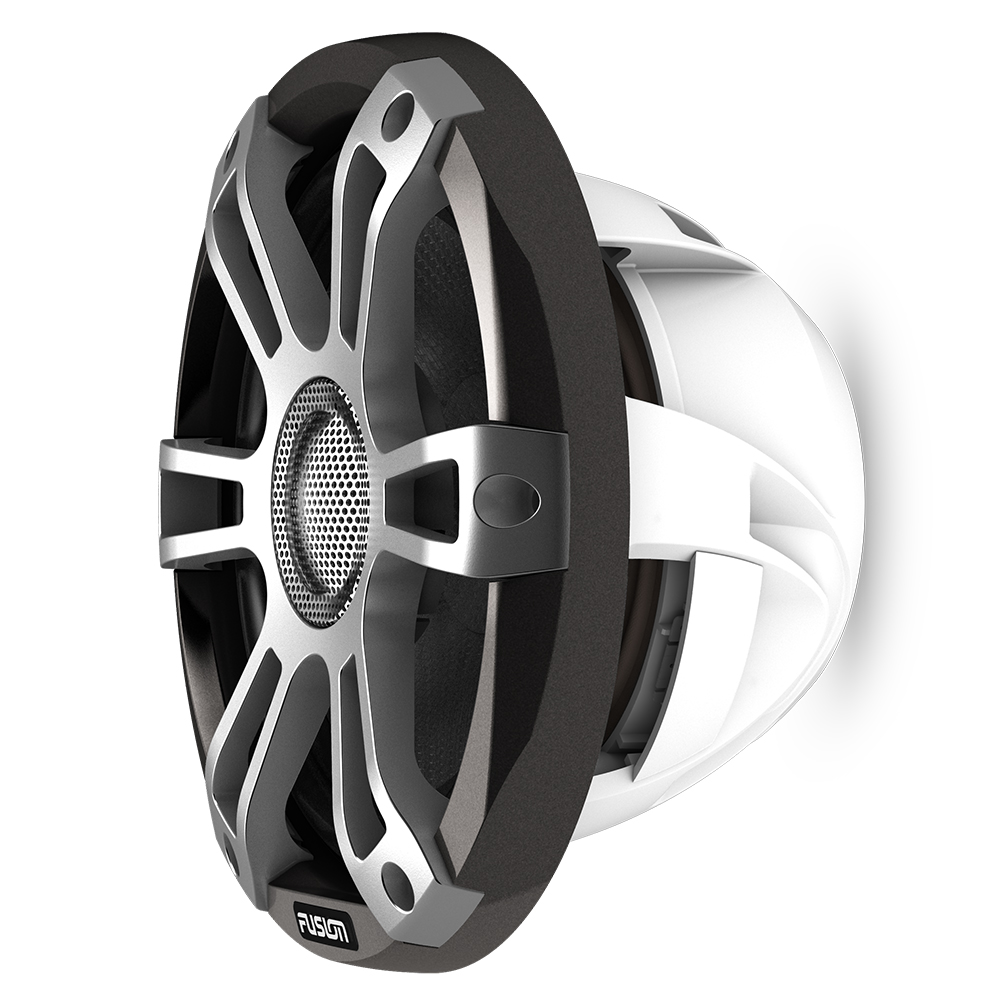

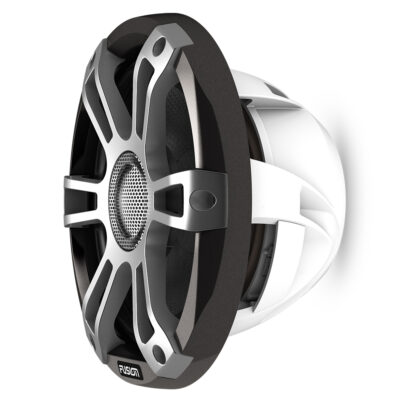

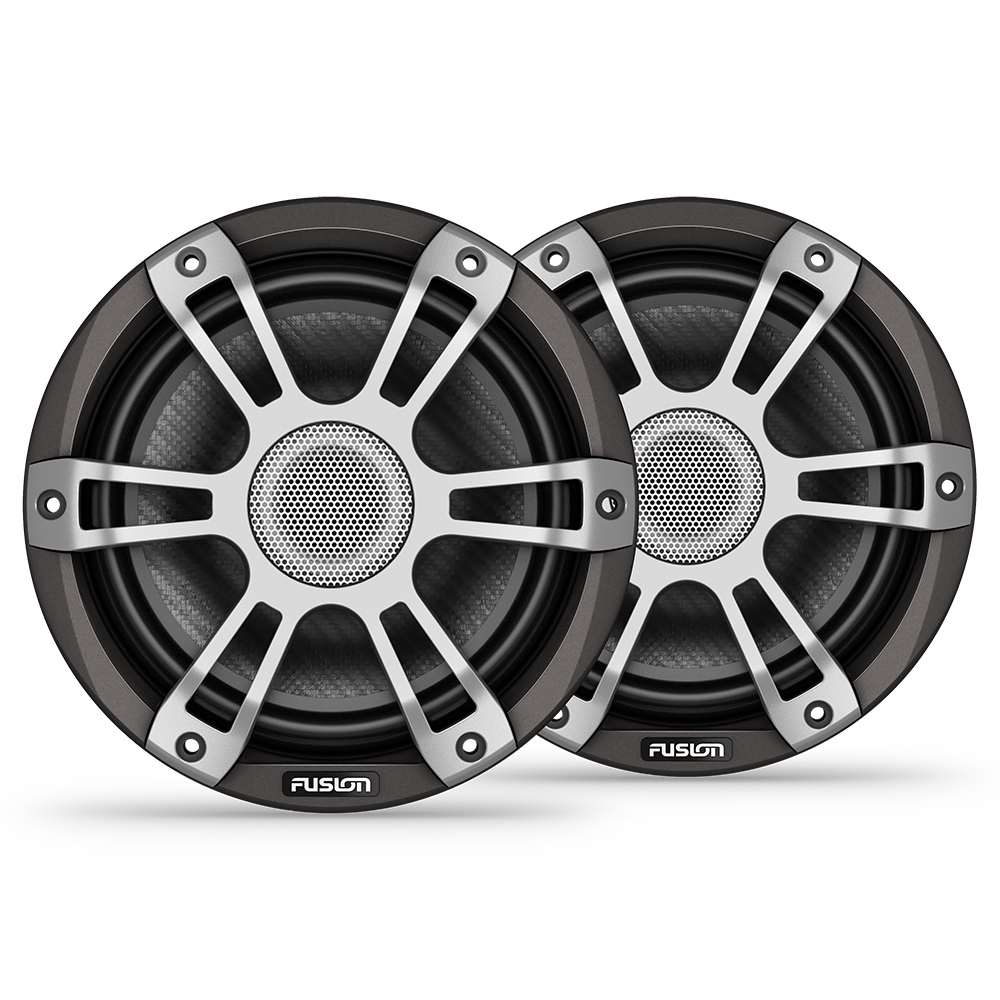

Sports Grey - No LED
0
99670092

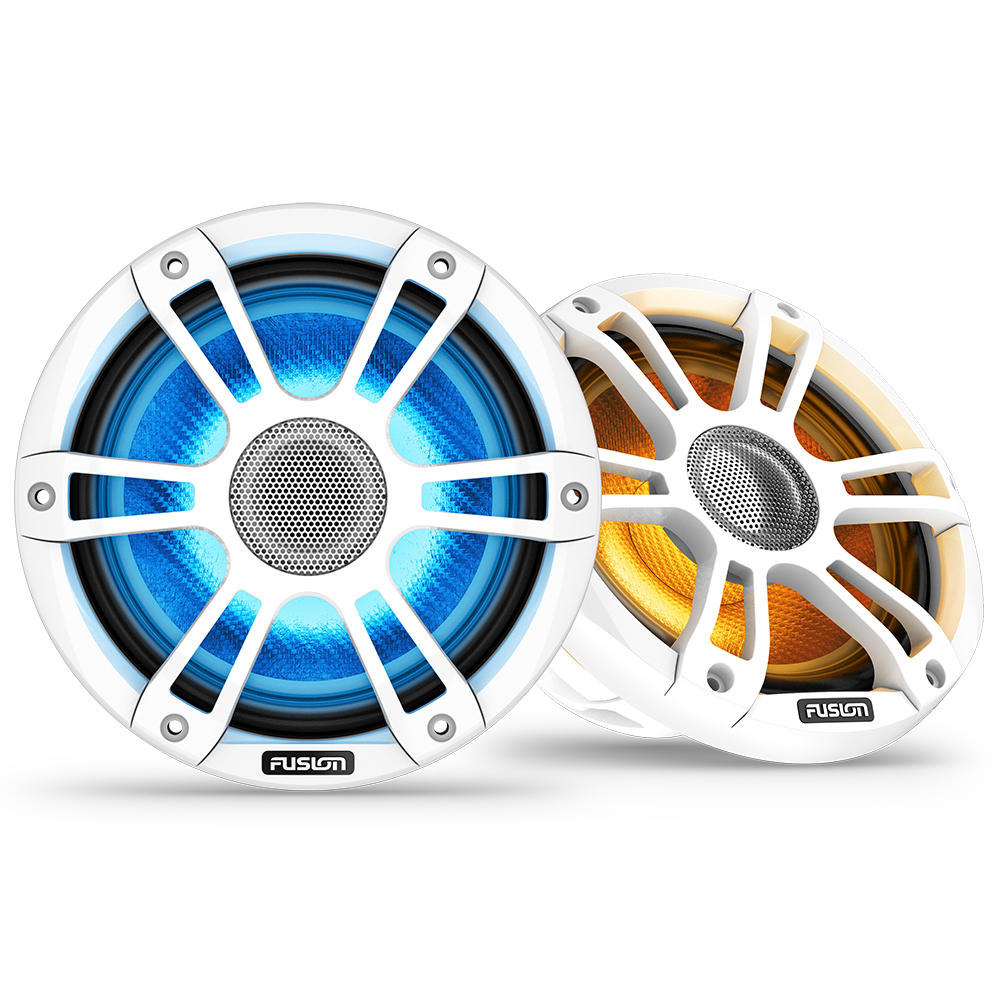

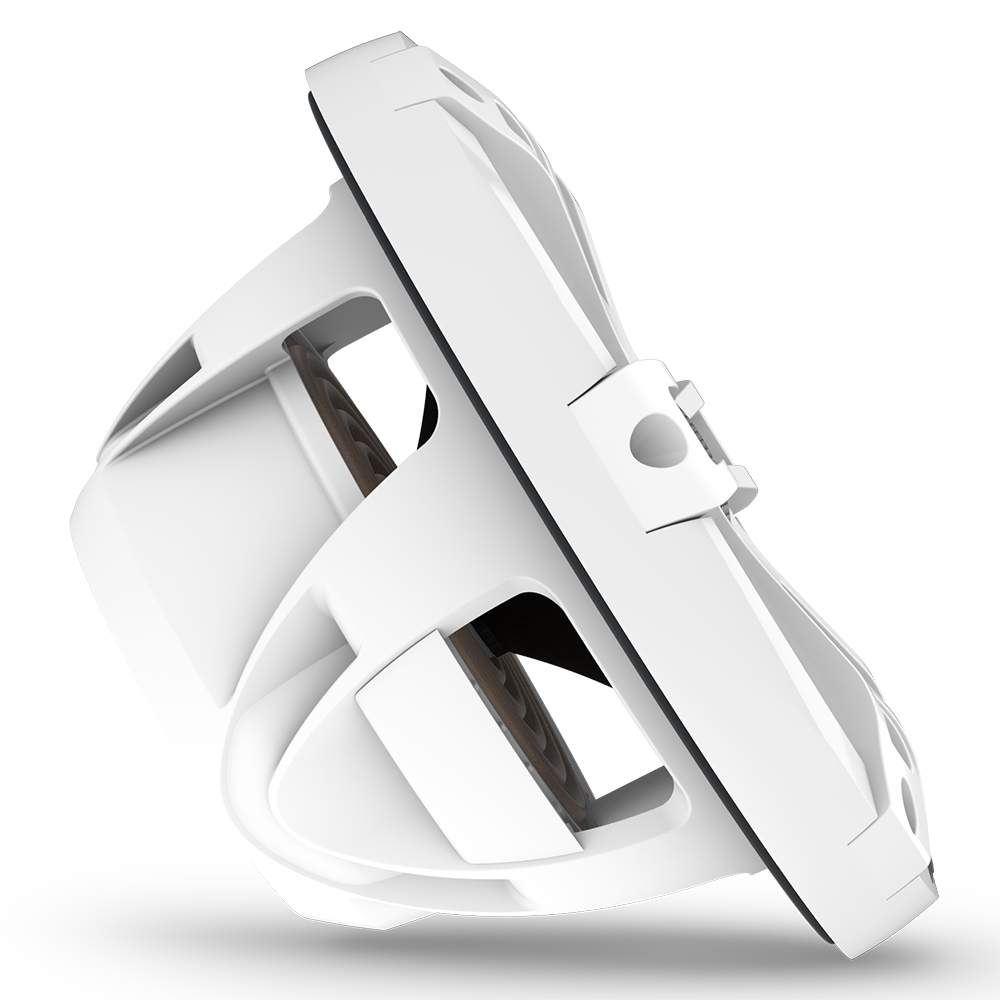

Sports White - with LED
1
0
99670108

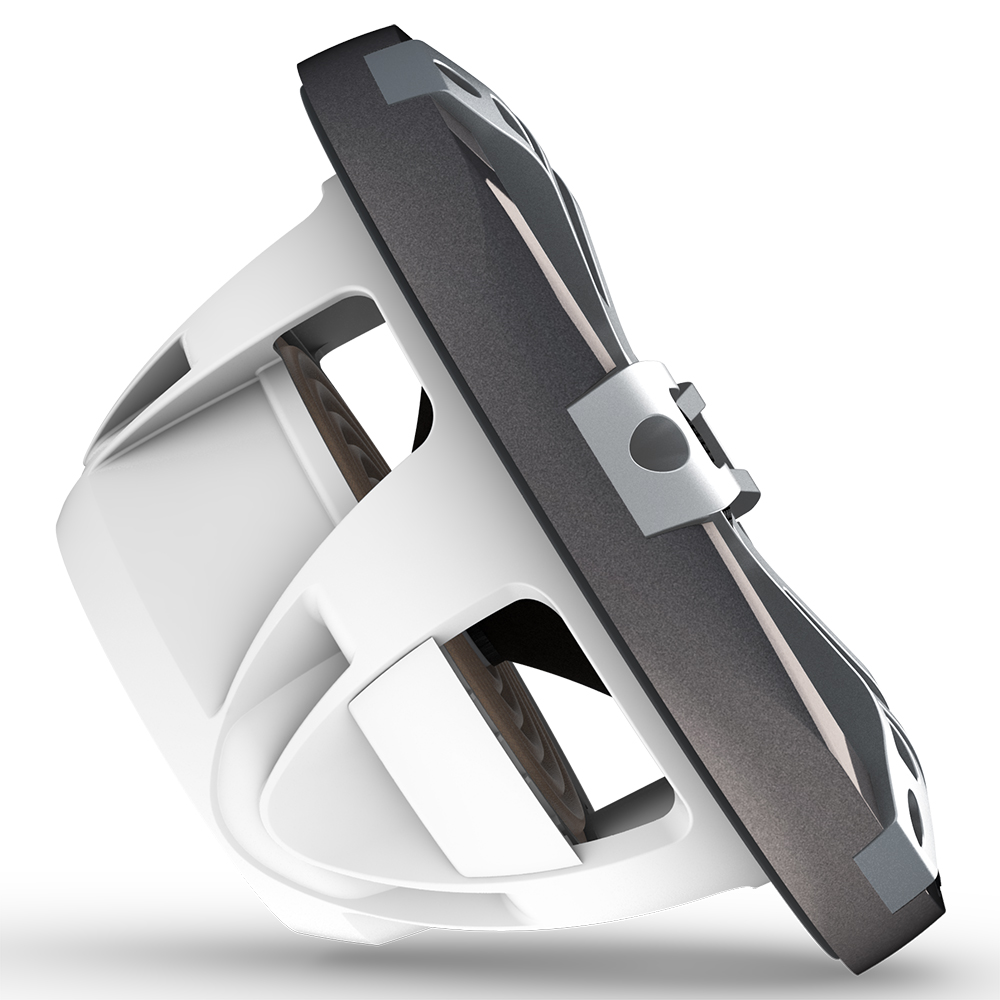

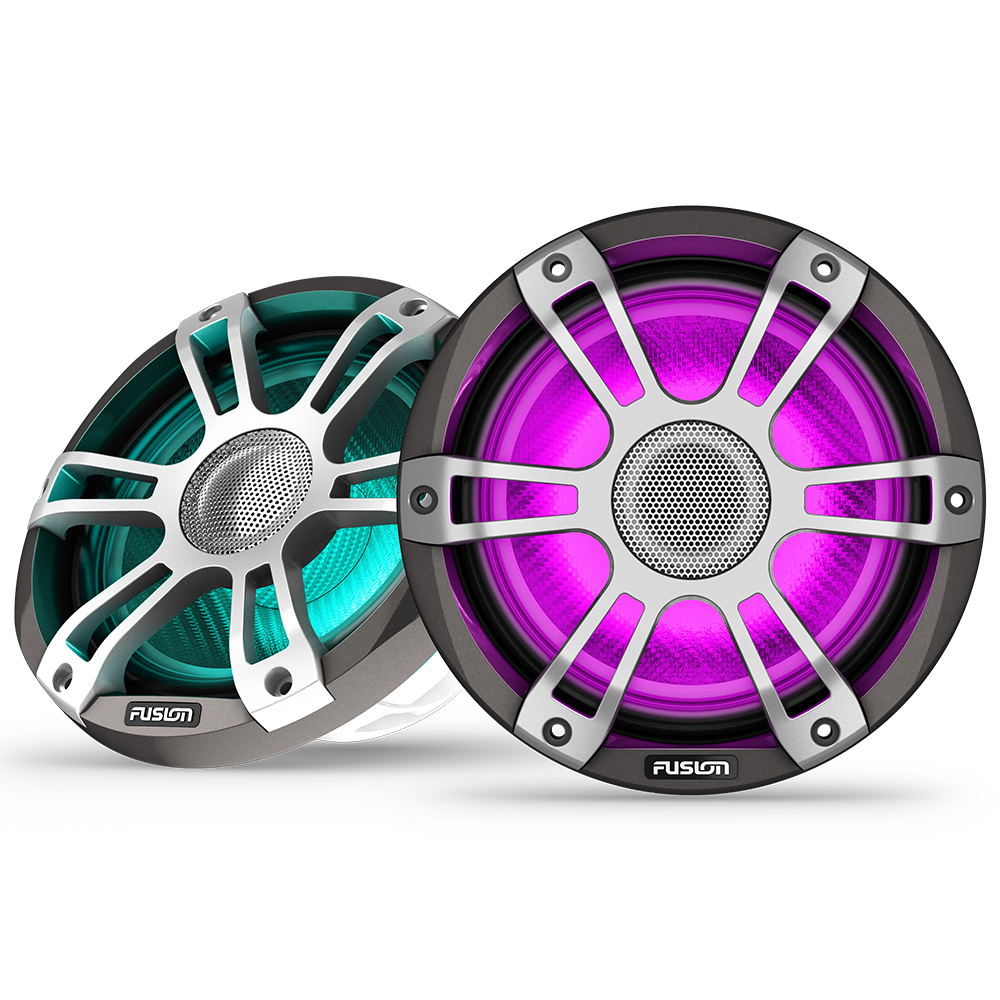

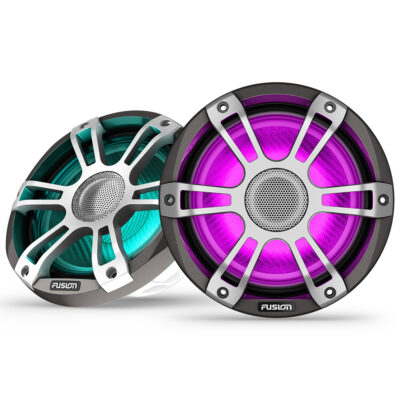

Sports Grey - with LED
0
