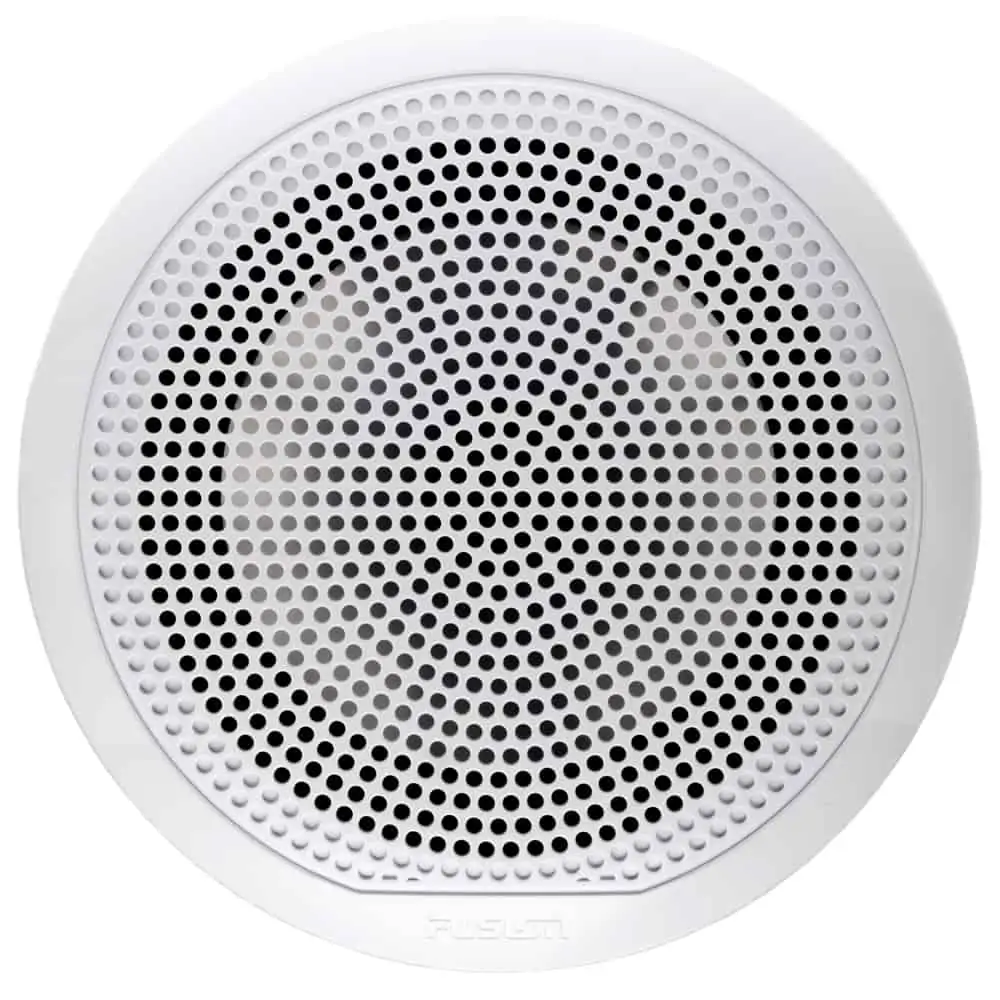

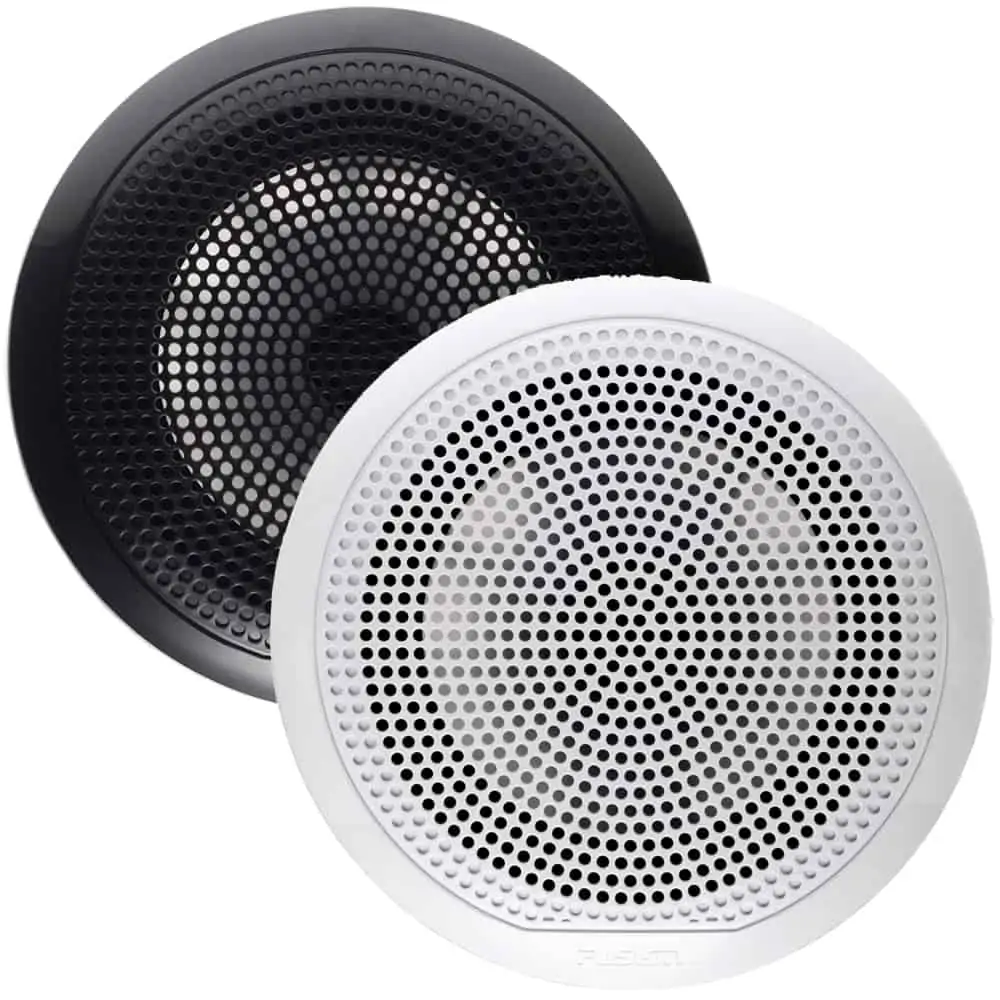

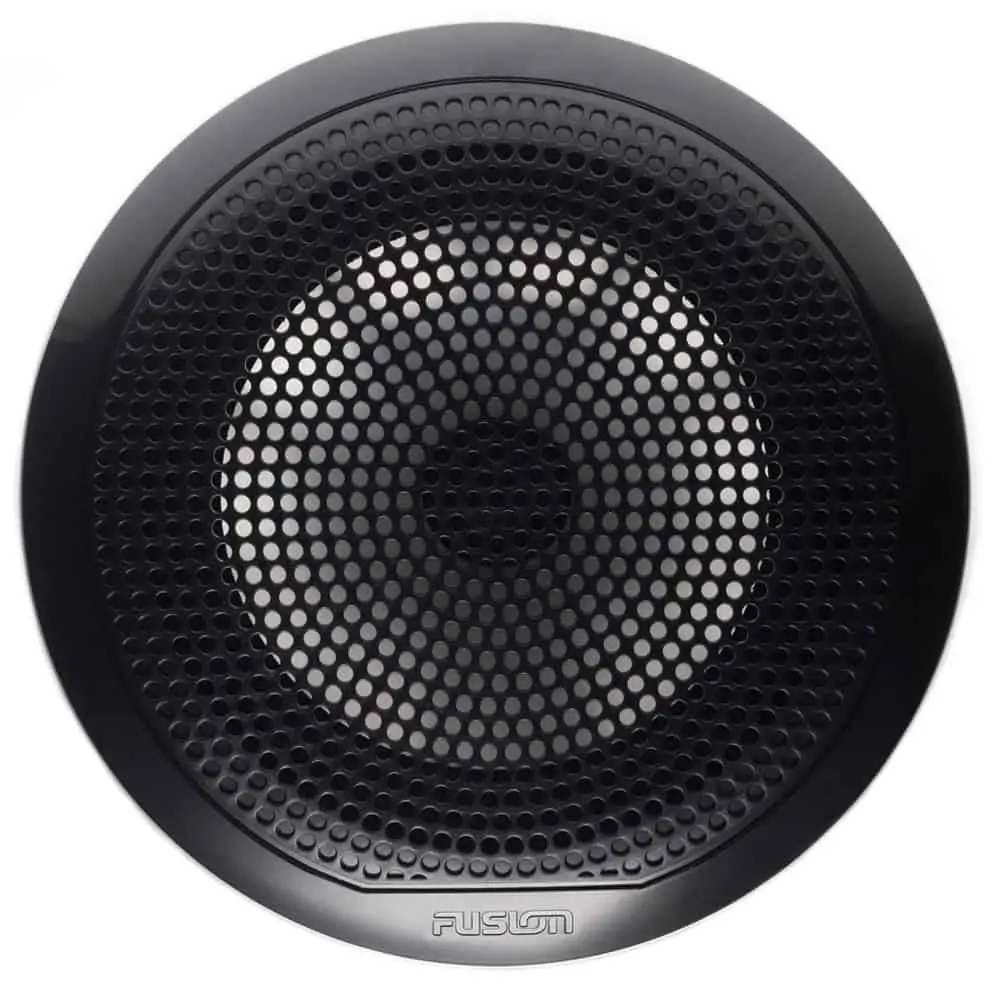

Fusion EL Series v2 Speakers

£ 89.99 £ 79.95

Clear

ENERGISE YOUR BOATING EXPERIENCE

Enjoy quality audio to enhance your boating experience with the EL Series speakers from Fusion.

The injection-moulded polypropylene cone provides clean, clear audio reproduction.

The shallow basket design provides increased versatility during installation.

This speaker is available in a 6.50″ design with classic style grilles.

Salt fog resistant and UV stable design for the harsh marine environment.

DESIGNED AND ENGINEERED FOR THE MARINE ENVIRONMENT

The EL Series Classic speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog and UV.

QUALITY MATERIALS AND ACOUSTIC ENGINEERING

The EL Series Classic speakers incorporate high-quality materials and marine-specific design elements, ensuring they look and sound great on the water.

OPEN BASKET CONSTRUCTION

The optimised open back design allows for extended power handling and versatile mounting options with reduced mounting depth.

LIGHTWEIGHT VOICE COIL

The lightweight design allows for higher sensitivity, resulting in increased power and efficiency to deliver an enhanced audio experience.

DESIGNED TO COMPLY WITH ISO12216

Tested to international standards for pressure and water ingress, the EL Series speakers are designed and built for superior quality and robustness.

In the Box

  • One pair of classic speakers
  • 12 Phillips stainless steel mounting screws (4.20 mm x 25.40 mm (8 gauge x 1″))
  • Two 20 ft (6 metre) speaker cables
  • Documentation

Specifications

General


Physical dimensions (Diameter x Depth) 6.93″ x 2.32″ (176 x 59 mm)
Water and dust rating IP65
Configuration Full range
Speaker size 6.50″
Peak power (Watts) 80 W
RMS power (Watts) 20 W
Sensitivity (1 W / 1 m) 88 dB
Frequency response 45 Hz-16 kHz
Nominal impedance 4 ohms
Recommended amplifier power (RMS) 20-40 W/Ch
LED lighting No
LED supply voltage N/A
LED load current @ 16 VDC N/A
Operating temperature range 32° to 122° F (0° to 50° C)
Voice coil diameter 0.79″
Cone material Polypropylene cone with cloth surround
Compass-safe distance 100″ (254 cm)
Warranty 1 year

Mounting Dimensions

Mounting diameter clearance: 5.12″ (130mm)
Mounting depth clearance: 1.69″ (43mm)

Part Number
Colour
Port Solent
Warehouse
99570781
Classic White
1
1
99570804
Classic Black
1
0
