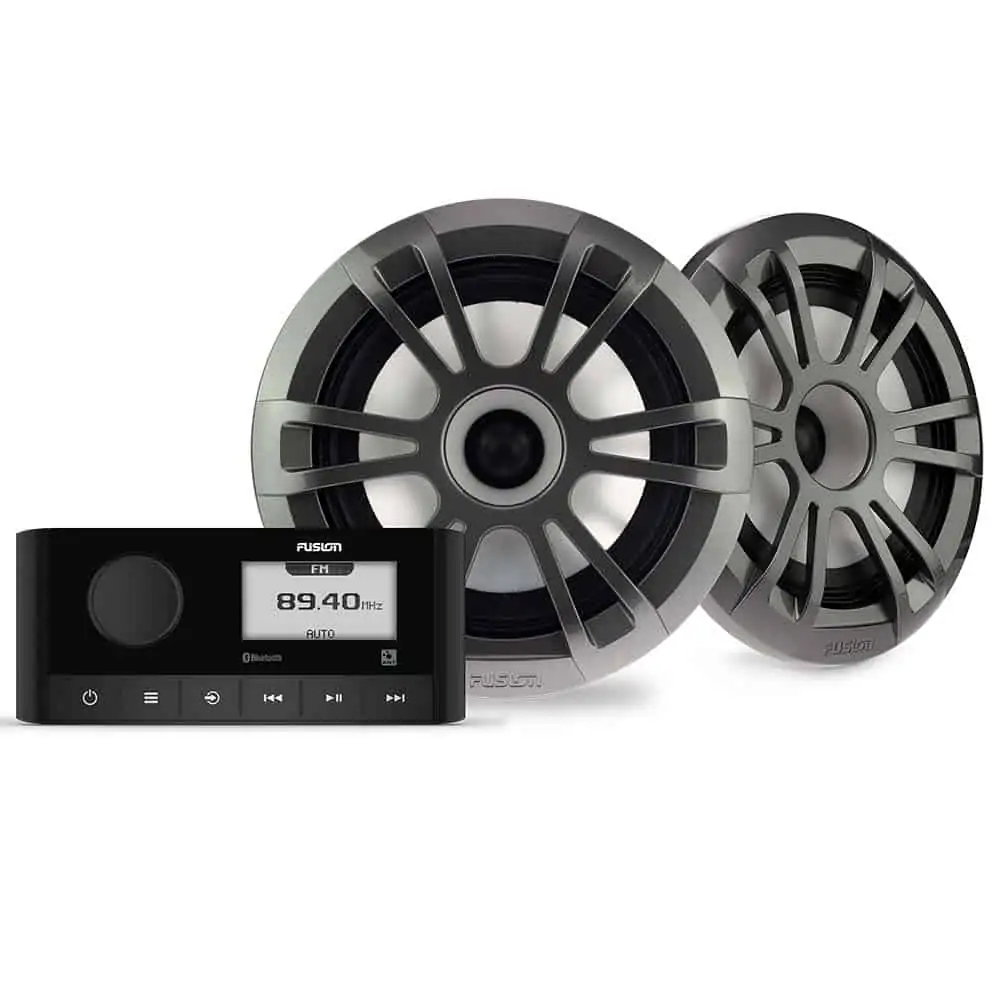

EVERYTHING YOU NEED TO AMPLIFY THE MOMENT
Outfit your boat with an exceptional sound system at an outstanding value. A Fusion® MS-RA60 marine stereo and EL Series 6.5″ speaker kit put the perfect soundtrack at your fingertips.
Enjoy your music ASAP. Your marine stereo and both speakers come ready to install.
Easily control music from your compatible Garmin MFD1, smart device or Garmin watch.
Built-in Class D amplifier brings aboard higher efficiency and greater output.
Multi-Zone™ Technology makes you the captain of two separate audio zones.
Conveniently update software via Bluetooth® technology2 from the Fusion-Link™ app on your compatible smart device.
Grow your audio system with compatible Fusion speakers, subwoofers and amplifiers.
IPX6 AND IPX7 INGRESS PROTECTION
Designed and engineered for the harsh marine environment, the MS-RA60 stereo has an IPX6- and IPX7-rated water-resistant front panel to perform and last on board.
The MS-RA60 is designed to fit in the MS-RA55 mounting profile, eliminating the need to alter your existing cutout, reducing complexity when upgrading your stereo system.
MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.
MULTIPLE SOURCE OPTIONS
Take advantage of the multiple source options available, including Bluetooth technology, DAB+ radio, AM/FM radio and AUX connection.
BUILT-IN DAB TUNER
The built-in DAB tuner supports the latest DAB and DAB+ broadcasts, allowing you to enjoy high-quality digital radio streaming wherever DAB and DAB+ are supported.

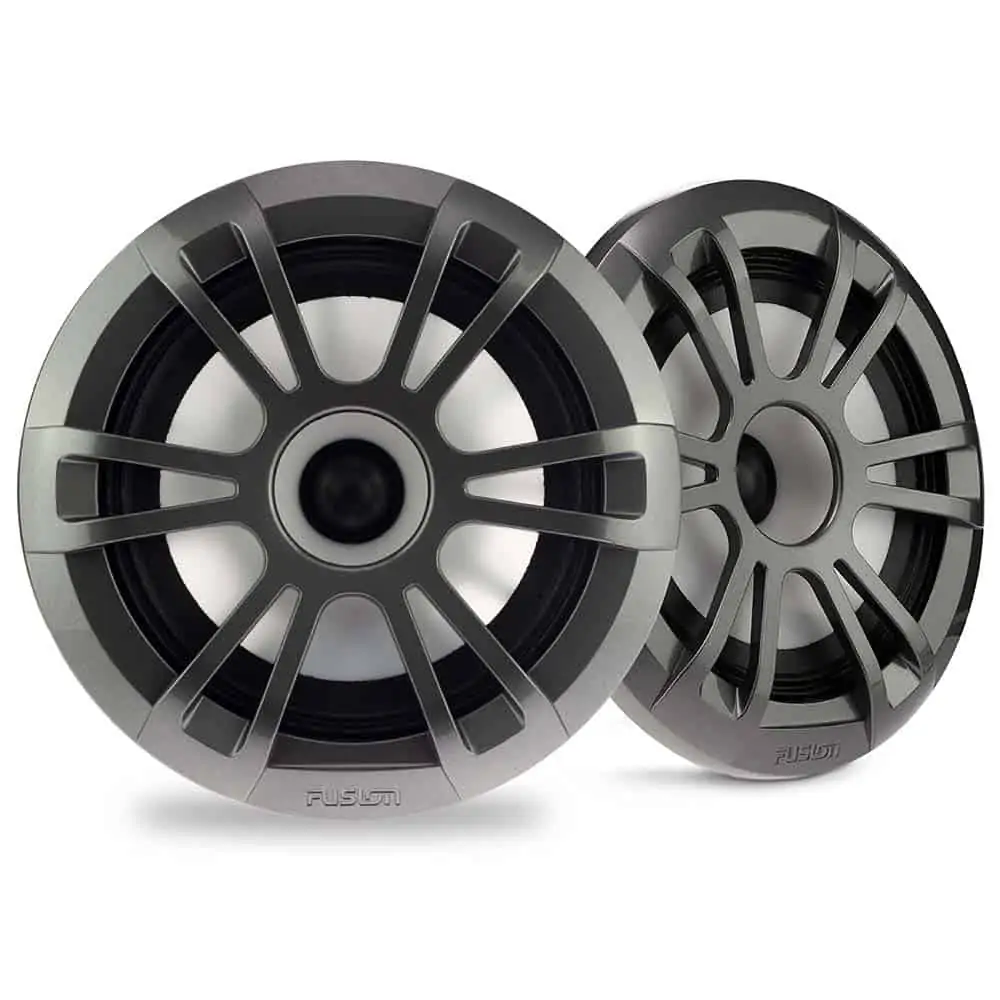

EL Series Sport Speakers
DESIGNED AND ENGINEERED FOR THE MARINE ENVIRONMENT
The EL Series Sport speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog and UV.
QUALITY MATERIALS AND ACOUSTIC ENGINEERING
The EL Series Sport speakers incorporate high-quality materials and marine-specific design elements, ensuring they look and sound great on the water.
OPEN BASKET CONSTRUCTION
The optimised open back design allows for extended power handling and versatile mounting options with reduced mounting depth.
LIGHTWEIGHT VOICE COIL
The lightweight design allows for higher sensitivity, resulting in increased power and efficiency to deliver an enhanced audio experience.
DESIGNED TO COMPLY WITH ISO12216
Tested to international standards for pressure and water ingress, the EL Series speakers are designed and built for superior quality and robustness.
In The Box
- MS-RA60 marine stereo
- One pair of EL Series sport grey marine speakers
- AM/FM stealth antenna
- Two 19 ft (6 metres) speaker wires
- Dust cover
- Wiring harnesses and mounting accessories
- Mounting gasket
- Four 6-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1″))
|2.68″ x 6.18″ x 4.06″ (68 x 156.9 x 103.2 mm)|
|Water rating||IPX6 and IPX7 (front panel only, when properly installed)|
|Power input||10.8-16 VDC|
|Operating temperature range||0° to 50° C|
|Current (max.)||15 A|
|Bluetooth wireless range||Up to 30 ft. (10 m)|
|ANT wireless range||Up to 10 ft. (3 m)|
|Wireless frequencies/protocols||Bluetooth 2.4 GHz @ +12 dBm nominal
ANT 2.4 GHz @ +7 dBm nominal
|Compass-safe distance||150 mm|
|Display||2.3″ perimeter bonded monochrome dot matrix LCD|
|Built-in amplifier||Class-D (minimum 4 Ohm impedance)|
|Peak power||180 W|
|Rated power output (4 Ohm)||22 W rms x 4 @ 14.4 V input, 4 ohm, 10 % THD|
|Fusion-Link™ control||Yes (with compatible Apple and Android devices)|
|Fusion-Link Lite control||Yes (with compatible Garmin watch)|
|Multi-Zone™ technology||2 zones|
|Bluetooth wireless technology||Yes|
|ANT wireless technology||Yes|
|DAB+||Yes (DAB tuner built in)|
|Software updates||Over-the-air software updates via Bluetooth wireless technology using the Fusion-Link app|
|Sources||AM/FM/Bluetooth/AUX x1/DAB+ (available in Europe and Australia only)|
|Auxiliary input||One RCA input (AUX)|
|AM/FM radio||One Motorola antenna connector port|
|Speaker||4 x speaker connections (2 amplified zones)|
|RCA Pre-out (left, right and subwoofer)||1 zone (requires external amplification)|
|Line out||Zone 1: L + R (requires external amplification)|
|Subwoofer out||Zone (requires external amplification)|
|Physical dimensions (Diameter x Depth)||6.93″ x 2.32″ (176 x 59 mm)|
|Water and dust rating||IP65|
|Peak power (Watts)||80 W|
|RMS power (Watts)||20 W|
|Sensitivity (1 W / 1 m)||88 dB|
|Frequency response||45 Hz-16 kHz|
|Nominal impedance||4 ohms|
|Recommended amplifier power (RMS)||20-40 W/Ch|
|LED supply voltage||N/A|
|LED load current @ 16 VDC||N/A|
|Operating temperature range||32° to 122° F (0° to 50° C)|
|Voice coil diameter||0.79″|
|Cone material||Polypropylene cone with cloth surround|
|Compass-safe distance||100″ (254 cm)|
Mounting diameter clearance: 5.12″ (130mm)
Mounting depth clearance: 1.69″ (43mm)
