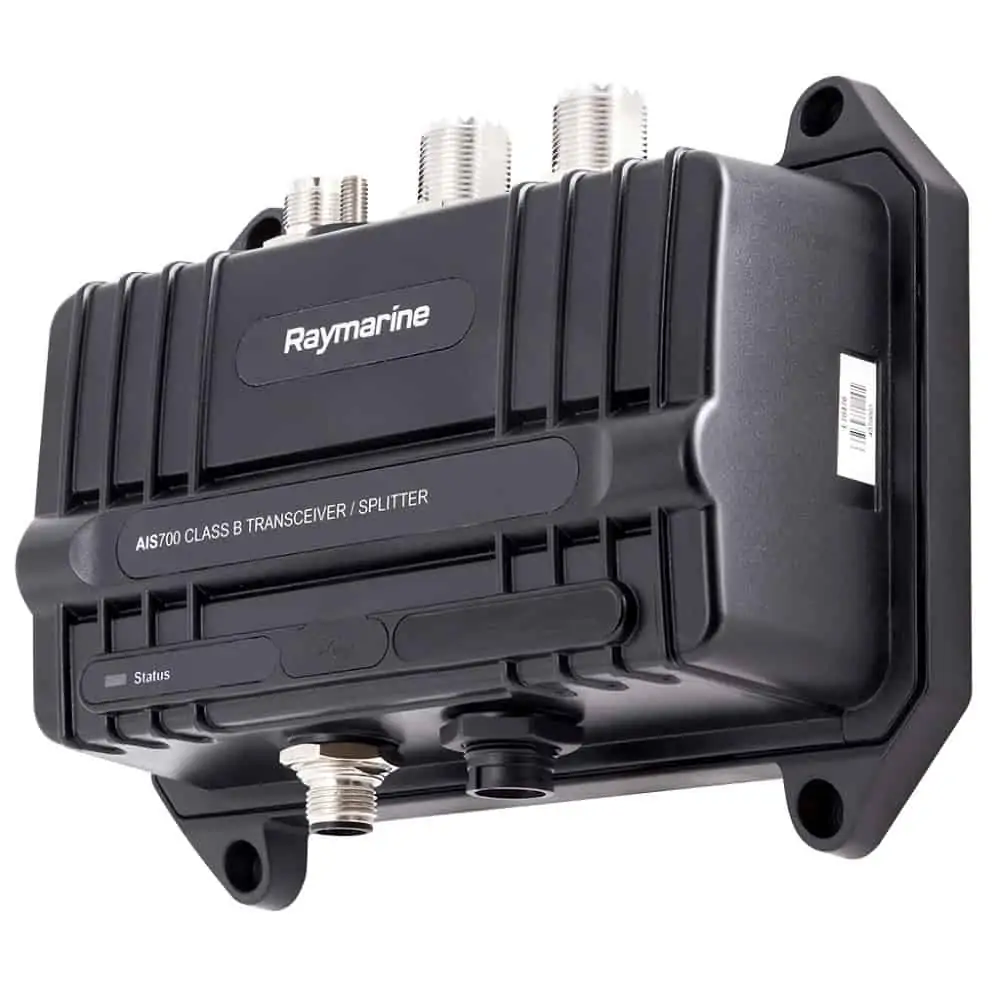

Raymarine AIS700 Class B AIS Transceiver

£ 995.00 £ 894.95

31 in stock

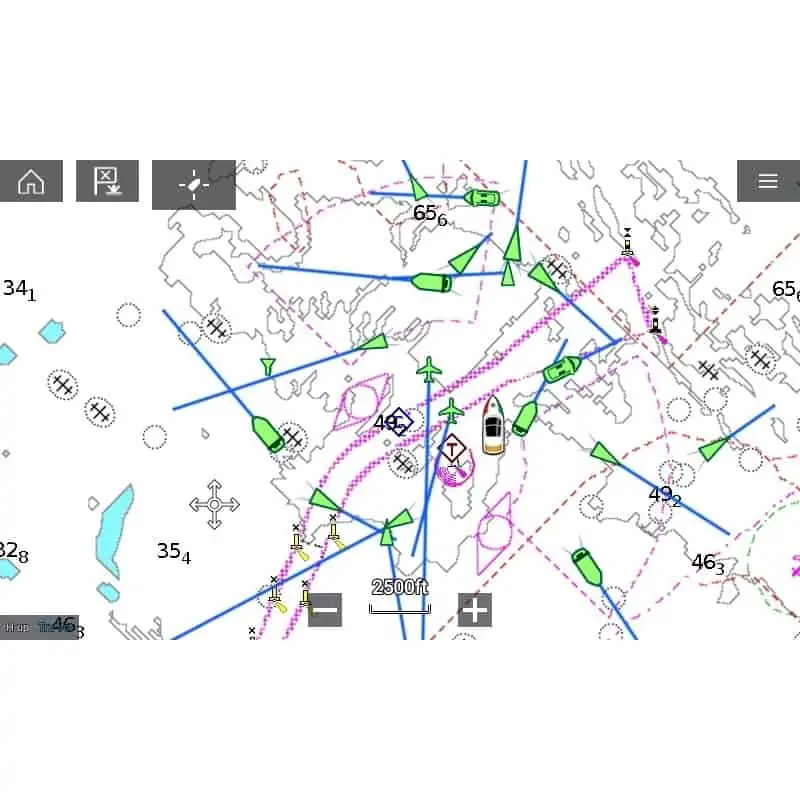

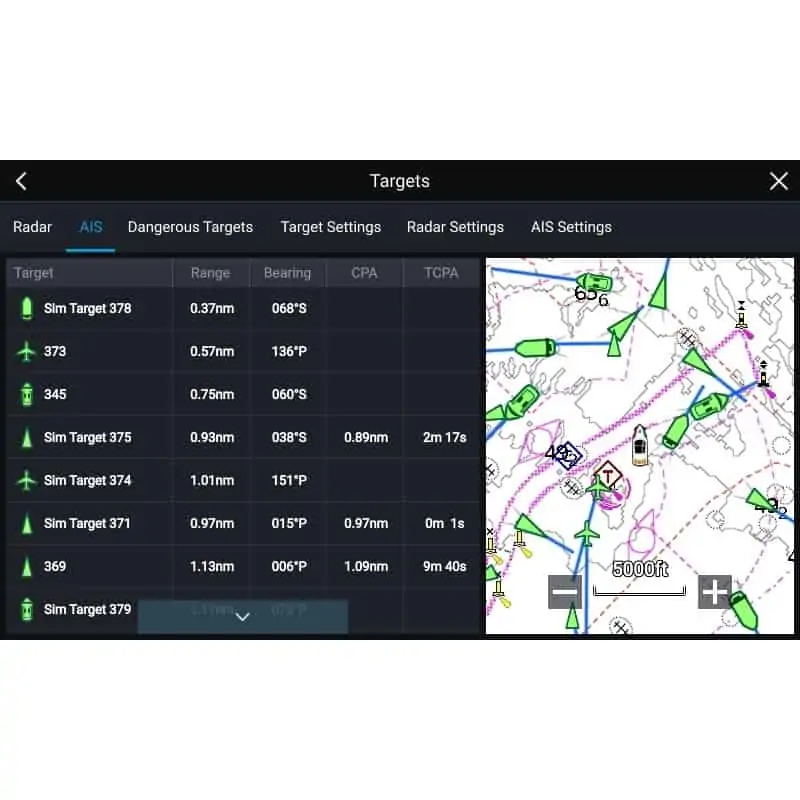

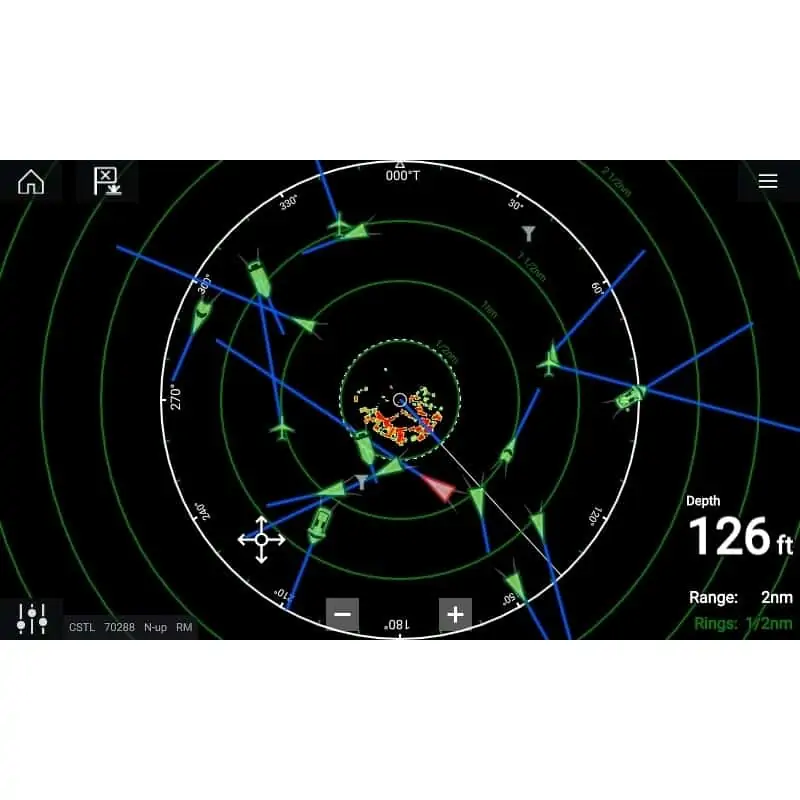

Enhanced situational awareness

Class B AIS transceiver with antenna splitter

The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver designed for use with Raymarine multifunction navigation display systems. As a Class B AIS transceiver, the AIS700 not only receives broadcasts from other vessels, it also transmits your own boat’s information too helping you to be seen on other vessels’ systems.

Features

  • Full transmit and receive AIS for enhanced situational awareness and safety
  • Latest SO-TDMA networking for longer range and faster performance
  • Built-in antenna splitter simplifies installation with existing VHF radio antenna
  • NMEA2000, NMEA0183, PC and SeaTalkng Compatible
  • Software or hardware switchable Silent Mode for enhanced security when needed

External Specifications

  • Operating Temperature: -15°C to +55°C
  • Storage Temperature: -20°C to +75°C
  • Water Ingress: IPX6 and IPX7
  • Humidity: Up to 93% @ 40°C

Power Specifications

  • Power Supply: 12v and 24 nominal
  • Power Consumption: <3W
  • Peak Current: 3A
  • Load Equivalency Number: 1 LEN

RF Specifications

  • DSC Receiver: Implemented by time sharing with one TDMA receiver
  • Receiver 1 band: 156.025 MHz to 162.025 MHz (in 25KHz steps)
  • Receiver 2 band: 156.025 MHz to 162.025 MHz (in 25KHz steps)
  • Transmitter band: 156.025 MHz to 162.025 MHz (in 25KHz steps)
  • Transmitter specification: To meet IEC 62287-2 relevant sections
  • Receiver specification: To meet IEC 62287-2 relevant sections
  • Transceiver specification: To meet IEC 62287-2 relevant sections
  • GPS receiver: u-blox MAX-M8W
  • GPS receiver channels: 72 channels
  • GPS Cold start acquisition time: 26s nominal
  • Positional source: GPS & GLONASS
  • AIS performance: 5W SOTDMA

Antenna Splitter Specifications

  • Operating frequency range: 156.0MHz to 162.025MHz Transmitting, 156.0MHz to 162.025MHz Receiving
  • Insertion loss AIS RX path: 0dB
  • Insertion loss AIS TX path: <1dB
  • Insertion loss VHF RX path: 0dB
  • Insertion loss VHF TX path: <1dB
  • Power handling AIS port: Maximum 5W input
  • Power handling VHF port: 25W input
  • Switching time RX to VHF TX: 10uS Max
  • Switching time RX to AIS TX: 10uS Max
  • Switching time VHF TX to AIS TX: 10uS Max
  • Switching time any TX to RX: 10uS Max
  • VHF port impedance: 50 Ohms
  • AIS port impedance: 50 Ohms
  • Antenna port impedance: 50 Ohms
  • VHF to AIS port isolation: >28dB (both directions)
  • Minimum VHF input power for switching: 400mW

External Connections

  • VHF antenna connector type: SO-239 co-axial
  • VHF radio connector type: SO-239 co-axial
  • GNSS antenna connector: 50O TNC co-axial
  • NMEA2000: DeviceNet male
  • USB: Micro-B
  • External interface isolation: NMEA0183 and NMEA 2000 interfaces to incorporate galvanic isolation from power supply as required by the relevant interface specification
  • NMEA0183 interface 1 (MFD connection): NMEA 0183 HS (IEC 61162-1) compliant, bi-directional, RS422 levels. 4 wire interface (differential signalling). Configurable baud rate. Input to MFD from AIS
  • NMEA0183 interface 2 (NMEA0183 instrument connection): NMEA 0183 (IEC 61162-1) compliant, bi-directional, RS422 levels. 4 wire interface (differential signalling). 4 wire interface (differential signalling) Configurable baud rate
  • USB interface (PC connection): Protocol NMEA 0183 HS (IEC 61162-1) compliant, bi-directional USB port, 38.4 kBaud

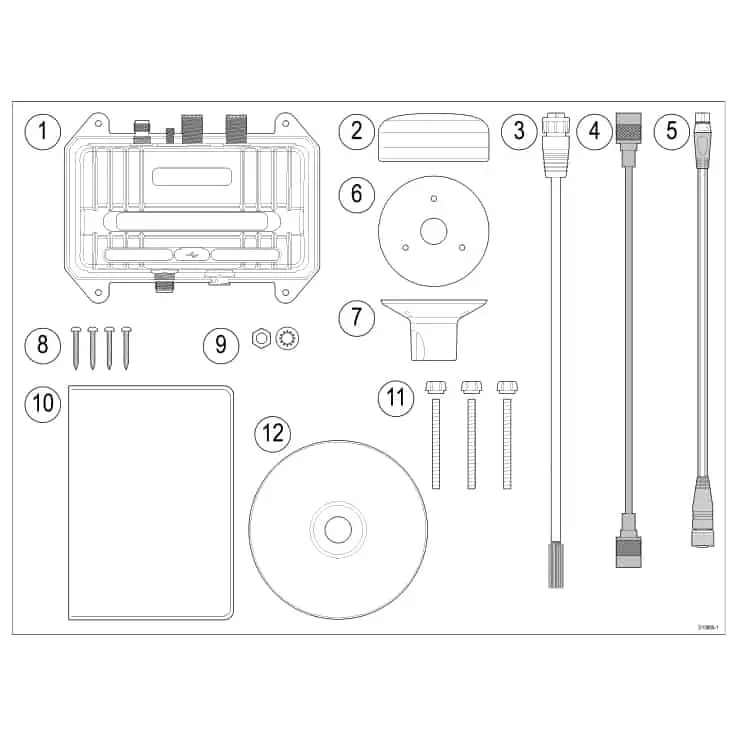

In the Box

  • AIS700 Class B AIS Transceiver with built-in VHF antenna splitter
  • GNSS (GPS) Antenna
  • Power / data cable 2m (6.56 ft)
  • VHF Radio cable 1m (3.28 ft)
  • DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
  • GNSS antenna gasket
  • GNSS antenna pole mount
  • Unit fixings (4 x No.8×19 self tapping screws)
  • M5 nut and washer (grounding)
  • Documentation kit
  • GNSS antenna fixings (3 x M3x40 stud and thumb nut)
  • Software CD
Part Number
Port Solent
Warehouse
99551032
0
31
