Lewmar Low Profile Hatch

£ 249.95 - £ 549.95

Clear

The Low Profile Hatch has soft styling and sleek looks, ideal for use on a powerboat.

Smaller ventilation hatches are suitable for any deck location on sailboats, while the larger sizes can be used as foredeck hatches on smaller to mid size yachts.

Mounting Instructions

  • Fit to a flat surface with a maximum tolerance of +/- 1mm.
  • Fastening size at hinge section use (M6 / 1/4″).
  • Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

Features

  • Outside handles allow the hatch to be opened from on deck if it is not locked (Sizes 00, 03,10, 20 & 41 have no outside handle and can only be opened from the inside.)
  • Low profile hatches open up to 180° (round hatches open to 170°)
  • Friction levers hold the lid open in any position up to 95°
  • Anodised aluminium frame for corrosion resistance
  • Curved upper frame profile for strength as well as modern styling
  •  Full range of spare parts available

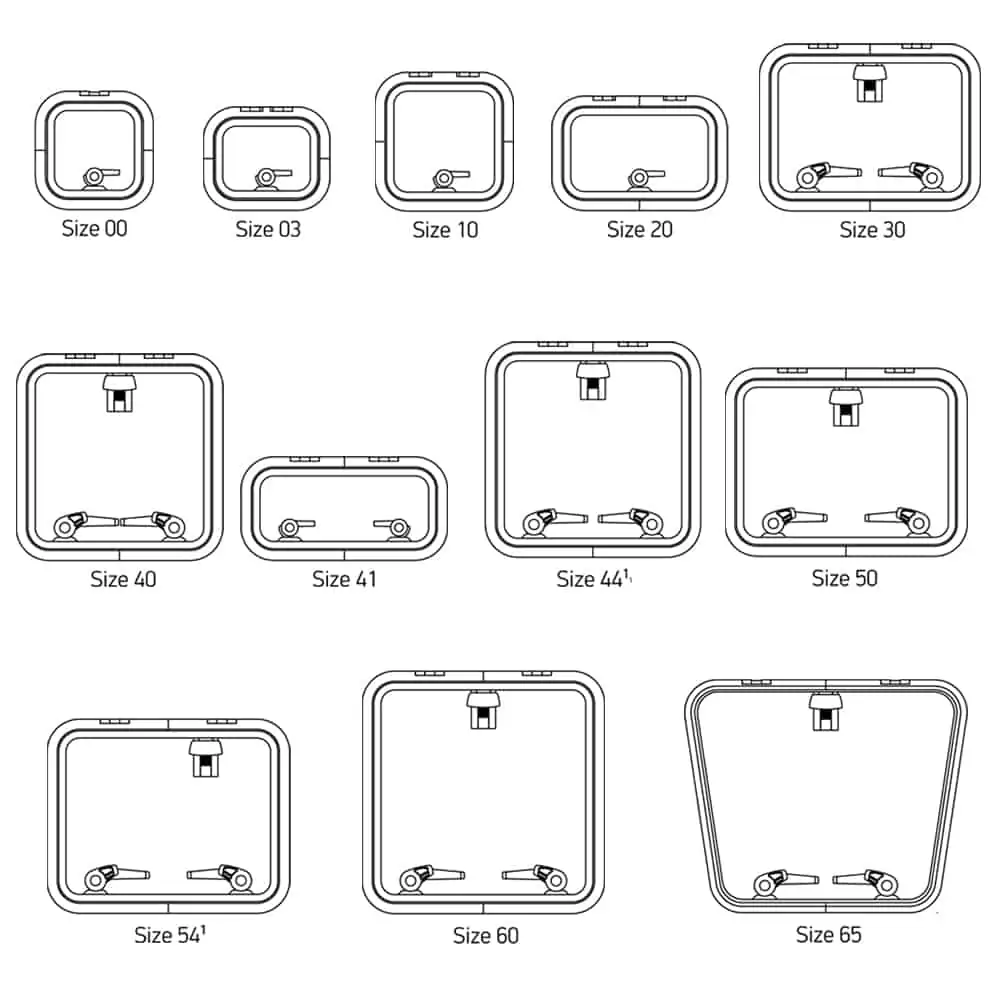

Part Number
Size
Port Solent
Warehouse
99435158
Size 00
0
4
99435165
Size 03
1
4
99435172
Size 10
1
4
99435189
Size 20
0
4
99435325
Size 30
1
6
99435332
Size 40
1
5
99435349
Size 41
0
0
99435356
Size 44
0
9
99435363
Size 50
0
3
99435370
Size 54
1
3
99435394
Size 60
2
9
99435400
Size 65
0
3
