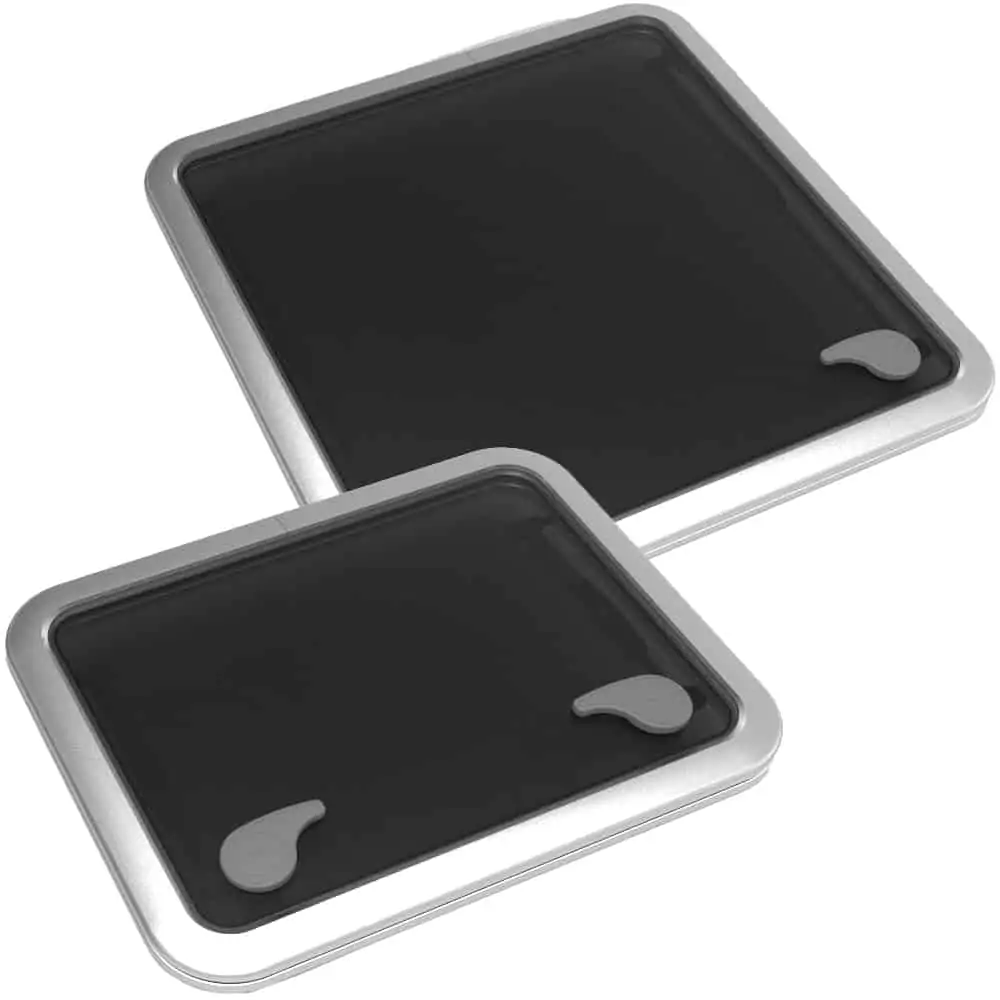

Goiot Opal Hatch

£ 279.95 - £ 459.95

Clear

True to Goiot quality tradition, the Opal hatches range combines optimal watertightness, easy installation and aesthetism thanks to its many technical advantages. The aluminium hinges are invisible, the one-piece aluminium lid with a thick frame section provides optimal rigidity, and is always more discreet thanks to its low height (up to 19 mm for teak decks).
The available sizes are common standards used on large series boats.

Details
Supplied as standard with a gray acrylic
Telescopic stay
Mounting on a flat surface with a ± 0.5 mm tolerance

Closing system
The ergonomic shape of the handles ensures comfortable space for an excellent prehension. They feature a lock catch which prevents breaking in from outside.
All models are equipped with adjustable stay up to 160°.

Watertightness
The hatch features a double contact seal system. When closing, the first lip absorbs the wave while a second contact point ensures ultimate watertightness. When opening, the angled frame allows the water to drain out.

Specifications

Size Weight Cut-out dimensions Overall dimensions
T30 5.6 KG 457 x 327 mm 511 x 381 mm
T40 6.2 KG 421 x 421 mm 475 x 475 mm
T44 6.7 KG 442 x 442 mm 496 x 496 mm
T50 5.4 KG 507 x 377 mm 561 x 431 mm
T60 7.9 KG 507 x 507 mm 561 x 561 mm

All sizes
Cut out corner radius 42.5mm
Acrylic thickness 10mm
Lid height 29mm
Frame flange 15mm

Part Number
Size
Port Solent
Warehouse
116024
T30
0
1
116025
T40
1
1
116026
T44
0
0
116027
T50
1
0
116030
T60
1
0
