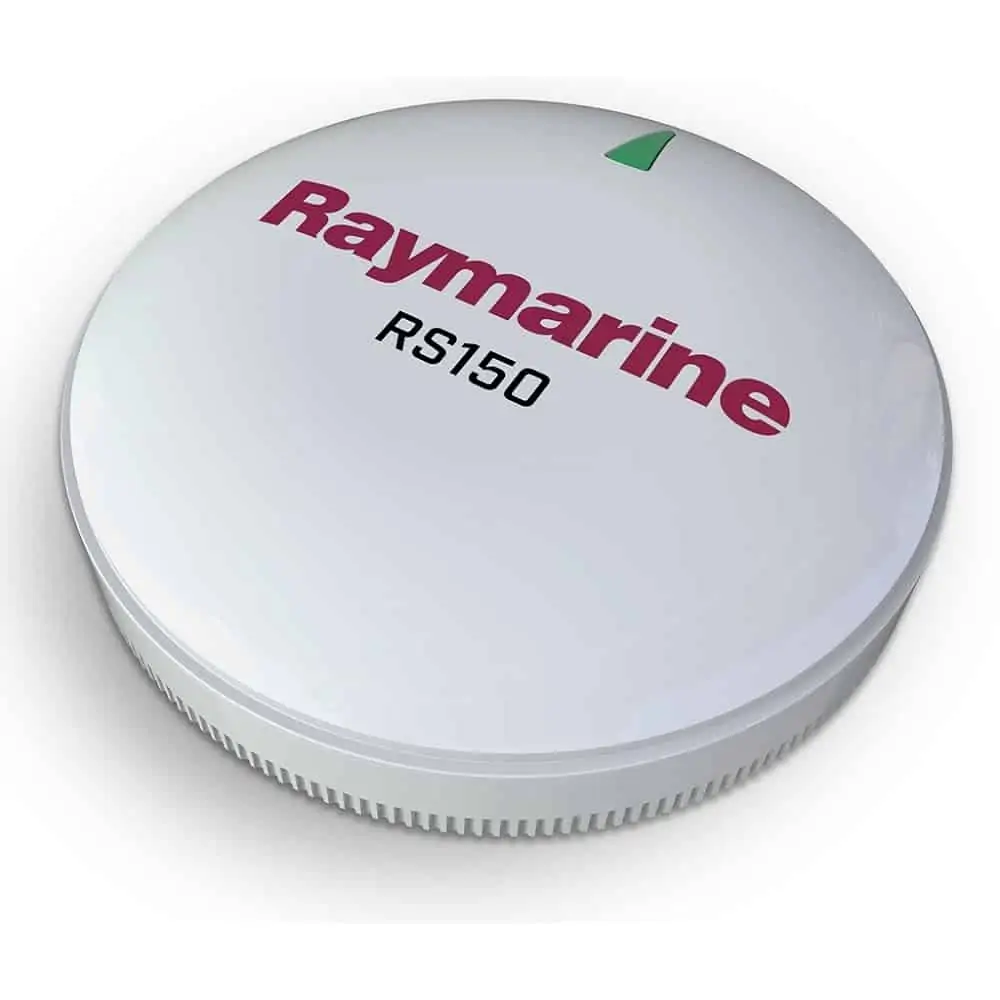

Raymarine RS150 GPS Sensor

Click on an image to display a larger detailed image.

Raymarine RS150 GPS Sensor


RRP £275.00





The RS150 GPS is a high performance, 72-channel, remotely mounted GPS sensor for Raymarine navigation systems. The RS150 offers fast 10Hz position updates and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.

  • 72-channel GPS receiver
  • Fast 10Hz position updates
  • Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
  • A GNSS receiver with GLONASS compatibility
  • Low power consumption: 30mA (1 LEN)
  • SeaTalkng and NMEA2000 compatible (using a device net adapter cable)
  • Designed for low profile surface mounting or optional pole mounting
Do I need an RS150 GPS for My Raymarine Multifunction Display?
Display   Do you require an external GPS antenna or GPS sensor?
aSeries, cSeries, eSeries and eS Series MFD with integral GPS   Typically, you do not require an external GPS because your multifunction display incorporates an integrated GPS receiver. However there are some circumstances when you may require an external GPS antenna or sensor - for example within a steel wheelhouse where the multifunction display will not receive GPS signals. The optional GA150 remote GPS antenna and the RS150 GPS can be used with the following multifunction displays when an external sensor is required: aSeries (a95, a97, a98, a125, a127, a128), eS Series (eS75, eS78), all legacy C series and E series.
gS Series MFD   gS Series systems require a Raymarine RS150 GPS external sensor as part of the network.
Legacy E Series Widescreen (E90W, E120W, E140W)   The E Series widescreen displays do not have an integrated GPS and can use the RS150 external sensor as part of the network.
Legacy C Series Classic (C80, C120), E Series Classic (E80, E120)   Raymarine classic multifunction displays require a SeaTalk1 to SeaTalkng converter to connect an RS150.


  • Product Number: E70310
  • Nominal supply voltage: 12V DC powered by N2K bus
  • Operating voltage range: 8-32V DC
  • Power consumption: 30 mA max (NMEA LEN = 1)
  • Operating temperature: -13ºF to 131ºF (-25ºC to +55ºC)
  • Relative humidity: Max 93%
  • Waterproof: IPx6/7
  • Supported connection protocols: SeaTalkng: NMEA 2000 (certified) (via DeviceNet adaptor)
  • Sensitivity: High sensitivity - acquisition down to -163dBm
  • No. of channels: 72
  • Positioning System: GPS & GLONASS
  • Satellite Differential Type: WAAS (United States); EGNOS (Europe); MSAS (Japan); GAGAN (India)
  • Differential acquisition: Automatic
  • Position accuracy (95%): <15m
  • Position accuracy with SDGPS (95%): <5m
  • Speed accuracy (95%): <0.3kt
  • Time to first fix from cold start:
  • Time to first fix from hot start: < 8 seconds -72 hour hold up battery allows for hot start
  • Geodetic Datum: WGS84
  • Mounting: Surface/rail/pole
Size / ColourPart NumberStock AvailabilityPrice
 99521035 3 at 02/03 11:58£229.95 Add to Basket
