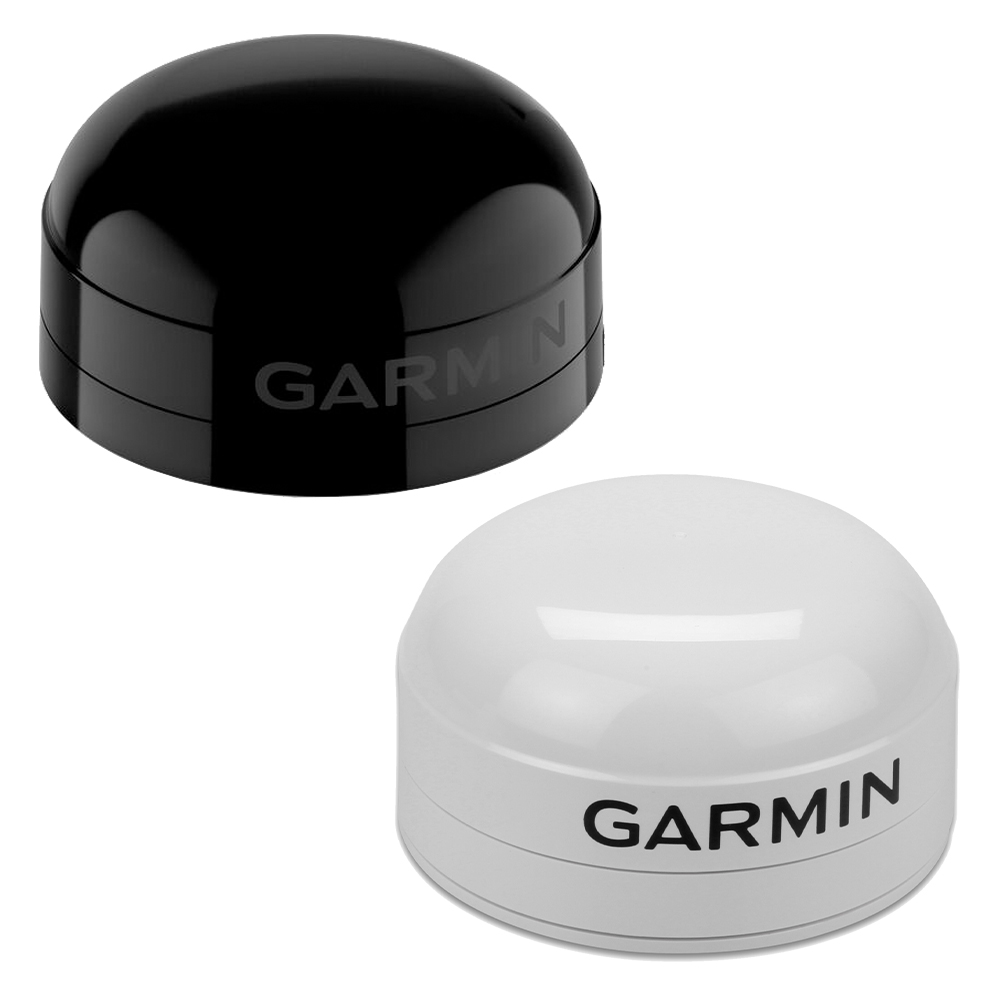

Garmin GPS 24XD Dual Frequency Antenna & Heading Sensor

Explore coastal waters with the GPS 24xd position receiver and antenna. Get position accuracy to within 1 metre with dual-frequency band GPS, 10Hz update rates and multi-constellation support (GPS, Galileo¹, GLONASS and BeiDou¹). Gain peace of mind in signal accuracy thanks to multi-SBAS (Satellite Based Augmentation System) compatibility. Pinpoint your heading to within 3 degrees regardless of speed with the built-in magnetic heading sensor, which in turn delivers optimum chart stability, radar overlay and MARPA.

Product Specification:

• Dimensions (D x H): 91.6 mm x 49.5 mm
• Cable length: 6 m
• Case material: Fully gasketed, high-impact plastic alloy; waterproof to IPX7
• Compass-safe distance: 150 mm
• Power source input: 9-16 Vdc, unregulated
• Input current: 150 mA at 12 Vdc

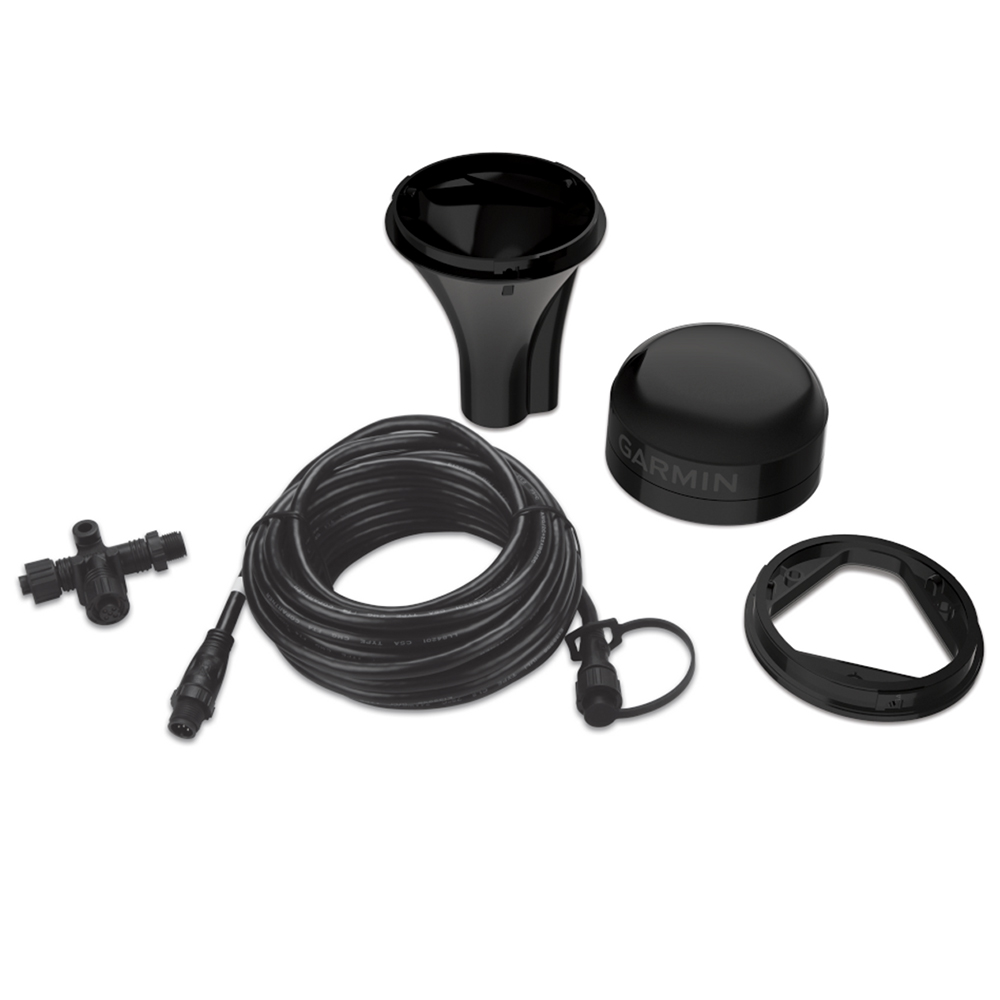

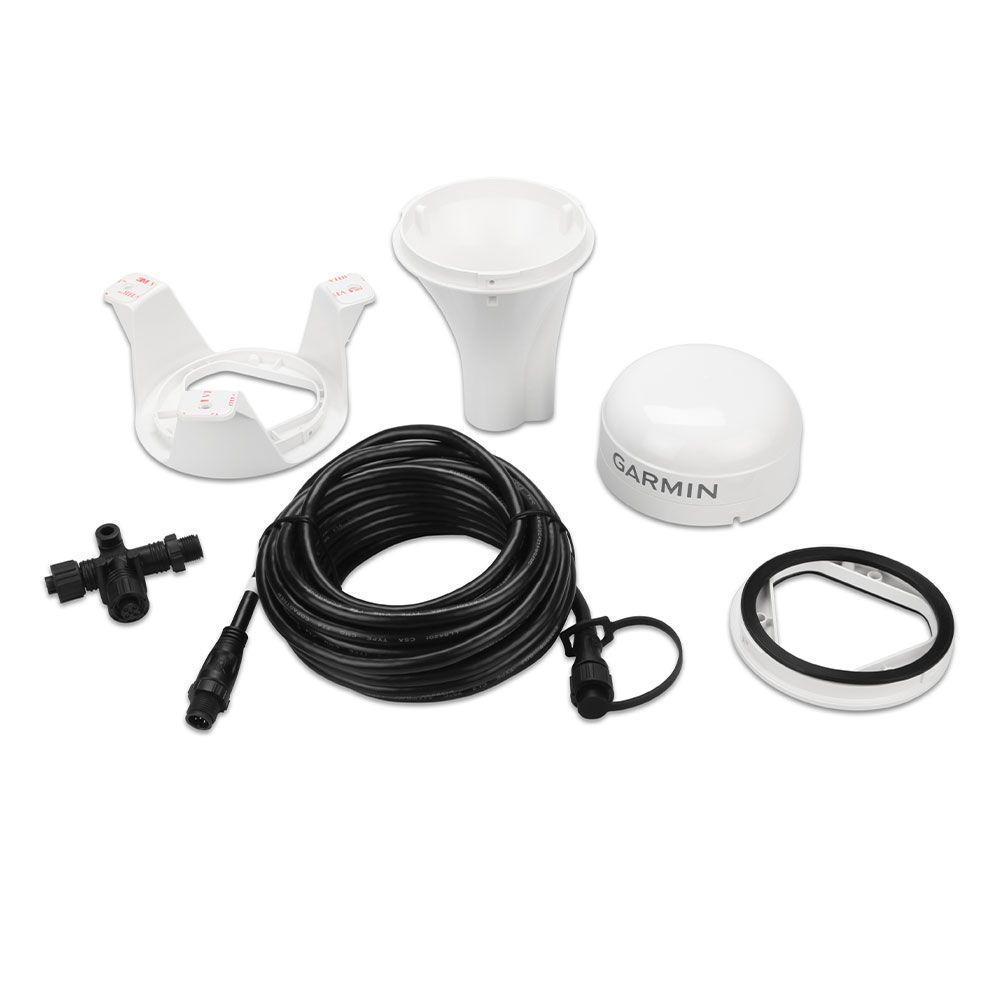

In the box:

• GPS 24xd NMEA 2000^®
• Pole mount
• Surface mount
• Under-deck mount
• NMEA 2000 backbone/drop cable (6 metres)
• NMEA 2000 T-connector
• Documentation
