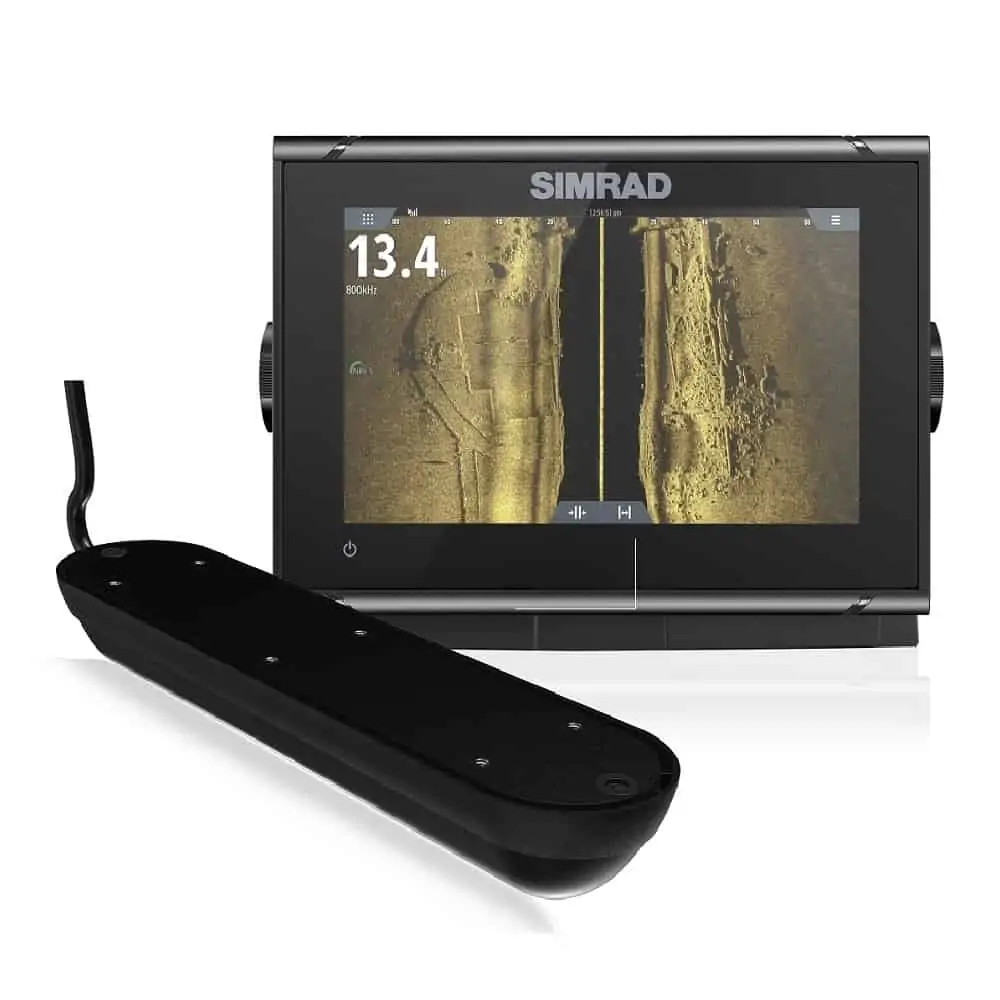

Simard GO7 XSR Chartplotter / Sonar with Transom Active Imaging 3 in 1 Transducer
The Simrad GO7 XSR is a great way to add GPS navigation, sonar, and even radar to your boat. This compact yet feature-packed display is perfect for smaller sportboats, dayboats, and centre-consoles. Wireless connectivity to smartphones and tablets keeps you in control from anywhere on board, almost like a second display.
NEW Active Imaging
See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ sonar. The high-level clarity, target separation and detail of Active Imaging will help you find more fish by making it easier to quickly identify fish-holding structure like rockpiles, standing timber, weedbeds, ditches and drop-offs – all at a greater distance from your boat. Get the best of CHIRP sonar and DownScan on one screen with the exclusive FishReveal™ Smart Target view that helps you easily recognise fish from structure and cover on high-detailed DownScan images.
Wireless and wired connectivity take your display beyond the helm
Built-in wireless connectivity mirrors your display to a compatible smartphone or tablet, giving you instant access to charts, radar and other functionality from anywhere on board. Wireless also enables easy online software updates via any internet hotspot. Industry-standard NMEA 2000® connectivity offers a wide range of expansion and integration options: monitor your boat’s engine performance and fuel efficiency, steer your boat with a Simrad autopilot, or control your on-board entertainment system from your GO series display.
Multi-touch display for intuitive, tablet-style control
The GO series offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar. Customise your home screen with the features you use most, and see everything you need on screen at once with adjustable split-screen views. Mark waypoints on charts with a touch, and easily assign meaningful names and symbols that make them quick to find when you are planning your next trip.
Operating Temperature Range: -15°C to +55°C (5° F to 131° F)
Storage Temperature Range: -20°C to +60°C (4°F to 140°F)
SD Card Storage: 1 Micro SD slot, max. 32GB each. >32 GB format to NTFS
Ethernet Ports: 1 x 5 pin yellow connector x 1 Mbit.
NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
Weight: 1.320 kg (2.91lb)
Supply Voltage: 10 – 17 V DC
Update rate: 10 Hz
Power Consumption typical: 12 W
Screen Brightness: 1200 nits
Dimensions W x H x D: 197 mm x 141 mm x 82.7 mm (7.56″ x 5.55″ x 3.26″) (no bracket)
Warranty Period: 2 Years
Power Consumption max: 20 W
GPS Receiver Channels: 32 Channels
Recommended Fuse Rating: 3A
Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Viewing Angles: 80° top/bottom, 80° left/right
Display Resolution: 800×480
Internal Storage: 90MB
Digital Switching: BEP C-Zone
Mounting Type: Bracket or Panel
Time to First Fix: Cold start less than 90 seconds exposed to open sky, Satellite Reacquisition 5 sec
Radar compatibility: Halo, Broadband, HD Radars
Position Accuracy: Horizontal Accuracy 3 m (9.8 ft.)
Charts supported: Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
Sonar Compatibility: Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic Connector
GPS: Internal, 10Hz, WASS, MSAS, EGNOS
Waterproofrating: IPX 6 and 7
PC Connectivity: None
AIS: Receive AIS data over NMEA 2000 only
Interface: Touch screen
Correction: WASS, MSAS, EGNOS, GLONASS
Backlight Color: White
