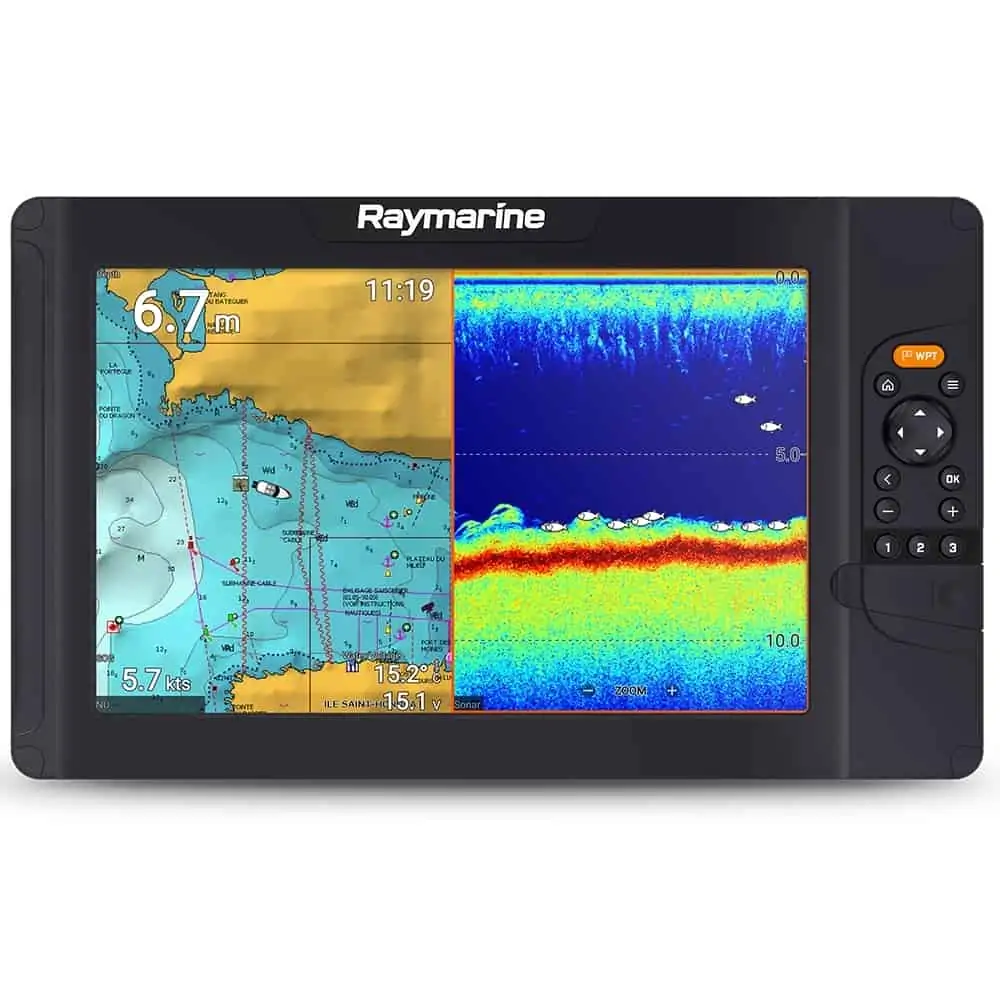

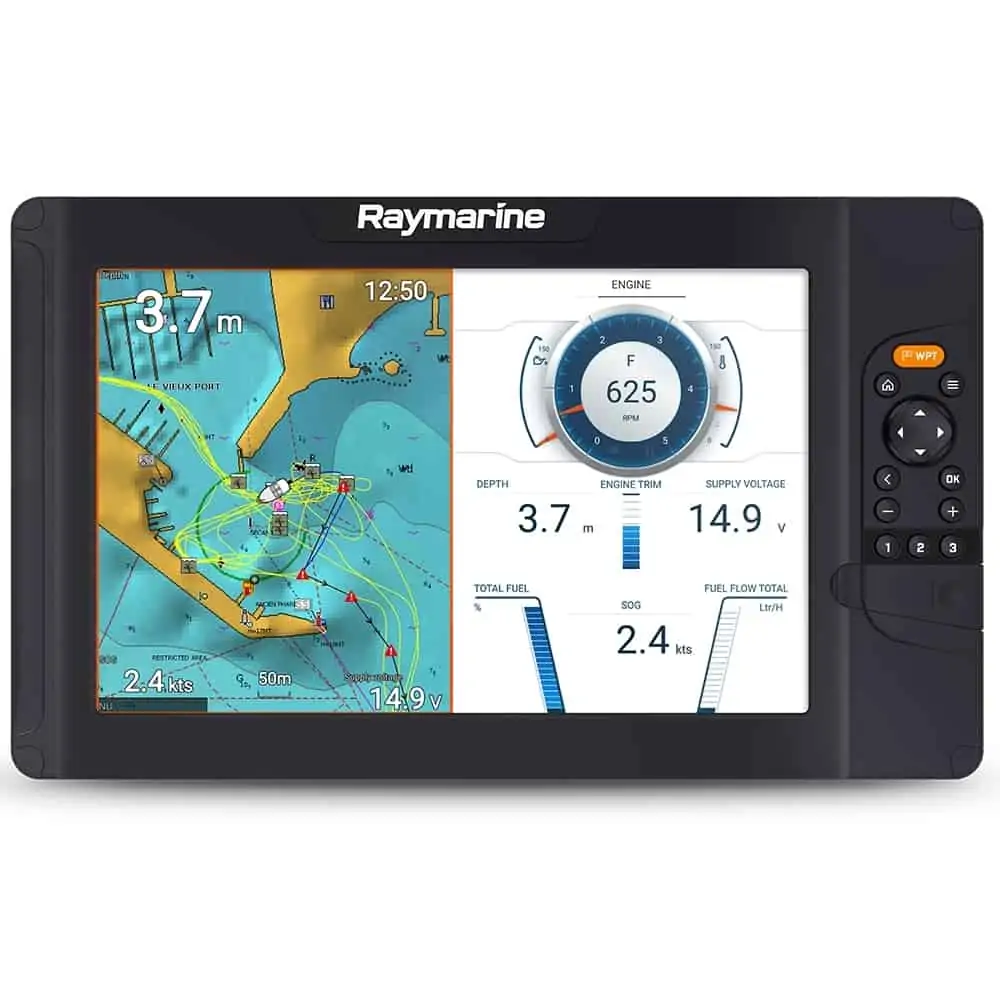

Raymarine Element 12 S Chartplotter

£ 1,129.95 - £ 1,229.95


Raymarine Element 12 S Chartplotter

Available as a display only, with a Navionics+ Small Download Chart or Raymarine Lighthouse Download Chart for one region, e.g. UK.

The Element S series of navigation displays gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and affordable performance, Element S will quickly become your trusted cruising companion. A quad-core processor offers responsive performance and Element’s all-weather, sunlight viewable displays deliver chart and navigation data in beautiful color. Element’s simple and straightforward LightHouse Sport operating system lets you navigate with confidence. Once underway, Element S will keep you on course with a smart list of user-friendly features, such as AIS target overlays, autopilot integration, and sailing instruments displays.

Easy planning and GPS navigation with your favorite charts.

Support for Raymarine LightHouse™ charts, Navionics, and C-MAP
Safely navigate busy waterways with an optional Quantum™ wireless radar and AIS receiver
Built-in High CHIRP sonar for depth and bottom contour imaging (transducer sold separately)
Map uncharted areas with Raymarine RealBathy™ personal sonar mapping
Connect with NMEA2000 compatible AIS, autopilot, sailing instruments, engines, tanks, and VHF

Element’s LightHouse Sport OS Designed for boaters that like to keep things simple.

From sailing to power cruising to fishing, the LightHouse Sport OS is easy to customize to your type of boating
An oversized waypoint key for quick and easy marking of your favourite locations
Three user-programmable quick keys to access your favourite pages with one button push
Live menus let you customize charts while seeing the navigation display change in real time

Enjoy legendary Raymarine display and navigation technology at an affordable price.

12 inch super bright display for all weather conditions
Category-leading quad-core processor delivers fast chart redraw and responsive performance
Fast and accurate 10hz GPS/GNSS sensor
Rugged design and backed by Raymarine’s three-year warranty (product registration required)

MODEL Element 12 S



Display Size

12.0″ Optically Bonded LCD
Display Resolution 1280 x 800 WVGA
Display Type Non-Touch
Brightness 1,500 nits



Overall Dimensions

357 x 215 x 62mm
W x H x D (mm) (14.1 x 8.5 x 2.4 inches)
Product Weight (lbs) 6.5
Water Ingress Protection IPx6 and IPx7
Operating Temperature Range -25°C to + 55°C (-13°F to 131°F)
Storage temperature range -30°C to +70°C (-22°F to 158°F)




12V DC (8V to 16V DC)
Power Consumption (max 12V DC) 25 Watts




Sonar Type (Built-in) Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducers
Sonar Depth CHIRP Sonar = 274m (900 feet)
Radar Quantum wireless CHIRP compatible – Wi-Fi only connection
Doppler Radar N/A




1 x NMEA2000 port (DeviceNet microC)
Supported NMEA2000 Networking INPUT: NMEA2000 Compatible Engines (Max 2) | NMEA2000 Compatible Tank Sensors (Max 4) | Heading Sensor (for Chart Stabilization)
  OUTPUT: GPS (for VHF Distress and DSC). Waypoint, Routes, and XTE for Autopilot. Waypoint and Route sharing between Element displays
SeaTalkng Requires A06045 DeviceNet female (F) adapter cable – 400mm
Wi-Fi WiFi – 802.11 b / g / n




Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store.
Tides & Currents Requires LightHouse LNC2, Navionics or *C-MAP
Sonar Mapping Raymarine RealBathy and Navionics SonarChart Live
Waypoint / Routes / Tracks 5,000 wpts / 200 wpt groups / 50 rts – 250 wpt max / 15 tracks – 10,000 max trk pts
External Memory 1 x microSD slots
Part Number
Port Solent
Display Only
With Lighthouse Chart e.g. UK
