B&G Vulcan 9 Chartplotter

£ 1,090.00 £ 799.95

1 in stock

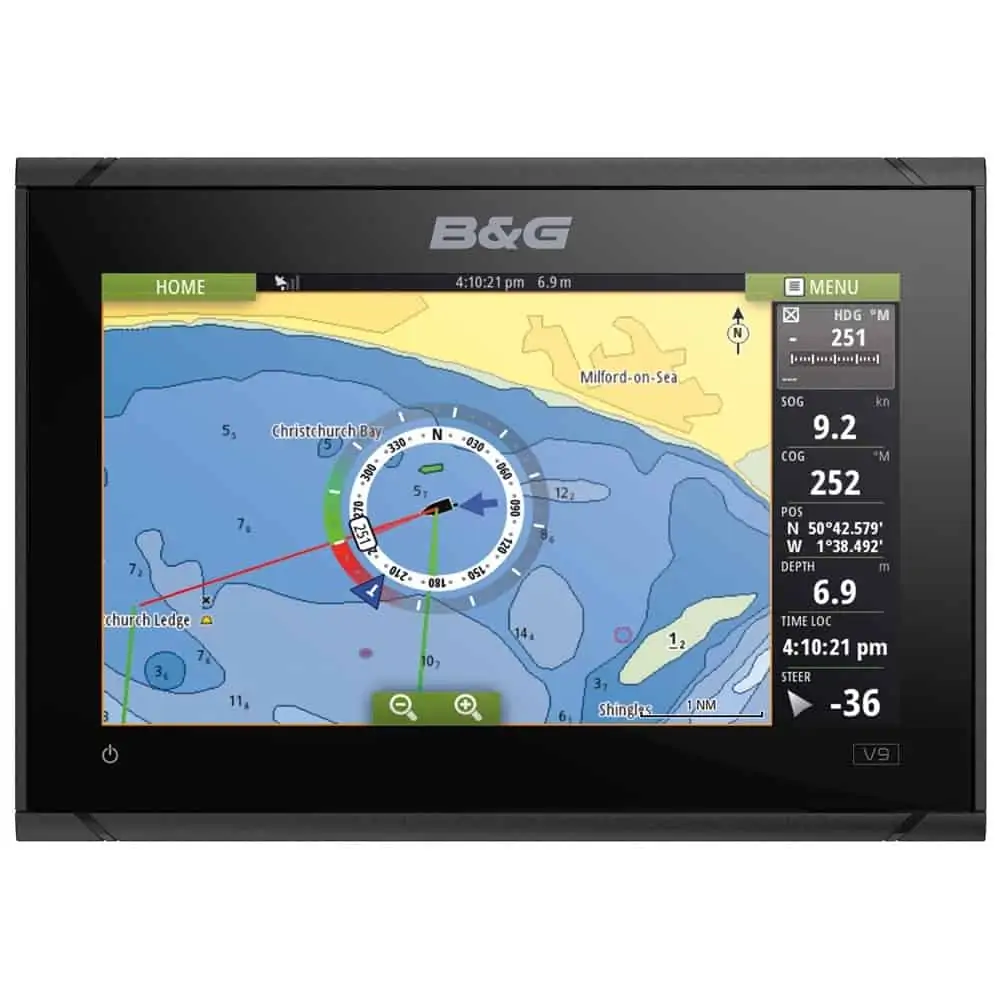

The B&G Vulcan9 FS Display is a powerful all-in-one Chart plotter and depth sounder for mid sized sail boats. Vulcan9 FS incorporates B&G’s forward looking collision avoidance sonar technology for safe passage making in areas where chart accuracy is uncertain. Vulcan9 includes B&G 3G and 4G Radar support giving the user ultimate situational awareness for passage making at night and in poor weather. Vulcan9 will also connect to B&G sailing instruments and autopilot systems for a fully integrated electronics package. No physical buttons and low profile mounting options makes Vulcan9 one of the cleanest and most integrated looking navigation device for aftermarket installs. Combine this with an extensive set of advanced sailing software features inherited from it’s bigger brother, the Zeus2, and the Vulcan 9 is the go-to standalone navigation display for the aspiring sailor.

Optional transdcuers required for forward looking sonar and SailSteer (See accessories).


  • Easy to use multi-touch user interface
  • Glass dash styling
  • Super bright widescreen display

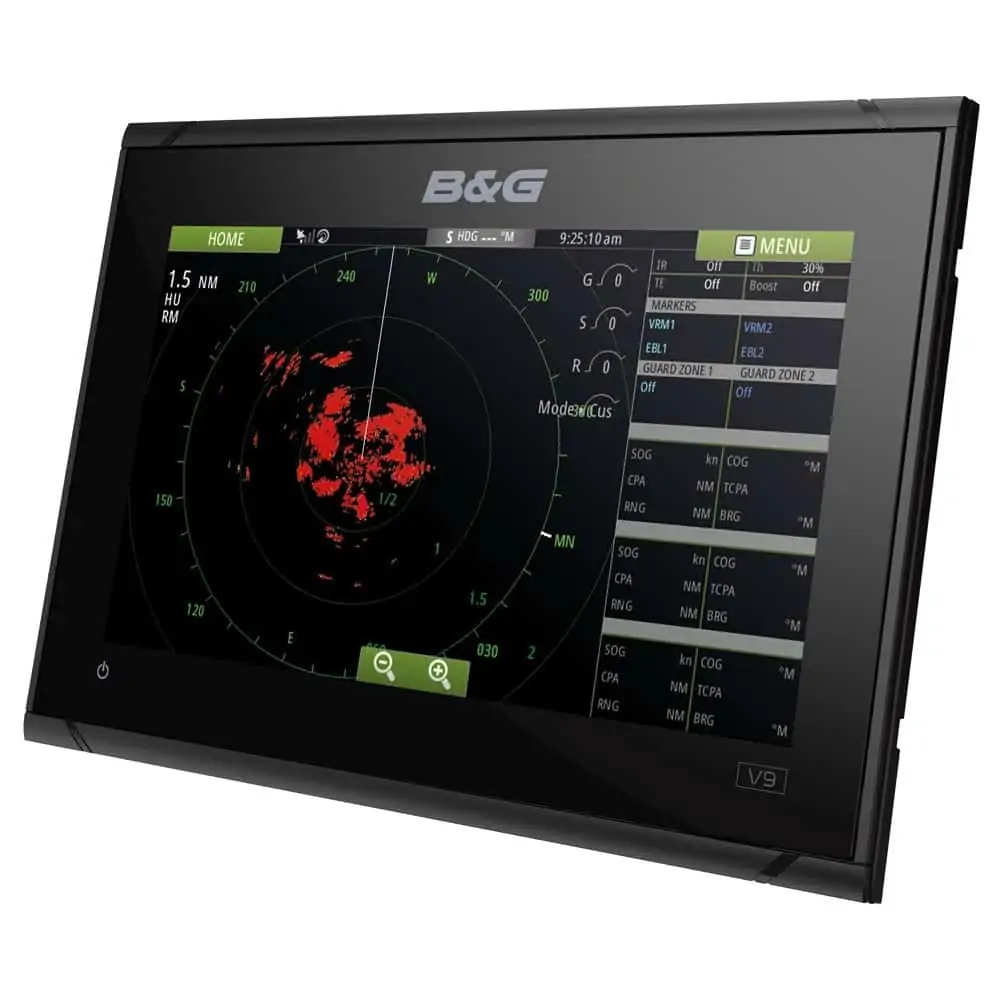

  • Radar integration
  • Built in Wi-Fi connectivity
  • Built in 10 Hz, high sensitivity GPS antenna
  • Dual Micro SD card slots
  • Built in echosounder (Broadband & Chirp)
  • Built in ForwardScan sonar
  • Advanced NMEA2000 networking
  • BEP C-Zone Integration
  • Fusion Link and sonicHub2 Audio Support
  • NMEA Data Logging
  • GRIB Weather support
  • H5000 system integration

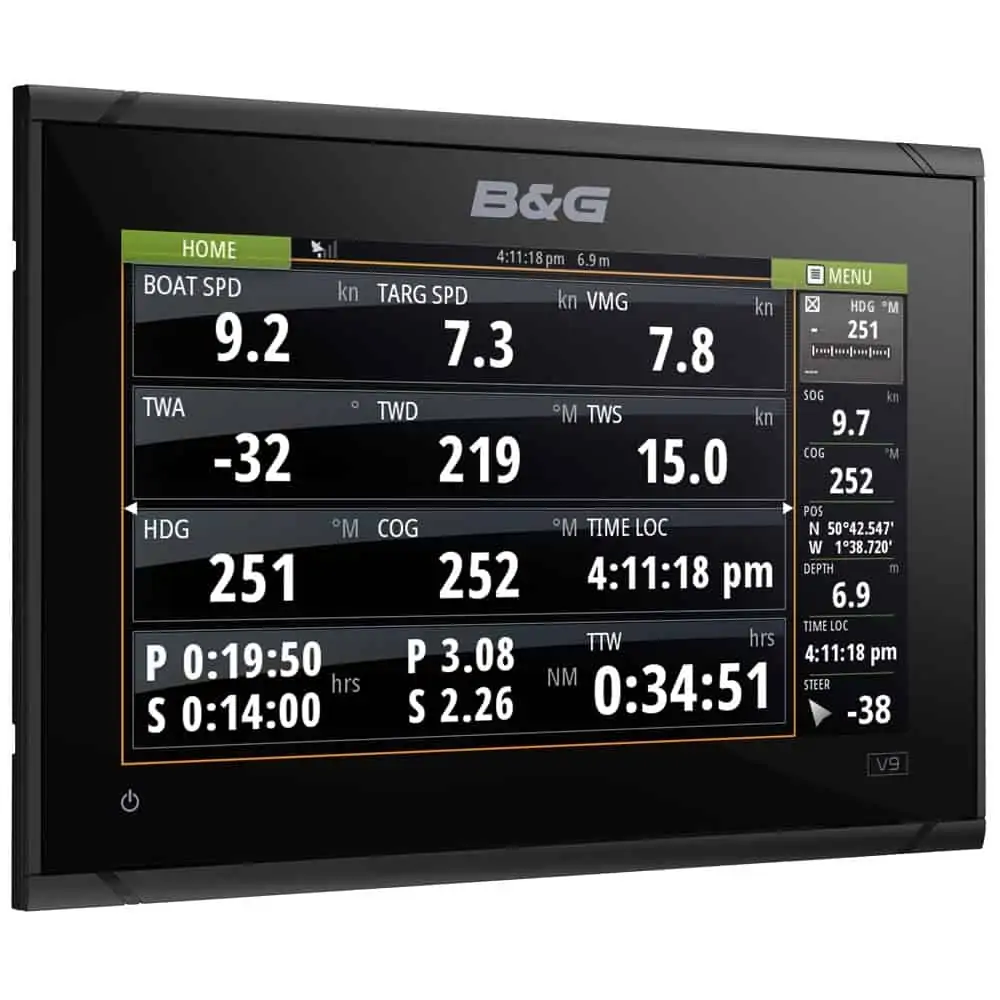

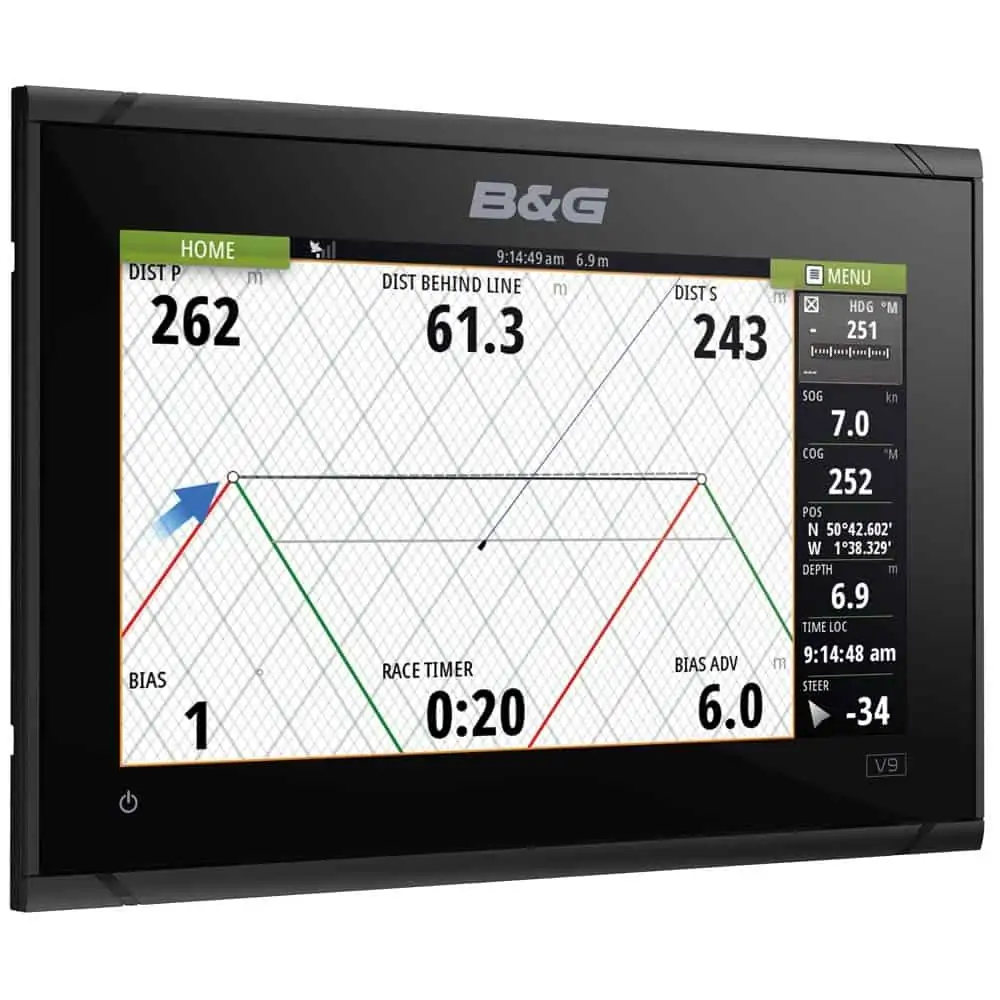

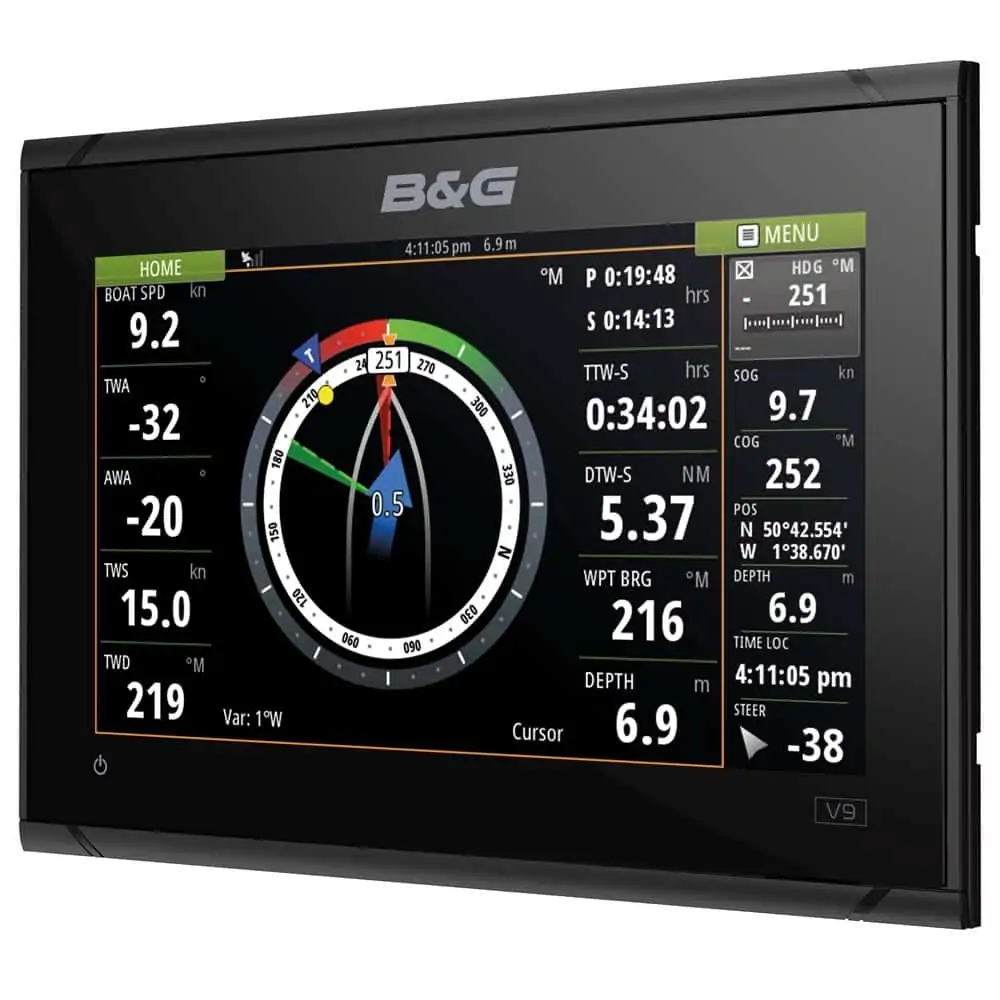

  • SailSteer, Laylines with Sailing Time, WindPlot
  • Adjustable page split ratios and panel layouts
  • Best in Class Cartography support


  • Display Size 9″
  • Display Type TFT Widescreen
  • Resolution 800 x 480
  • Brightness 1200nits
  • Media Port 1 x microSD
  • Operating Temperature -15ºC to +55ºC (5ºF to +131ºF)
  • Waterproof Standard IPx7
  • Connectivity Ethernet (B&G Broadband Radar only), NMEA 2000, Power, Sonar Transducer
  • Product Width 243mm / 9.56″
  • Product Depth 83mm / 3.26″
  • Product Height 171mm / 6.71″
  • Product Weight 1.32kg / 2.91lbs
  • Power Supply 12V DC
  • GPS Antenna Type 10 Hz Internal
  • Compatible Charts C-Map, Insight, Navionics, NV Digital Charts
  • NMEA Input/Output NMEA2000
