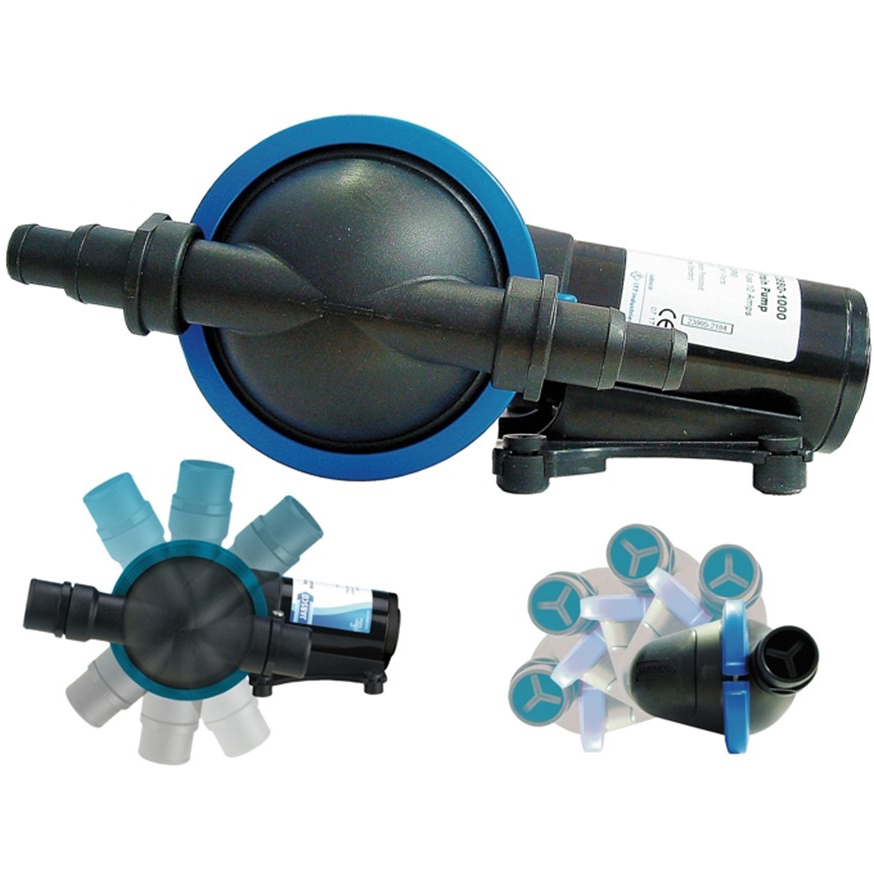

Self-priming diaphragm pump 24 volt d.c. for sinks and shower drains.
Connections: – for 19mm (¾”) bore hose.
Dimensions: – 294 mm long, 159mm wide, 132mm high
Fuse Size: – 5(amp)
Maximum Current: – 2.5(amps)
Output: – up to 16 litres/minute (3.5 gallons/minute). Maximum recommended total head 6m
Robust, quiet single diaphragm design
No strainer required
Single diaphragm design allows extended dry running
Self-primes up to 3m (9.5ft) vertical lift
Multi-positional ports for easy mounting
Rated for up to 30 minutes continuous running
Actual Weight: 2.98 Kg (Approx. 3.48 Kg packed)
