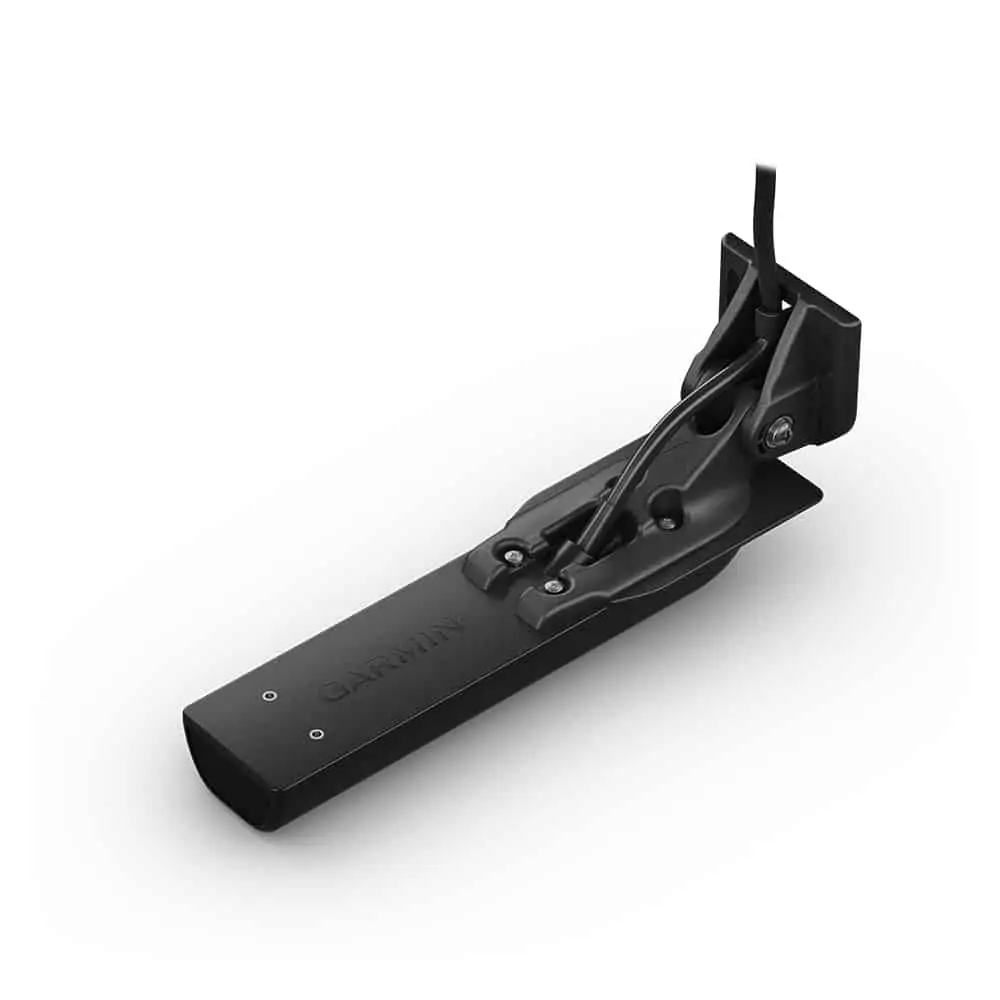

Garmin GT56UHD-TM Transducer

£ 419.99 £ 359.95

20 in stock

This all-in-one transducer offers ultimate versatility, featuring Ultra High-Definition ClearVü and SideVü scanning sonars, high wide CHIRP traditional sonar and more, so you can spend more time catching fish.

ULTRA HIGH-DEFINITION CLEARVÜ SCANNING SONAR

Get brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars. It puts more power on targets via a downward-facing element.

ULTRA HIGH-DEFINITION SIDEVÜ SCANNING SONAR

See everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideVü sonar now has 20% greater range at 1,000 kHz, so you can see even farther than before.

HIGH WIDE CHIRP TRADITIONAL SONAR

Experience remarkably clear target separation and definition up to 244 m (800 feet) below your boat.

MULTIPLE SCANNING SONAR FREQUENCIES

Use the perfect frequency for the waters you’re fishing. This transducer delivers 455 kHz, 800 kHz and 1,000 kHz for top performances at all depths.

VIVID COLOUR PALETTES

High-contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure.

MOUNTING OPTIONS

Everyone’s setup is different. That’s why we’ve included transom and trolling motor mounting hardware.

Product Specifications:

productSpecMisc

Dimensions (without mount): 218.5 mm x 51.8 mm x 27.7 mm

Cable length 7.62 m
Depth/speed/temperature Depth and temperature
Power Traditional 350 W; ClearVü/SideVü 500 W
Frequency Traditional High-wide CHIRP (150-240 kHz); ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100)
Supported deadrise/transom angles 0°-70° degree transom
Maximum depth Traditional: 244 m freshwater; ClearVü: 122 m; SideVü: 152 m
Number of pins 12
Beamwidth Traditional CHIRP: 24-16; ClearVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
