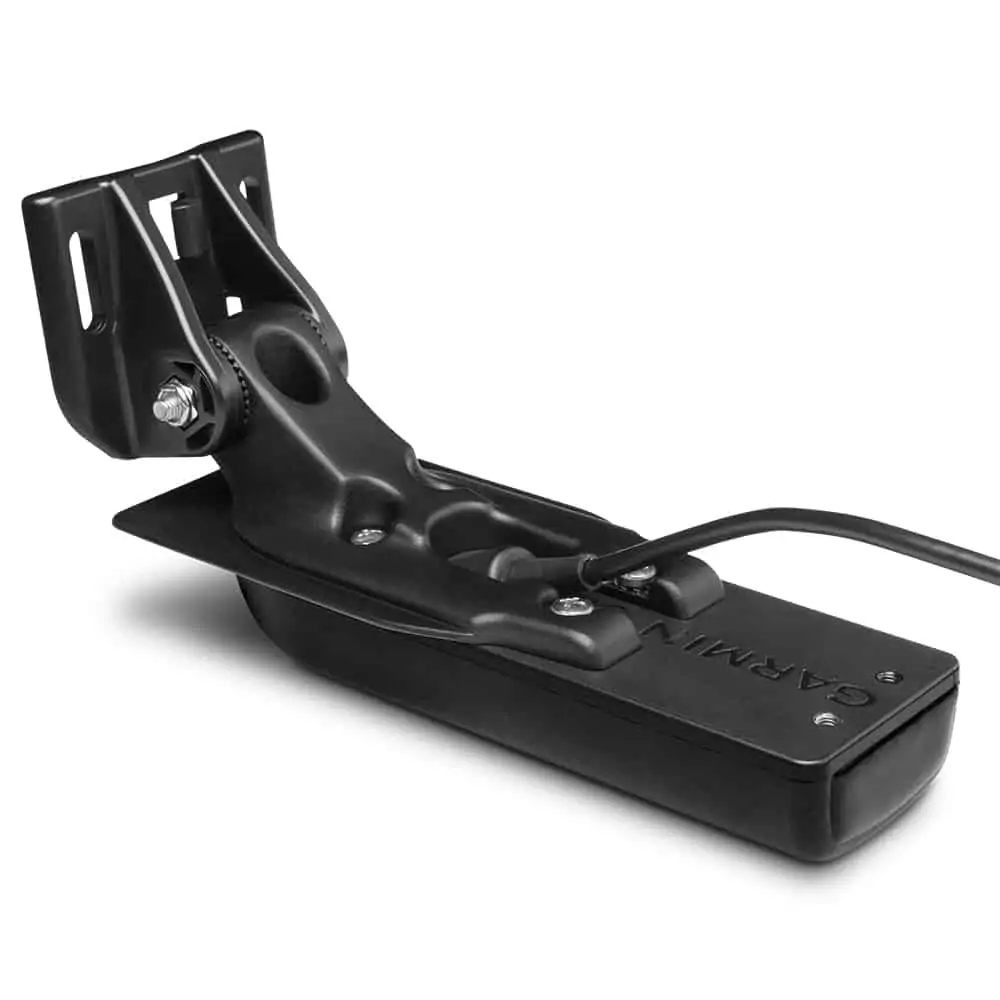

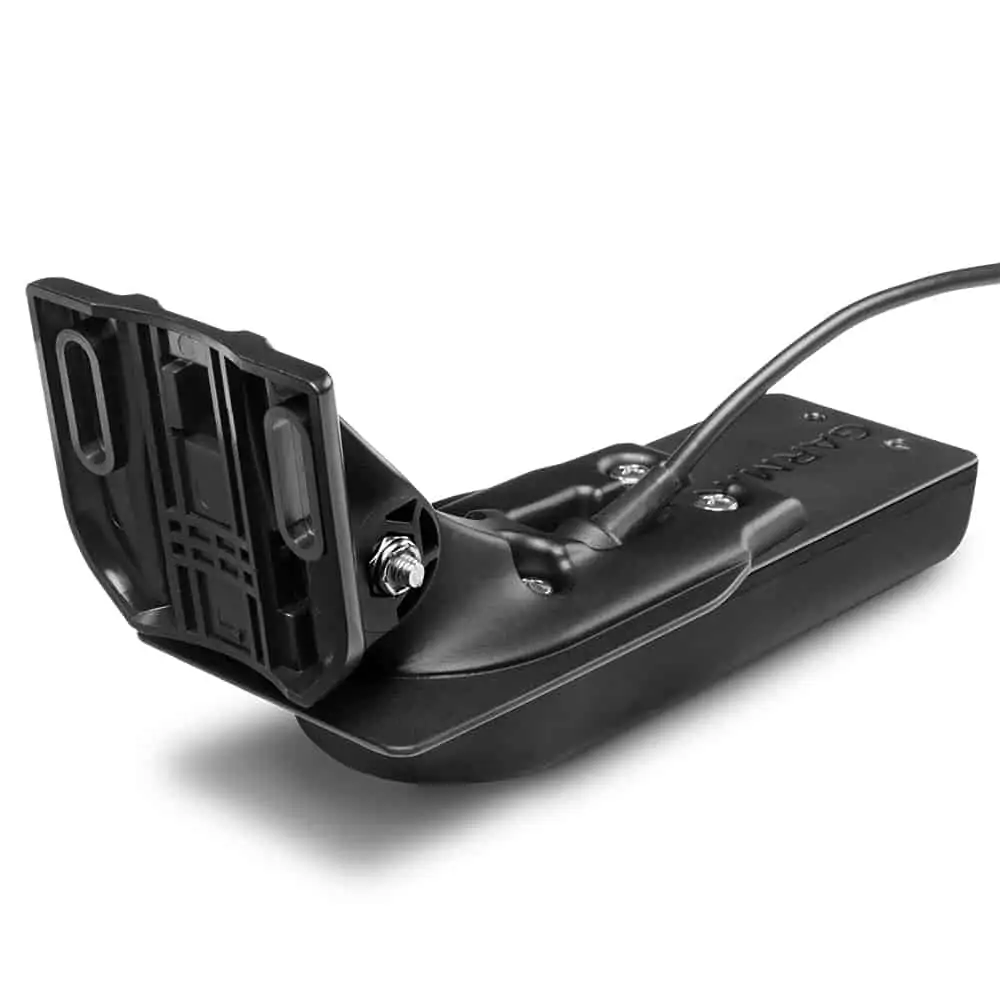

Garmin GT54UHD-TM Transom Transducer Ultra High-De

Click on an image to display a larger detailed image.


Garmin GT54UHD-TM Transom Transducer Ultra High-De

RRP £349.99

£319.95

FREE DELIVERY AVAILABLE


The GT54 ultra high-definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see size differences between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü and SideVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar1 — all in one transducer.

Ultra-high performance

Ultra high-definition scanning sonar provides extended range and depth performance. It shows you incredibly detailed images of fish and structure up to 60 m (200 ft) below your boat with 800 kHz ClearVü, while two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 150 m (500 ft). It's easy to install with included transom and trolling motor mounts so you can start fishing faster.

Features

  • One transducer provides the highest resolution ClearVü and SideVü scanning sonar images available and amazingly clear high wide CHIRP traditional sonar
  • High wide CHIRP traditional sonar provides remarkably clear target separation and definition
  • See incredibly detailed images of fish and structure up to 60 m (200 ft) below your boat with 800 kHz ClearVü sonar
  • Two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 150 m (500 ft)
  • Easy-to-install, compact, all-in-one design includes transom and trolling motor mounts
1 For use with ECHOMAP™ Ultra/UHD and GPSMAP® 8400xsv chartplotter/sonar combos


FREQUENCY CHIRP High Wide (150-240 kHz); UHD ClearVü CHIRP 800 kHz (760-880 kHz); UHD SideVü 1,200kHz (1020-1230 kHz); CHIRP SideVü 455 kHz (425-485 kHz)
POWER CHIRP Traditional 350 W; ClearVü/SideVü 350 W
BEAMWIDTH CHIRP: 24°-16°, ClearVü: 0.94°x60° @ 800 kHz, SideVü: 1.62°x50°, UHD SideVü: 0.441°x52° @ 1200 kHz
MAXIMUM DEPTH CHIRP: 800 ft.; ClearVü 200 ft.; SideVü 500'; UHD SideVü 125'
DEPTH/SPEED/TEMPERATURE Depth and Temperature
NUMBER OF PINS 12
CABLE LENGTH 20 ft.
SUPPORTED DEADRISE/TRANSOM ANGLES 0°-70° degree transom

Frequency

Traditional CHIRP: CHIRP High Wide (150-240 kHz), Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz, Ultra High-Definition SideVü: 1.2 MHz (1,2000 kHz), CHIRP range: 1,080-1,230 kHz, SideVü: 455 kHz, CHIRP range: 425-485 kHz
Power Traditional CHIRP: 350 W, Ultra High-Definition ClearVü: 350 W, Ultra High-Definition SideVü: 350 W
Beamwidth Traditional CHIRP: Adjustable from 16° to 24° in 1° steps, Ultra High-Definition ClearVü: 0.94° x 60°, Ultra High-Definition SideVü: 0.64° x 52°, SideVü: 1.62° x 50°
Maximum depth Traditional CHIRP: 243m (800 ft), Ultra High-Definition ClearVü: 60 m (200 ft), Ultra High-Definition SideVü: 38 m (125 ft) to each side; 76 m (250 ft) total, at a maximum depth of 9 m (30 ft), SideVü: 150 m (500 ft) to each side
Depth/Speed/Temperature Depth and Temperature
Number of pins 12-pin (orange connector)
Cable length 6m (20 ft)
Supported deadrise/Transom angles 0°-70° degree transom
Size / ColourPart NumberStock AvailabilityPrice
 99600716 0 at 04/06 09:37 £319.95 Add to Basket
