PLEASE NOTE: This is option WITHOUT transducer. See accessories for transducer options. Or for the package with transom transducer click HERE.

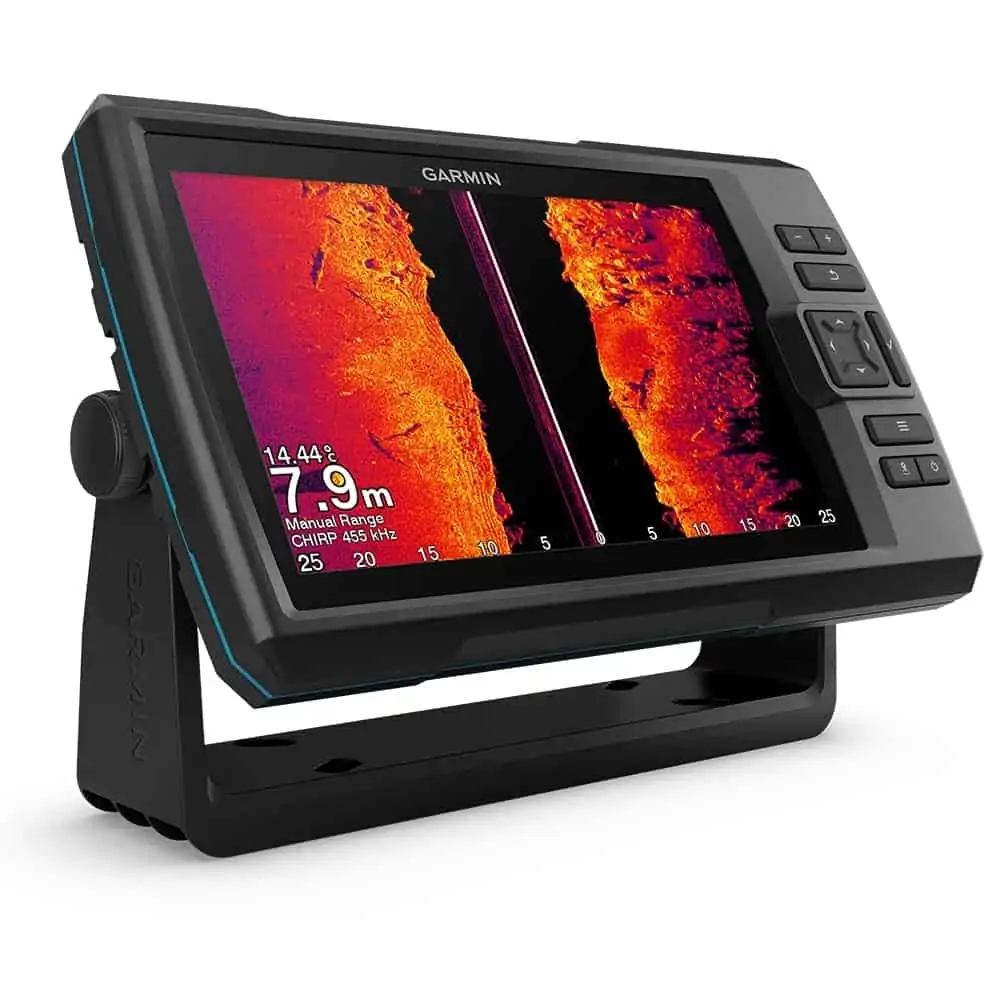

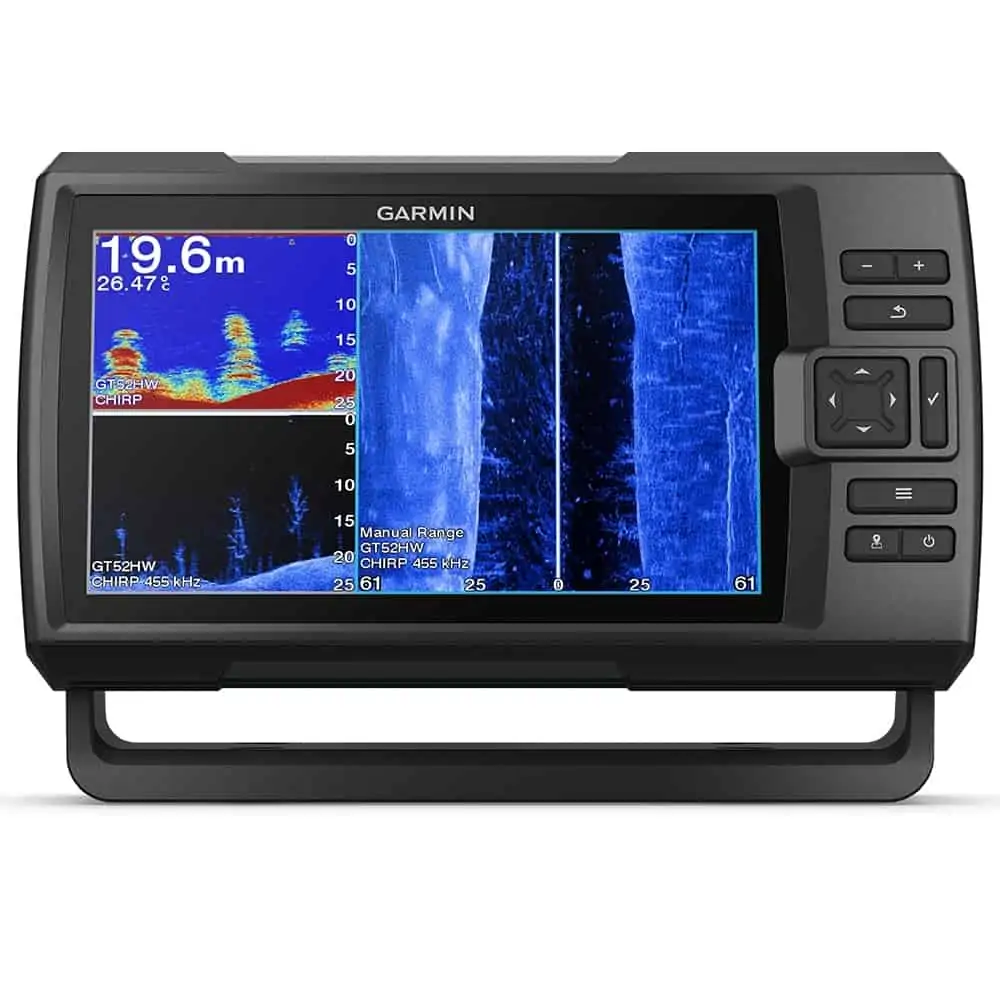

The GARMIN STRIKER Vivid 9sv without Transducer is overflowing with useful and innovative features to ensure you find your catch swiftly and with ease.
Clear, Colourful Sonar
Choose from 7 new vivid colour options to see fish and structure in maximum contrast and clarity on your 9-inch fishfinder.
This fishfinder supports 3 types of sonar: Garmin CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars with a compatible transducer (sold separately).
To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.
Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.
Nobody knows the waters you fish better than you. With the STRIKER Vivid 9sv fishfinder, you can store up to 2 million acres of maps with 1-foot contours.
The STRIKER Vivid 9sv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.
Connect to the ActiveCaptain® app1 to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw™ Community.
Physical & Performance
Physical dimensions: 11.1” x 6.5” x 2.4” (28.2 x 16.5 x 6.0 cm)
Water rating: IPX7
Display resolution: 800 x 480 pixels
Weight: 2.4 lbs (1.1 kg)
Display type: WVGA colour
Additional: One 4-pin transducer port, One 4-pin SideVü transducer port, Wireless Connectivity: Yes, Quickdraw Contours, Integrated GPS, Mark Waypoints, Course over Ground (COG), Current draw @ 12V: 0.75A
Water temperature sensor included: Yes
Dual-frequency (50/200 kHz) sonar capable: Yes
Transmit power: 500 W (RMS)
Adjustable depth line (measures depth of underwater objects): Yes
A-scope (real time display of fish passing through transducer beam): Yes
Frequencies supported: Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü: 260/455/800 kHz
Water temperature log and graph: Yes
Bottom lock (shows return from the bottom up): Yes
Audible alarms: Yes
Dual-beam (77/200 kHz) sonar capable: Yes
Fish Symbol ID (helps identify fish targets): Yes
AutoGain Technology (minimises clutter, maximises targets): Yes
Ultrascroll® (displays fish targets at higher boat speeds): Yes
Split-screen zoom: Yes
In The Box:
- STRIKER Vivid 9sv
- Power/data cable
- 12-pin to dual 4-pin transducer adapter cable
- Tilt mount
- Garmin bumper sticker
