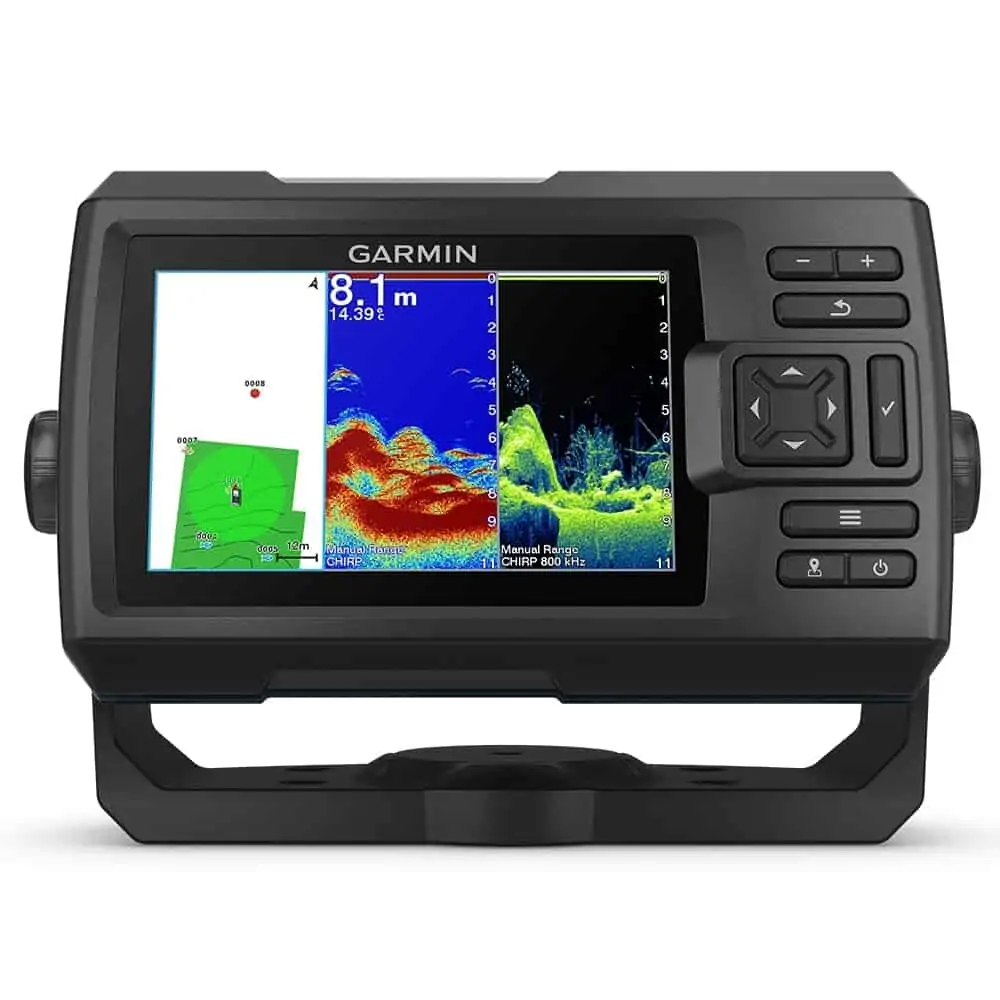

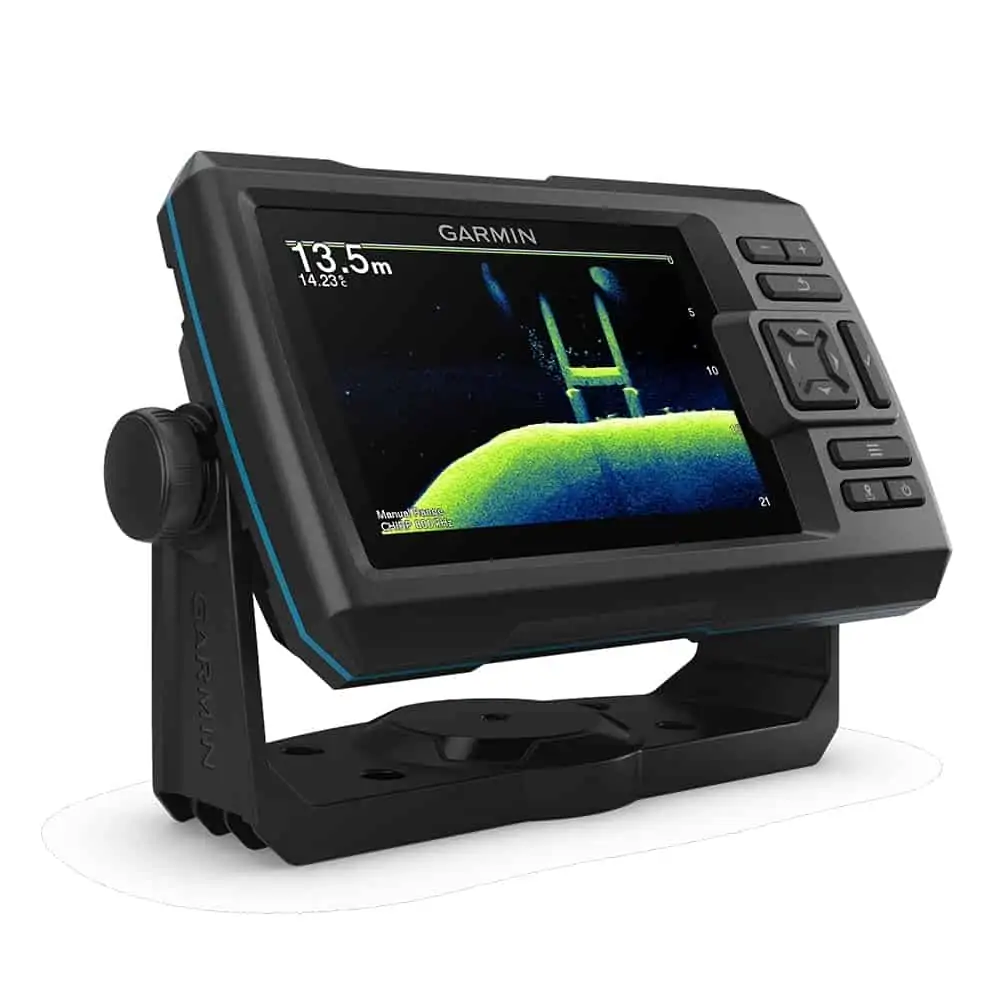

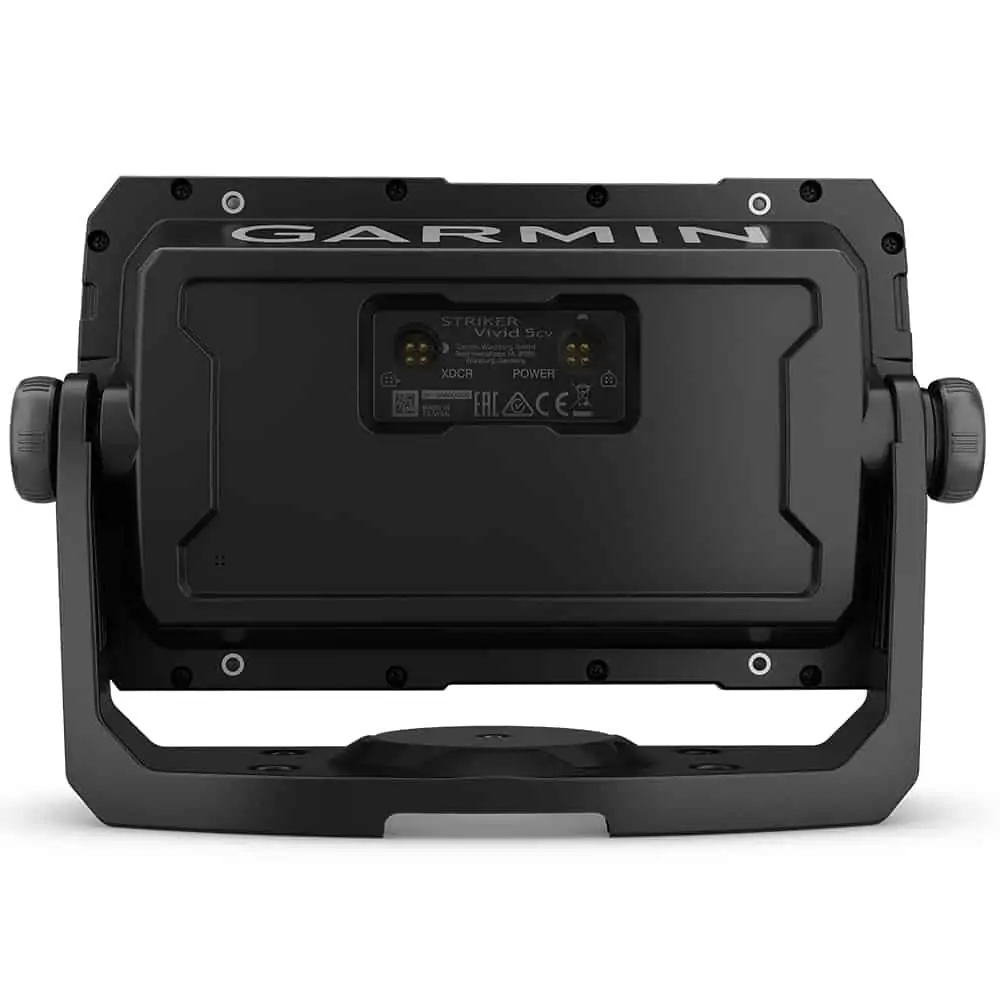

Garmin Striker Vivid 5cv with GT20 Transducer

£ 340.00 £ 299.95

12 in stock

The Garmin Striker Vivid 5cv with GT20 Transducer is packed with many innovative features.

These include:

Clear, Colourful Sonar
Choose from 7 new vivid colour options to see fish and structure in maximum contrast and clarity on your 5-inch fishfinder.

Built-in Sonar
Use the included GT20 transducer to get Garmin CHIRP traditional sonar and CHIRP ClearVü scanning sonar.

Waypoint Marking
To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

High Sensitivity GPS
Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.

Quickdraw Contours
Nobody knows the waters you fish better than you. With the STRIKER Vivid 5cv fishfinder, you can store up to 2 million acres of maps with 1-foot contours.

Included Hardware
The STRIKER Vivid 5cv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.

Product Specifications:

Physical & Performance

Physical dimensions: 7.4’’ x 4.5’’ x 2.1’’ (18.8 x 11.6 x 5.4 cm)
Water rating: IPX7
Display resolution: 800 x 480 pixels
Weight: 1.0 lb (0.5 kg)
Display type: WVGA colour


Additional: One 4-pin transducer port, Quickdraw Contours, Integrated GPS, Mark Waypoints, Course over Ground (COG), Current draw @ 12V: 0.40A
Water temperature sensor included: Yes
Dual-frequency (50/200 kHz) sonar capable: Yes
Transmit power: 500 W (RMS)
Adjustable depth line (measures depth of underwater objects): Yes
A-scope (real time display of fish passing through transducer beam): Yes
Frequencies supported: Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü: 260/455/800 kHz
Water temperature log and graph: Yes
Bottom lock (shows return from the bottom up): Yes
Audible alarms: Yes
Dual-beam (77/200 kHz) sonar capable: Yes
Fish Symbol ID (helps identify fish targets): Yes
AutoGain Technology (minimises clutter, maximises targets): Yes
Ultrascroll® (displays fish targets at higher boat speeds): Yes
Split-screen zoom: Yes

In The Box:

  • STRIKER Vivid 5cv
  • GT20-TM transducer
  • Power/data cable
  • Tilt/swivel mount
  • Hardware
  • Garmin bumper sticker
  • Documentation
