Wichard Key Pin Shackles D with Bar

£ 21.95 - £ 36.95

Clear

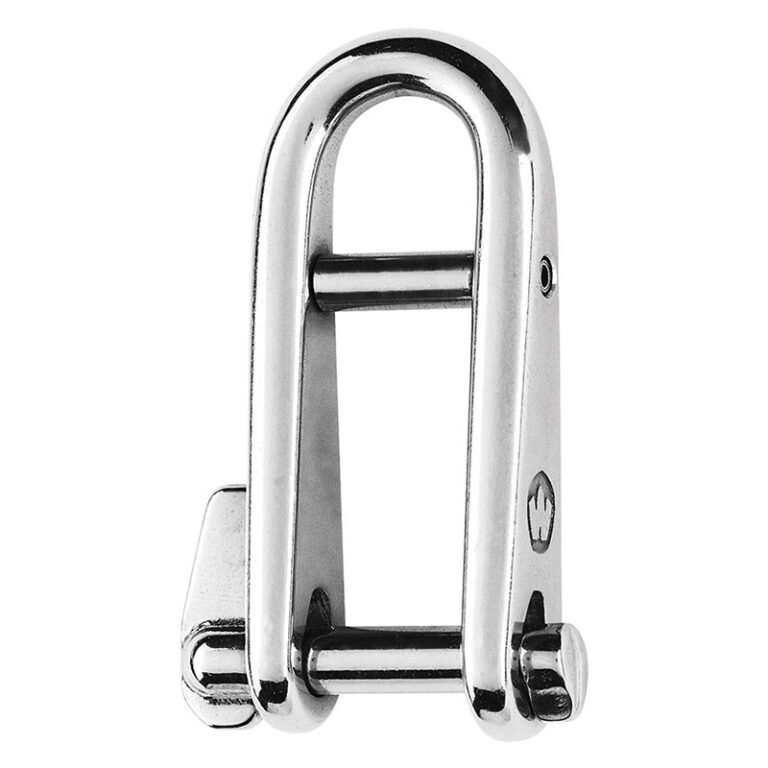

Forged stainless steel key pin and bar shackle.

Half turn opening captive pin shackle with removable bar.

Hot dropped forged from a single piece of stainless steel, adding strength and consistency of manufacture for total security and reliability. The technical characteristics of every Shackle is closely controlled and tested before, during and after the manufacturing process.

Manufactured from AISI 316 stainless offering excellent corrosion resistance, especially in marine environments.

Features

  • Key pin shackle with bar forged in grade 316L stainless steel
  • Halyard or thimble are attached to the eye, no risk to lose the shackle
  • Opening and closing is done simply by rotating the pin half a turn
  • No risk to lose the pin as it remains attached
  • Outstanding working and breaking loads

Applications

  • Perfect product for halyards or applications where the shackle has to be open often
  • To be used with a thimble or a rope

Specifications

Pin Ø: 6mm

L A B C D
60mm 25mm 16mm 15mm 13mm

Working Load (kg): 520
Break Load (kg): 1700
Weight (kg): 0.052

Pin Ø: 8mm

L A B C D
79mm 33mm 21mm 20mm 17mm

Working Load (kg): 800
Break Load (kg): 2500
Weight (kg): 0.123

Part Number
Size / Colour
Port Solent
Warehouse
00303
6mm / Stainless Steel
2
5
00305
8mm / Stainless Steel
2
6
