Wichard Bow Shackle Captive Pin

£ 9.95 - £ 21.95

Clear

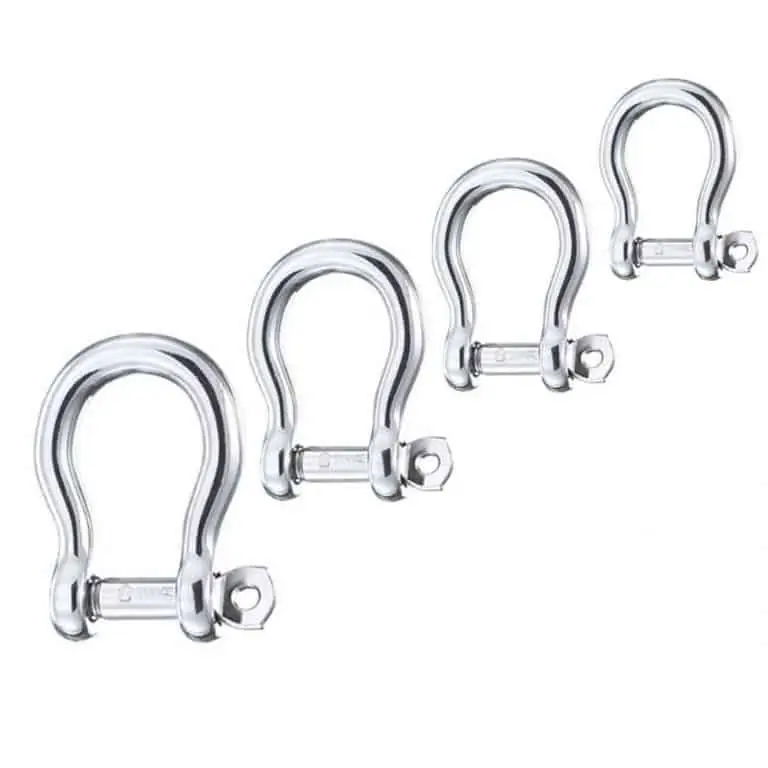

Forged CE stainless steel captive pin bow shackle.

Not only are these self-locking, the pin is also connected to the body at all times, even when fully opened. Consequently, there is no more risk of seeing the pin fall in the water, which would make the shackle unusable. These shackles can therefore be fitted completely safety using just one hand.

Hot dropped forged from a single piece of stainless steel, adding strength and consistency of manufacture for total security and reliability. The technical characteristics of every Shackle is closely controlled and tested before, during and after the manufacturing process.

Manufactured from AISI 316 stainless offering excellent corrosion resistance, especially in marine environments.

Features

  • CE marking –  in accordance with the Machines Directive 2006/42
  • Self-locking pin
  • Captive pin
  • AISI 316 stainless steel
  • Working Load Limit (WLL) = 5:1 safety factor of the break load
Part Number
Size
Port Solent
Warehouse
00253
4mm
1
0
00289
5mm
1
4
00300
6mm
2
5
00301
8mm
1
4
