Proboat Load Galvanised Bow Shackle

£ 1.95 - £ 5.50

Clear

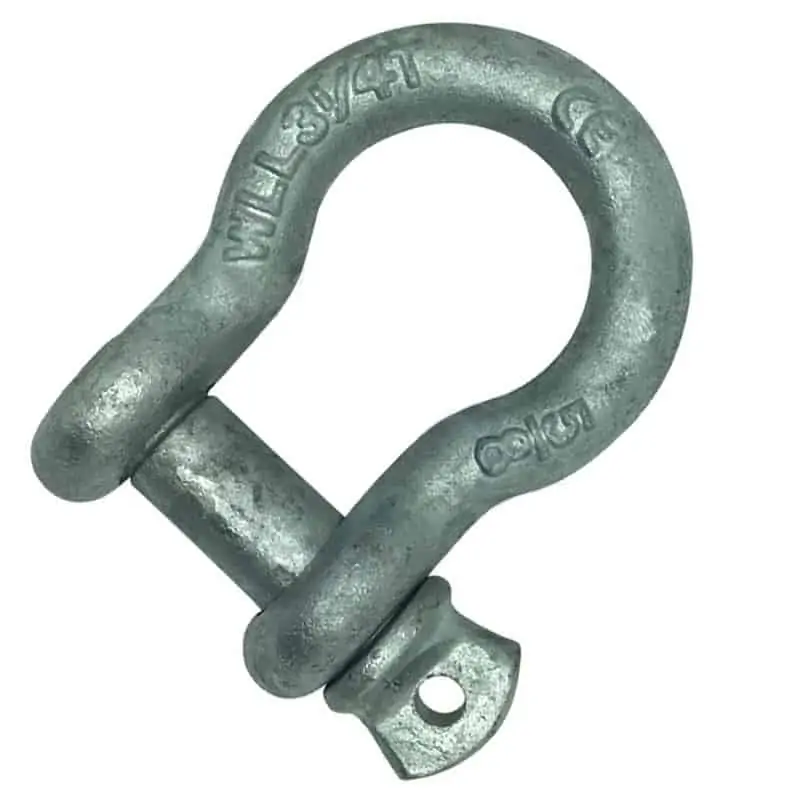

Load rated galvanised bow shackle.

These load rated US Fed Spec RR-C-271 shackles are stronger than standard galvanised shackles with a smaller jaw width and larger diameter pin. They are drop forged from high tensile grade 6 carbon steel for strength and hot dipped galvanised for extra corrosion resistance. Ideal for secure lifting and mooring applications.

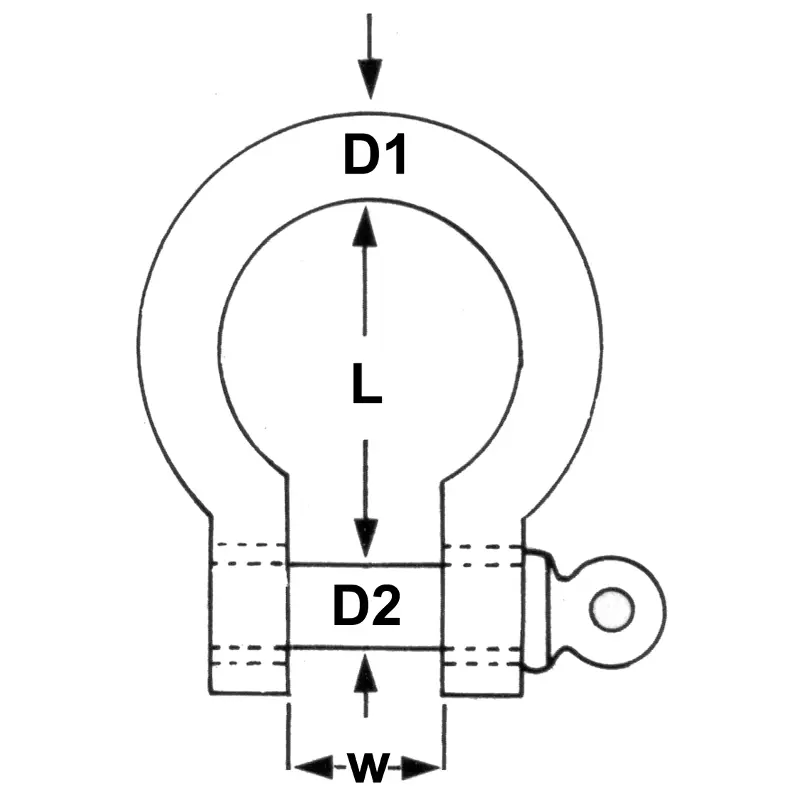

Product Specifications:

0.5T:
D1 Body Inch (mm): 1/4 (6), D2 Pin Inch (mm): 5/16 (8), L (mm): 29, W (mm):12, WLL Tons: 0.5.
0.75T:
D1 Body Inch (mm): 5/16 (8),  D2 Pin Inch (mm): 3/8 (10), L (mm): 31, W (mm): 13.5, WLL Tons: 0.75.
1T:
D1 Body Inch (mm): 3/8 (10), D2 Pin Inch (mm): 7/16 (11), L (mm): 36, W (mm): 17, WLL Tons: 1.
2T:
D1 Body Inch (mm): 1/2 (12), D2 Pin Inch (mm): 5/8 (16), L (mm): 48, W (mm): 21,  WLL Tons: 2.
3.25T
D1 Body Inch (mm): 5/8 (16), D2 Pin Inch (mm): 3/4 (20), L (mm): 61, W (mm): 27, WLL Tons: 3.25.
Part Number
Size
Port Solent
Warehouse
99601034
0.5T
11
5
99601058
0.75T
1
9
99601065
1T
3
4
99601072
2T
1
3
99601089
3.25T
3
1
