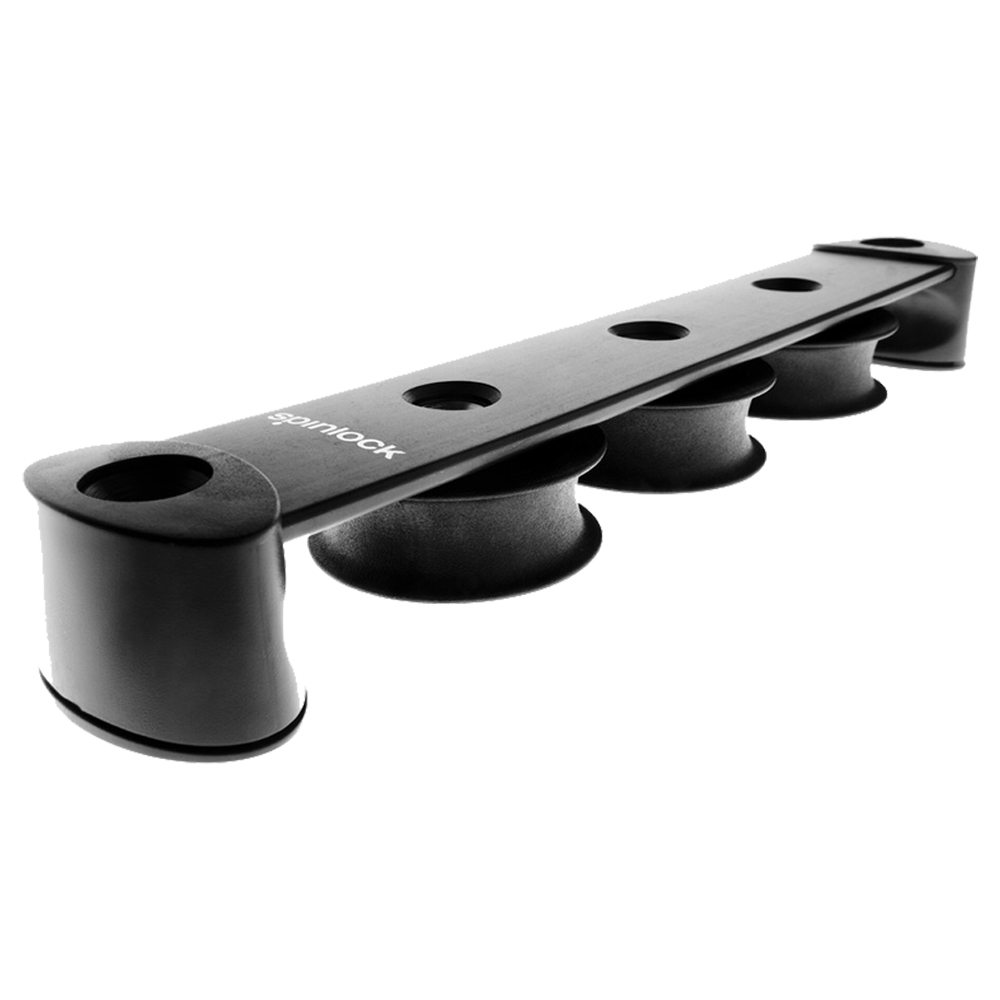

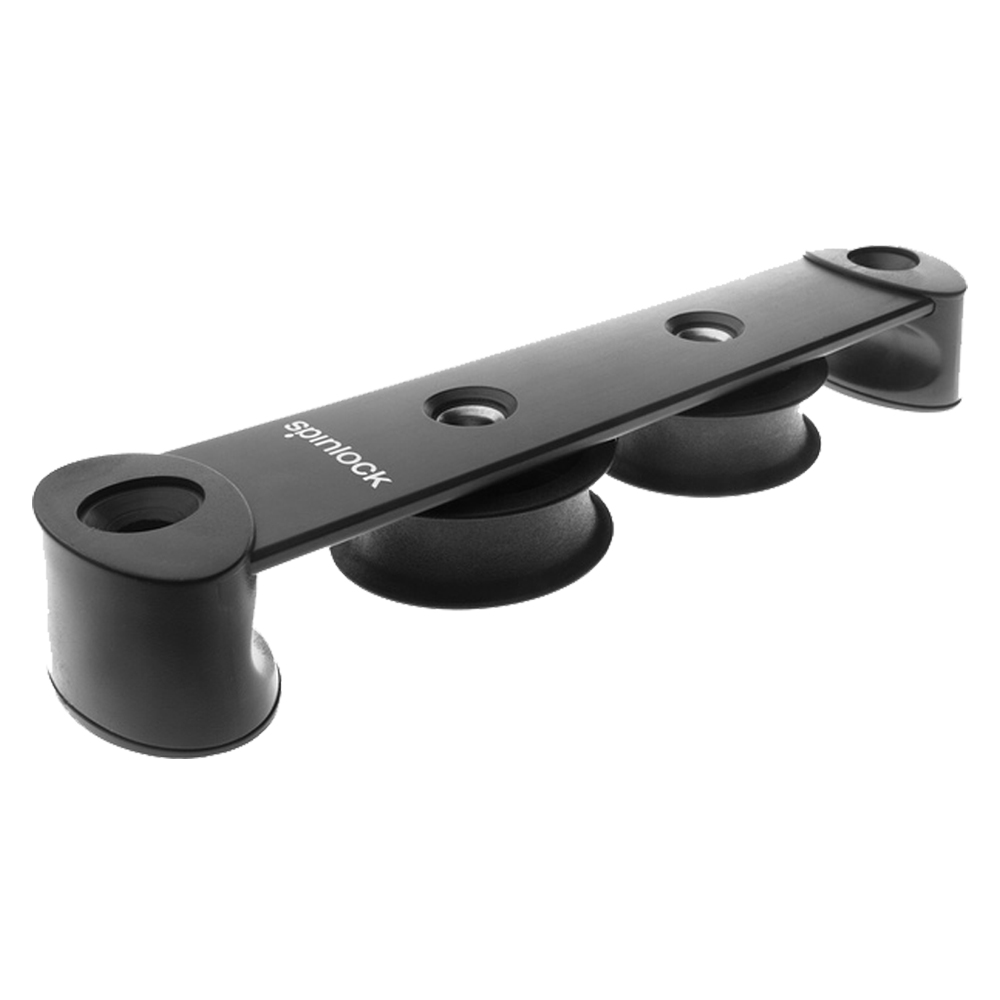

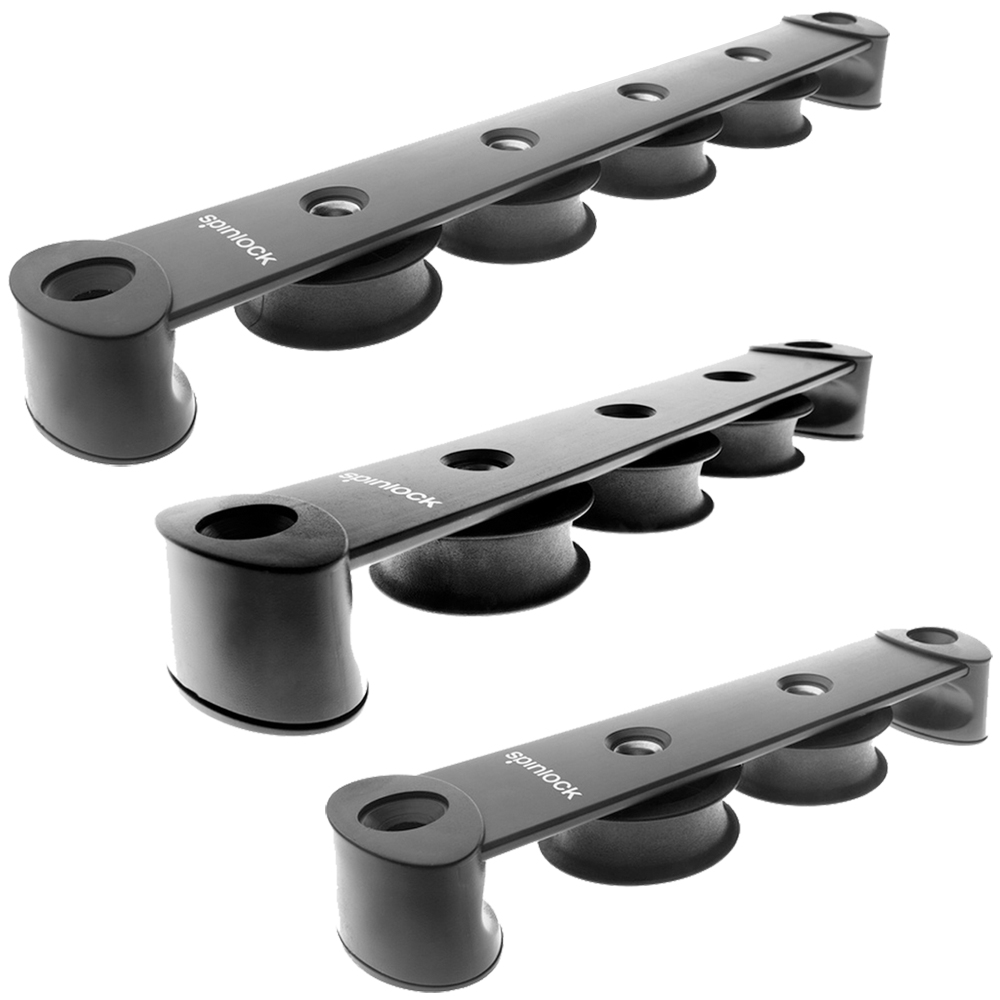

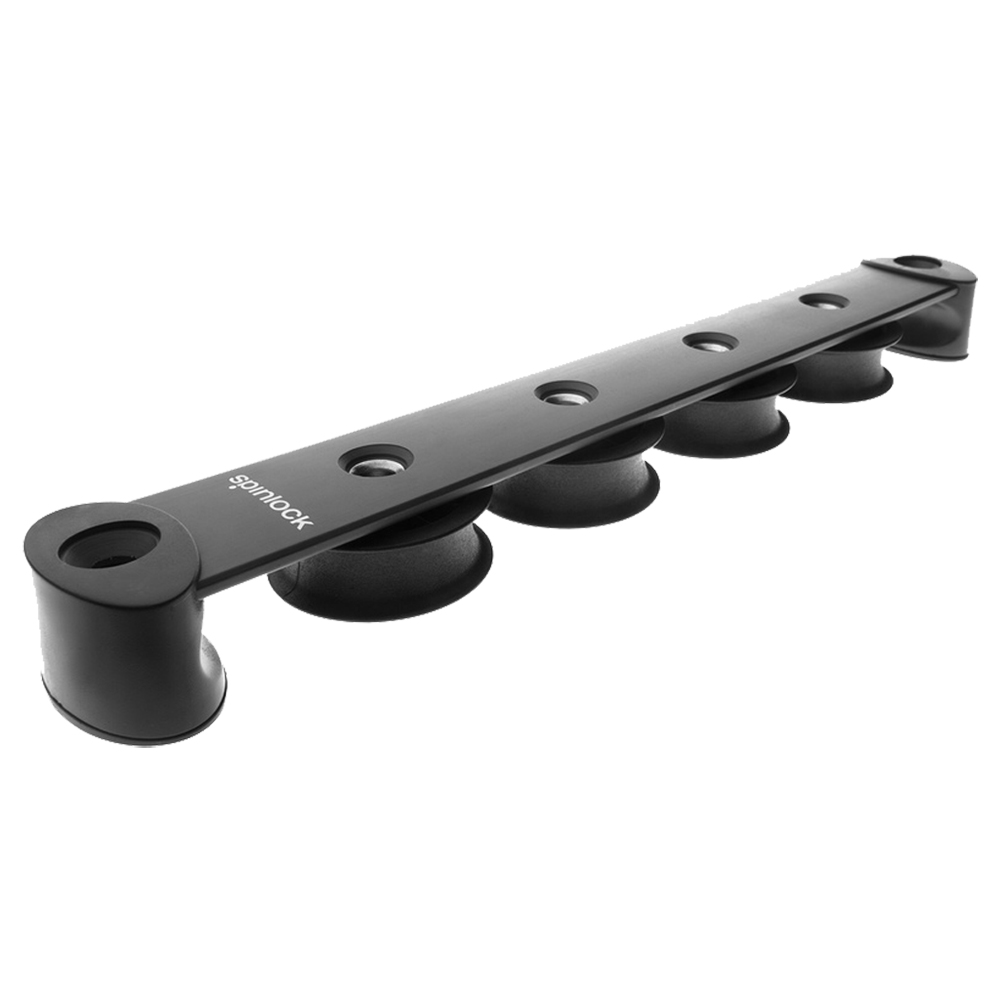

Spinlock T50 Organiser

£ 39.95 - £ 59.95

Clear

T-Series Organisers lead multiple lines back from the mast to banks of powerclutches.

Features

  • Minimal overall length
  • Efficient bearings surface reduces winch effort and increases halyard life
  • Integral end fairings for safe side loading
  • Asymmetric version reduces deck footprint and saves weight
  • T50 can ‘stack’ for limited deck area or adding extra capacity. T50 will also ‘stack’ on a TC50
  • Vari-camber feature: T50 Organisers are designed to follow the curve of the deck when fitted

Specifications

Sheave Diameter/Type: 50mm (2″) composite

SWL per sheave: 1000kg (2200lbs)

Total SWL per unit: No of sheaves x500kg (1100lbs)

Line Diameter: Up to 14mm (9/16″)

Weight: 195g (6.89 oz) for 2 sheave organiser,
65g (2.29 oz) per extra sleeve

Fasteners Required: 2x M8 (1/4″) CSK (not supplied)

For all T50 Organiser dimension drawings click here.

Part Number
Size / Variant
Port Solent
Warehouse
06598
2 / Symmetric
1
1
07783
3 / Symmetric
3
1
99559182
4 / Symmetric
1
6
