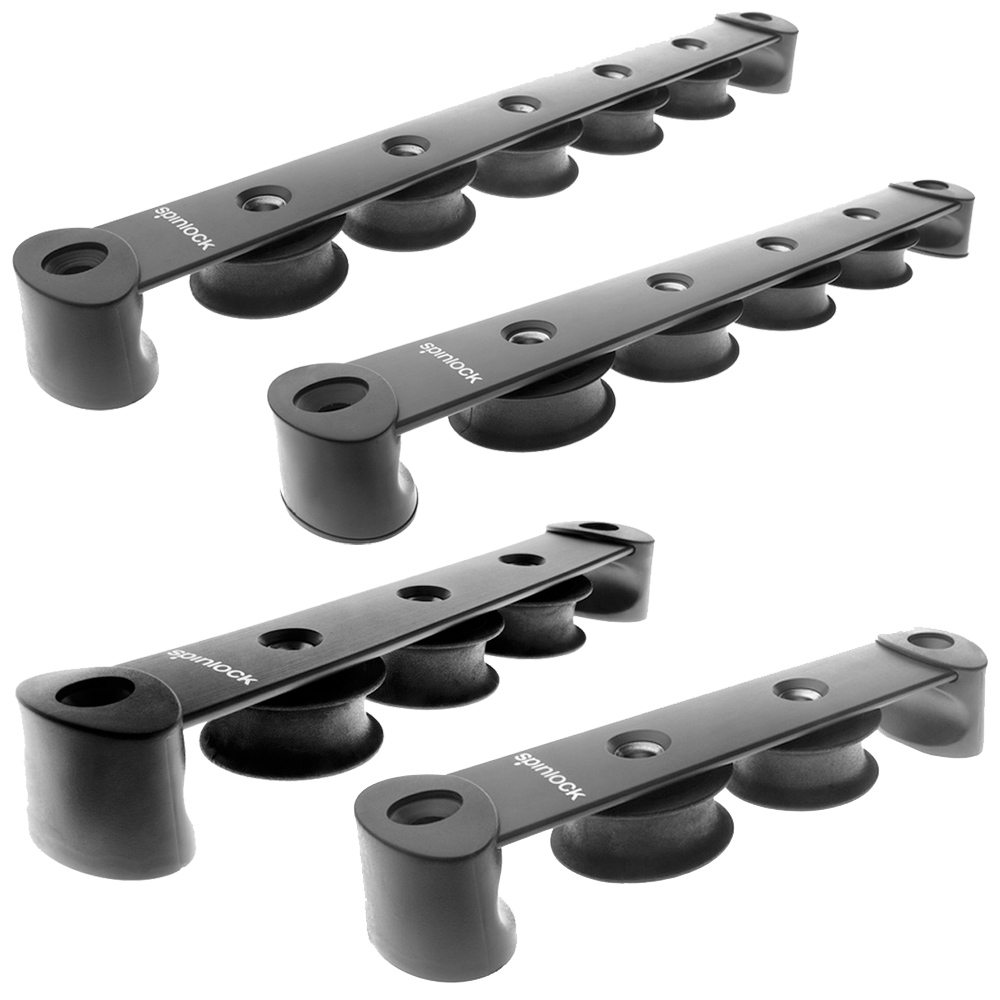

Spinlock T38 Organiser

£ 39.95 - £ 54.95

Clear

Spinlock’s T-Series Organisers lead multiple lines back from the mast to banks of powerclutches.

Features

  • Minimal overall length
  • Efficient bearings surface reduces winch effort and increases halyard life
  • Integral end fairings for safe side loading
  • Asymmetric version reduces deck footprint and saves weight
  • Can ‘stack’ for limited deck area or adding extra capacity.
  • Vari-camber feature: Designed to follow the curve of the deck when fitted 50mm sheave versions, T50, available

Specifications

Sheave Diameter/Type: 38mm (1 1/2″) composite

SWL per sheave: 600kg (1320lbs)

Total SWL per unit: No of sheaves x 300kg (660lbs)

Line Diameter: Up to 12mm (1/2″)

Weight: 115g (4.0oz) for 2 sheave organiser, 30g (1.1oz) per extra sheave

Fasteners Required: 2 x M6 (1/4″) CSK (not supplied)

Part Number
Size / Variant
Port Solent
Warehouse
07938
2 / Symmetric
1
0
03957
3 / Symmetric
4
2
03956
4 / Symmetric
2
2
03955
5 / Symmetric
1
2
