Selden Deck Organisers

£ 45.95 - £ 99.95

Clear

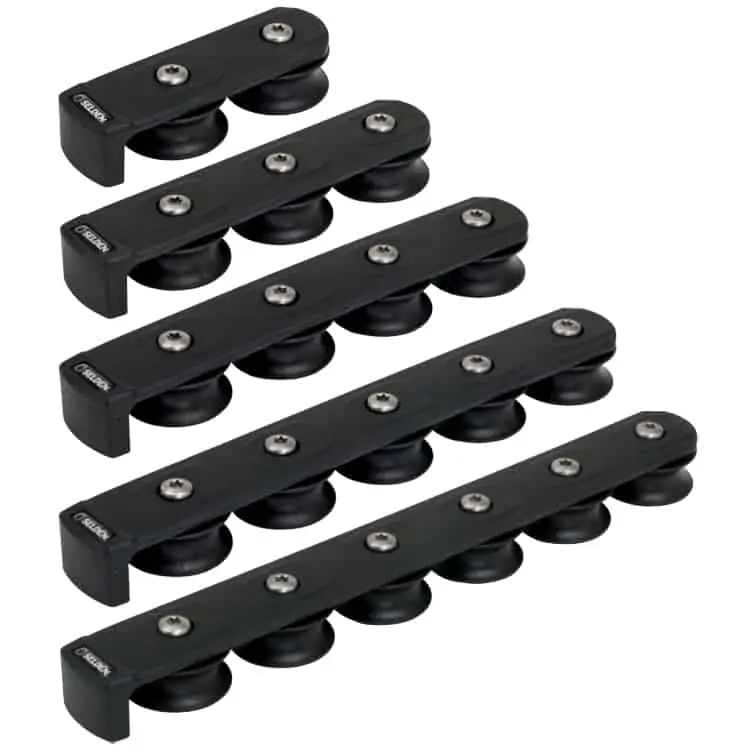

Selden deck organisers keep the deck tidy and lead the ropes back to the cockpit. The acetal sheaves have acetal ball bearings absorbing side loads from a rope entering the organiser with a vertical angle. The result is low friction making hoisting and trimming of sails fast and easy. The organisers can be fitted to a slightly curved surface and two organizers can be stacked on top of each other. The deck organisers are made of glass fibre reinforced composite.

Technical Specifications

  • Safe working load is stated at 90º angles.
  • Two organizers can be stacked on top of each other.
  • Safe working load and breaking load is reduced 50% for an organizer stacked on top of another.
  • Ball bearing sheaves absorbing side loads.

40mm Sheave Specifications
Safe working load – 700 KG
Breaking load – 1400 KG
Breaking load upper – 7.00 kN
Max line size – 14 mm
Fasterner sizes – Requires M6

50mm Sheave Specifications
Safe working load – 1000 KG
Breaking load – 2000 KG
Breaking load upper – 10.00 kN
Max line size – 16 mm
Fasterner sizes – Requires M8

Part Number
Size / Sheave size
Port Solent
Warehouse
99407612
2x / 40mm
5
0
99554859
2x / 50mm
0
0
99407605
3x / 40mm
2
0
99407599
4x / 40mm
4
0
99407124
5x / 40mm
4
2
99434458
6x / 40mm
4
0
