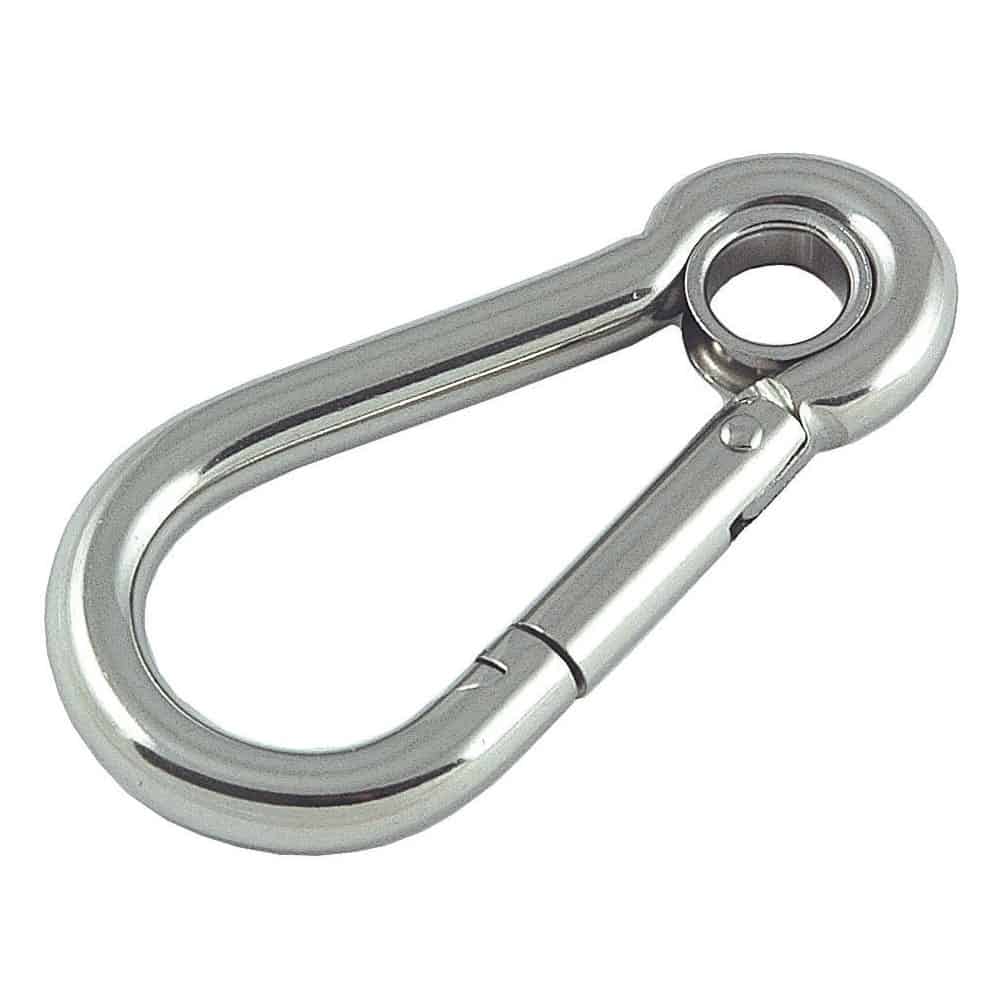

Carbine Budget Hook with Eye – Stainless Steel
£2.95 - £27.95
Carbine hook with eye constructed with high quality stainless steel (AISI 316). Available in 9 different sizes.

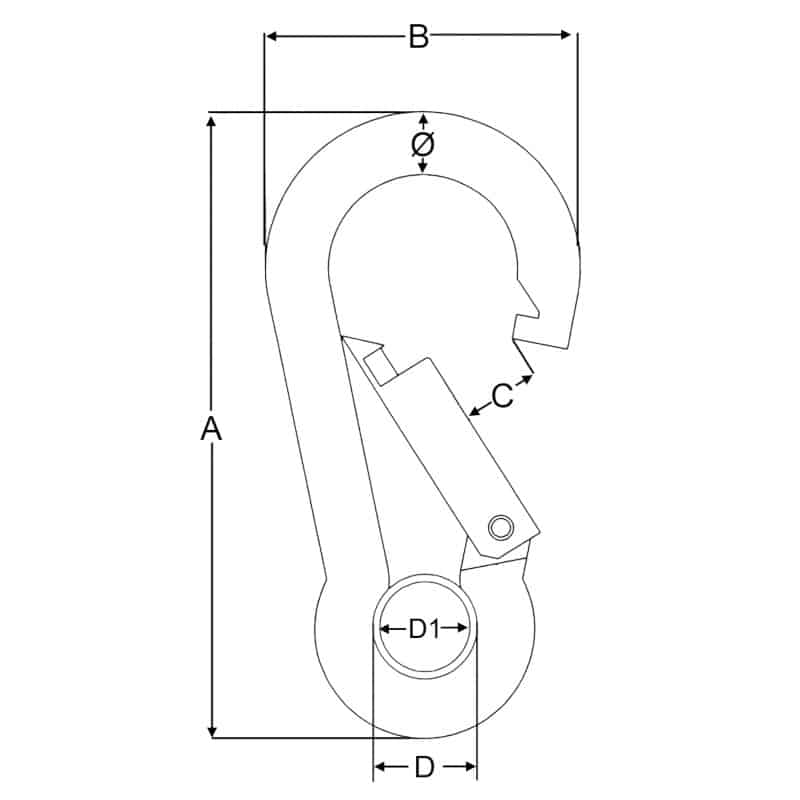

For product selection refer to dimension A
| Part | A mm | Ø mm | B mm | D mm | D1 mm | C mm | Break Kg. |
| ED-731705-E | 50 | 5 | 26 | 8 | 7.5 | 8 | 220 |
| ED-731706-E | 60 | 6 | 30 | 9 | 8 | 9 | 270 |
| ED-731707-E | 70 | 7 | 35 | 10 | 9 | 9 | 360 |
| ED-731708-E | 80 | 8 | 40 | 12 | 11 | 9 | 500 |
| ED-731709-E | 90 | 9 | 45 | 13 | 12 | 9 | 600 |
| ED-731710-E | 100 | 10 | 50 | 15 | 14 | 12 | 700 |
| ED-731711-E | 120 | 11 | 58 | 19 | 18 | 16 | 800 |
| ED-731712-E | 140 | 12 | 66 | 22 | 21 | 19 | 900 |
| ED-731713-E | 160 | 13 | 73 | 22 | 21 | 26 | 1000 |
Part Number
Size
Port Solent
Warehouse
02584
50mm
4
49
02583
60mm
5
18
02601
70mm
10
11
02569
80mm
7
32
ED-731709-E
90mm
5
14
02614
100mm
7
33
04911
120mm
5
0
ED-731712-E
140mm
7
0
5031369001501
160mm
2
5
