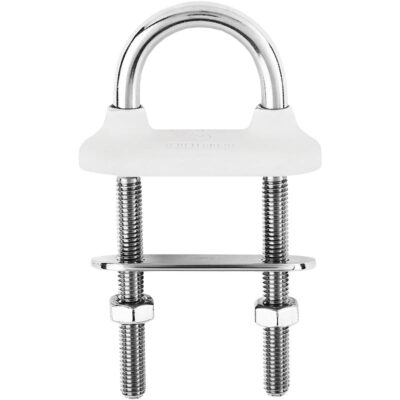

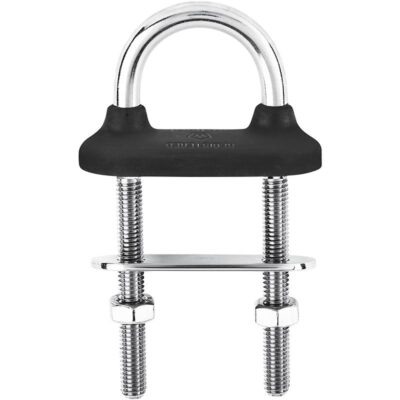

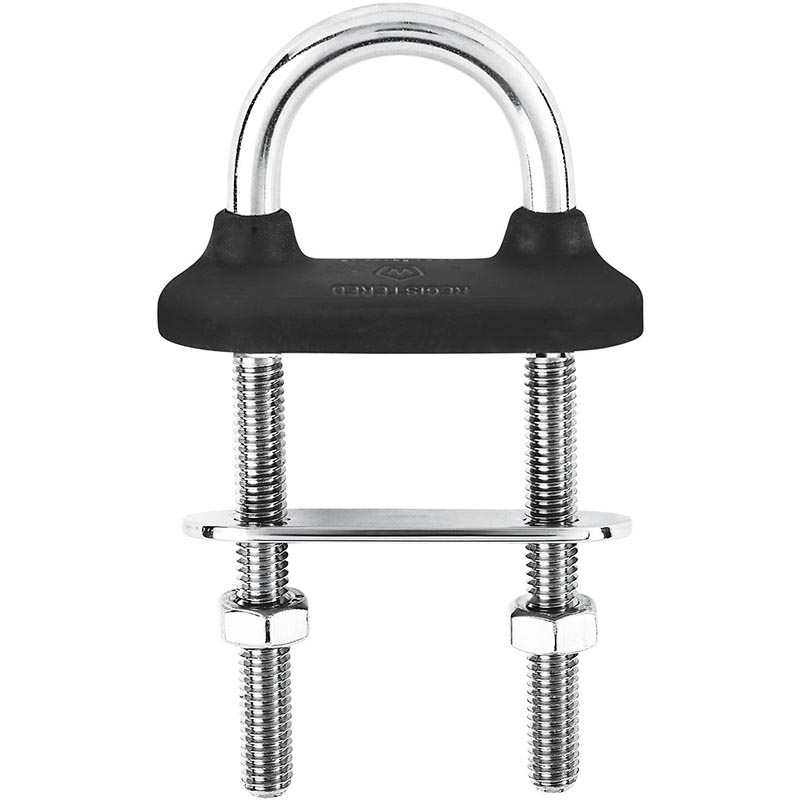

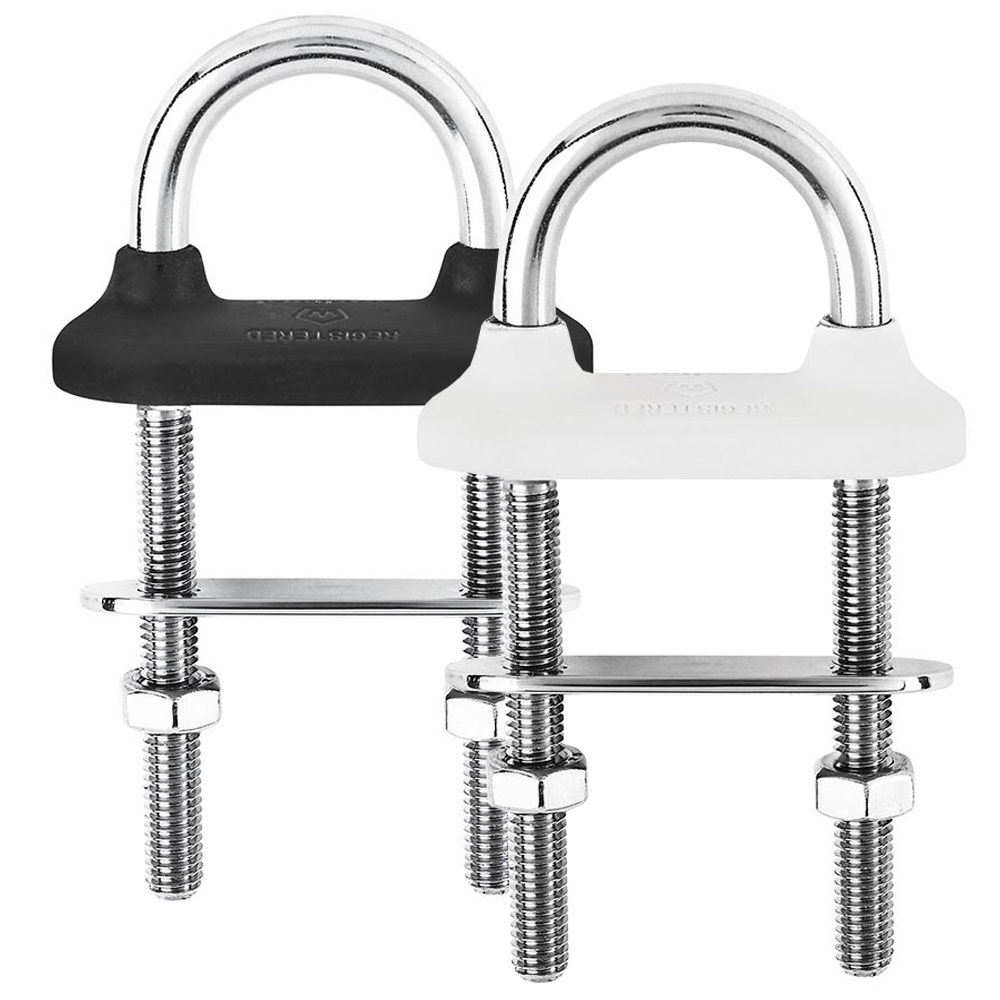

Wichard Stainless Steel Watertight U-Bolt

£ 10.95 - £ 29.95

Clear
Stainless steel watertight U-bolt.

Both stylish and practical, the UV resistant rubber collar on Wichard watertight U-bolts eliminates the need to use a waterproof sealant.


The Wichard range intended for safety fixing of deck and rigging components, provides an elegant and effective solution.

The range has applications that extend beyond the maritime sector, and they are also used in the industrial sector, as well as for architectural purposes for interior decorating.

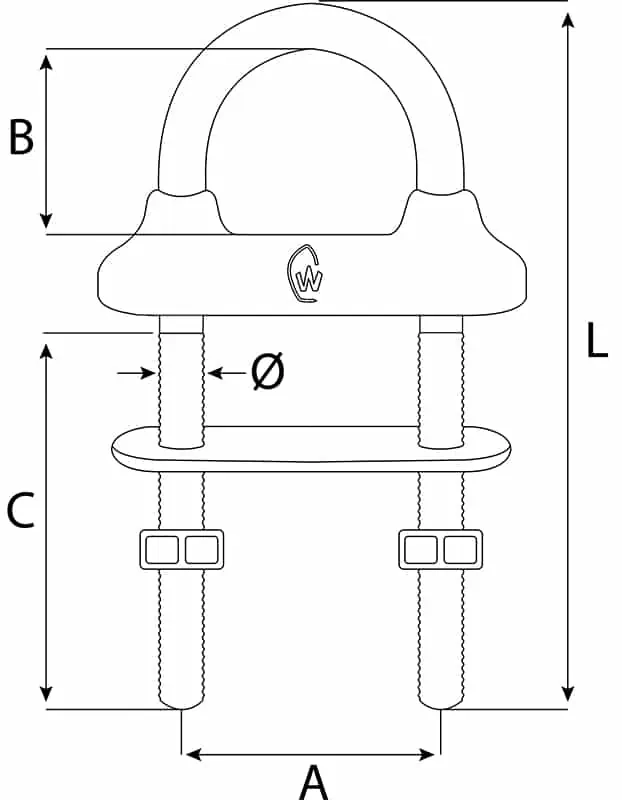

Specifications

Part WD-65332 WD-65341 WD-65351 WD-65441 WD-65451
Ø M6 M8 M10 M8 M10
L 70mm 80mm 90mm 100mm 110mm
A 32mm 36mm 40mm 36mm 40mm
B 24mm 25mm 26mm 25mm 26mm
C 35mm 40mm 45mm 60mm 65mm
W.L. 1280kg 2400kg 3600kg 2400kg 3600kg
B.L. 3000kg 4800kg 7000kg 4800kg 7000kg
Part Number
Size / Colour
Port Solent
Warehouse
00314
70mm / White
1
0
00315
80mm / Black
3
9
00316
90mm / Black
2
8
99469580
100mm / Black
2
0
99574925
110mm / Black
0
0
