Spinlock ZS Alloy Jammer

£ 649.95 - £ 1,129.95

Clear

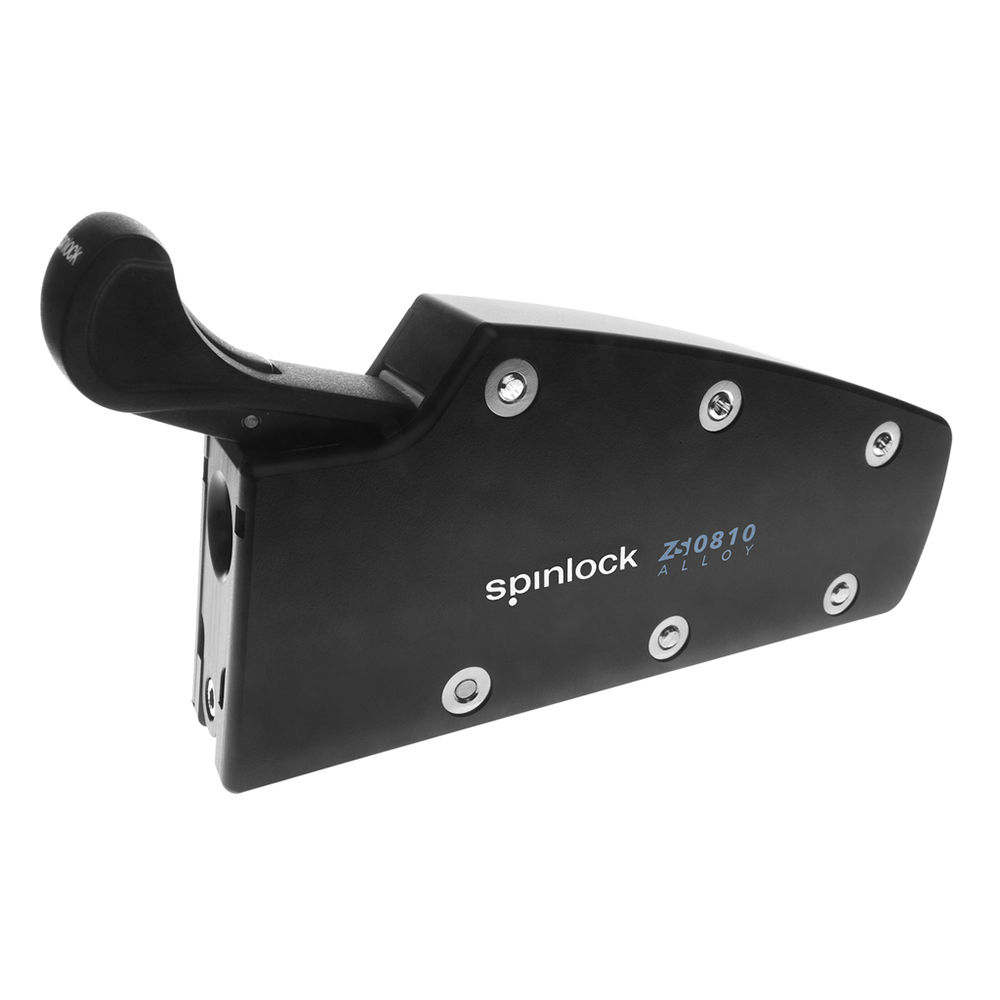

The ZS Alloy Jammer offers unrivalled performance for larger diameters and high loads with winch-controlled release.

Features

  • Loads up to 4000kg (8820lbs)
  • Digitally modelled jaw surfaces hold high tech rope securely at its safe working load
  • Excellent performance on smaller diameter lines
  • Easy on-deck service access
  • Side mount using existing holes in jammer body
  • Ceramic coated jaws option offers consistent holding of blended covered ropes

Specifications

Model Line Diameter SWL at maximum line dia    Product Weight
ZS0810 8-10mm (5/16-3/8”) 1500kg (3310lbs) 750g (26.3oz)
ZS1214 12-14mm (7/16-9/16”) 2200kg (4850lbs) 1190g (41.7oz)

8mm – 10mm

12mm – 14mm

Part Number
Size / Rope Width
Port Solent
Warehouse
99112578
Single / 8-10mm
0
1
99112585
Single / 12-14mm
0
1
