Spinlock PXR Race Cleats

£ 29.95 - £ 59.95

Clear

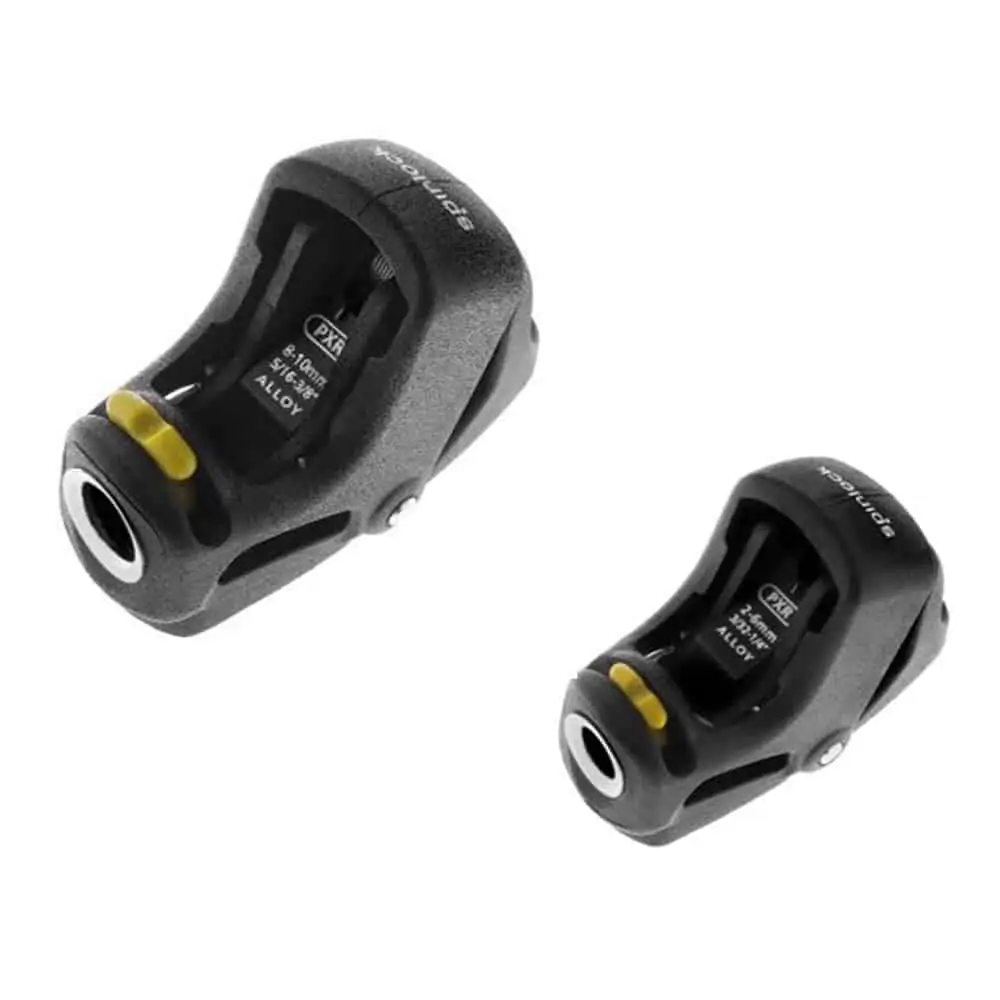

Compact roller action cam cleat for easy release of high performance control lines.

Key Features

  • Fast precise control for hand tensioned lines
  • Roller action ensures easy release under high load
  • Hard anodised alloy cam and base
  • Ideal for high performance lines
  • Micro size for small diameters
  • Three stage release control switch
  • Ideal for single line spinnaker hoist systems
  • Resists accidental re-cleating

Specifications & Dimension Diagrams

2 – 6mm

Lines: 2mm – 6mm (3/32″ – 1/4″)
Loads up to 140kg (308lbs)
Weight: 43g (1.5oz)
Fasteners Required: 2 x M4 (5/32″) CSK Head (not supplied)

8 – 10mm

Lines: 8mm – 10mm (5/16″ – 3/8″)
Loads up to 200kg (440lbs)
Weight: 84g (2.9oz)
Fasteners Required: 2 x M5 (3/16″) CSK Head (not supplied)

2 – 6mm

Lines: 2mm – 6mm (3/32″ – 1/4″)
Loads up to 140kg (308lbs)
Weight: 53g (1.9oz)
Fasteners Required: 2 x M4 (5/32″) CSK Head (not supplied)

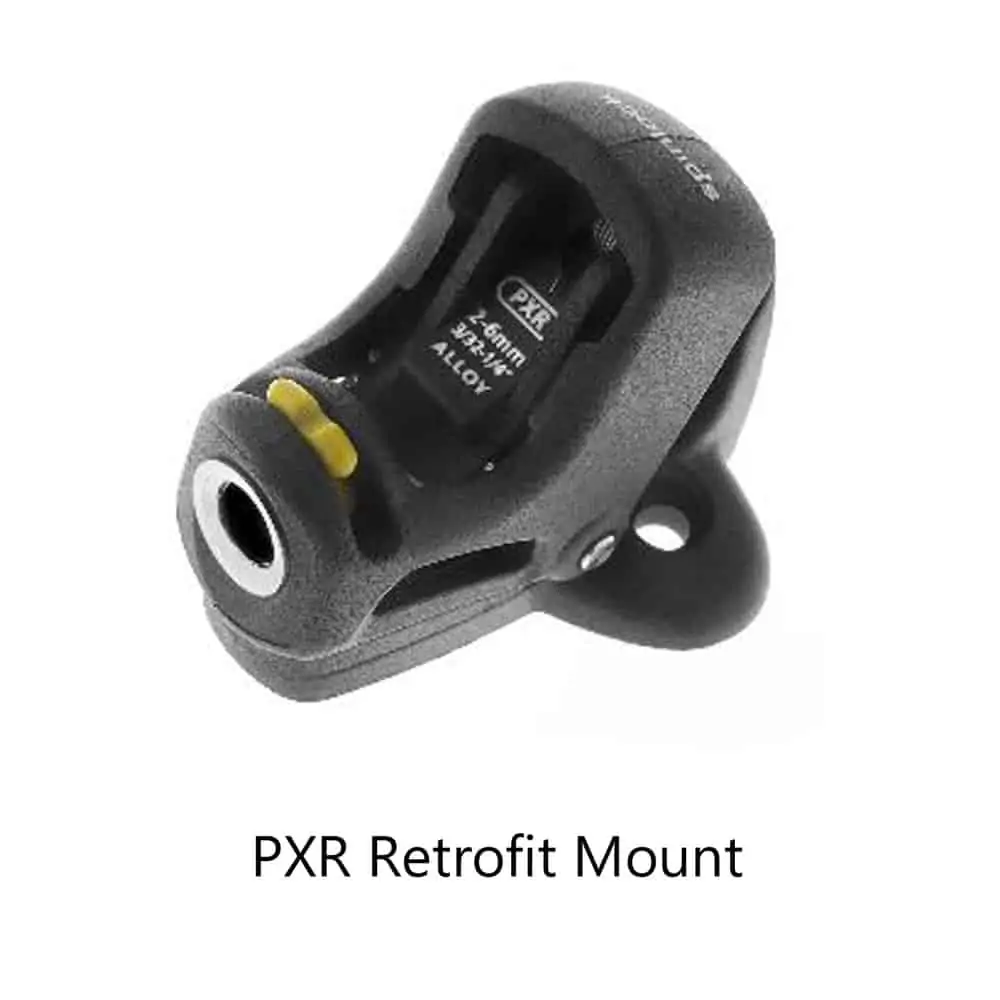

Retro Fit ‘T’ – Matched hole centres allow direct replacement of traditional cam cleats with PXR

PXR0206/T – 27mm (1 1/16”) hole centres – for upgrading dinghy control line cam cleats

8 – 10mm

Lines: 8mm – 10mm (5/16″ – 3/8″)
Loads up to 200kg (440lbs)
Weight: 101g (3.5oz)
Fasteners Required: 2 x M5 (3/16″) CSK Head (not supplied)

Retro Fit ‘T’ – Matched hole centres allow direct replacement of traditional cam cleats with PXR.

PXR0810/T – 38mm (1 1/2”) hole centres – for upgrading main sheet swivel cleats and traveller systems on dinghies, keelboats and yachts, and upgrading cam cleats on downhauls, vang and backstay control

2 – 6mm

Lines: 2mm – 6mm (3/32″ – 1/4″)
Loads up to 140kg (308lbs)
Weight: 97g (3.4oz)
Fasteners Required: Bracket mount

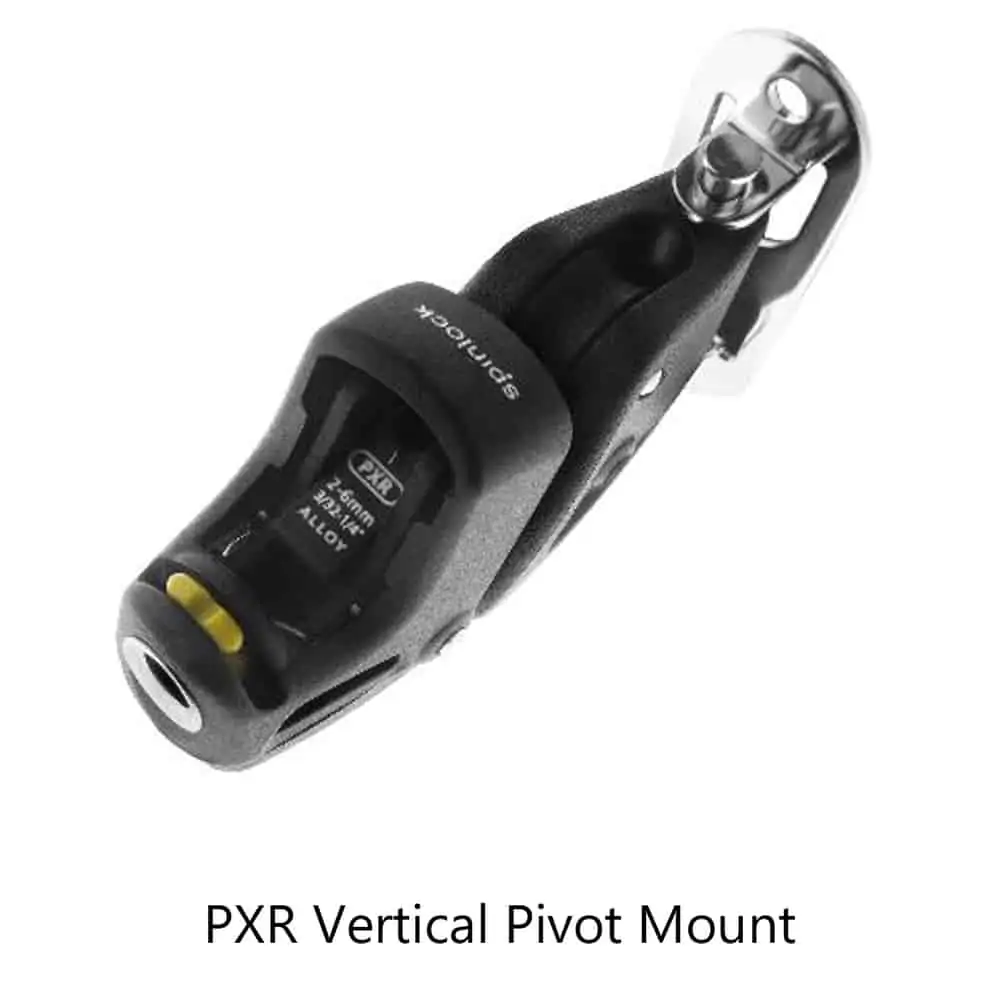

Vertical Pivot ‘VP’ (2-6mm version only)

  • Pivoting sheave and cleat with ultra compact design
  • Mount centrally for feeding control lines out to the sides
  • Mount under boom for outhaul and gnav controls
  • Mount at mast base for catamaran downhauls and vangs
  • Easily detached
  • Accepts Harken sheave

2 – 6mm

Lines: 2mm – 6mm (3/32″ – 1/4″)
Loads up to 140kg (308lbs)
Weight: 77g (2.7oz)
Fasteners Required: 3 x M5 (3/16″) CSK Head (not supplied)

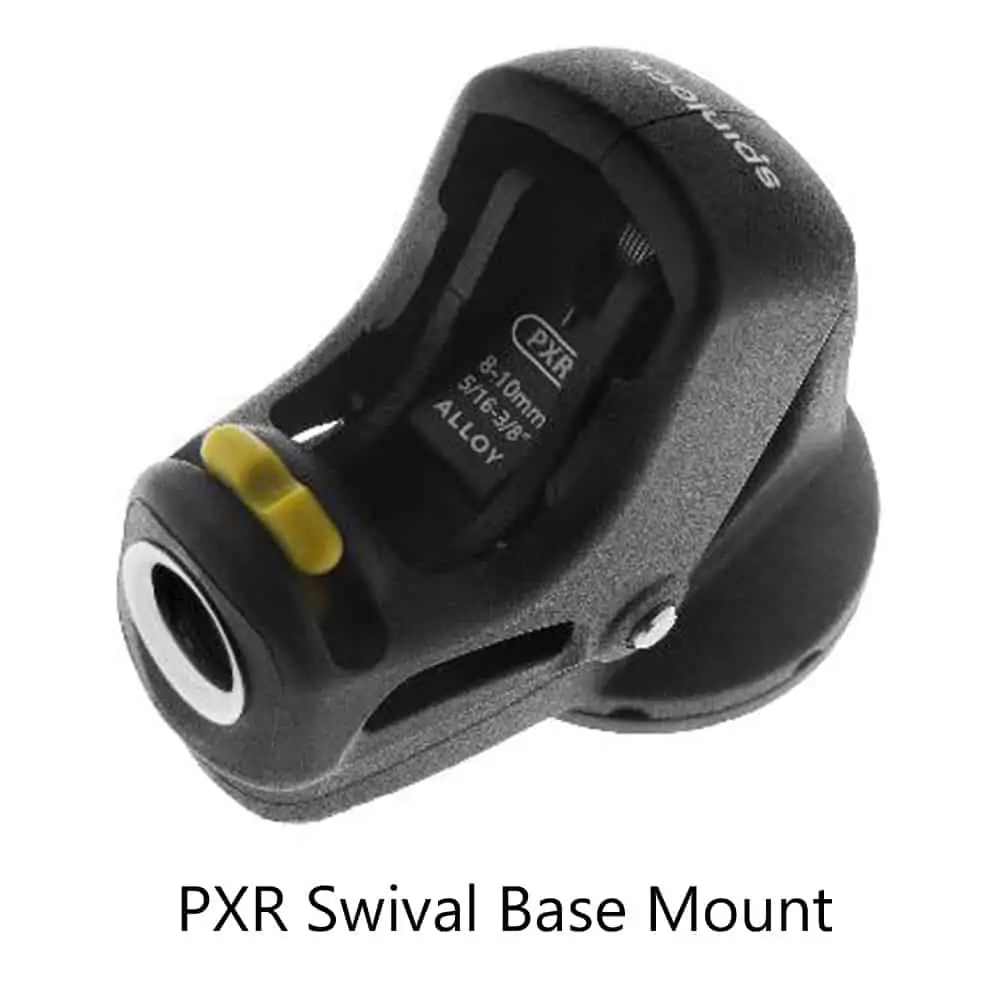

PXR0206/SW for single cleat control of jib sheets and dinghy vangs. Preferred by dinghy builders for single line spinnaker hoist systems.

Same footprint as traditional swivel cam cleats.

8 – 10mm

Lines: 8mm – 10mm (5/16″ – 3/8″)
Loads up to 200kg (440lbs)
Weight: 124g (4.3oz)
Fasteners Required: 3 x M5 (3/16″) CSK Head (not supplied)

PXR0810/SW for bigger boat swivel cam cleat control applications.

Same footprint as traditional swivel cam cleats.

Part Number
Size / Mount
Port Solent
Warehouse
99141950
2-6mm / None
1
8
99146528
2-6mm / Retrofit
1
5
99146535
2-6mm / Vertical Pivot
1
0
99141967
2-6mm / Swivel Base
1
1
99141974
8-10mm / None
4
6
99141981
8-10mm / Retrofit
1
3
99141998
8-10mm / Swivel Base
5
1
