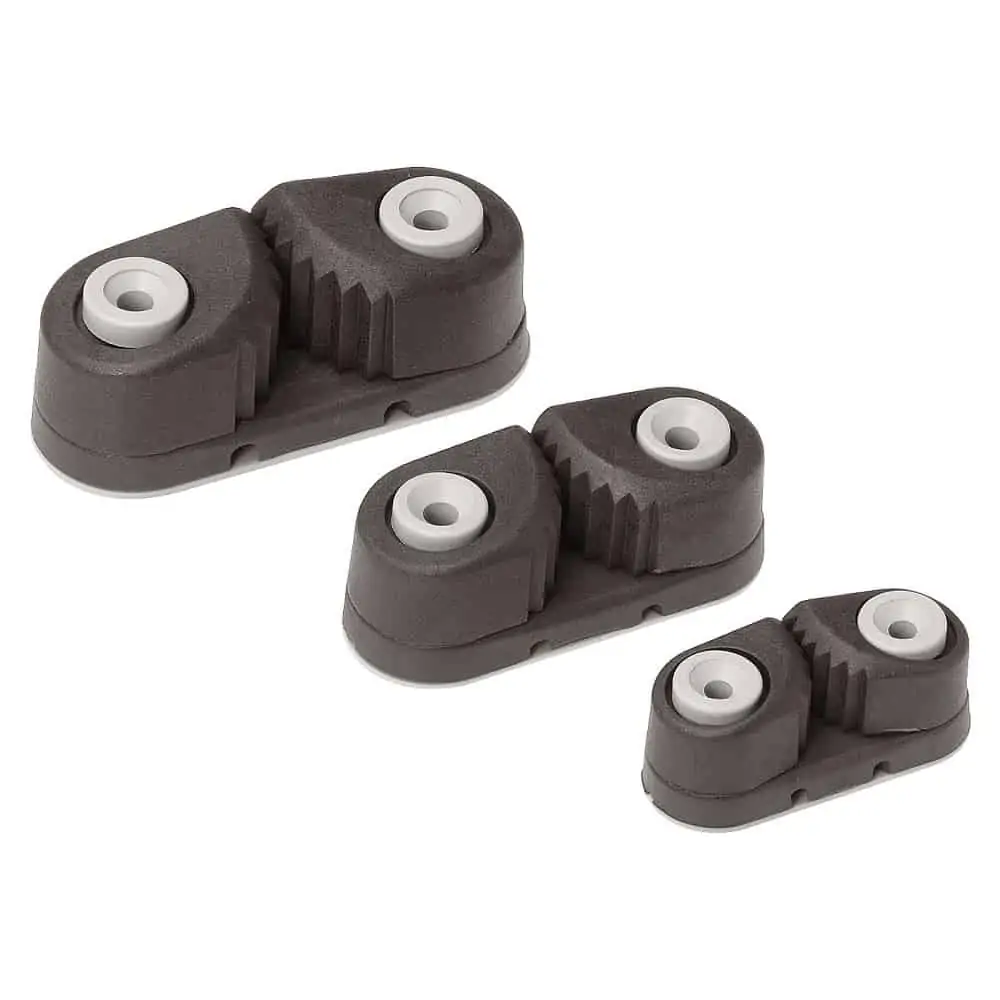

Barton ‘K’ Cam Cleat
£19.95 - £29.95
Manufactured from a Kevlar composite and available in three sizes to accept lines up to 14mm in diameter. This advanced material offers performance advantages over carbon fibre and conventional glass-reinforced resins. K cams are very strong, lightweight and have excellent wear resistance. A progressive tooth design ensures maximum holding power on all types of line, whilst maintaining minimum wear to both cam and line.
| Mini 10mm | Midi 6-12mm | Maxi 10-14mm | |
| Weight | 17 g | 34 g | 50 g |
| Dimensions | 51 × 21 × 21 mm | 68 × 28 × 26 mm | 81 × 31 × 29 mm |
| Size | ‘K’ Cam Mini | ‘K’ Cam Midi | ‘K’ Cam Maxi |
| Max rope diameter | 10mm (25/64″) | 12mm (1/2″) | 14mm (9/16″) |
| Fastenings | 4mm | 5mm | 5mm |
| Fastening centres | 30mm (1 3/16″) | 40mm (1 9/16″) | 50mm (2″) |
| Holding Power | 190kg (418lbs) | 230kg (507lbs) | 260kg (573lbs) |
Part Number
Size
Port Solent
Warehouse
99163143
10mm
8
3
B70200
6-12mm
5
4
99053055
10-14mm
1
8
