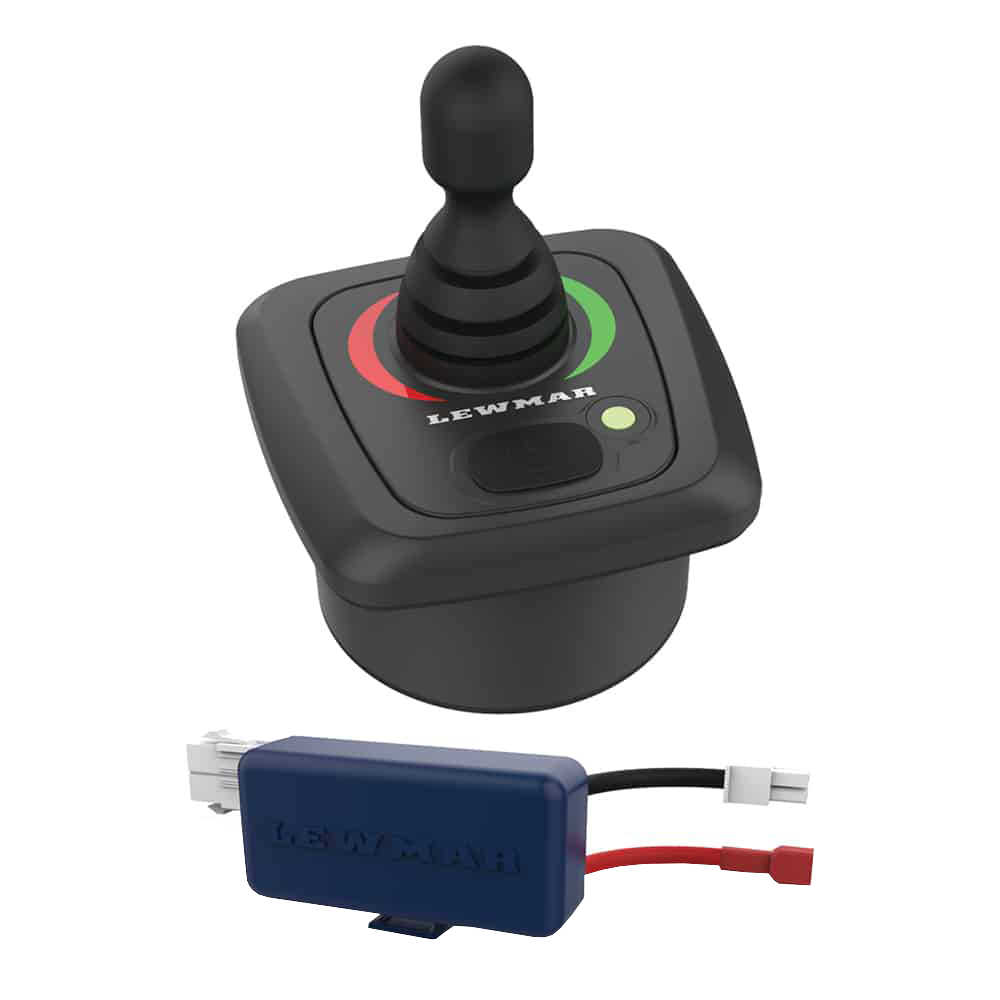

Lewmar Joystick Single Control Upgrade

Lewmar TT / RT thruster controller & legacy converter.

Lewmar’s new range of thruster controls provides a superior tactile control of single or dual thruster installations.

The controllers can be fitted to all Lewmar TT thrusters fitted with a blue box and to the previous generation TT thrusters fitted with a black box using this controller converter.

The controllers are installed without the need for rear access and feature a snap-on bezel to neatly hide the mounting screws. A cover is also included, providing additional security against accidental use and giving extra environmental protection. If replacing a previous generation touch panel, joystick panel or dual joystick panel, the existing mounting hole and fixing screw positions can be reused.

Only one legacy converter is required per thruster.

For dimension drawing, please click here.

Features

• Ergonomic control ‘pad’ gives tactile feedback
• Membrane switch panel sealed from dust and moisture ingress
• Multi-function LED indicator displays system deployment, thruster operation, low voltage, motor temperature warnings & fault conditions.
• Upgrade kit allows installation of single or dual controllers into a thruster system with previous generation controllers
• Fit existing cut-out of Lewmar joysticks
• Removable cover
• Easy-fitting / Existing boat wiring can be used
• Needs to be installed next to the controller
