Lewmar Bow Thrusters

£ 1,099.95 - £ 1,999.95

Clear

Lewmar Tunnel Bow Thrusters

Models

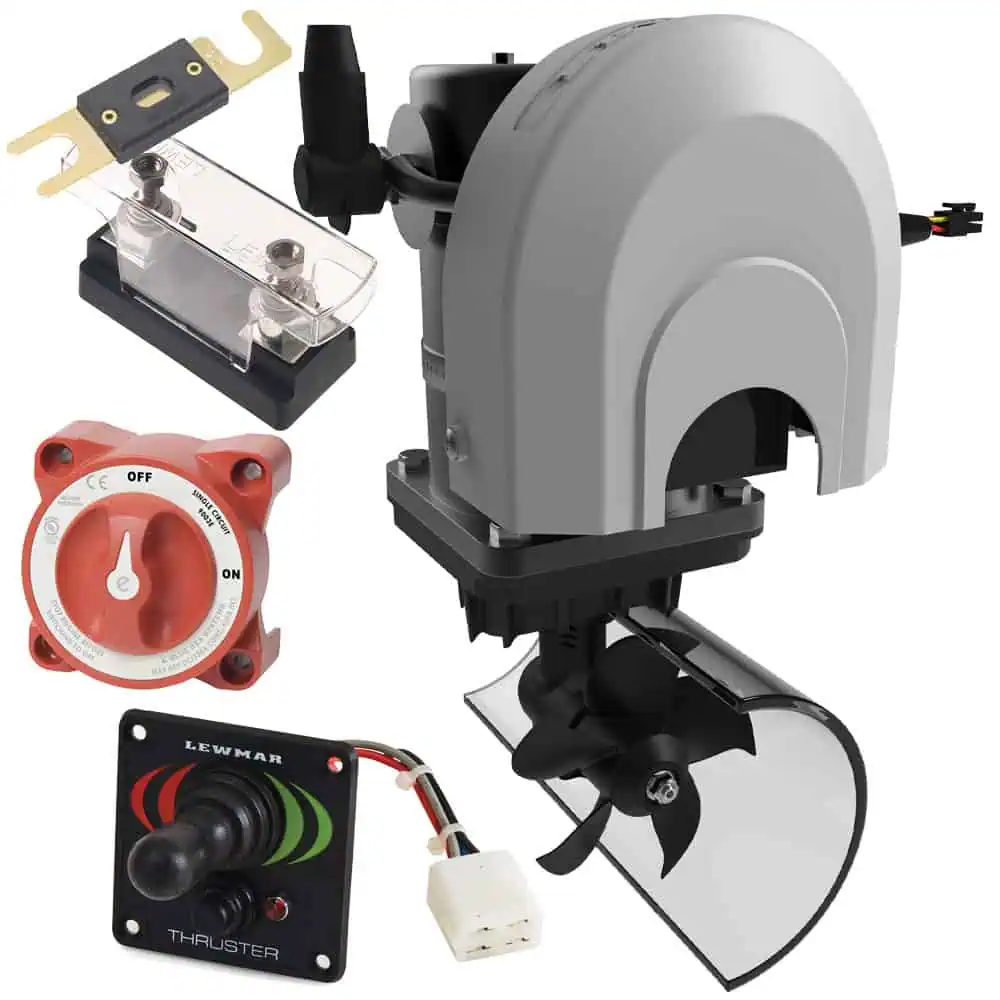

590143: 1.5kW 110TT with Joystick control

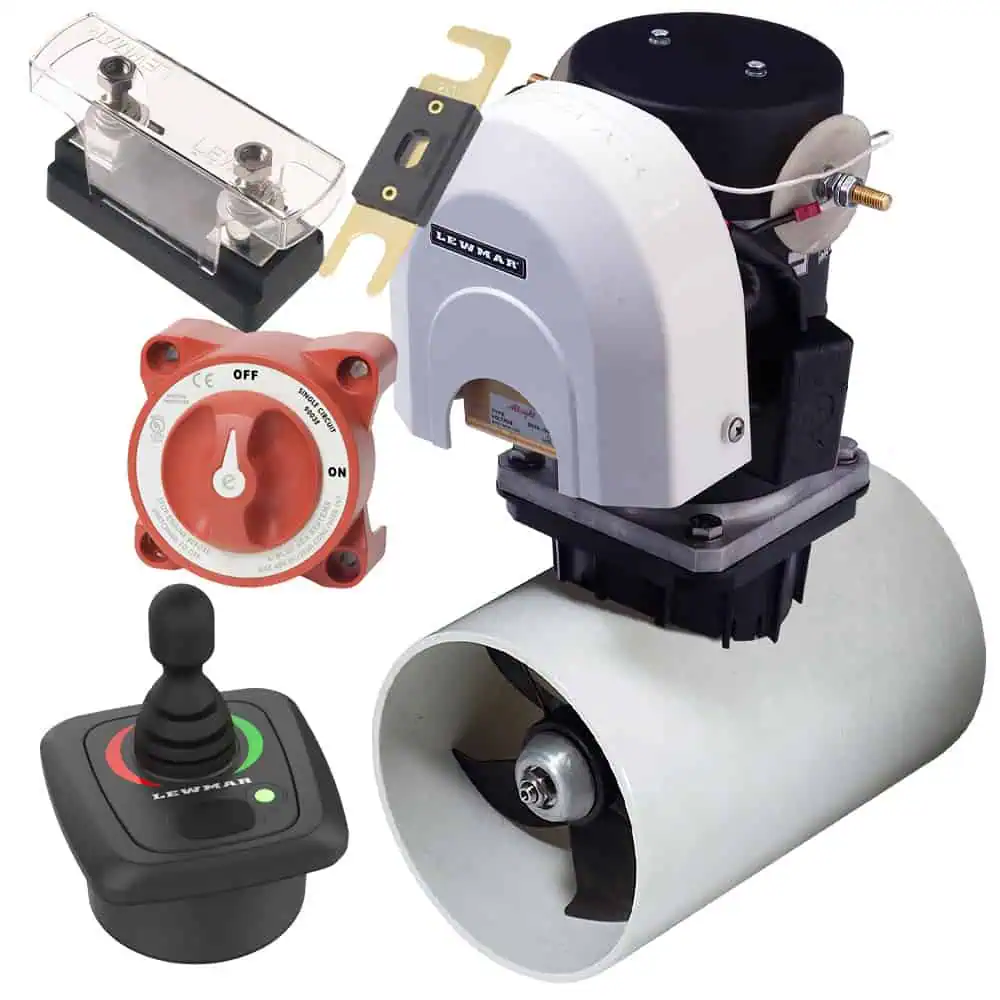

590111: 2.2kW 140TT with GEN2 Joystick control
590112: 3.0kW 185TT with GEN2 Joystick control

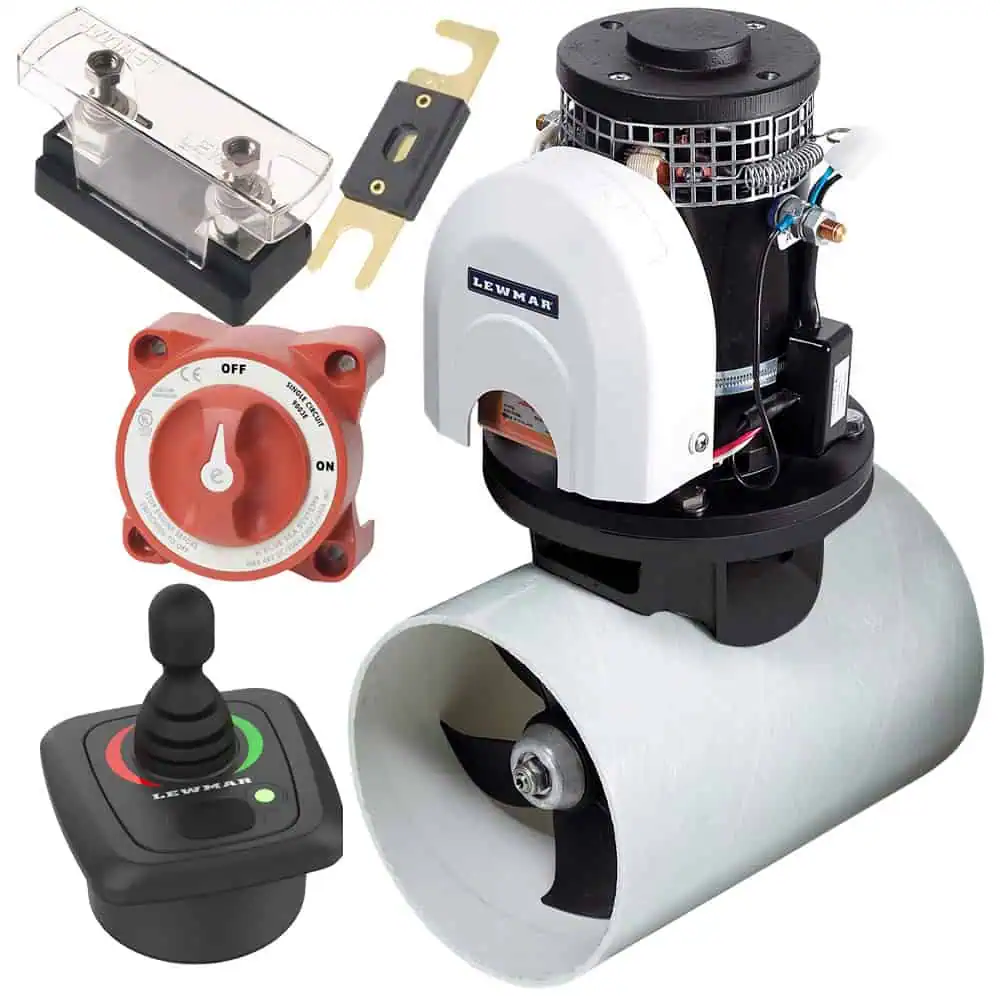

590114: 4.0kW 185TT with GEN2 Joystick control

New composite Motor gearbox

  • Sleek hydro-dynamic design
  • Thick strong sections over stainless steel body
  • Same installation method
  • Same cassette seal meaning maintenance free
  • No need for an anode

Features

  • No reservoir to install, no leaks and no maintenance
  • High performance 5 blade propellers give equal thrust in both directions
  • High integrity seal
  • Spline driven propeller, no drive pin required
  • Blue box electronics prevents misuse and protects motor (140TT)
  • Black box electronics prevents misuse and protects motor (185TT)
  • Hardened and ground spiral bevel gear for maximum efficiency and quiet power transmission
  • Self resetting thermal protection on all motors
  • Choice of Joystick or Touch Panel controls
  • Easy plug together switch connections
  • Minimum silhouette hub for smooth water flow

Specifications

Model 110TT 1.5 kW 140TT 2.2 kW 185TT 3.0 kW 185TT 4.0 kW
Voltage 12v 12v 12v 12v
Power  1.5 kW 2.2 kW 3.0 kW 4.0 kW
Tunnel 110 mm 140 mm 185 mm 185 mm
Thrust 62 lbs 92 lbs 128 lbs 143 lbs
Weight 10 KG 13 KG 20 KG 20 KG
Current Draw 230 A 280 A 330 A 470 A
Fuse Rating 200 A 200 A 250 A 400 A
A 123 mm 123 mm 148 mm 148 mm
B 208 mm 235 mm 293 mm 293 mm
C 110 mm 140 mm 185 mm 185 mm
D 64 mm 71 mm 83 mm 83 mm



Please note: These do not come with GRP tunnels.

Part Number
Colour
Port Solent
Warehouse
99435424
1.5kW - 110TT - Joystick
0
1
99435431
2.2kW - 140TT - Joystick Gen 2
0
1
99435448
3.0kW - 185TT - Joystick Gen 2
0
0
99435455
4.0kW - 185TT - Joystick Gen 2
0
0
