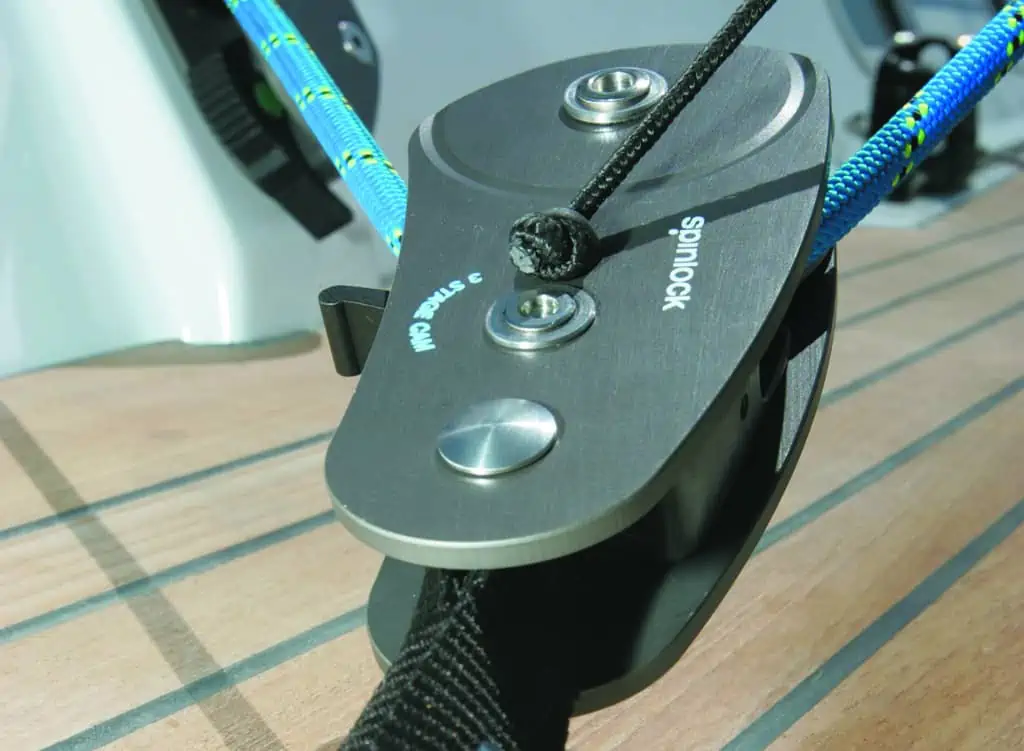

Spinlock BRS Spinnaker Block

£ 89.95 - £ 129.95

Clear

Spinlock’s BRS Spinnaker Block is designed for situations where a fixed foot block can’t help: peeling spinnakers, or changing a sheet winch

Key Features

  • Controlled spinnaker handling
  • Attached with webbing strop, positioned on a toe rail or padeye
  • No drilling and no clutter on deck
  • Plain bearing sheave provides smooth running at low loads
  • Excellent durability at high loads
  • Strop allows fullest rotation for spinnaker sheet use
  • CAM has three distinct operating modes

Specifications

  BRS/50 (50mm) BRS/63 (63mm)
Sheave Diamete / Type 50mm (2″) composite 63mm (2 1/2″) alloy
SWL Sheave 800kg (1760lbs) 1200kg (2640lbs)
Safe Cam Load 160kg (352lbs) 240kg (528lbs)
Line Diameter 6-10mm (1/4-3/8″) 8-12mm (5/16-1/2)
Weight 250g (8.8oz) 365g (12.8oz)
Fasteners Required Soft fastening Soft fastening
Part Number
Size
Port Solent
Warehouse
11711
50mm
1
1
02981
63mm
1
0
