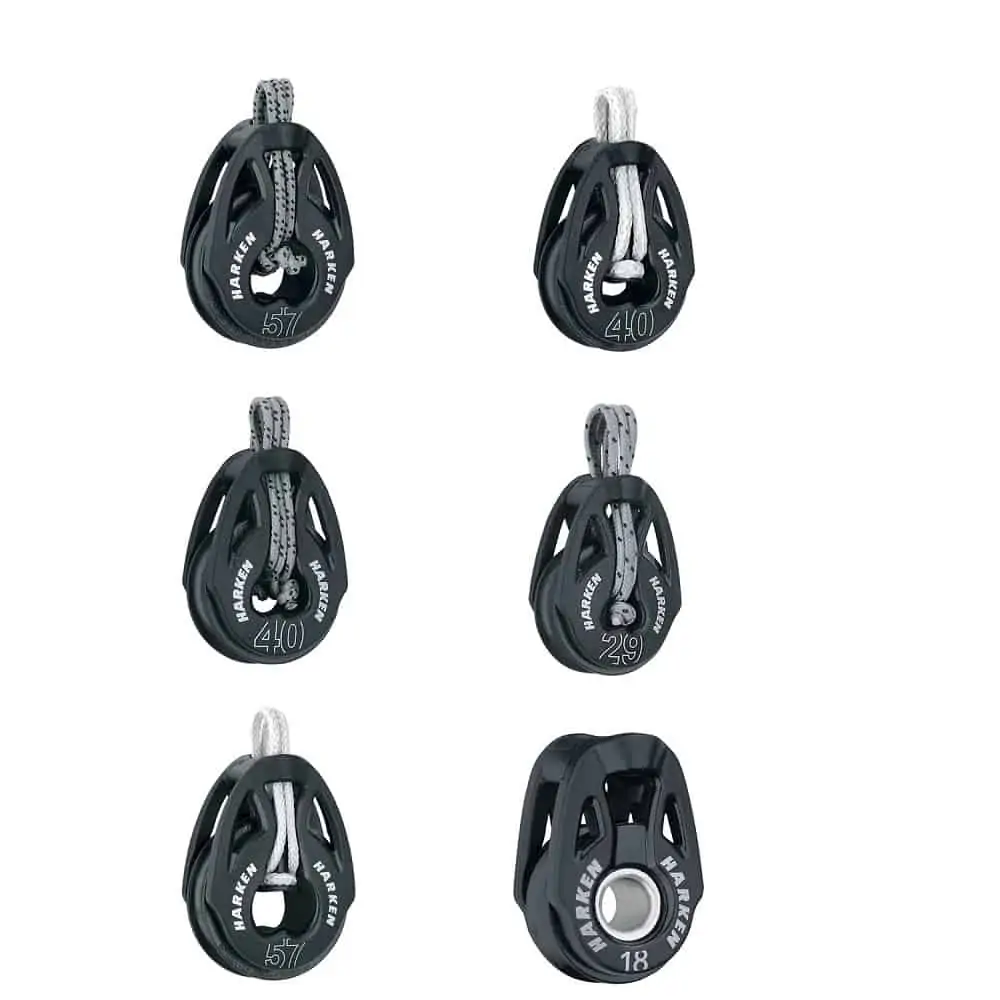

Harken T2 Soft-Attach Carbo Blocks

Click on an image to display a larger detailed image.


Harken T2 Soft-Attach Carbo Blocks


RRP £23.17







Harken offers these patented, high-strength, soft-attach blocks in 18 to 57mm sizes. The 18mm block features stainless steel ball bearings and an integrated stainless inner race and rivet for optimal strength-to-weight. The 29, 40, and 57mm blocks feature composite sheaves that spin freely on Delrin ball bearings with curved bearing races. They have no metal shackles or rivets, making them the lightest soft-attach blocks Harken has ever designed.

All T2 blocks are lashed or spliced through the load-bearing center of the block, decreasing the loads on the sideplates and acting as a safety backup for the system. Use for traveler controls, mainsheets and vangs, cascades, bridles, and other systems where small lightweight blocks are called for.

T2 Blocks
T2 single blocks can be tied, spliced, or lashed to almost anything. They keep the block aligned correctly by pushing the lashing line to the outer edges of the block's head. A length of Spectra line with a polyester cover is included.

T2 Loop Blocks
The T2 Loop block's on/off loop system slides through the block head and over the anchor post for a secure connection. A SK75 Dyneema loop is included.

T2 18mm Blocks
The T18 complements the T2 line. At 7.2 g (.25 oz), it ties, splices, lashes anywhere — perfect for downhauls, outhauls, and other lightweight control systems on dinghies, skiffs, and beachcats.

Sheave ∅   Length  | Weight  | Maximum Line ∅  | Maximum Working Load  | Breaking Load  | Loop
18mm   28mm   7.2g   5mm   125kg   450kg   N/A
29mm   43mm   12g   8mm   150kg   454kg   N/A
40mm   57mm   25g   10mm   220kg   544kg   N/A
40mm (Loop)   57mm   26g   10mm   220kg   544kg   2154
57mm   79mm   57g   11mm   359kg   1080kg   N/A
57mm (Loop)   79mm   59g   11mm   359kg   1080kg   2155
Size/TypePart NumberStock AvailabilityPrice
18mm / T299326975 0 at 23/09 01:04 £17.95 Add to Basket
29mm / T299351762 3 at 23/09 01:04 £21.95 Add to Basket
40mm / T299326951 5 at 23/09 01:04 £32.95 Add to Basket
40mm / T2 Loop99334499 2 at 23/09 01:04 £36.95 Add to Basket
57mm / T299326968 4 at 23/09 01:04 £40.95 Add to Basket
57mm / T2 Loop99334505 1 at 23/09 01:04 £45.95 Add to Basket
